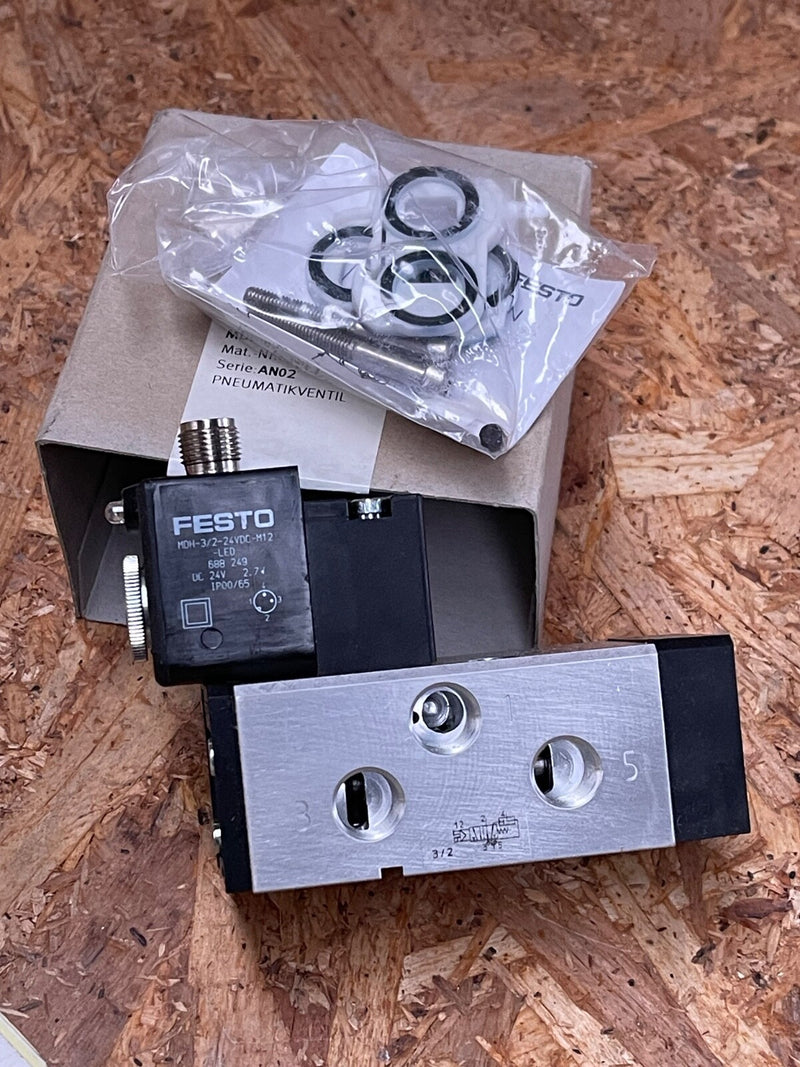

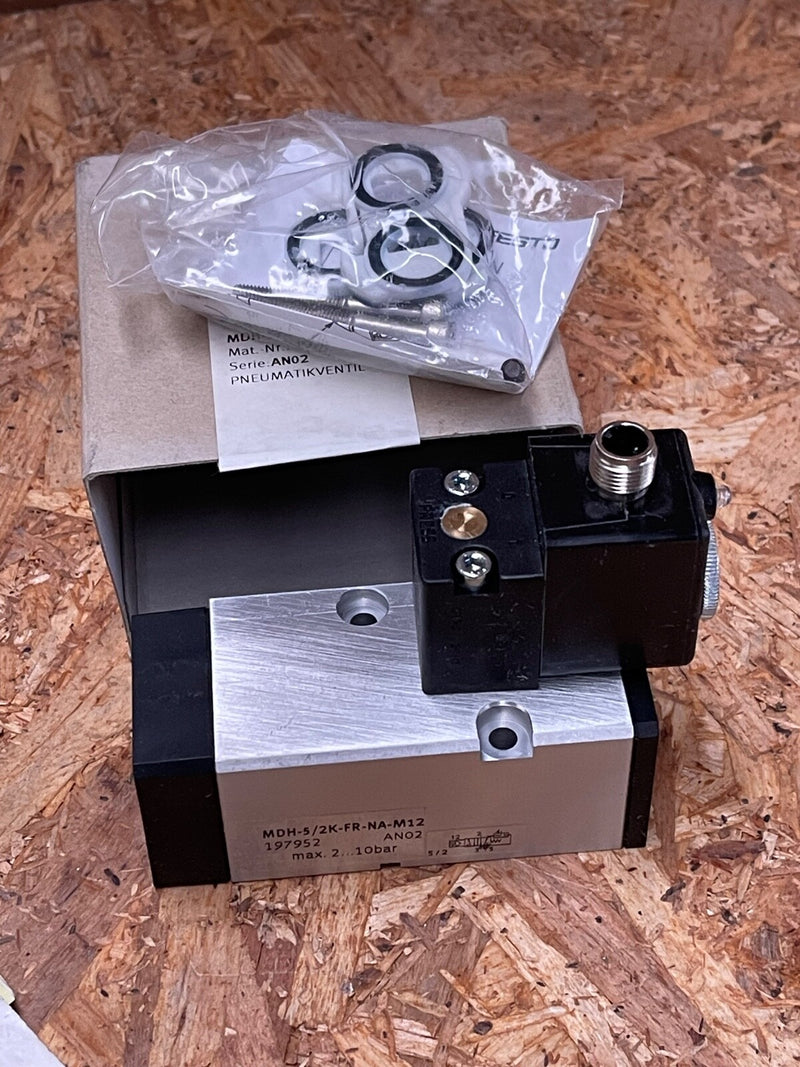

The Festo MDH-5/2K-FR-NA-M12 is a compact 5/2-way solenoid valve designed for precise control in pneumatic systems. Featuring a monostable function with a mechanical spring return, this valve ensures reliable switching operations. Its M12 electrical connector allows for easy integration into automation setups. The valve’s robust construction and IP65 protection rating make it suitable for various industrial applications.

Key Features:

Model: MDH-5/2K-FR-NA-M12
Brand: Festo
Valve Function: 5/2-way, monostable (spring return)
Actuation Type: Electrical
Operating Voltage: 24 V DC
Electrical Connection: M12 connector
Standard Nominal Flow Rate: Up to 1,200 l/min
Operating Pressure Range: –0.9 to 16 bar
Design Structure: Piston slide
Reset Type: Mechanical spring
Protection Class: IP65
Sealing Principle: Soft sealing
Mounting Position: Any
Ambient Temperature Range: –10 °C to +50 °C
Housing Material: Die-cast aluminium
Seal Material: NBR
Applications: Ideal for use in industrial automation, packaging machinery, and other pneumatic control systems.
