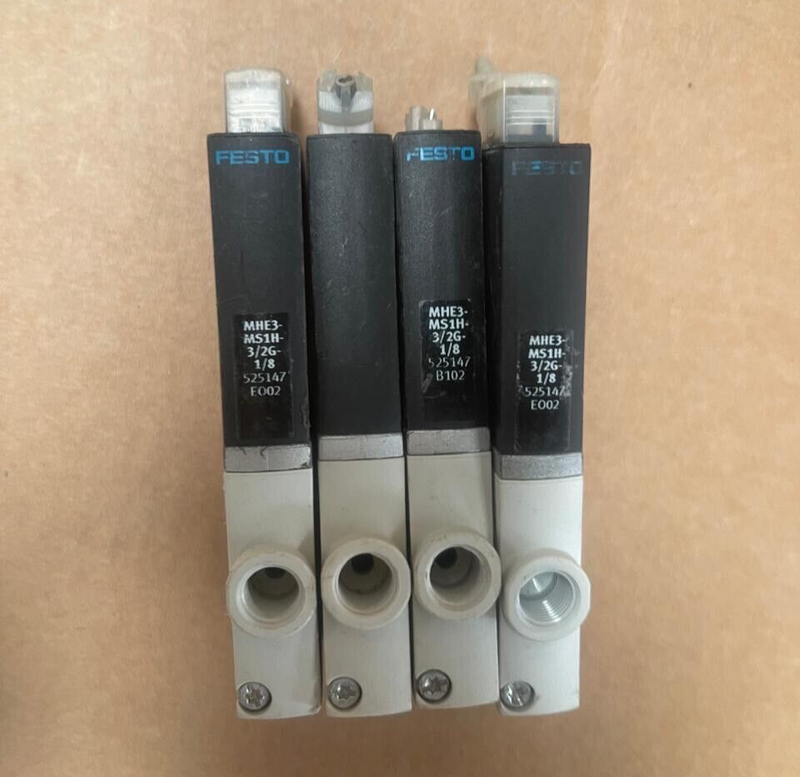

The Festo MHE3-MS1H-3/2G-1/8 is a compact 3/2-way solenoid valve designed for rapid and reliable control of pneumatic actuators and systems. With a monostable, normally closed configuration, this valve ensures precise operation in various industrial automation applications. Its 14 mm width allows for space-saving installation, making it suitable for systems where space is at a premium. The valve offers a standard nominal flow rate of 200 l/min, ensuring efficient airflow for optimal performance. It features G1/8” pneumatic ports, facilitating easy integration into existing setups. The MHE3-MS1H-3/2G-1/8 is electrically actuated and includes a mechanical spring for reset, ensuring consistent and dependable operation. Its robust design and high switching frequency capability make it ideal for demanding industrial environments. For detailed technical information and installation guidelines, please refer to the official Festo documentation or contact their technical support.

Technical Specifications:

• Valve Function: 3/2-way, normally closed, monostable

• Actuation Type: Electrical

• Width: 14 mm

• Standard Nominal Flow Rate: 200 l/min

• Pneumatic Working Ports: G1/8

• Operating Pressure: -0.09 MPa to 0.8 MPa

• Reset Method: Mechanical spring

• Protection Class: IP65

• Nominal Size: 3 mm

• Switching Frequency: Up to 280 Hz

• Switching Time On: Approximately 2.3 ms

• Switching Time Off: Approximately 2.8 ms

• Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]

• Ambient Temperature Range: -5°C to +60°C

• Product Weight: Approximately 120 g

Festo - MHE3-MS1H-3/2G-1/8 - 3/2-Way Solenoid Valve - 525147
