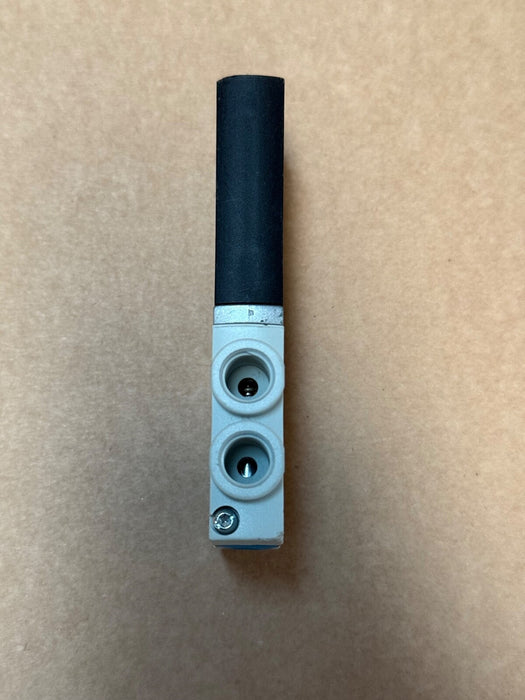

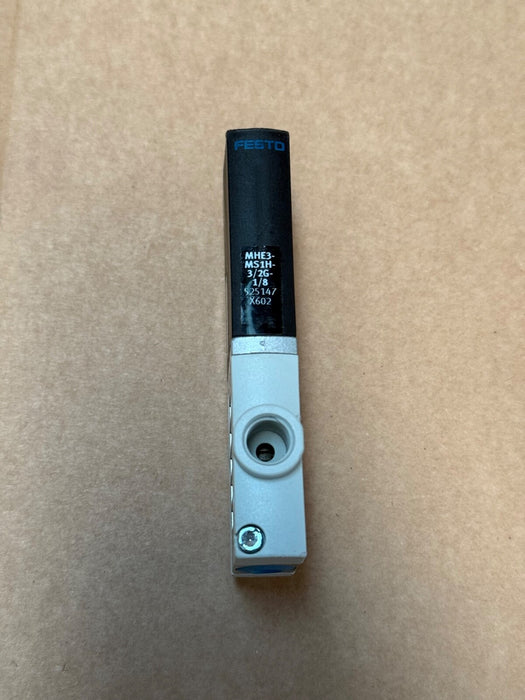

Festo – MHE3‑MS1H‑3/2G‑1/8 (P/N 525147) – Fast-Switching 3/2 Way Solenoid Valve

The Festo MHE3‑MS1H‑3/2G‑1/8 (Part Number 525147) is a compact fast-switching solenoid valve featuring direct-acting poppet technology. With lightning-fast response and high repeatability, it is engineered for precise control in automated pneumatic systems. It’s housed in a robust die-cast zinc body, designed for direct mounting or manifold integration.

Key Features:

• Model: MHE3‑MS1H‑3/2G‑1/8 (Festo P/N 525147)

• Function: 3 ports, 2 positions, closed center (monostable)

• Nominal Size: 3 mm (width 14 mm)

• Flow Rate: 200 L/min (standard conditions)

• Pressure Range: −0.9 to 8 bar

• Voltage: 24 V DC (plug-in coil)

• Switching Time: ≤ 3 ms (fast-switching electronics)

• Housing: Die-cast zinc, galvanised steel trim; IP65 protection

• Temperature Range: −5 °C to +60 °C

• Port Connection: G 1/8 thread

• Mounting: Individual or manifold
