The Festo SDE3-V1Z-B-HQ4-2P-M8 (540199) is a compact vacuum pressure sensor designed for precise monitoring of negative pressure in pneumatic systems. Utilizing piezoresistive sensing technology, it offers accurate measurements and features an integrated LCD display for easy readability. With two programmable PNP switching outputs and a robust design, this sensor is ideal for various industrial automation applications.

Key Features:

Model: SDE3-V1Z-B-HQ4-2P-M8
Brand: Festo
MPN: 540199
Measured Parameter: Vacuum pressure (differential)
Measurement Range: -1 to 0 bar
Sensing Technology: Piezoresistive with integrated display
Outputs: 2x PNP switching outputs
Output Function: Freely programmable (light/dark switching)
Switching Element Function: Switchable
Reproducibility: ±0.3 %
Accuracy: ±2 % of full scale
Operating Voltage: 15–30 V DC
Max. Output Current: 100 mA
Electrical Connection: M8x1, 4-pin plug (EN 60947-5-2)
Pneumatic Connection: QS-4 (4 mm push-in fitting)
Display: Illuminated LCD with yellow switching status indicator
Adjustment Options: Teach-in, PIN code protection
Housing Material: PC, PA reinforced
Protection Rating: IP65
Ambient/Media Temperature: 0 to +50 °C
Mounting: Throughway bores or slot rail
Installation Position: Any
Compliance: CE, RoHS, c UL us Recognized
Weight: 60 g
Applications: Ideal for monitoring vacuum levels in pneumatic systems, ensuring reliable operation in automation, packaging, and material handling applications

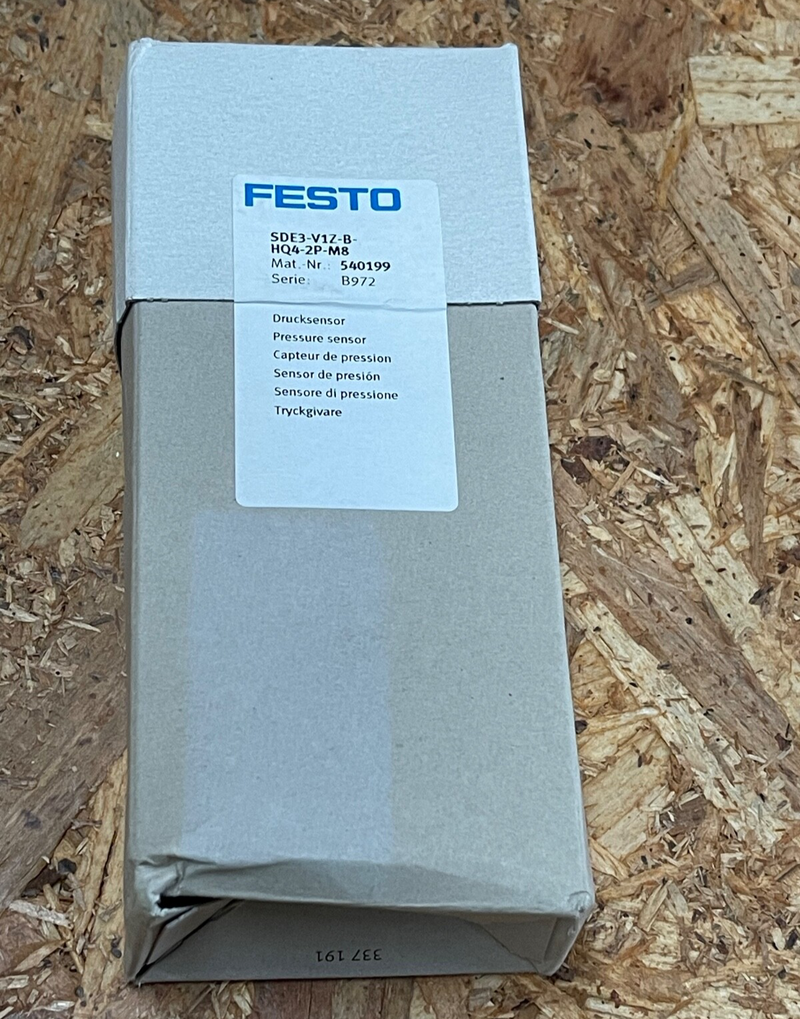

Festo - SDE3-V1Z-B-HQ4-2P-M8 (540199) - Vacuum Pressure Sensor, -1 to 0 bar
