The Festo SFAH‑200U‑Q8S‑PNLK‑PNVBA‑M8 (P/N 8058478) is an industrial-grade thermal mass flow sensor/transmitter designed for compressed air or gas monitoring. It measures flow from 4 to 200 L/min and provides dual PNP/NPN switch outputs, analog output options, and full IO‑Link connectivity—ideal for automated pneumatic systems, diagnostic enhancements, and remote monitoring via IIoT.

Key Specifications

Model: SFAH‑200U‑Q8S‑PNLK‑PNVBA‑M8 (8058478)
Flow Range: 4–200 L/min (unidirectional thermal measurement)
Pneumatic Connection: 8 mm push-in fitting (Push‑in Q8)
Switch Outputs:
- Output 1 (PNLK): PNP/NPN/IO‑Link
- Output 2 (PNVBA): PNP/NPN or analog 0–10 V, 1–5 V, or 4–20 mA
Electrical Connection: M8 A-coded connector with IO‑Link capability
Media Capability: Compressed air (ISO 8573‑1:2010) and gases like nitrogen or argon
Operating Conditions: 0–10 bar pressure; 0–50 °C ambient
Communication: IO‑Link Device V1.1 with diagnostic data, teach-in, and linearized variable (PDV)
Housing: PA‑reinforced; compact, ~60 g
Accuracy & Response: ±(2 % o.m.v. + 1 % FS); repeatability 0.8 % FS; temperature drift ~0.15 % FS/K

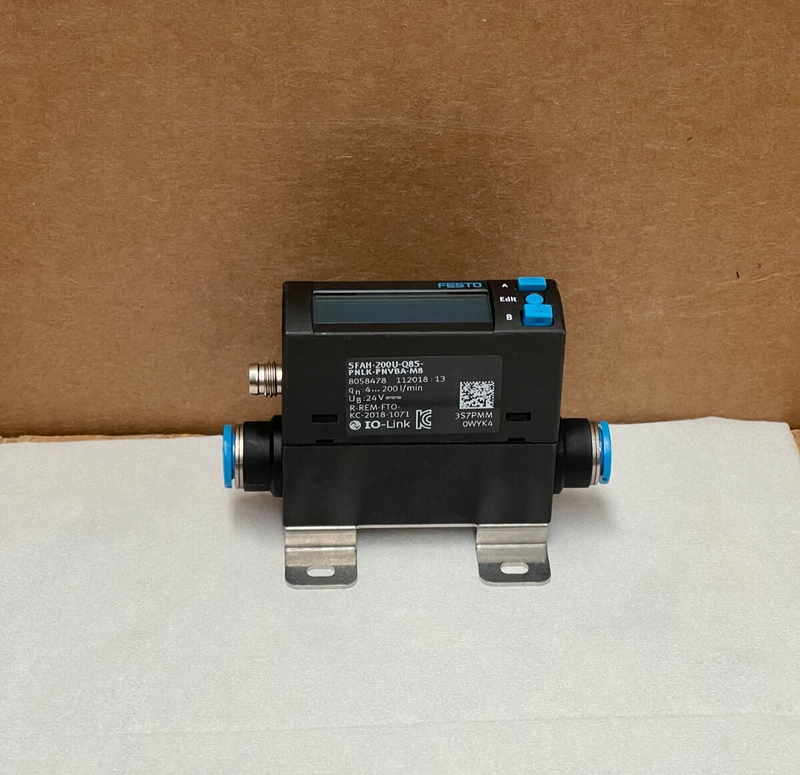

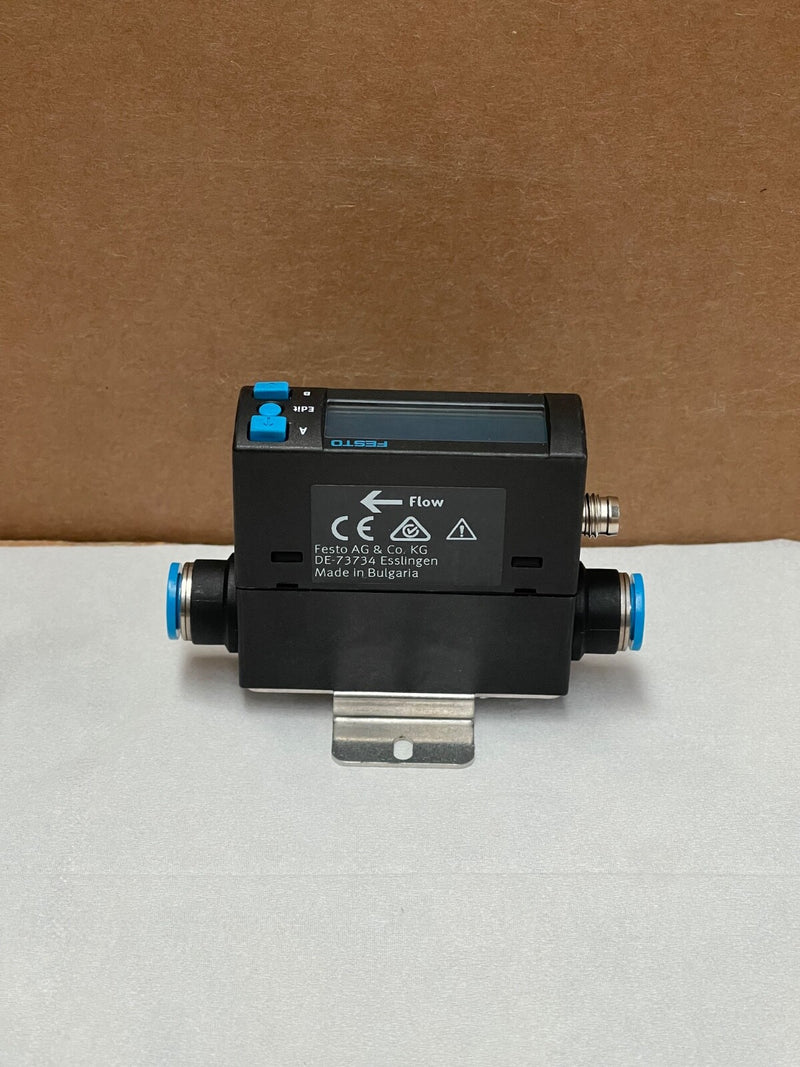

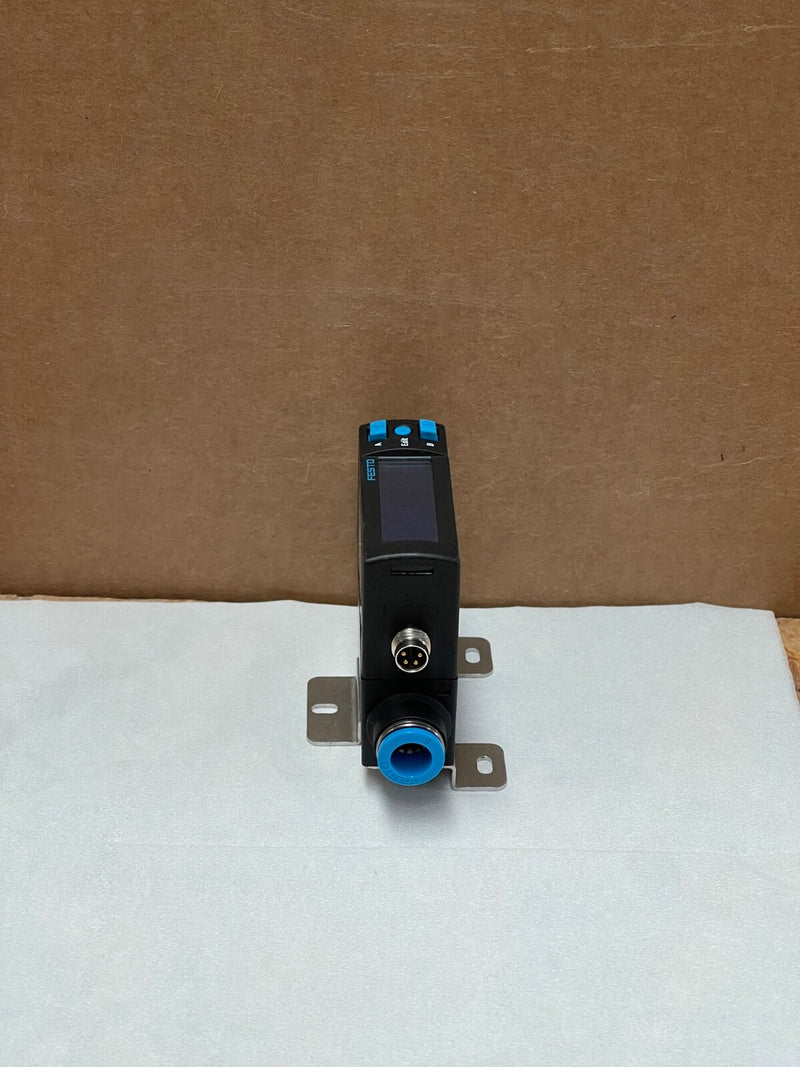

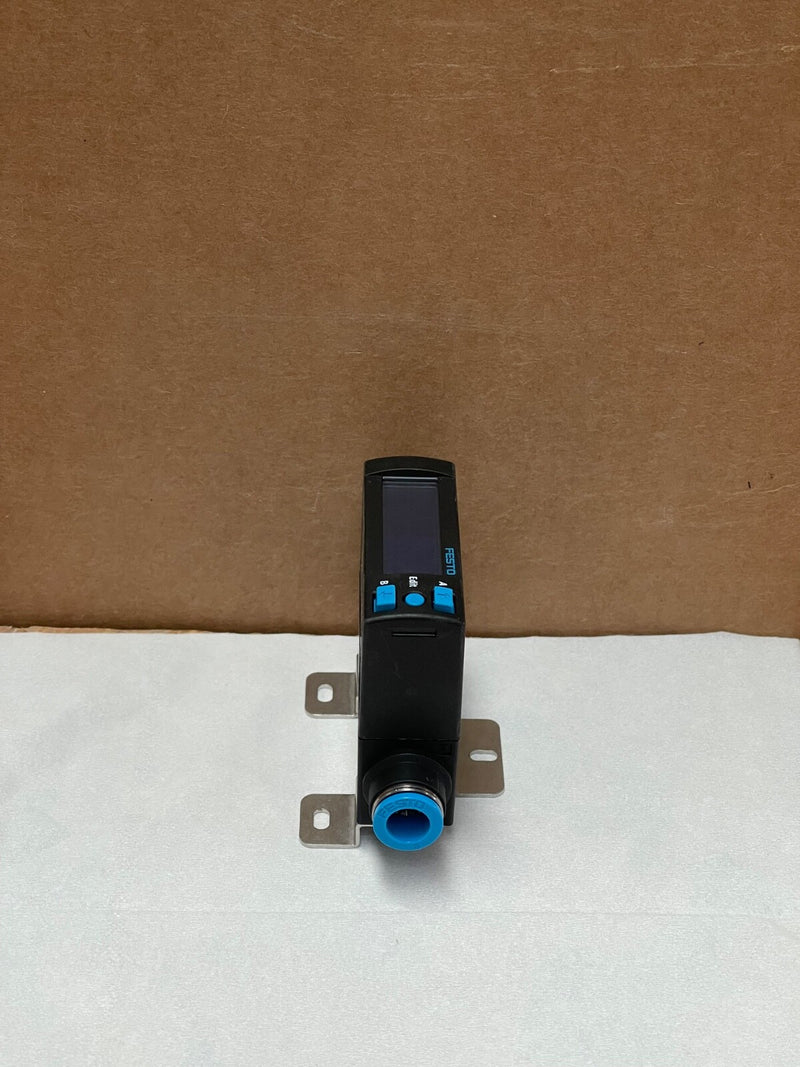

Festo – SFAH-200U-Q8S-PNLK-PNVBA-M8 (8058478) – Thermal Flow Sensor 4-200 L/min
