FGP Sensors – ARD154 – DIN‑Rail Bridge Amplifier, ±10 V / 4–20 mA Output, 24VDC

The FGP Sensors ARD154 is a DIN-rail mountable signal conditioner for strain-gauge bridge sensors. It provides high-accuracy amplification of mV/V signals from load cells, pressure transducers, or torque sensors, with selectable analog outputs (±10 V or 4–20 mA). Calibration is simple via zero and gain trimmers, and its compact housing suits panel-mounted industrial applications.

Key Specifications:

• Model: ARD154

• Supply Voltage: 18 to 30 V DC

• Input Type: mV/V bridge (up to ±300 mV), 350 Ω to 10 kΩ sensors

• Excitation: 5 V or 10 V, selectable

• Output: ±10 V or 4–20 mA analog output, jumper selectable

• Current Consumption: ≤125 mA

• Zero/Gain Adjustment: Manual front-panel trimmers

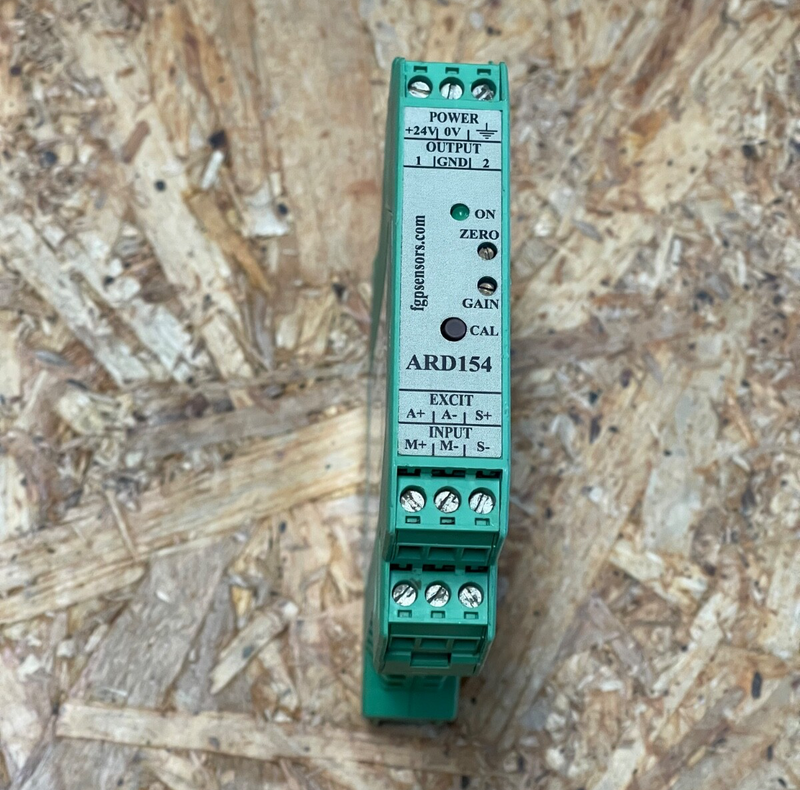

• Terminal Labeling:

  • Power: +24V, 0V

  • Output: 1 (signal), 2 (GND)

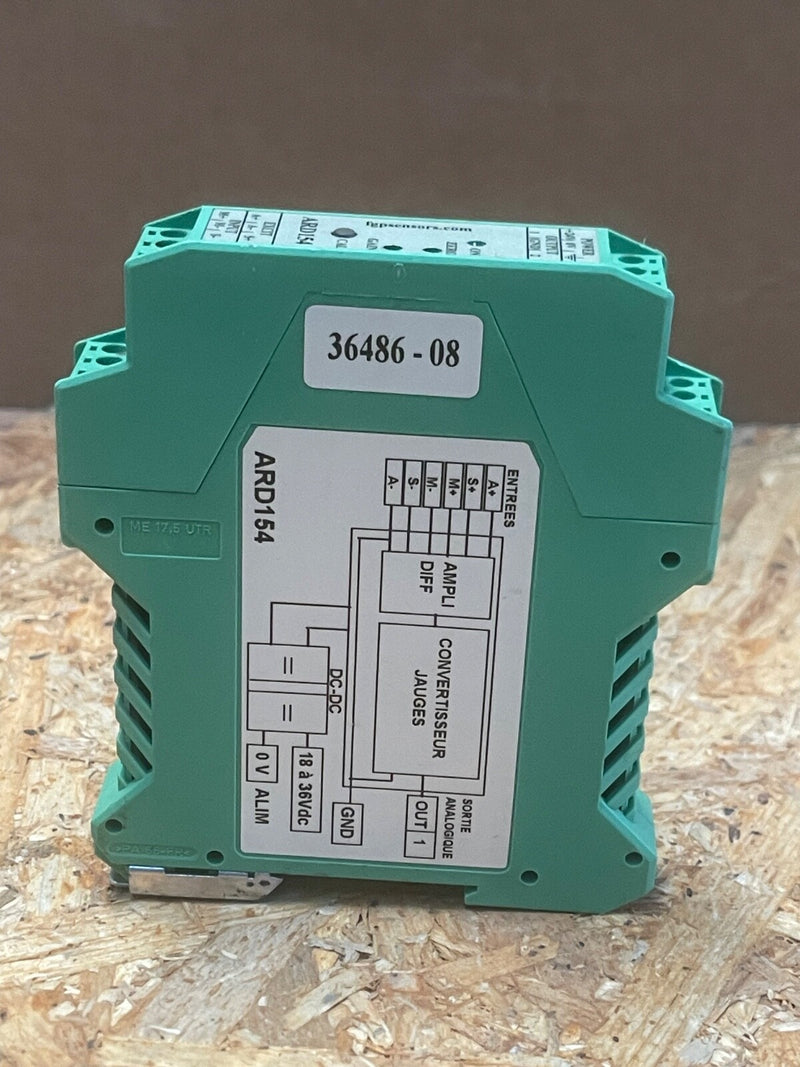

  • Input/Excitation: A+, A−, I+, I−, S+, S− (6-wire bridge compatible)

• Mounting: 35 mm DIN-rail

• Dimensions: 99 × 17.5 × 112 mm

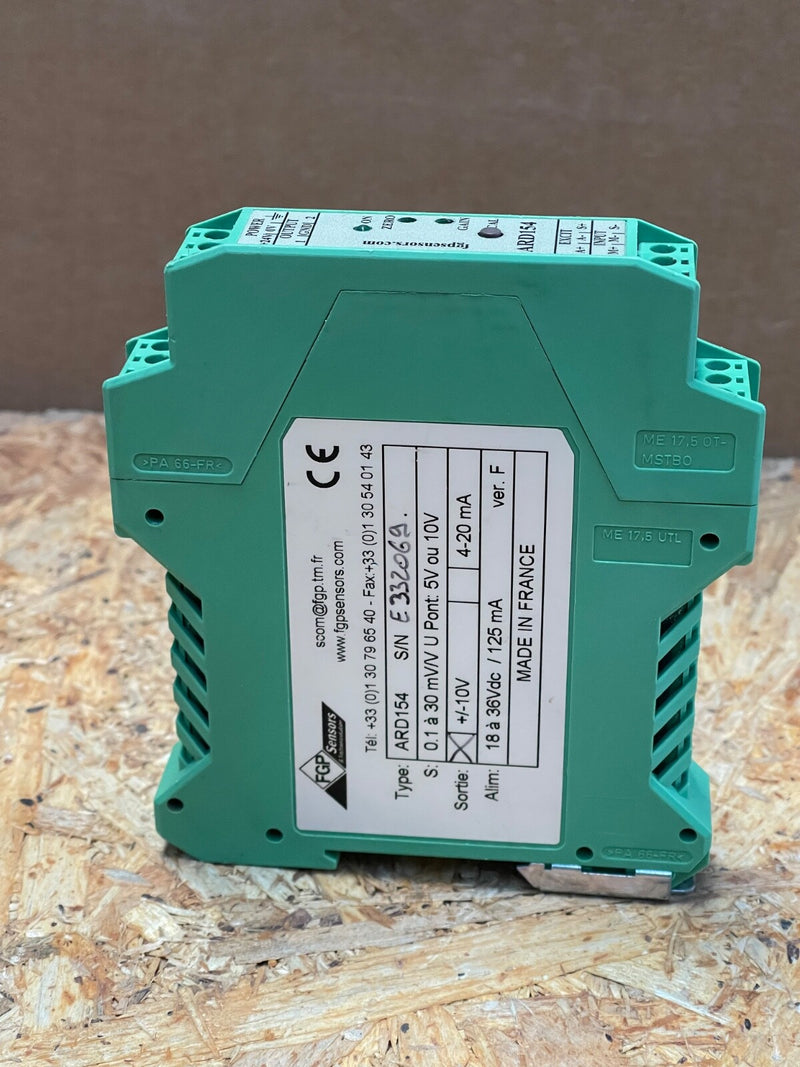

• Made in France by FGP Sensors
