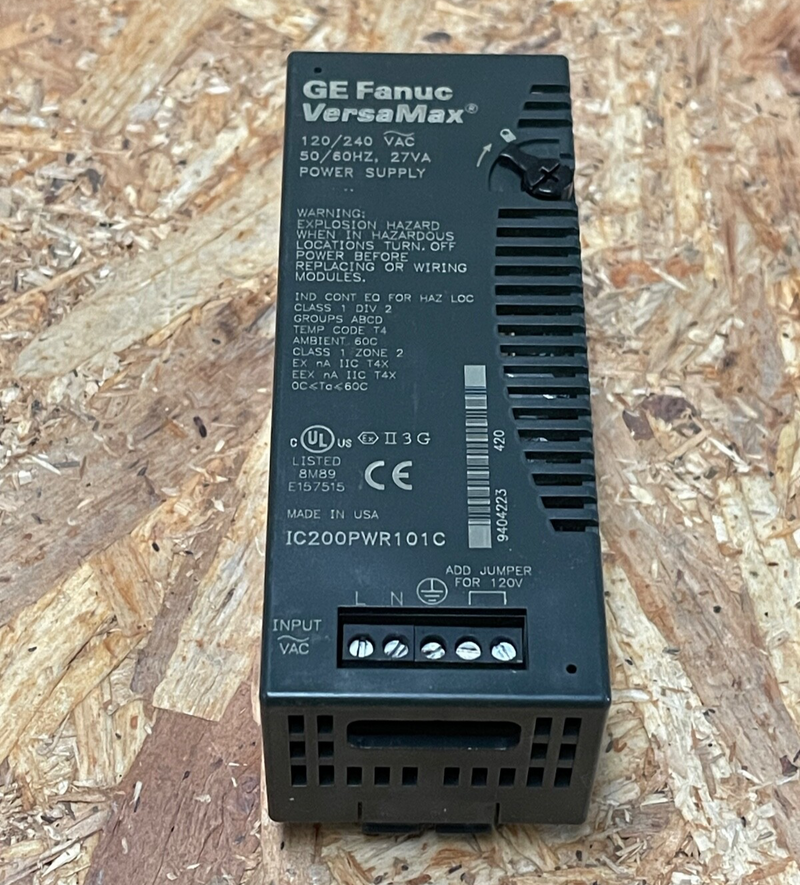

GE Fanuc (Emerson) – IC200PWR101C – VersaMax 120/240 VAC Power Supply Module

The IC200PWR101C is a 120/240 VAC power supply module from GE Fanuc’s VersaMax I/O system. Designed to power CPUs, Network Interface Units (NIUs), and I/O modules, it delivers dual outputs (5 V DC and 3.3 V DC) with sufficient current to support the complete backplane. Equipped with protection features and flexible input options, this module is ideal for reliable operation in compact automation racks.

Key Features:

• Model / Revision: IC200PWR101C (part of the IC200PWR101 family, Series C)

• Input Voltage:

  • 85–132 VAC via jumper (120 V nominal)

  • 176–264 VAC without jumper (240 V nominal)

• Input Power & Frequency: 27 VA, 47–63 Hz

• Hold‑Up Time: ~20 ms

• Outputs:

  • 5 V DC (up to 1.5 A minus 3.3 V current)

  • 3.3 V DC (max 0.25 A)

  • Total combined max current: 1.5 A

• Protection: Short-circuit and overload protection

• Form Factor:

  • Dimensions: 49 × 133.4 × 39 mm (W×H×D)

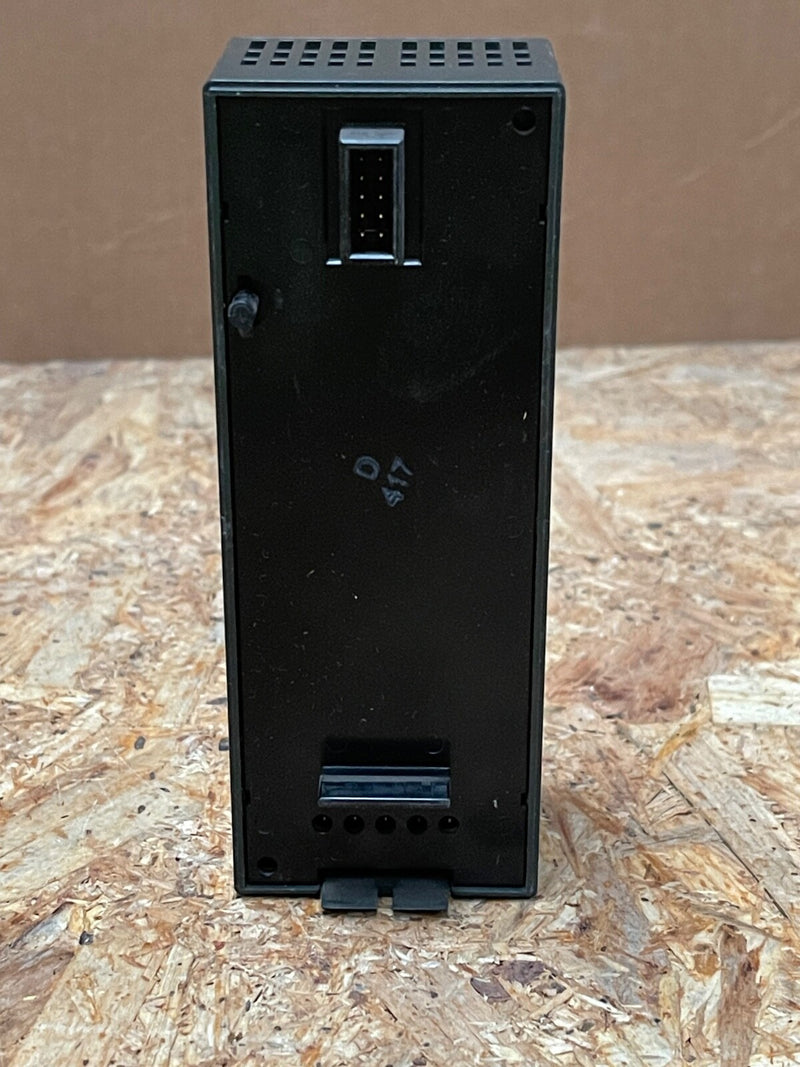

  • DIN-rail mountable, backplane connector

• Role: Can serve as primary or supplemental power supply (via booster carrier)

• Certifications: Rated for Class I Division 2 hazardous locations; supports hot-swap and backplane redundancy
