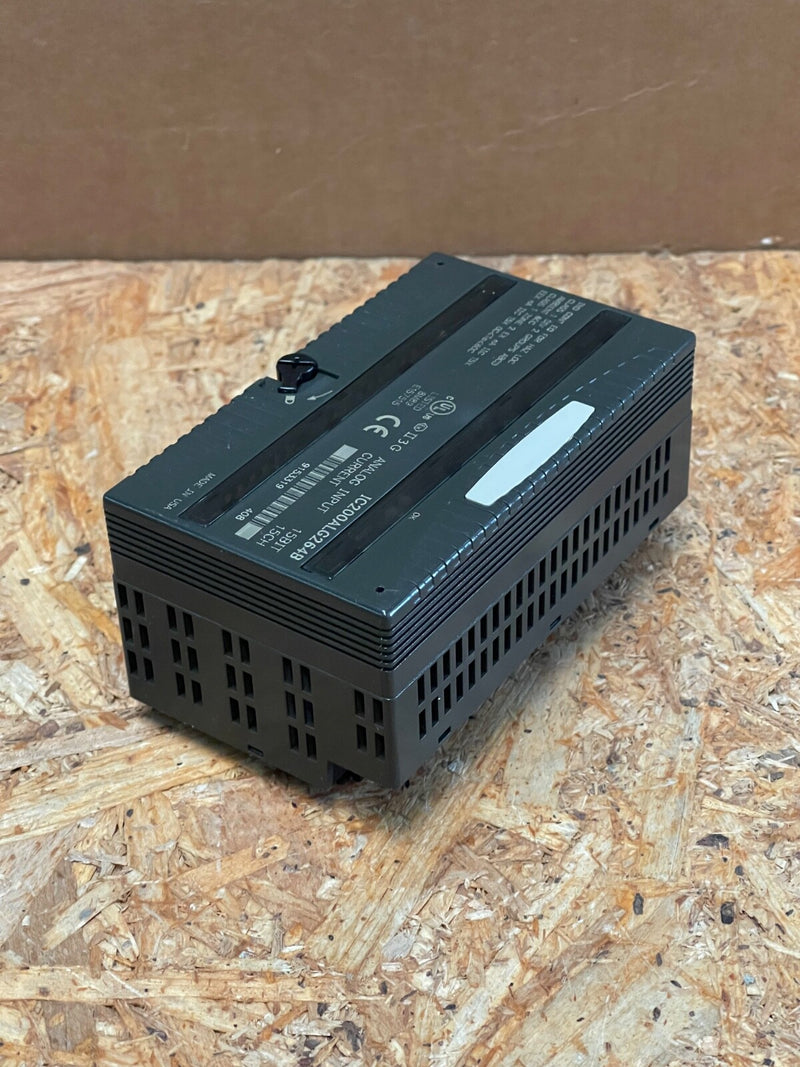

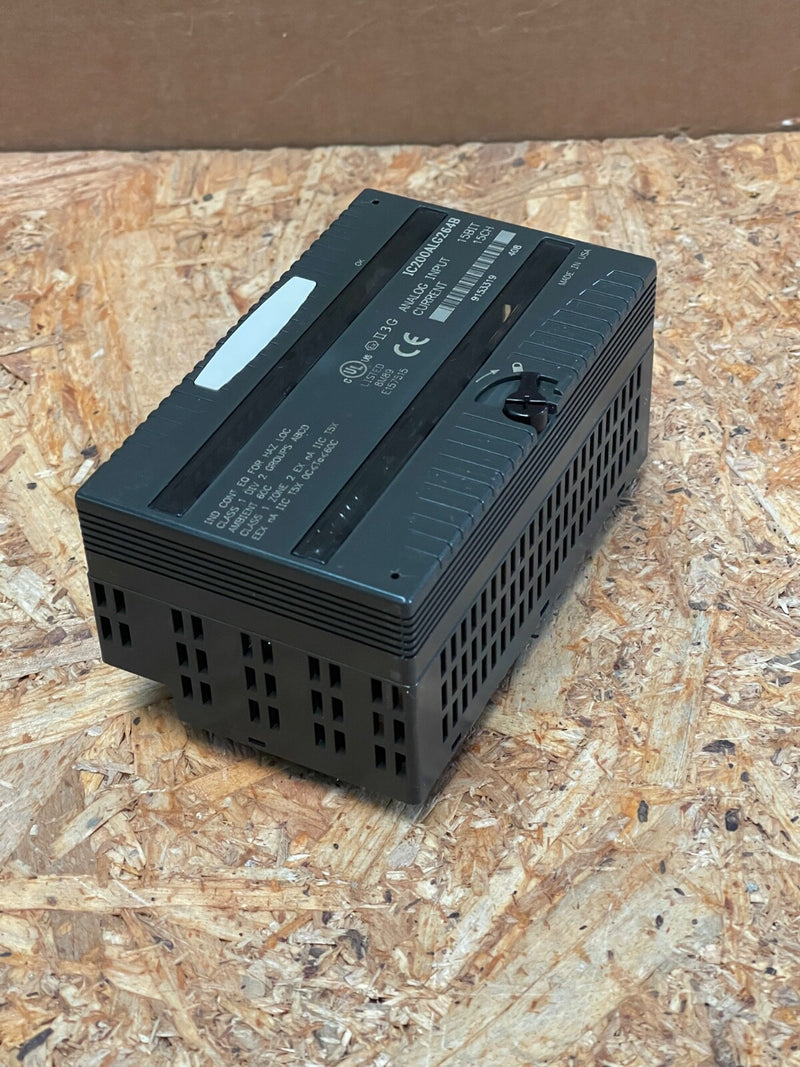

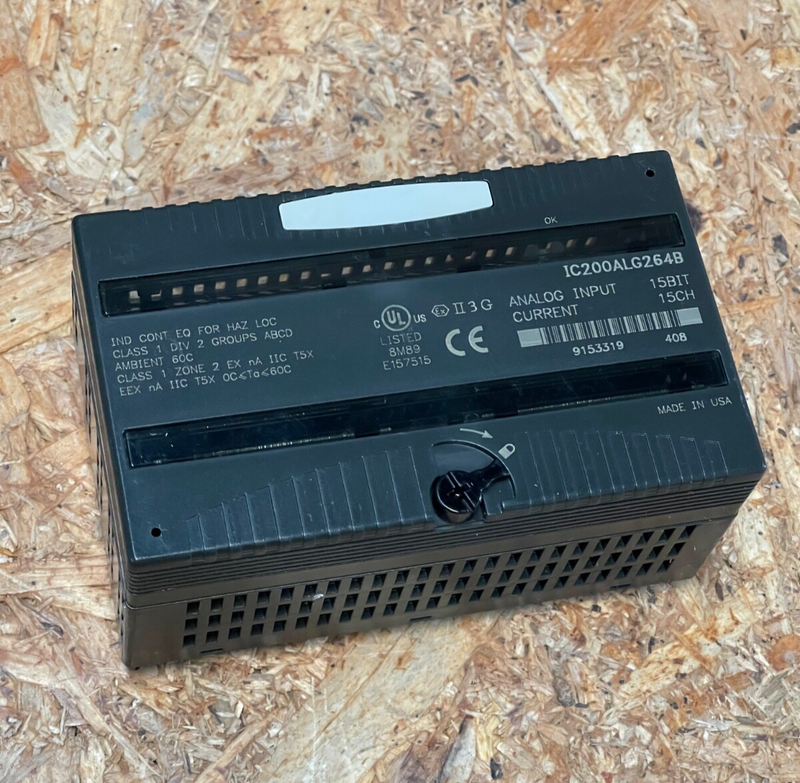

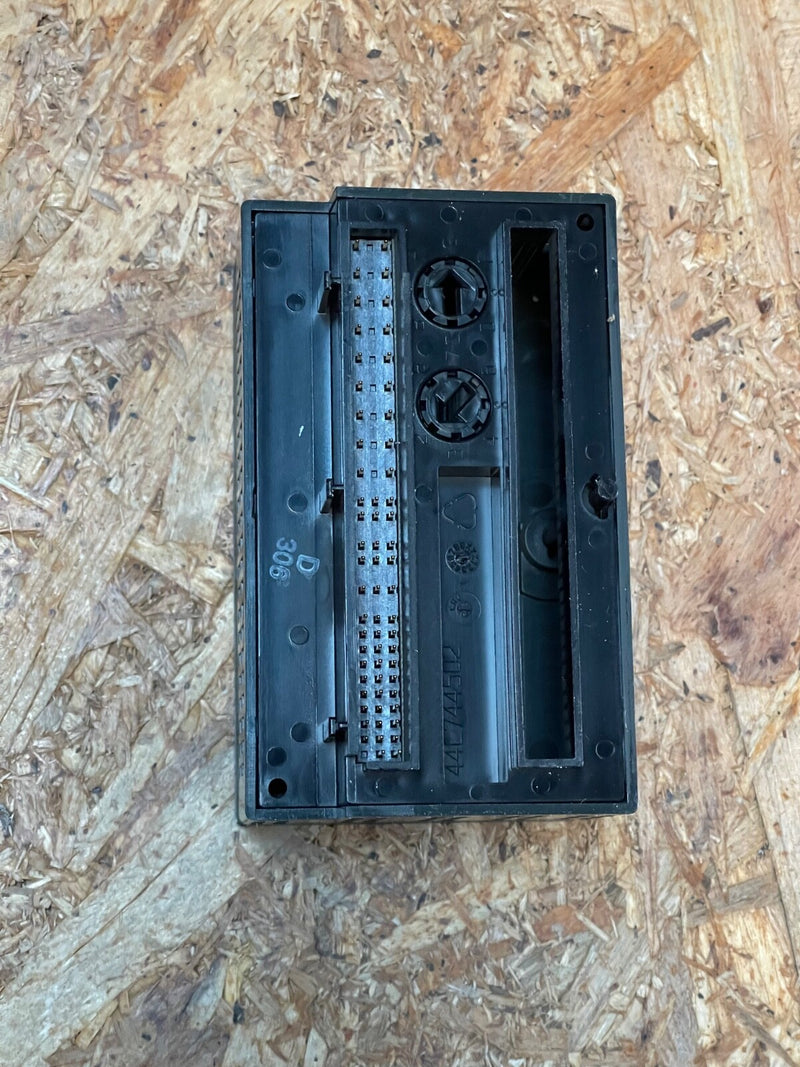

GE Fanuc – IC200ALG264B – VersaMax 15‑Channel 15‑Bit Current Analog Input Rev B

The GE Fanuc IC200ALG264B is a revision-B VersaMax analog input module that supports up to 15 single-ended current channels (4–20 mA or 0–20 mA) with 15-bit resolution. It provides fast sampling, optical isolation, and diagnostics like open-wire detection, ideal for precise industrial process control within VersaMax PLC systems.

Key Features & Technical Specifications:

• Model: IC200ALG264B (VersaMax analog input module, Rev B)

• Channels: 15 single-ended analog current inputs (one group)

• Current Range: 4–20 mA default; jumper-selectable to 0–20 mA

• Resolution: 15-bit (~0.5 µA/count in 4–20 mA range)

• Accuracy: Typical ±0.3 % FS at 25 °C; max ±0.5 % FS @ 25 °C; ±1 % FS over 0–60 °C

• Update Rate: Full module scan in ~7.5 ms

• Isolation: Optical isolation to logic; 250 VAC continuous, 1500 VAC for 1 min

• Diagnostics: Open-wire detection in 4–20 mA mode and Loss-of-Internal-Power fault reporting

• Indicators: Green OK LED confirms backplane and field-side health

• Power Consumption: 5 V backplane @ ≤ 100 mA

• Dimensions: Approx. 110 × 67 × 50 mm (4.3″ × 2.63″ × 2.0″)

• Operating Specs: Industrial temp range up to 60 °C; VersaMax modular build
