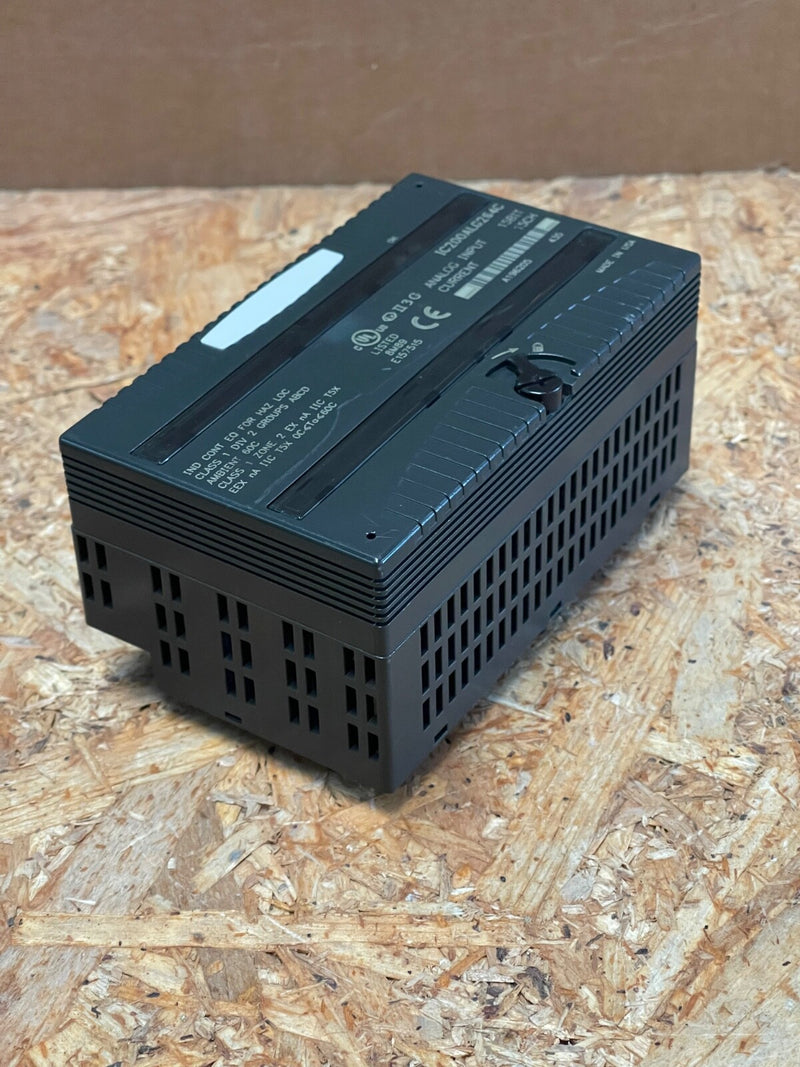

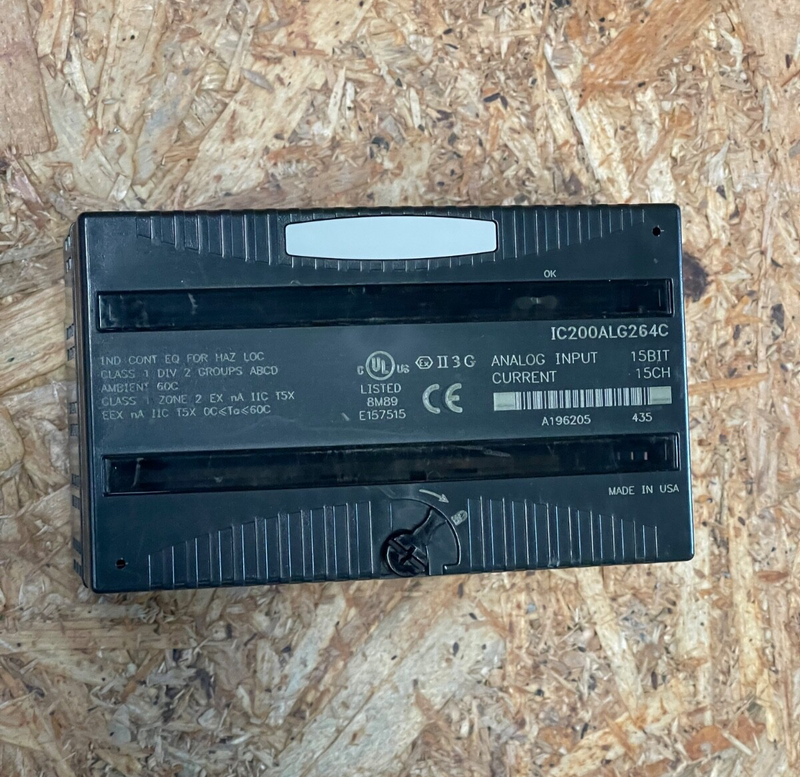

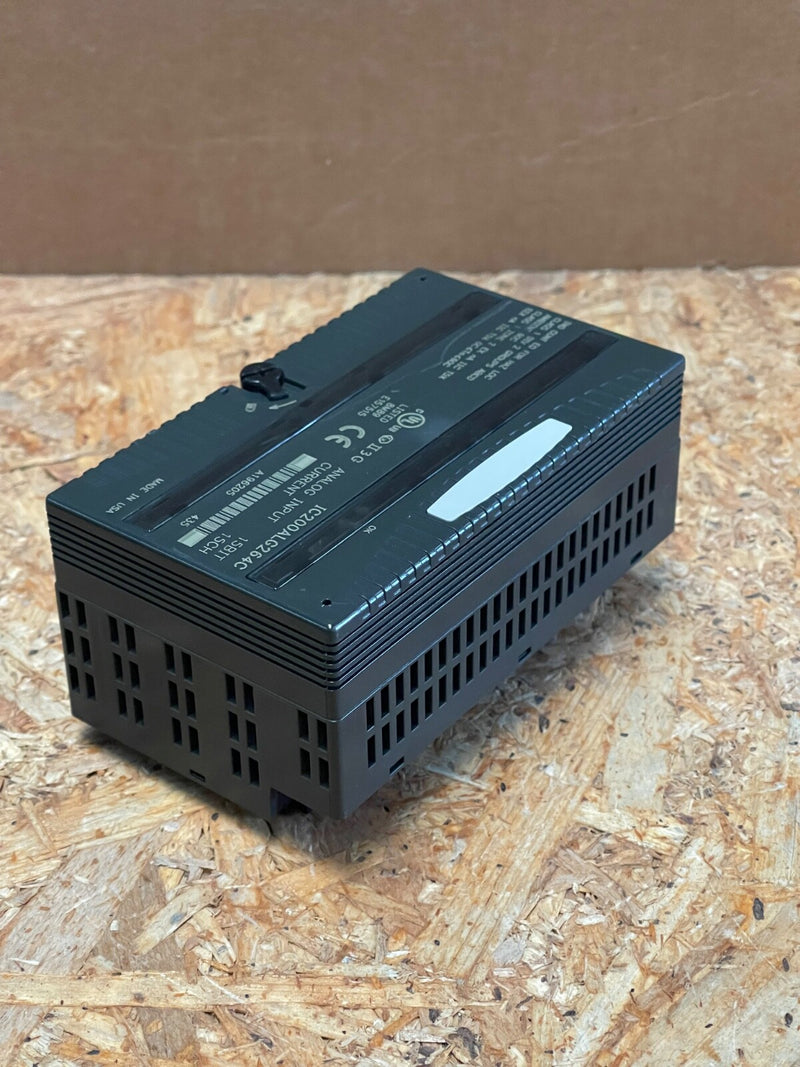

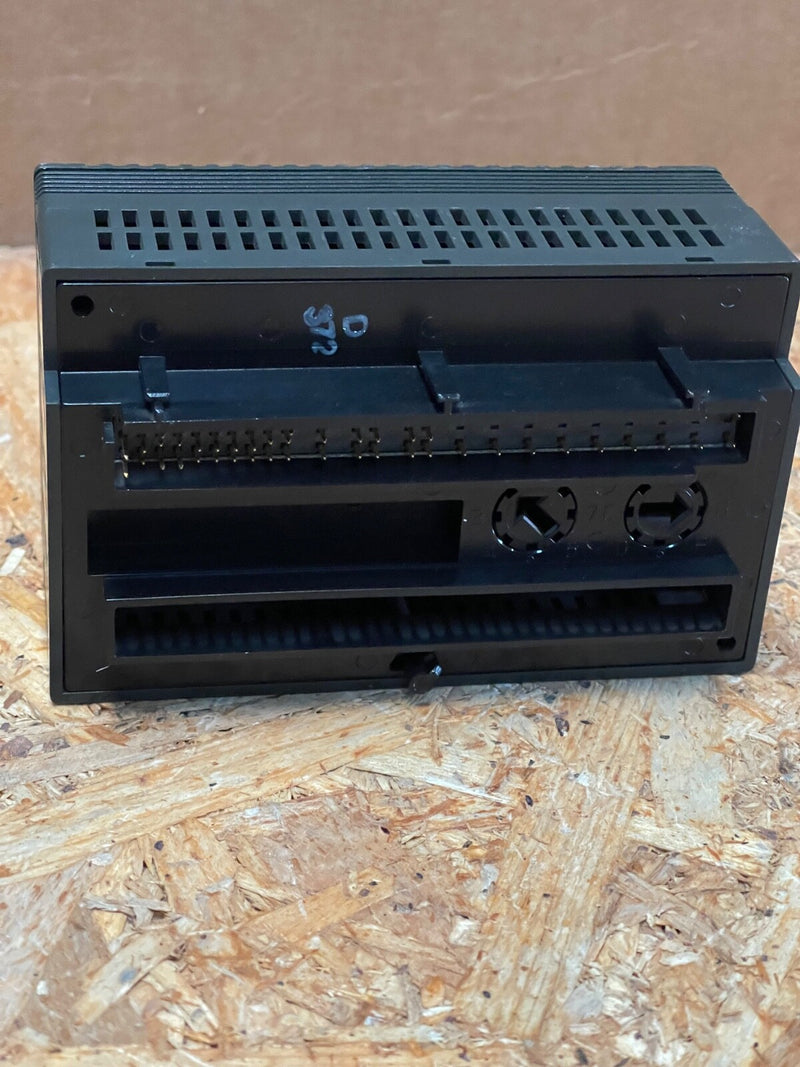

GE Fanuc – IC200ALG264C – VersaMax 15‑Channel 15‑Bit Analog Current Input

The GE Fanuc IC200ALG264C is a compact VersaMax analog input module that accepts 15 single-ended 4–20 mA (or 0–20 mA) current signals with 15-bit resolution. It features fast update rates, diagnostic capabilities, and optical isolation—ideal for industrial automation and process control applications within a VersaMax PLC framework.

Key Features & Technical Specifications:

• Model: IC200ALG264C (VersaMax analog input module)

• Channels: 15 single-ended current input channels grouped together

• Signal Ranges: 4–20 mA or 0–20 mA (switchable via jumper)

• Resolution & Accuracy: 15-bit resolution (~0.5 µA for 4–20 mA); typical accuracy ±0.3 % FS (±0.5 % up to 60 °C)

• Update Rate: Concurrent conversion for all channels in approximately 7.5 ms

• Isolation: Optical isolation between field inputs and logic; 250 VAC continuous, 1500 VAC for 1 min

• Diagnostics: Detects open-wire faults and loss of internal power; green “OK” LED indicates module health

• Power Consumption: 5 V backplane supply, max 100 mA

• Physical & Environmental: Fits one VersaMax rack slot; industrial-grade build; typical operating temp 0–60 °C
