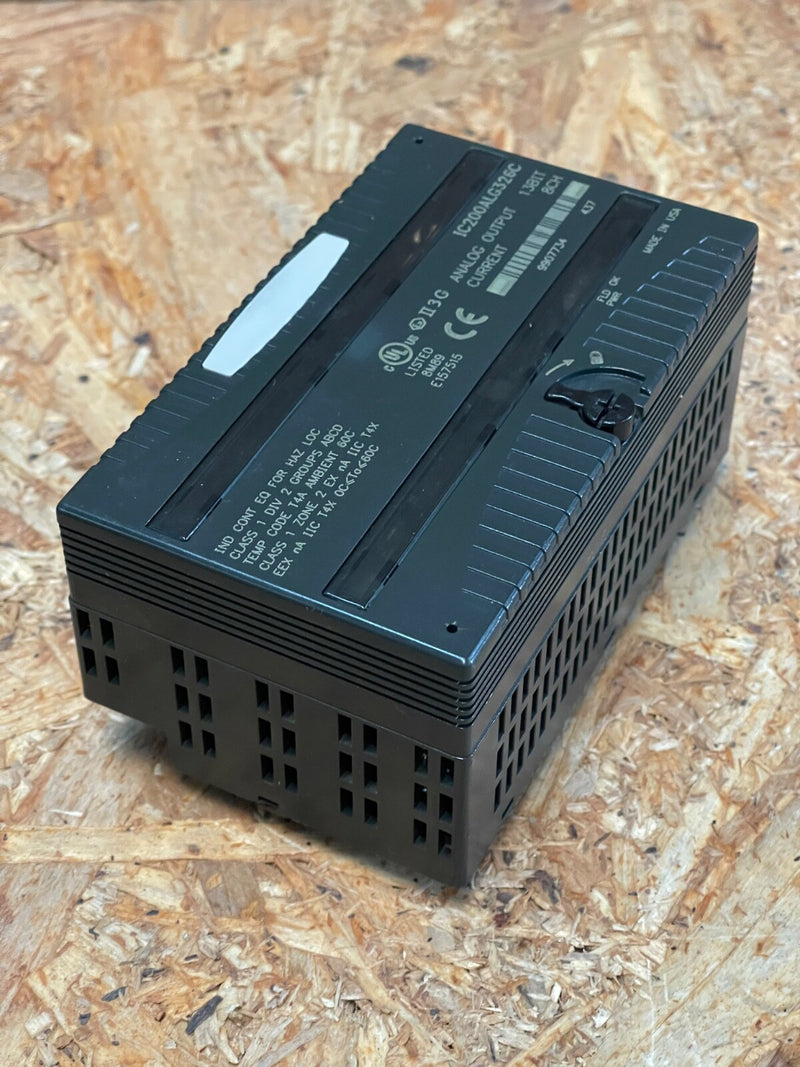

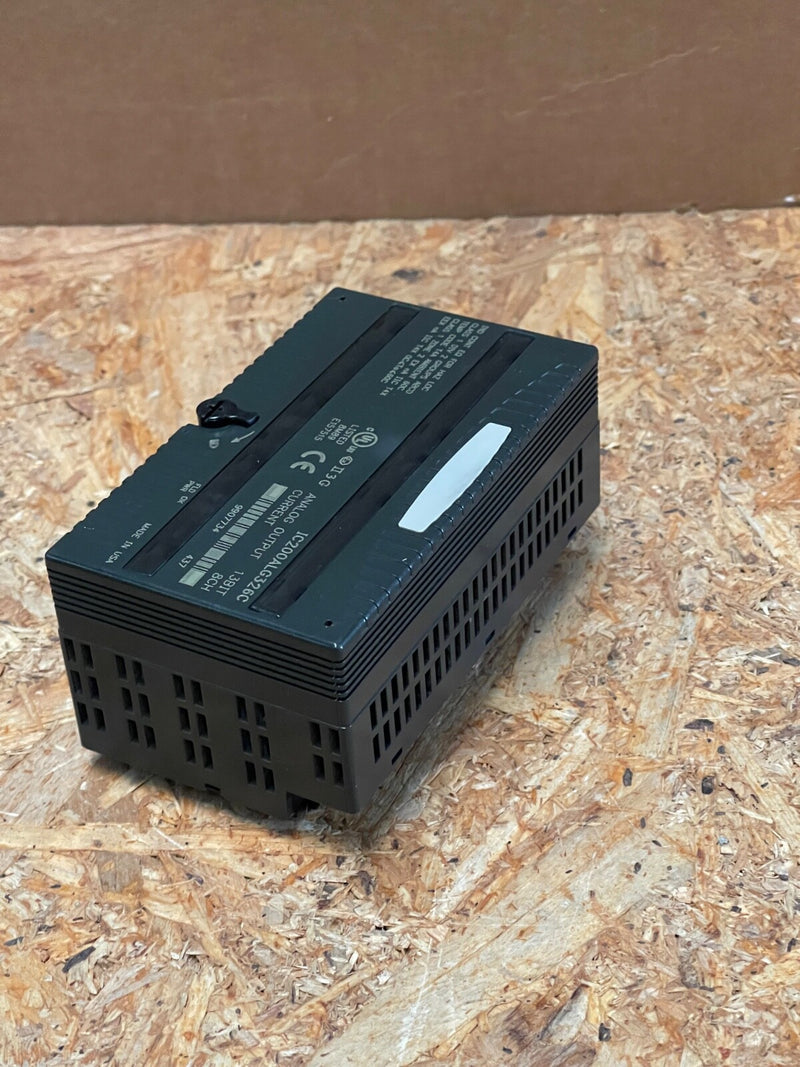

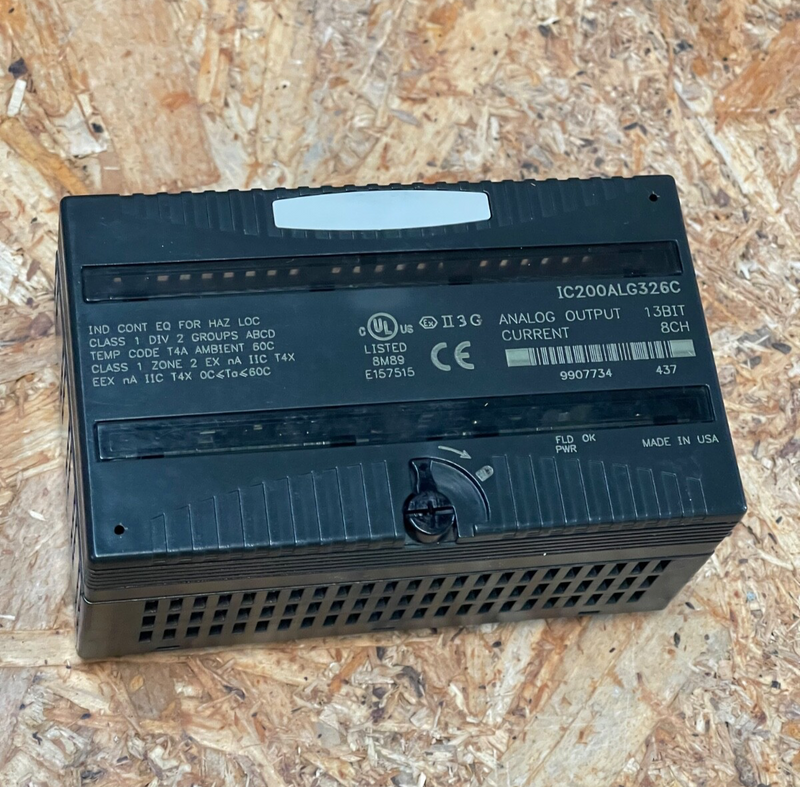

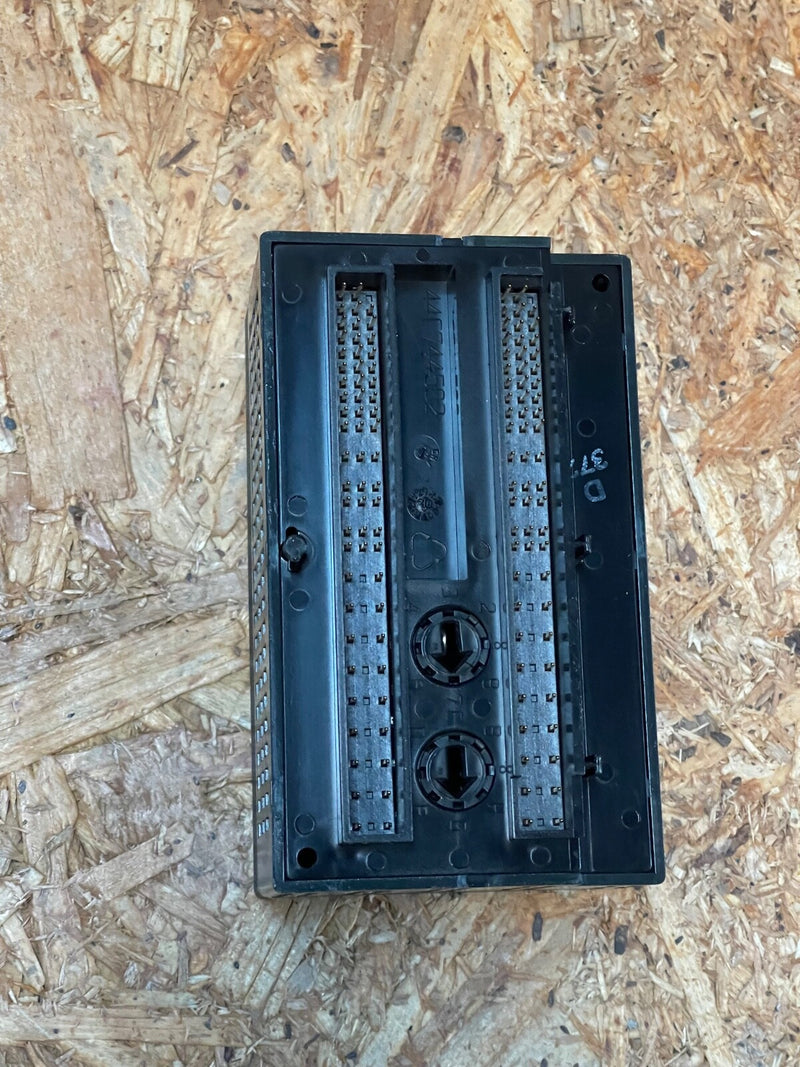

GE Fanuc – IC200ALG326C – VersaMax 8‑Channel 13‑Bit Current Analog Output

The GE Fanuc IC200ALG326C is a VersaMax analog output module featuring eight single-ended current-sourcing channels. It offers 13-bit resolution for 4–20 mA or 0–20 mA signals, with diagnostics, optical isolation, and configurable default output behavior—ideal for precise process control in distributed PLC systems.

Key Features & Technical Specifications:

• Model: IC200ALG326C, part of the GE Fanuc/Emerson VersaMax series

• Channels: 8 current outputs, single-ended

• Signal Range: Default 4–20 mA; jumper-configurable to 0–20 mA

• Resolution: 13-bit (~0.005 % of full scale)

• Update Rate: Up to 15 ms for all channels

• Isolation: Optical isolation, 250 VAC continuous (1500 VAC peak for 1 min)

• Power Rails: Backplane 5 V @ ~50 mA; requires external 18–30 VDC field-side supply

• Diagnostics & Indicators: LEDs for field power and backplane OK; fault on loss of field power

• Fail-Safe Config: Jumper option to maintain last state or default output on power/comm loss

• Form Factor: VersaMax plug-in module requiring IC200 carrier base

• Environment: Industrial-grade design, supports hot swap; typical operating 0–60 °C
