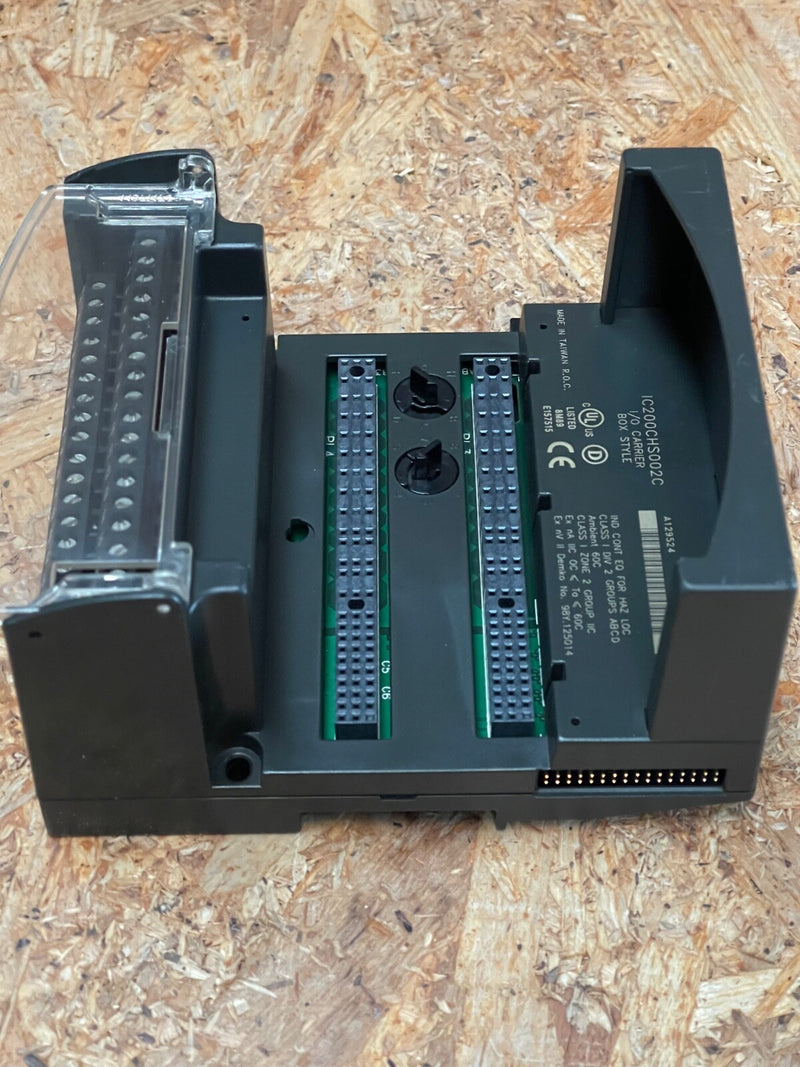

GE Fanuc – IC200CHS002C – VersaMax Box‑Style I/O Carrier 36-Terminal, 0–264 VAC

The GE Fanuc IC200CHS002C is a box-style terminal carrier for VersaMax modular PLCs. Designed for field-level I/O wiring, it accepts one I/O module and provides 36 IEC screw terminals in two rows. With carrier-to-carrier backplane connectors, hinged transparent cover, and key-coded alignment, it offers durable and user-friendly installation.

Key Features & Technical Specifications:

• Model: IC200CHS002C (VersaMax box‑style carrier, Rev C)

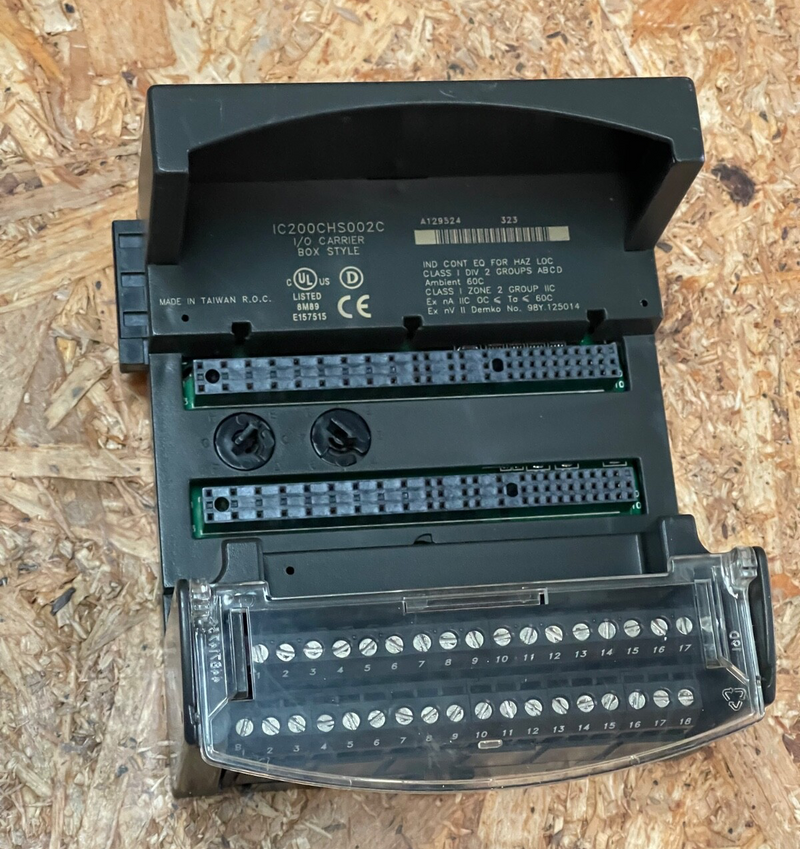

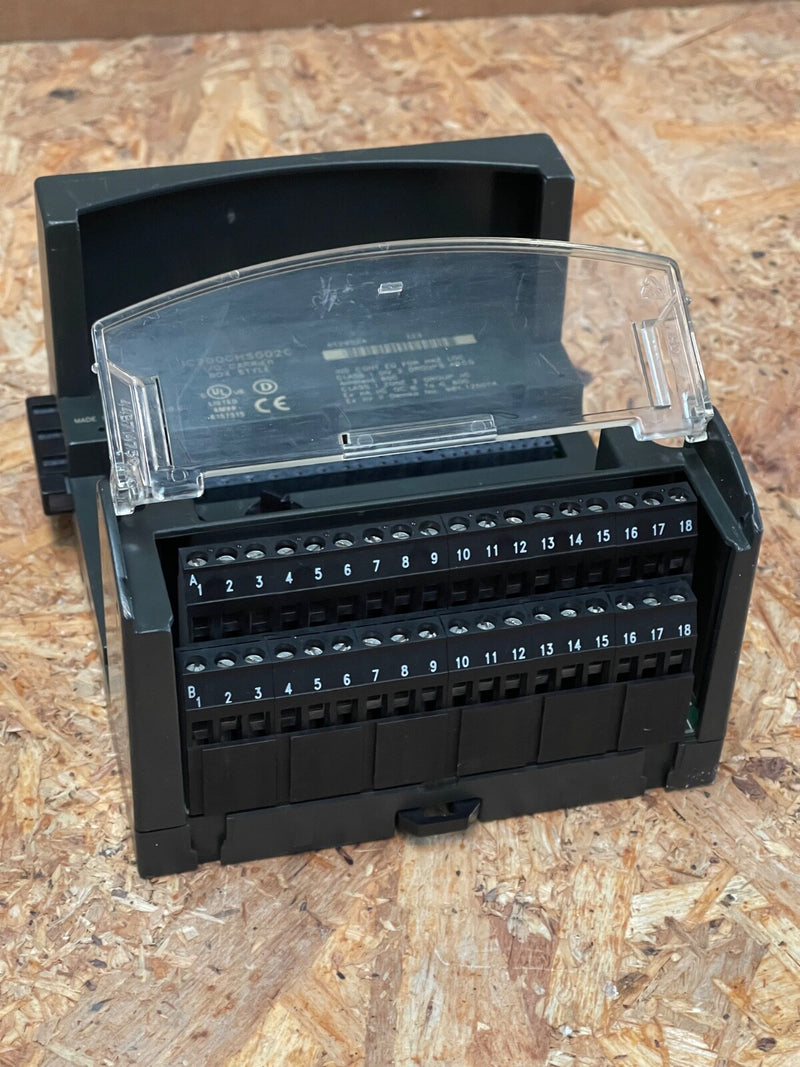

• Terminals: 36 IEC-style screw terminals (A1–A18 & B1–B18)

• Voltage Rating: 0–264 VAC/DC for field wiring connections

• Current Capacity: 2 A per terminal, up to 8 A per common bus; rated for 300 VAC transient pulses

• Wire Compatibility: Supports AWG 14–22 single-wire or stranded; up to AWG 18 x2 for dual conductors

• Mounting: DIN-rail or horizontal panel mounting; carrier-to-carrier snap-together backplane functionality

• Features:

  • Hinged transparent cover for easy access and protection

  • Keyed dial ensures correct module orientation

  • Module latch hole secures I/O modules

• Certifications: UL, CE; supports Class I Div 2 / Zone 2 hazardous locations when I/O modules are suitable

• Dimensions & Weight: Approx. 110 × 140 × 70 mm; ~300–400 g
