GE Fanuc – IC200CHS002D – VersaMax Box‑Style I/O Carrier 36-Terminal, 0–264 VAC

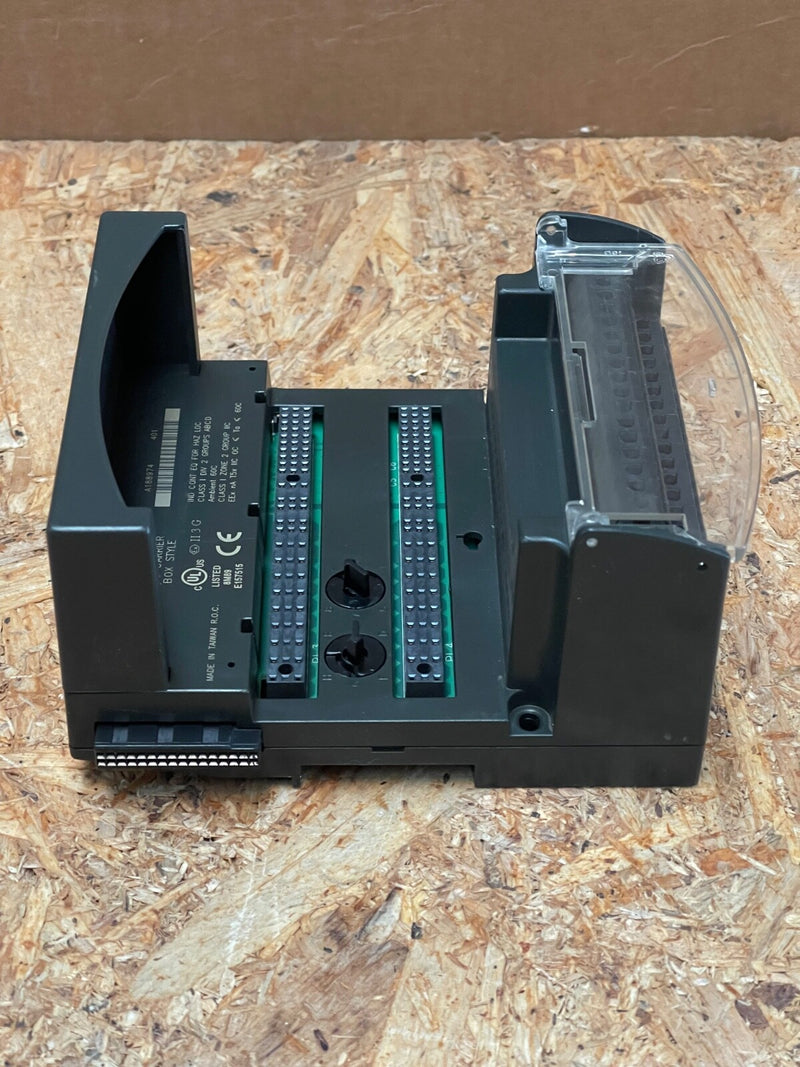

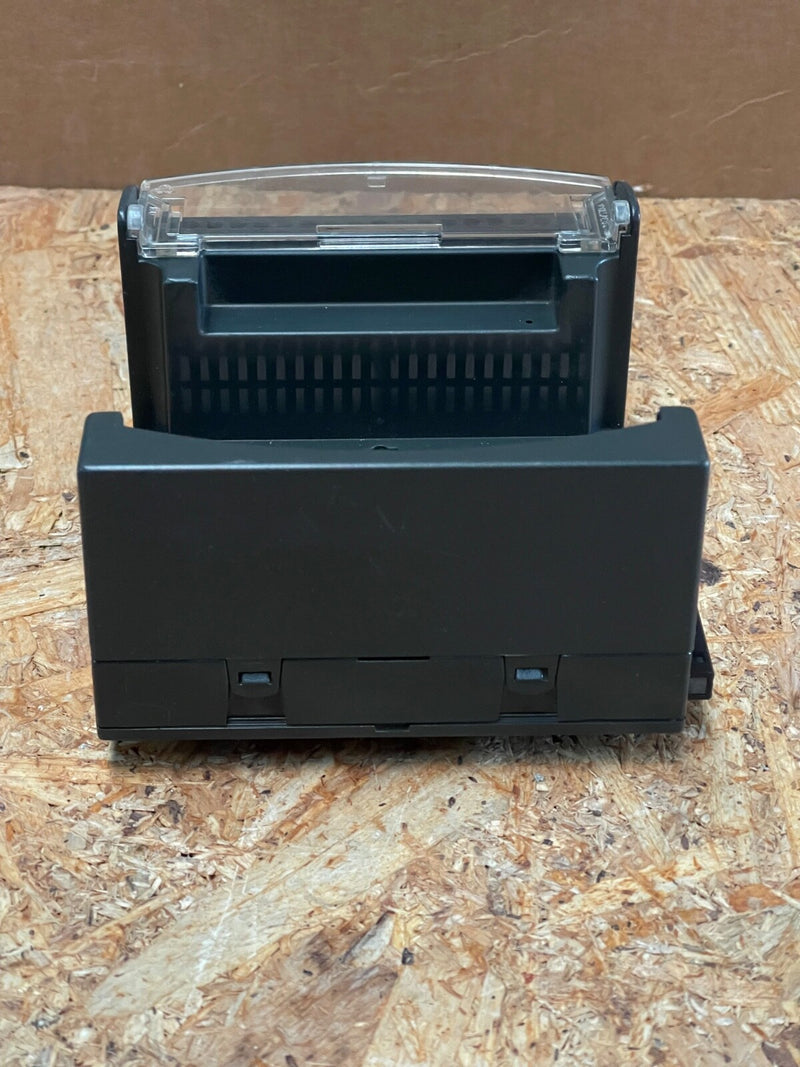

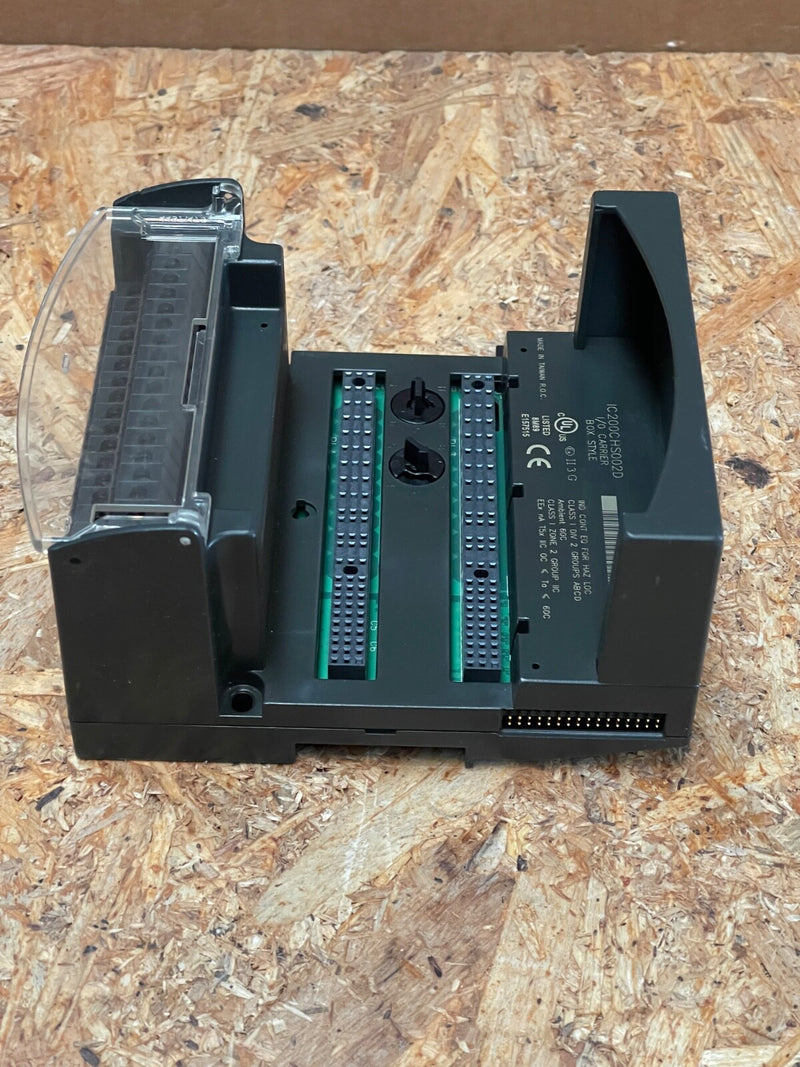

The GE Fanuc IC200CHS002D is a 36-terminal box-style I/O carrier for the VersaMax PLC system. It securely mounts a single I/O module, provides backplane and field wiring connectivity, and features a hinged transparent cover. Suitable for 0–264 VAC/DC applications, it supports up to 32 I/O points and includes Class I Div 2 hazardous location certification—ideal for industrial automation setups.

Key Features & Technical Specifications:

• Model: IC200CHS002D (Box-style I/O carrier)

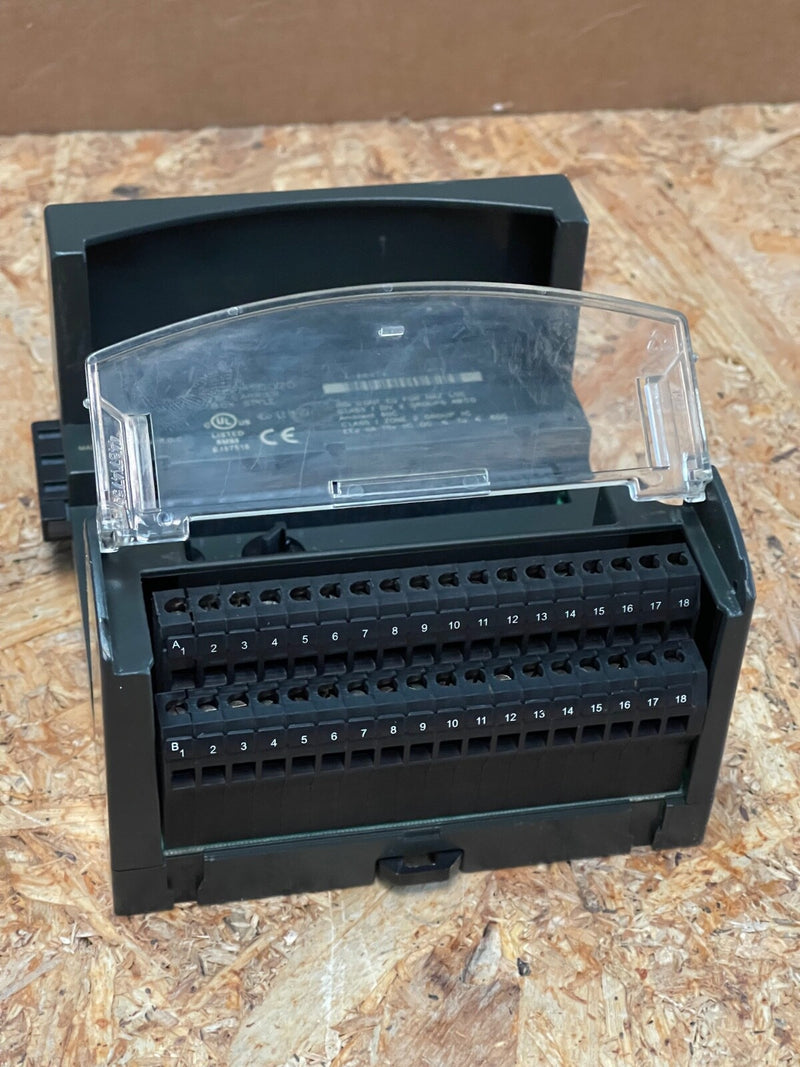

• Terminals: 36 IEC screw-type terminals (A1–A18, B1–B18)

• Electrical Rating: 0–264 VAC/DC field wiring; 2 A per point; 8 A common bus; withstands 300 VAC transients

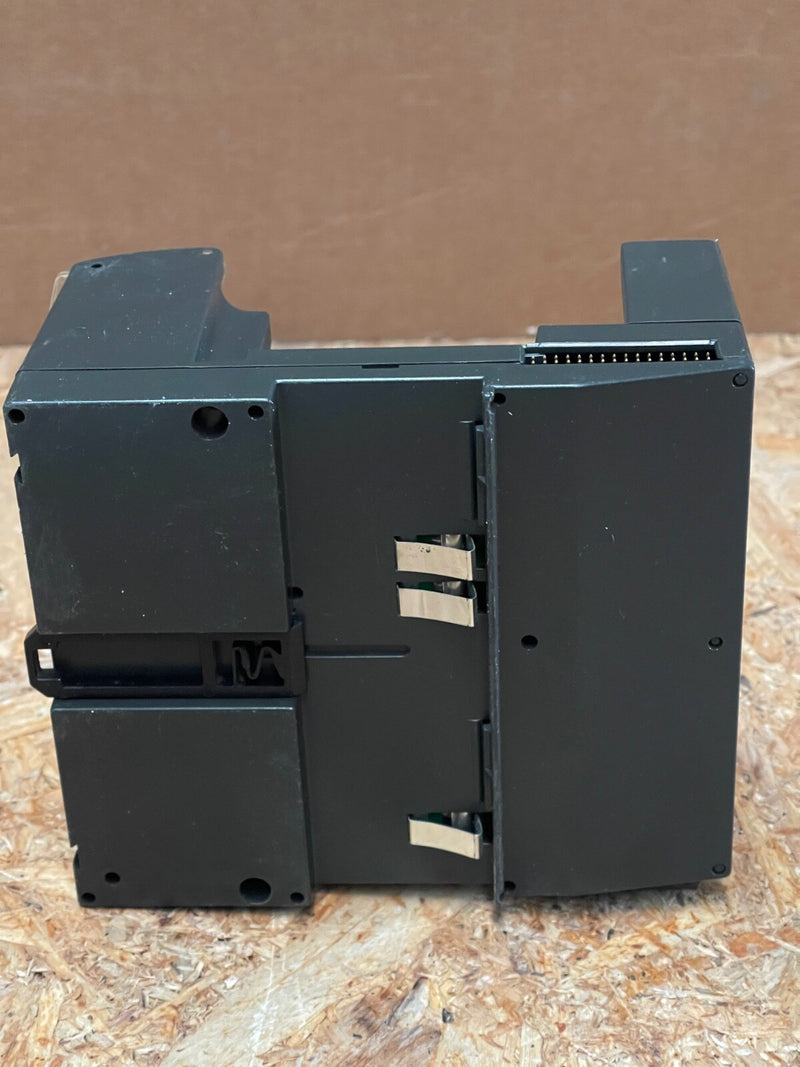

• Mounting: Easily snaps onto 7.5 × 35 mm DIN rail; panel mounting also supported

• Backplane Interface: Carrier-to-carrier connectors enable scalable system builds without cabling

• Protection Features: Hinged transparent door; module latch hole; keyed dial ensures correct module fit

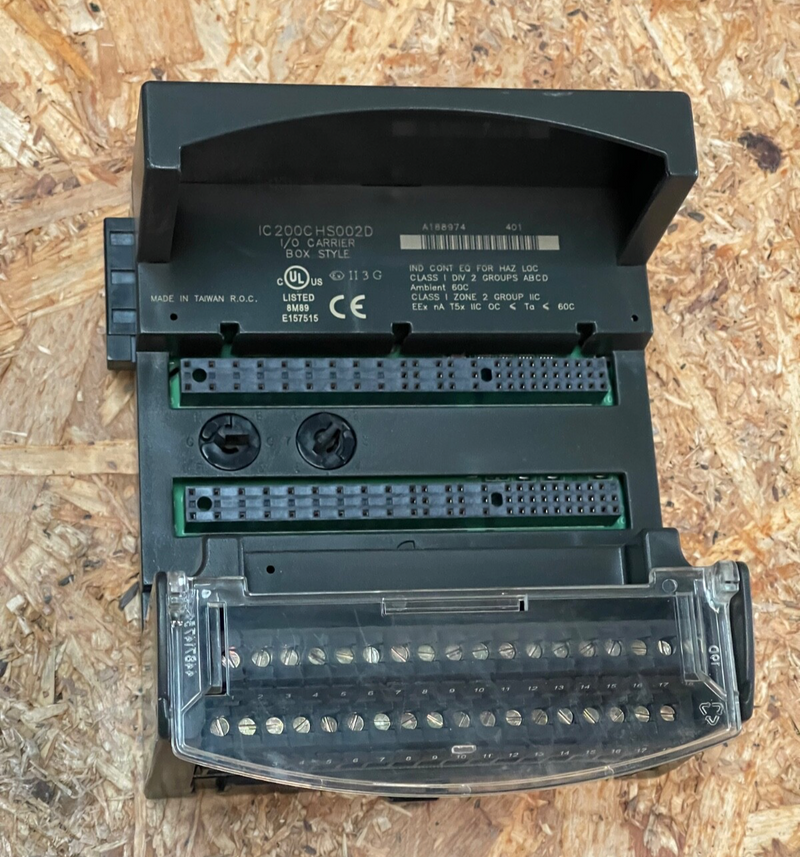

• Certifications: UL, CSA, CE; hazardous location rating: Class I Div 2 & Zone 2; ambient temperature up to 60 °C

• Dimensions & Weight: Approx. 110 × 139.7 × 70 mm; ~300 g
