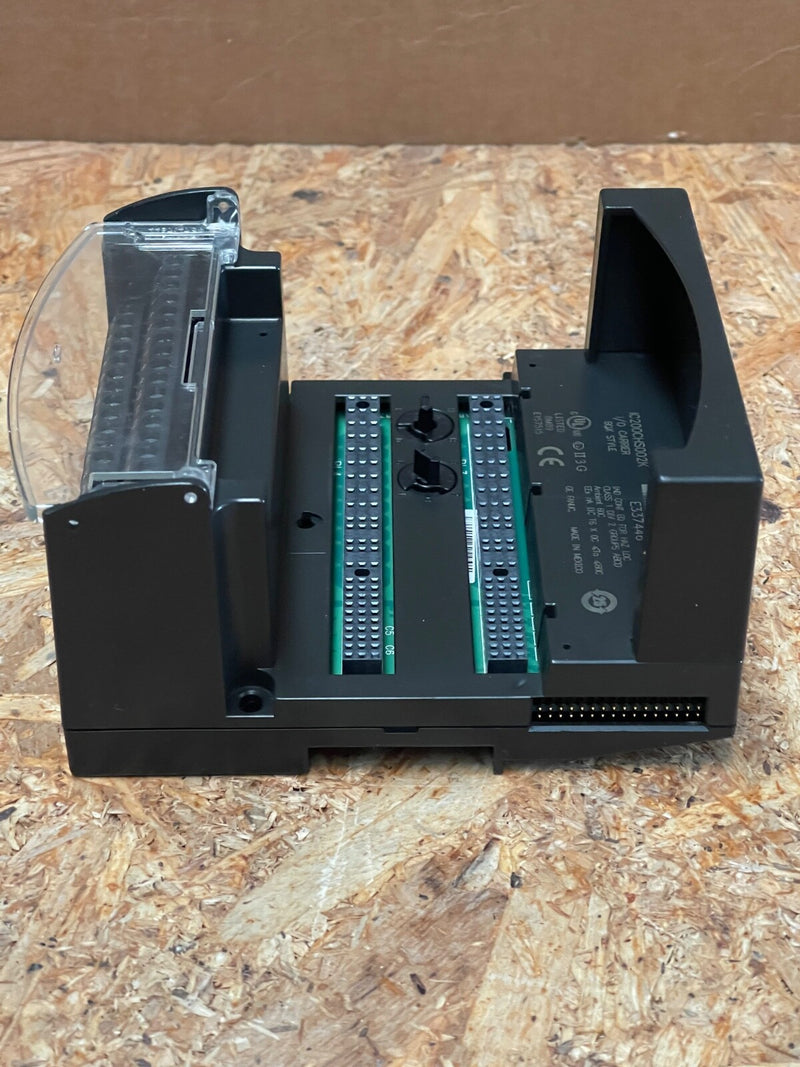

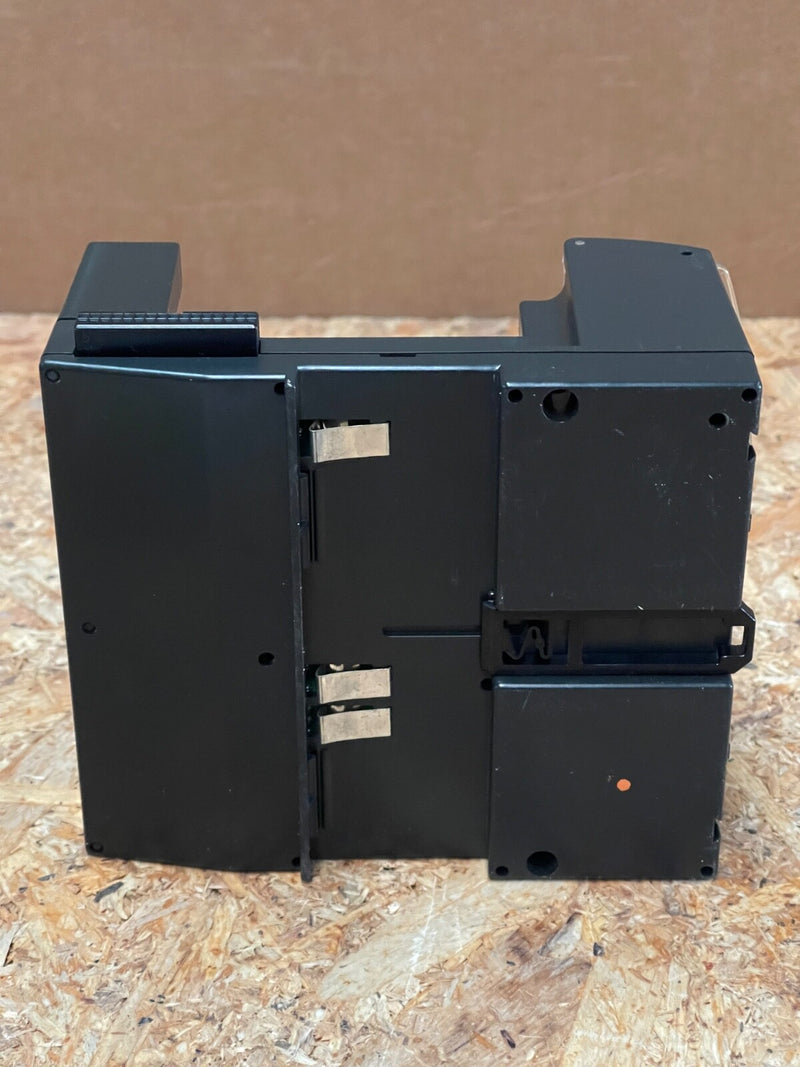

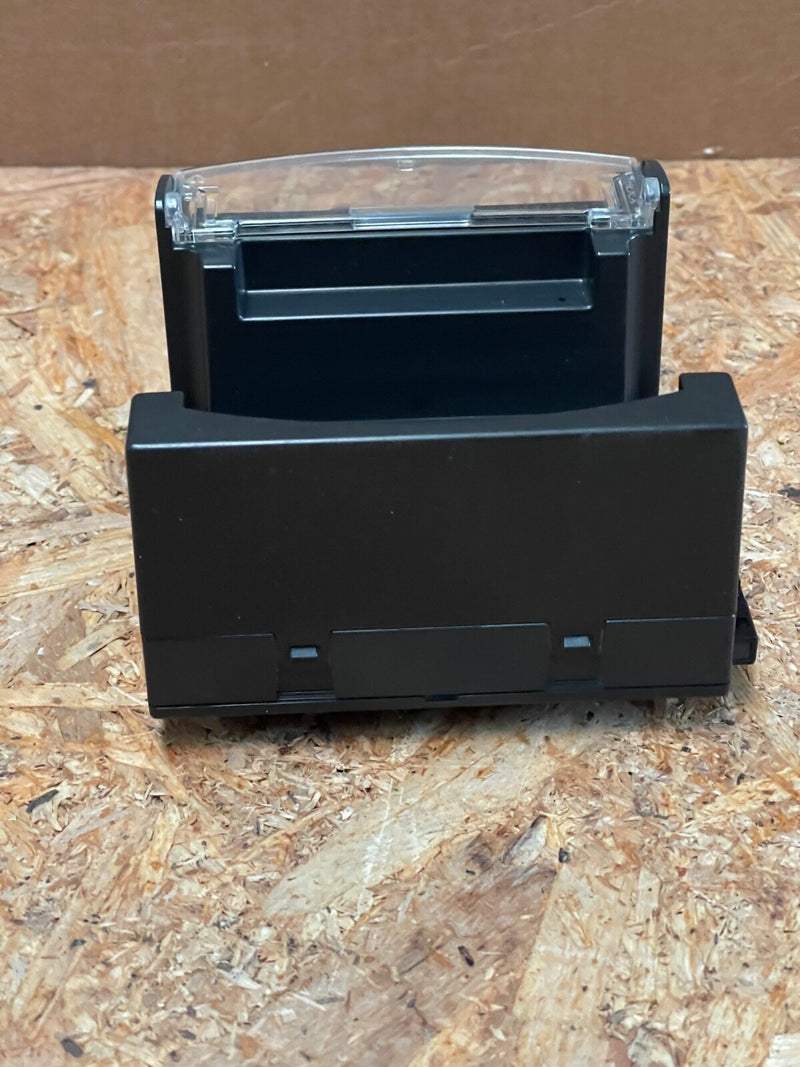

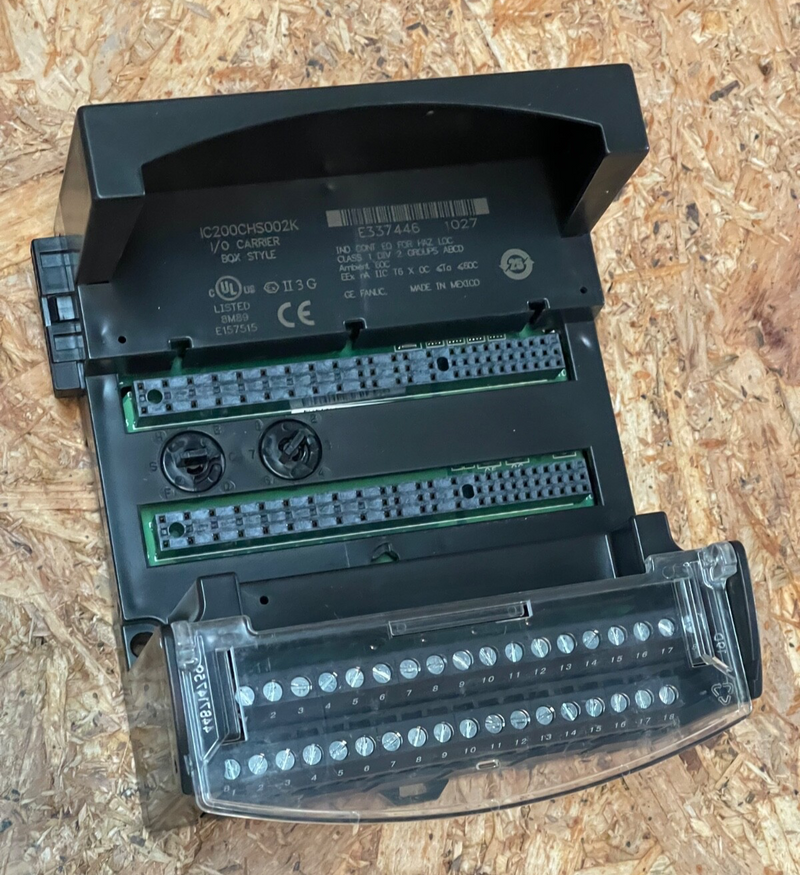

GE Fanuc – IC200CHS002K – VersaMax Box‑Style I/O Carrier 36-Terminal, 0–264 VAC

The GE Fanuc IC200CHS002K is a box-style terminal I/O carrier designed for the VersaMax modular PLC platform. It provides field wiring connections and backplane interfacing for a single I/O module. With built-in hinged covers, key-coded module alignment, and DIN-rail compatibility, it’s a robust and user-friendly base for industrial control applications.

Key Features & Technical Specifications:

• Model: IC200CHS002K (VersaMax box-style I/O carrier, Rev K)

• Terminals: 36 IEC-style screw terminals labeled A1–A18 & B1–B18

• Rating: Field wiring voltage up to 264 VAC, 2 A per point; common bus up to 8 A; withstands 300 VAC transients

• Key Features:

  • Keying dials for module compatibility

  • Backplane carrier-to-carrier connectivity

  • Module latch hole and wiring-card holder

  • Hinged transparent cover for wiring protection

• Mounting & Form Factor: DIN-rail mountable; dimensions approx. 110 × 139.7 × 70 mm; weight ~300 g

• Certifications: Hazardous-location rated (Class I Div 2); ambient up to 60 °C
