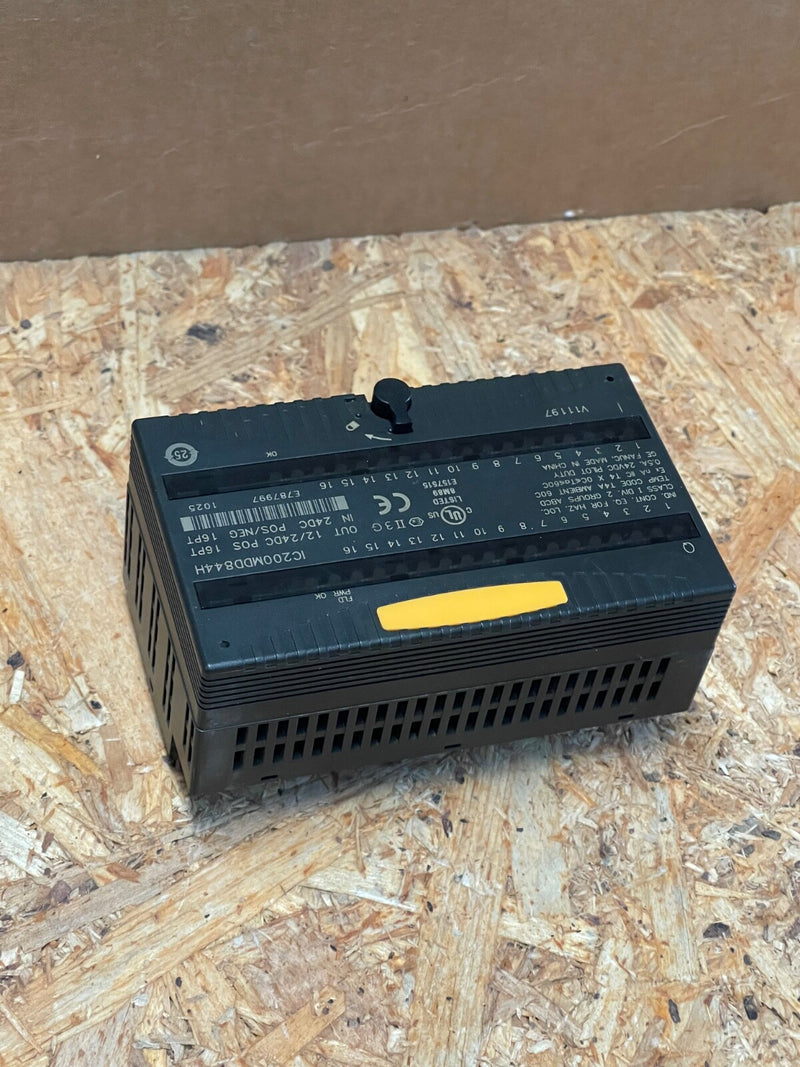

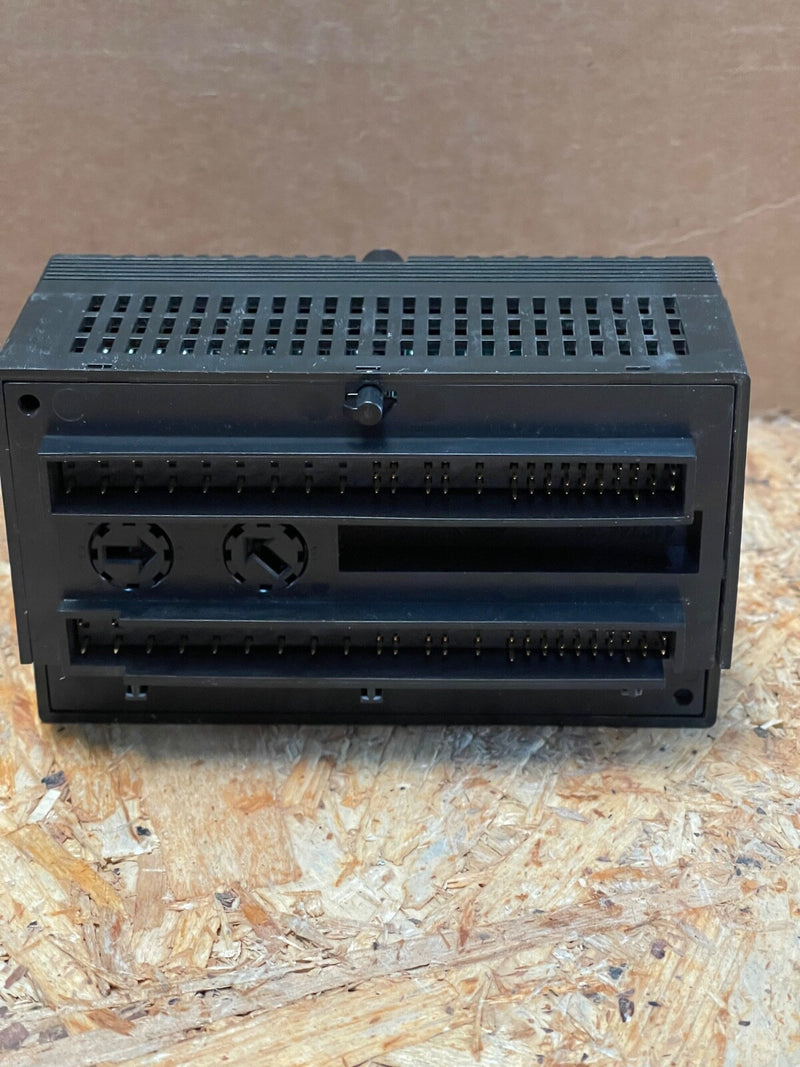

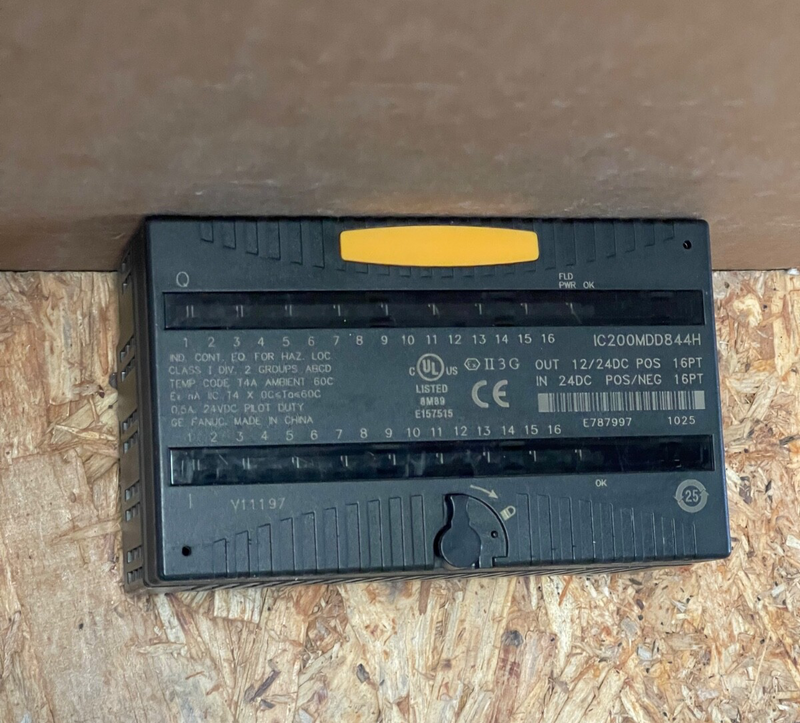

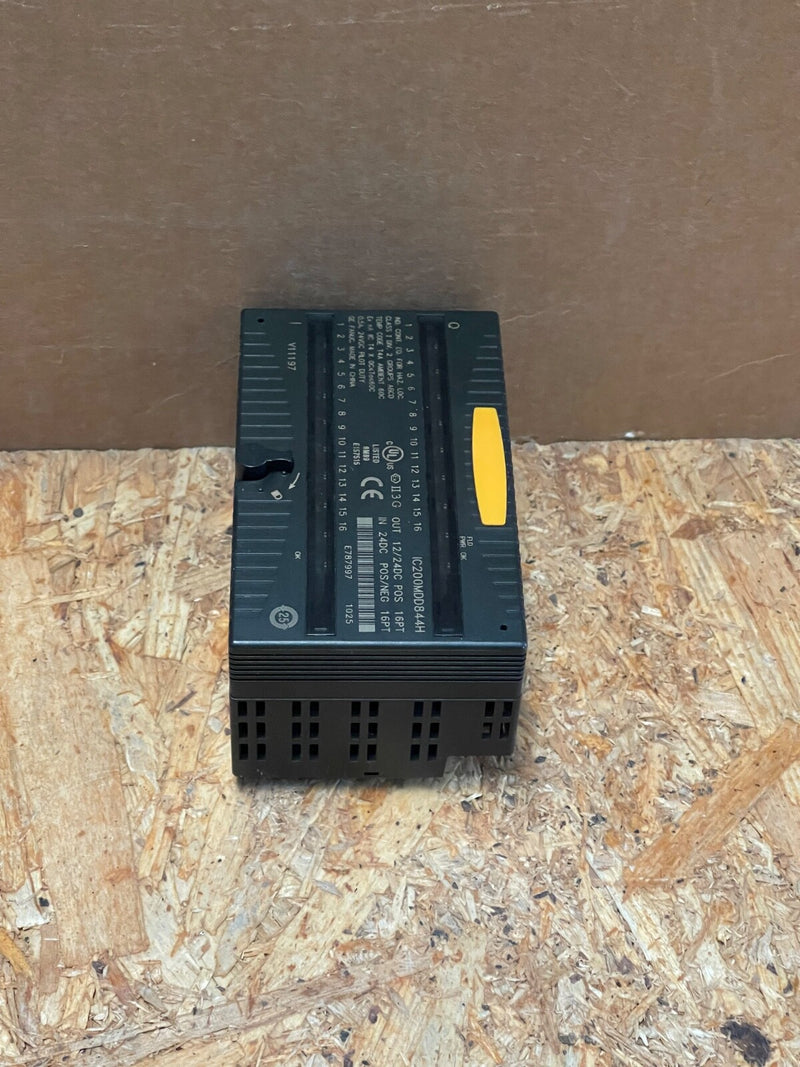

GE Fanuc – IC200MDD844H – VersaMax 16 IN / 16 OUT Mixed I/O Module

The GE Fanuc IC200MDD844H is a rugged VersaMax discrete mixed I/O module offering 16 positive-logic inputs and 16 sourcing outputs. Designed for versatile industrial automation tasks, it supports both input sensing and load driving with fast response times and selectable input filtering—ideal for PLC backplane systems.

Key Features & Technical Specifications:

• Model: IC200MDD844H (Revision H of the IC200MDD844 series)

• I/O Configuration:

  • 16 discrete inputs (positive-logic, 0–30 VDC)

  • 16 discrete outputs (sourcing/positive logic, +10.2–30 VDC, 0.5 A per point)

• Isolation: Optical isolation between logic and field I/O—up to 250 VAC continuous; 1500 VAC for 1 min

• Response Time: Base 0.5 ms; selectable input filter options (1 ms default, also 0 ms or 7 ms)

• Power: Powered by 5 V backplane (70 mA max); field supply 10.2–30 VDC

• Performance: Output capable of inrush current up to 2 A for 100 ms

• Diagnostics: Individual LEDs for each input/output; FLD PWR and OK indicators for field/backplane power

• Form Factor: VersaMax plug‑in module; approx. 150 g; industrial-grade temperature and vibration tolerances
