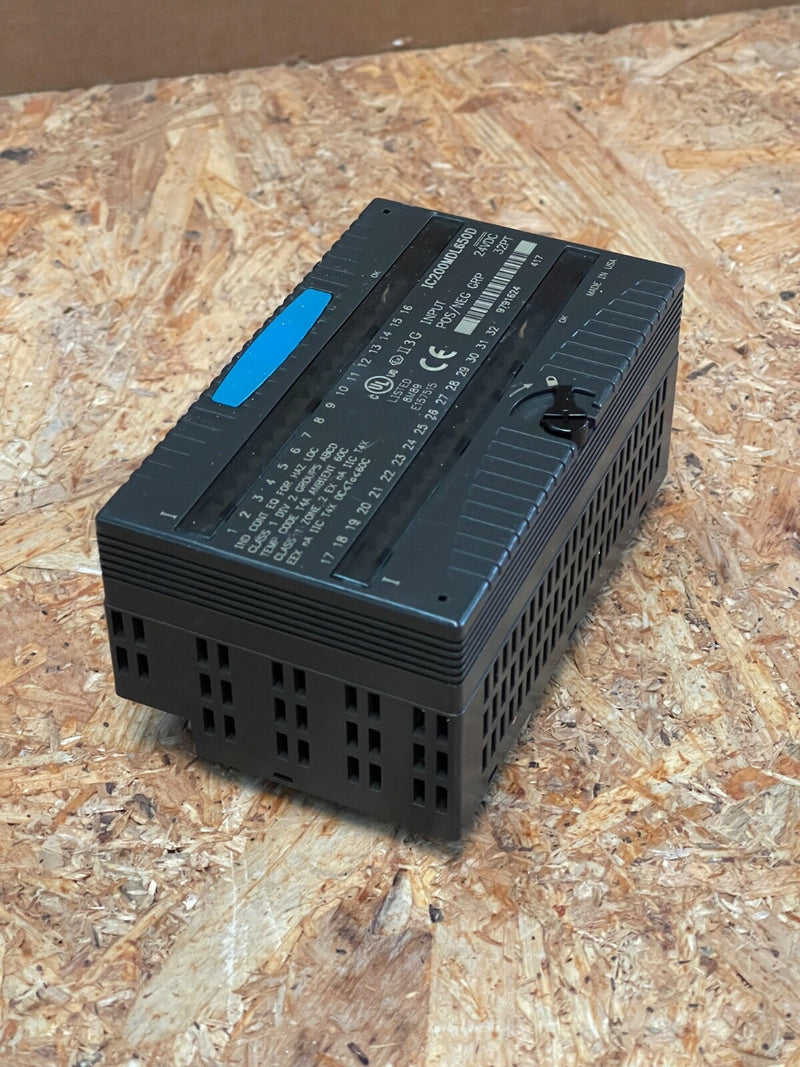

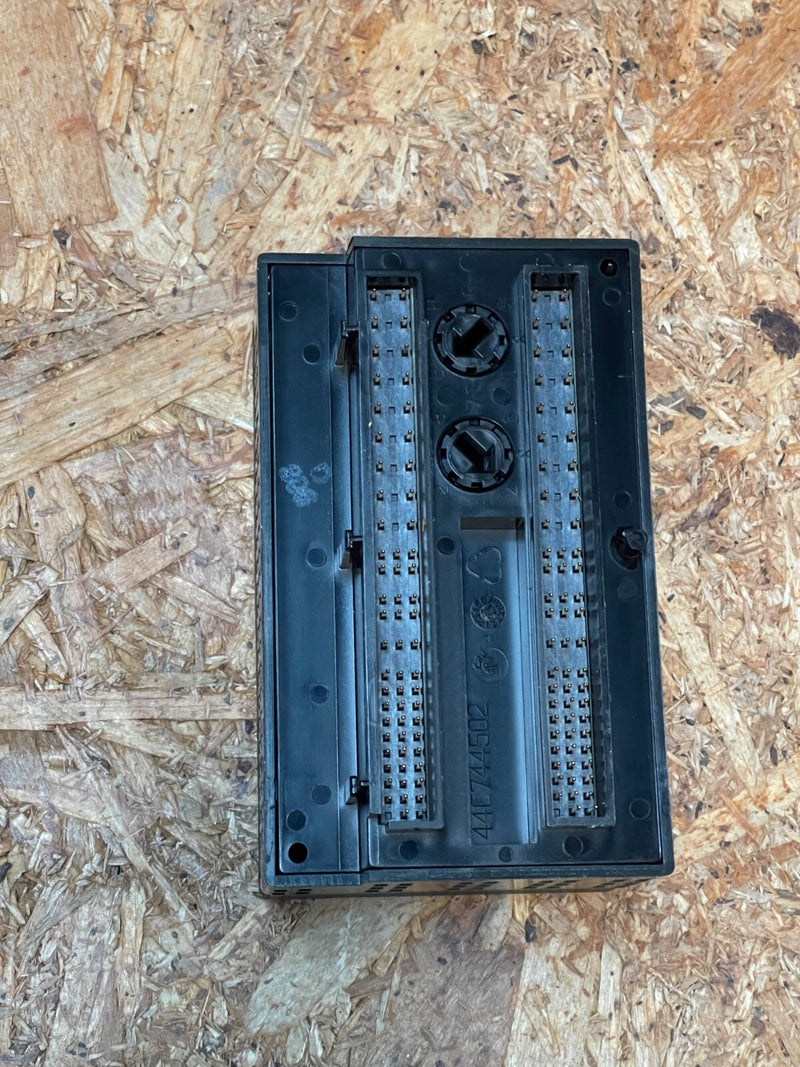

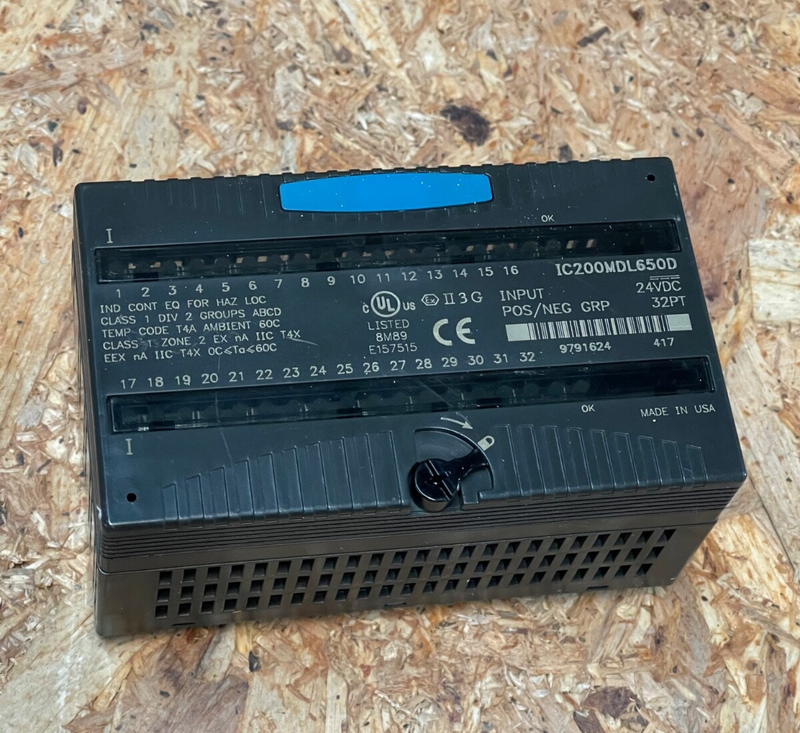

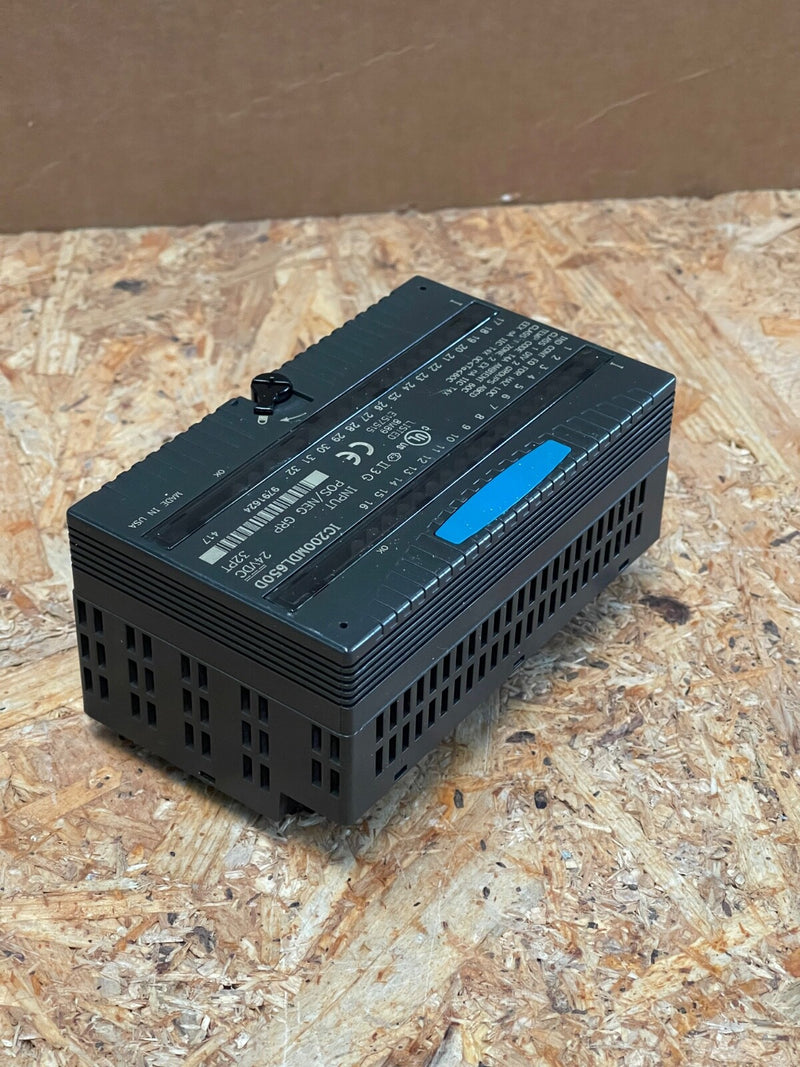

GE Fanuc – IC200MDL650D – VersaMax 32‑Point 24 VDC Discrete Input Module

The GE Fanuc IC200MDL650D is a high-density 32-channel discrete input module for VersaMax PLC systems, supporting both positive and negative logic. Organized into four groups of eight inputs, it offers fast 0.5 ms response, optical group-to-group isolation, and diagnostic LEDs—perfect for process and machine automation.

Key Features & Technical Specifications:

• Model: IC200MDL650D (32-point discrete input)

• Channels: 32 DC inputs grouped into four banks of eight

• Voltage & Current: 0–30 VDC input range (nominal 24 V); 2.0–5.5 mA input current per point

• Logic Options: Supports both positive and negative logic wiring

• Isolation: Optical isolation between groups; 250 VAC continuous, 1500 VAC for 1 min

• Response & Filtering: 0.5 ms on/off response; configurable input filters (0/1/7 ms)

• Diagnostics: Individual LEDs per point plus green “OK” LED for module/backplane power

• Power Draw: 5 VDC backplane; max 50 mA consumption

• Physical Specs: Approx. 110 × 66.8 × 50 mm; weighs ~140 g

• Mounting: Requires VersaMax carrier (e.g., IC200CHS series); DIN-rail compatible
