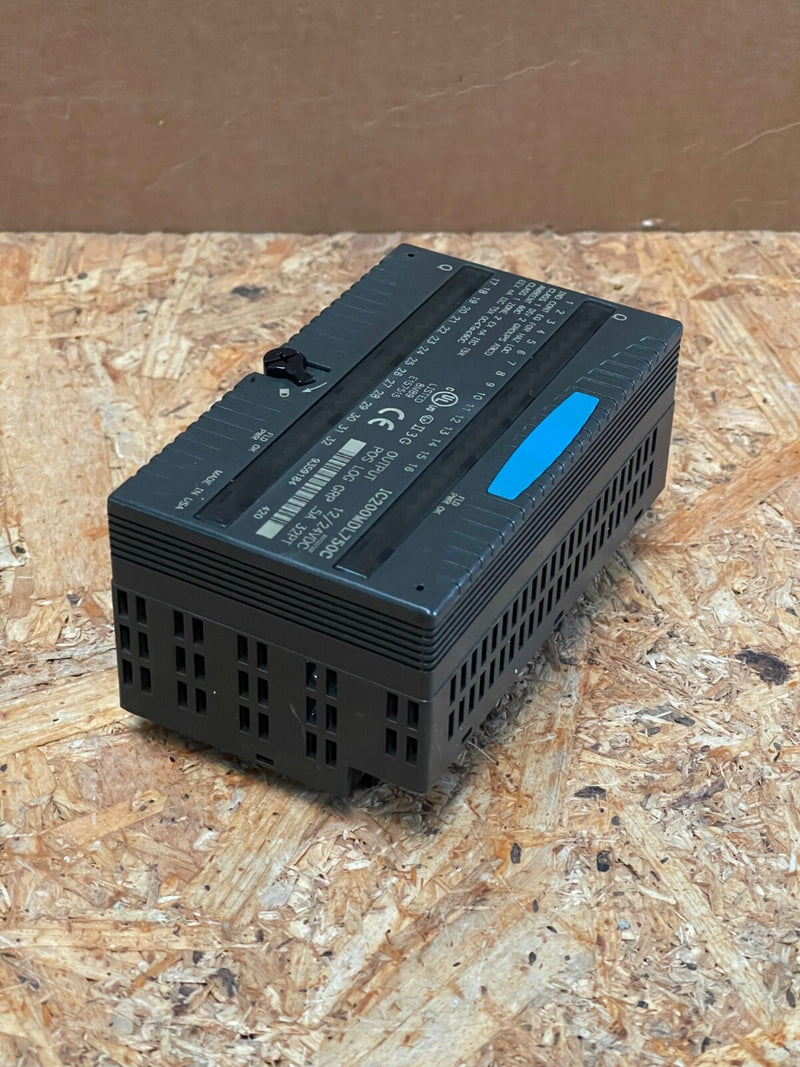

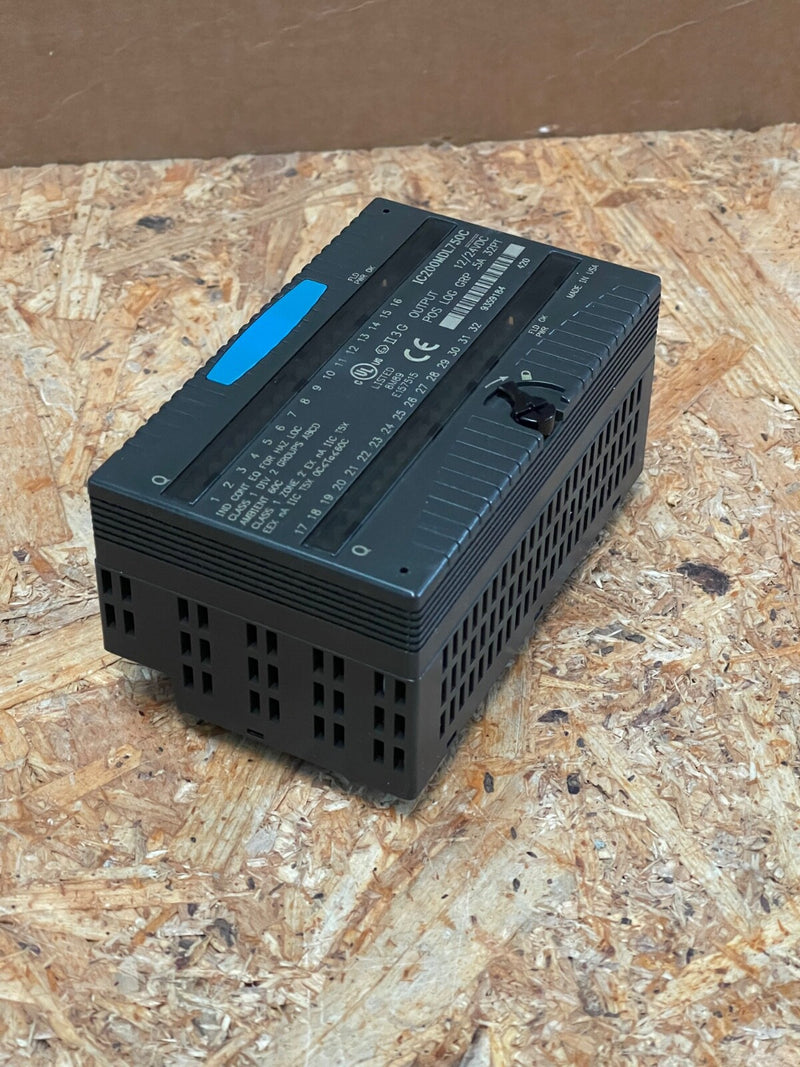

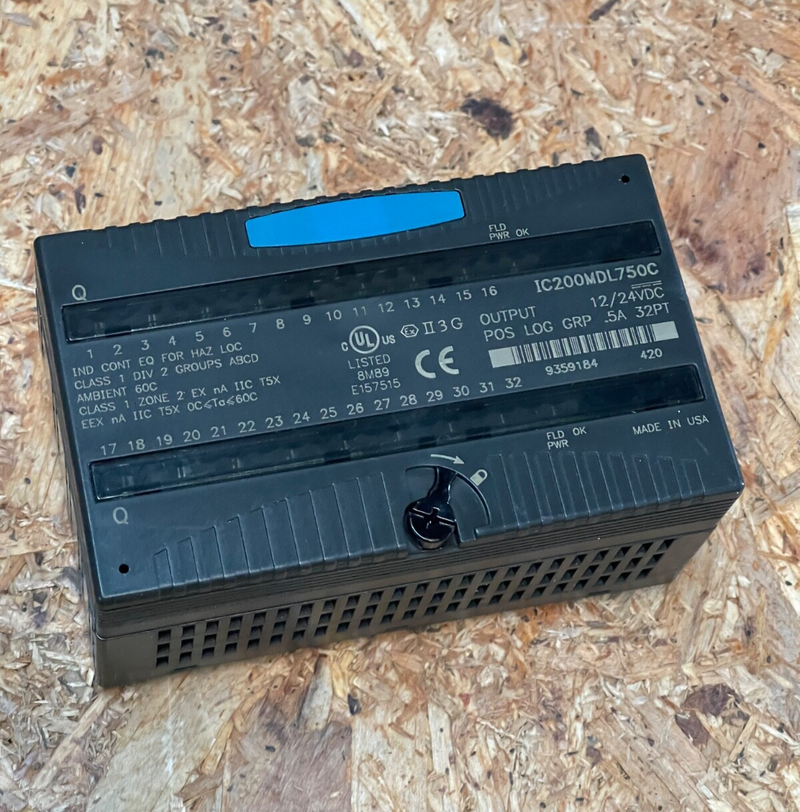

GE Fanuc – IC200MDL750C – VersaMax 32‑Point 12/24 VDC Discrete Output Module

The GE Fanuc IC200MDL750C is a VersaMax series positive-logic discrete output module featuring 32 DC sourcing outputs in two groups of 16. With a 12/24 VDC voltage range, 0.5 A per channel (2 A inrush for 100 ms), fast switching, and channel LEDs, it’s designed for controlling solenoids, relays, pilot lights, and other binary loads in industrial automation systems.

Key Features & Technical Specifications:

• Model: IC200MDL750C (VersaMax discrete output, positive logic, Rev C)

• Outputs: 32 sourcing outputs, arranged as two banks of 16

• Voltage Range: 10.2–30 VDC nominal (12 / 24 VDC)

• Current Rating: 0.5 A continuous per channel; supports 2 A inrush for 100 ms

• Backplane Consumption: 90 mA @ +5 VDC rail

• Response Time: ON ≤ 0.2 ms; OFF ≤ 1.0 ms

• Leakage Current: ≤ 0.5 mA at 30 VDC

• Isolation & LEDs: Group-to-group optical isolation; individual LED indicators per channel; “FLD PWR” and “OK” LEDs included

• Hazardous Location Rating: Class I Division 2 certified

• Form Factor: VersaMax plug-in module; dimensions ~110 × 67 × 50 mm; weight ~0.9 kg including carrier

• Protection Note: No internal fuses—suppression circuits recommended for inductive loads
