Gefran – VDI100-1015-KBX-4 – 1.5 kW 400 V Class Full-Vector Inverter

The Gefran VDI100‑1015‑KBX‑4 is a compact 1.5 kW, 400 V three-phase vector inverter from the VDI100 series, ideal for advanced motor control in industrial automation. It includes an internal braking unit and EMI filter, offering high performance with minimal panel space. This versatile inverter supports both asynchronous and permanent magnet motors through multiple control modes, and it comes factory-fitted with an integrated keypad for easy setup.

🔧 Key Features

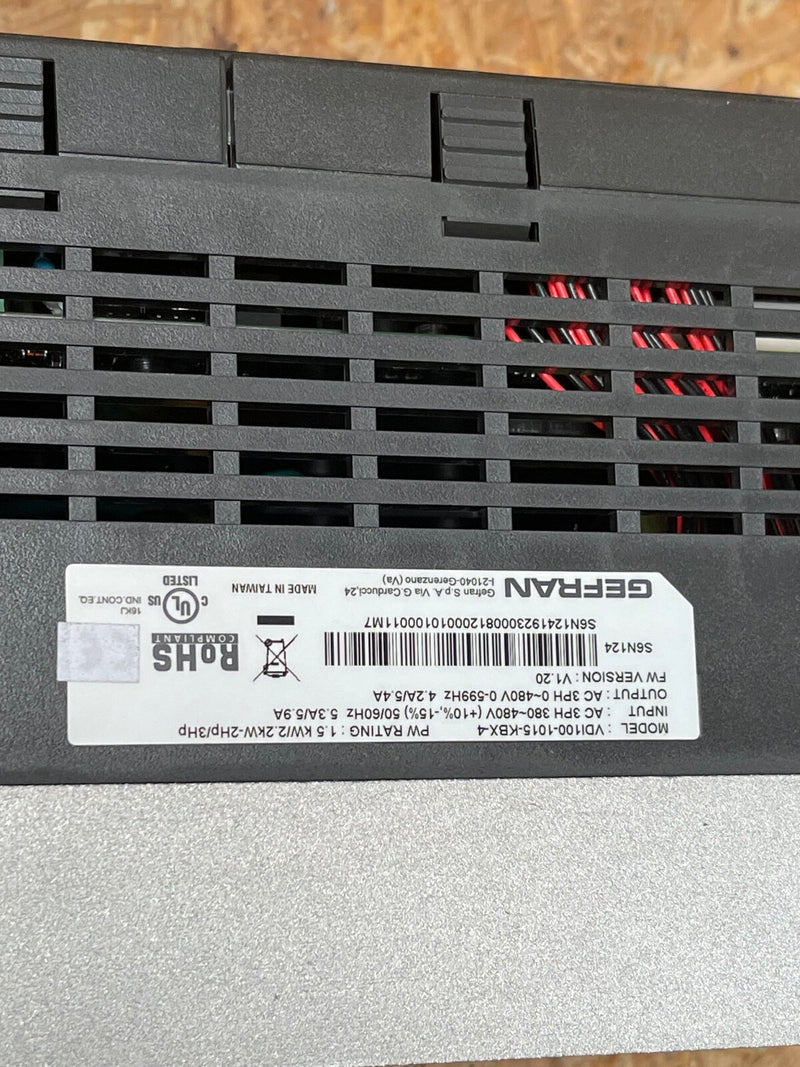

• Model / P/N: VDI100‑1015‑KBX‑4 (internal brake + EMI filter)

• Power / Voltage: 1.5 kW nominal (2.2 kW light/3 kW heavy duty) • 380–480 V ac, 3-phase

• Brake Unit: Built-in internal brake resistor and transistor; no external hardware needed

• Control Modes: V/f, open/closed-loop vector control, permanent magnet support

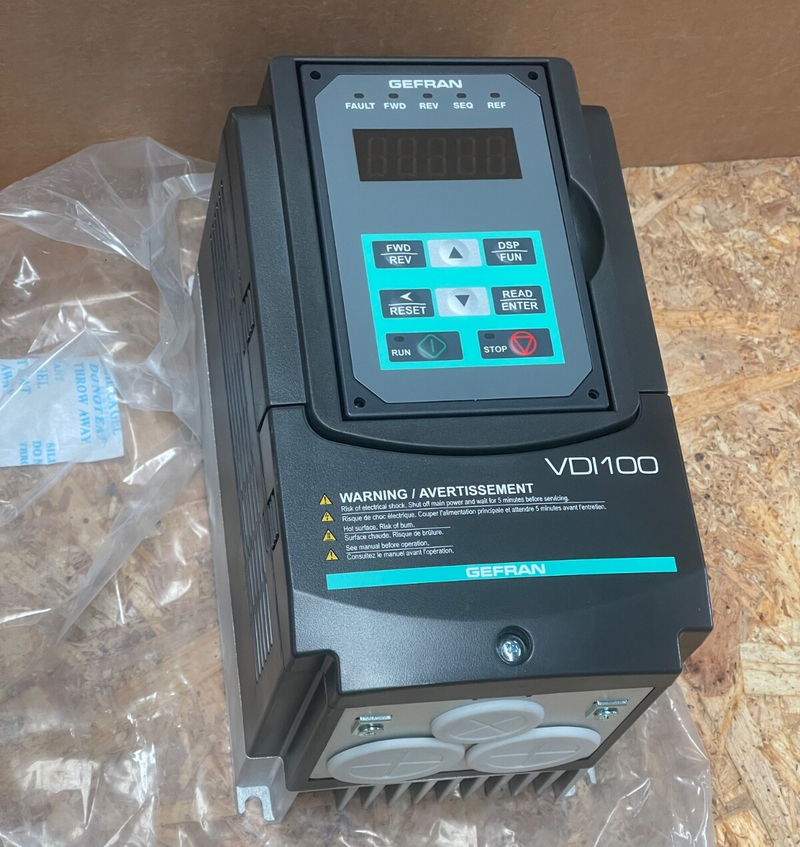

• Interface: Integrated 5-digit LED keypad with start/stop and adjustment keys

• Communications: RS-485 with Modbus RTU/ASCII via standard RJ45

• Protection: IP20 rated, suitable for industrial cabinet mounting
