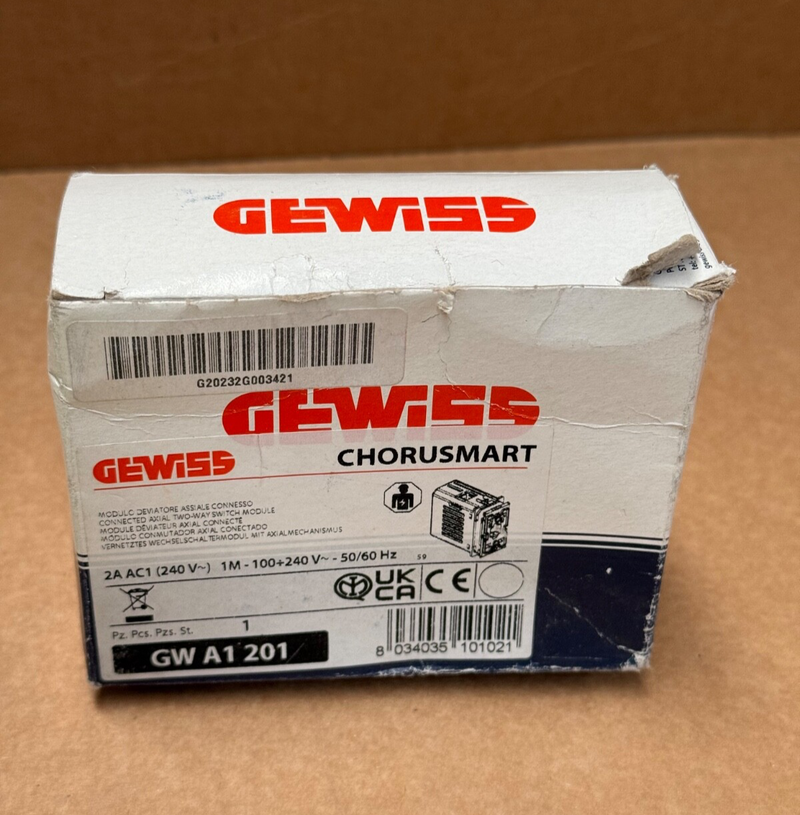

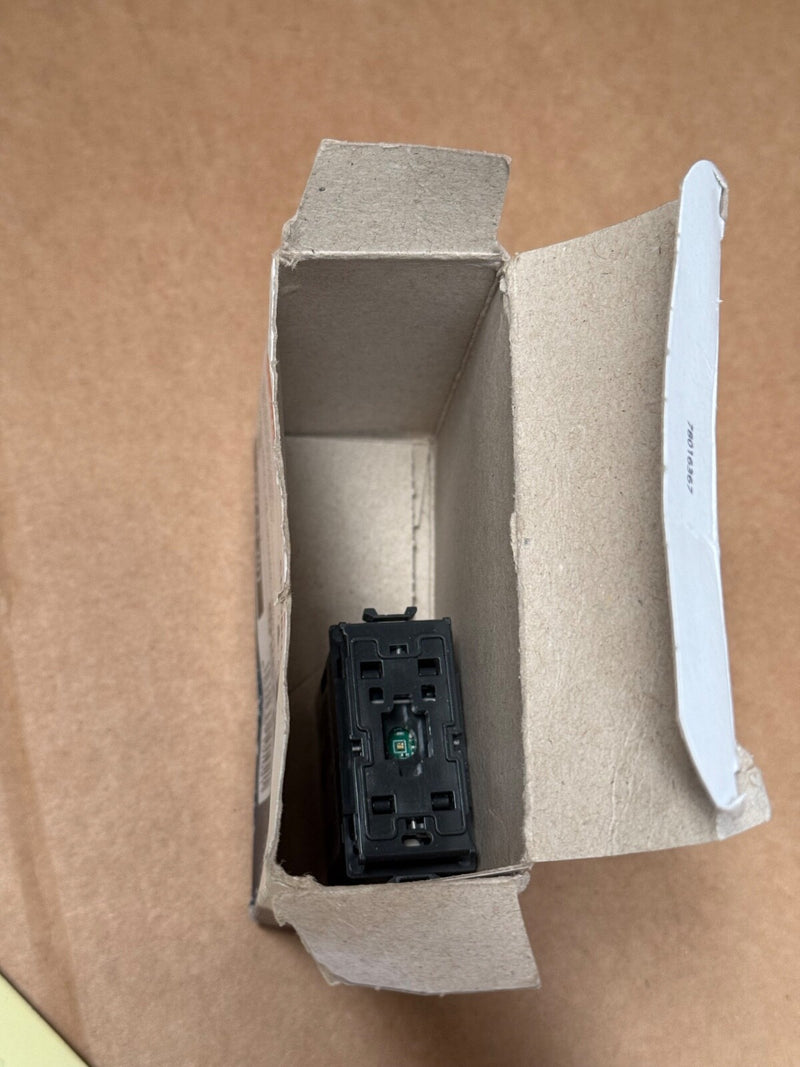

Gewiss – GWA1201 – Zigbee 1‑Channel Connected Axial Switch (2-Way), 100–240 VAC

The Gewiss GWA1201 is a compact, Zigbee-enabled ChoruSmart connected switch module designed for flush or DIN installations. Serving as a 2-way switch, it supports one NO/NC relay output and two control inputs for local push-buttons or sensors. Ideal for modern smart homes, it integrates seamlessly with Zigbee networks, smart buttons, and major smart-home platforms.

Key Features & Specifications

• Model / Code: GWA1201

• Protocol: Zigbee (IEEE 802.15.4), 10 dBm output power

• Supply Voltage: 100–240 VAC, 50/60 Hz

• Contact Output: 1 NO/NC relay – 2 A AC1 @ 240 VAC

• Local Inputs: 2 for switches or sensor integration

• Load Compatibility:

  • Incandescent/halogen: 4–500 W

  • LED: 4–100 W

  • Fluorescent: 4–120 W

  • Electronic transformer: 4–250 VA

• Mesh & App Functions: Supports timed control, energy/power measurement, SHIFT functions with EGO plates

• Mounting: 1-module for modular faceframes; requires a front button key (e.g., GW1x551S / GW1x555S)

• Operating Conditions: −5 °C to +45 °C, max 93 % RH (non-condensing); IP20

• Standards & Certifications: EN 60669‑1/‑2‑1; EN 300 328; EN 301 489; 2014/53/EU; 2011/65/EU+2015/863
