The GWD4227R ReStart RM by Gewiss is a compact 2‑pole residual‑current circuit breaker (RCBO) that offers combined overcurrent protection with sensitive earth‐leakage detection (Type A, 30 mA). What sets it apart is the integrated ReStart auto‑reclosing module, which after a trip can automatically restore power if the fault is transient—ideal for maintaining continuity. Rated at 16 A with C‑curve magnetic protection and 4.5 kA breaking capacity, it fits standard DIN‑rail panels using just 3 modules.

Key Specifications

Part Number: GWD4227R ReStart RM + MDC RCBO module
Poles: 2P, for phase + neutral, using 3-module width
Rated Current: 16 A, Curve C magnetic characteristic
Earth‑Leakage Trip: 30 mA, Type A (AC & pulsating DC)
Breaking Capacity: 4.5 kA (EN 61009‑1)
Voltage & Frequency: 230 V AC, 50–60 Hz
Automatic Reclosing: Yes—after fault, performs insulation/short‑circuit check before re‑energizing
Standards: EN 50557 compliant; C-curve RCBO Type A
Mounting & Form Factor: 3‑modules wide, DIN‑rail EN 50022, IP20
Environmental: Operating: –5 °C to +40 °C; Storage: –40 °C to +70 °C; durability: 4,000 operations

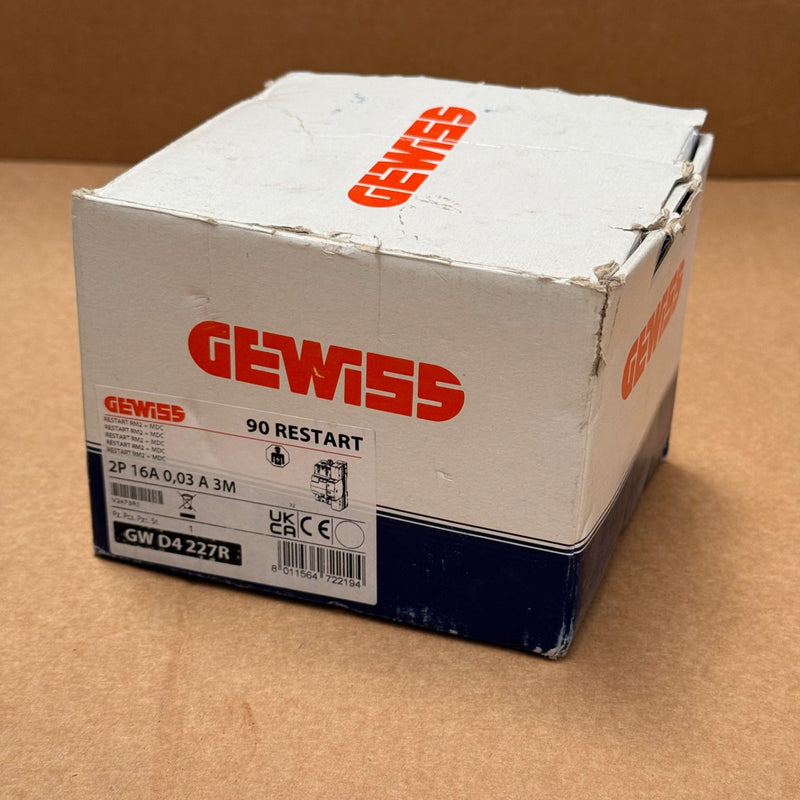

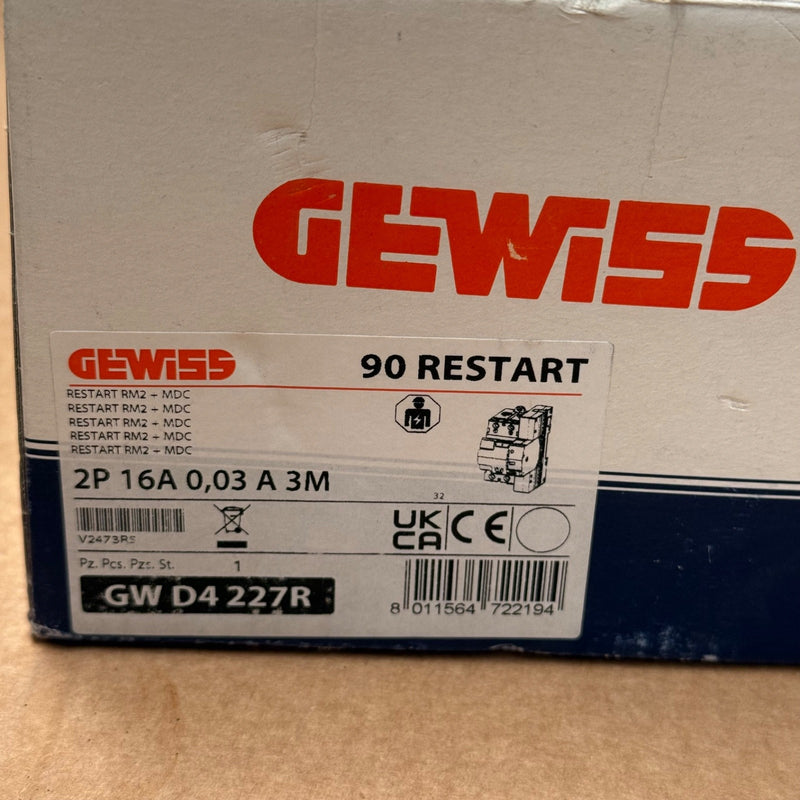

Gewiss – GWD4227R – ReStart RM 2P 16 A Type A RCBO
