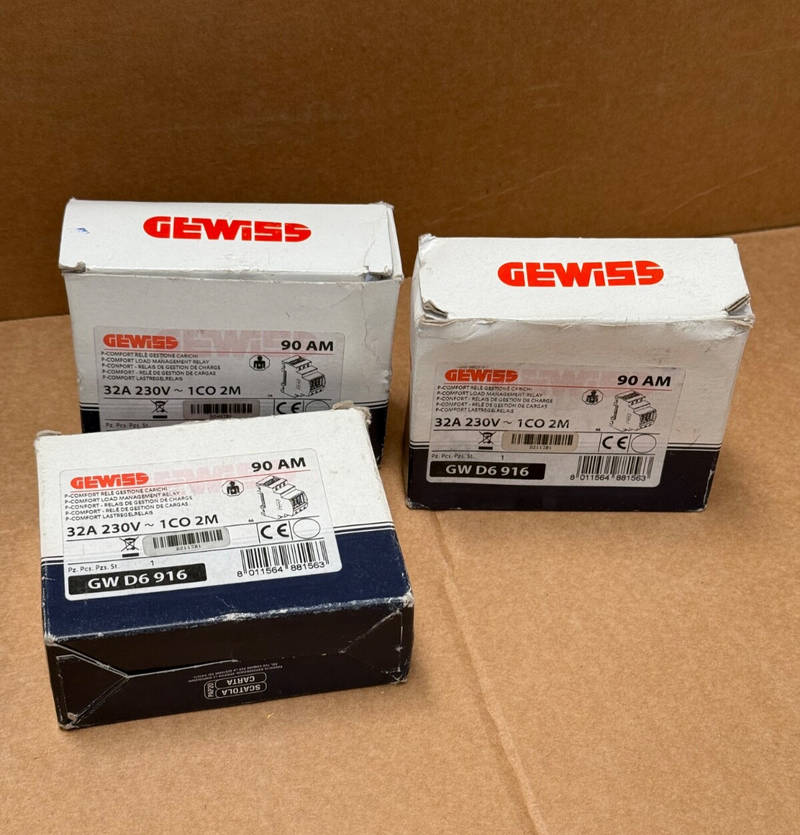

Gewiss – GWD6916 – P‑Comfort Load Management Relay, Wired, 32 A, 230 V

The Gewiss GWD6916 P‑Comfort load management relay controls prioritized and non-priority loads to avoid overloading single-phase systems. Designed for DIN-rail mounting within the 90 AM modular range, it continuously monitors power consumption and automatically disconnects non-essential loads when the configured threshold is exceeded.

Key Features & Specifications

• Model / P/N: GWD6916 P‑Comfort (wire version)

• Rated Voltage: 230 V AC

• Relay Capacity:

  • Nominal current: 32 A

  • Relay contact rating: 16 A AC1 @ 250 V AC

• Power Monitoring:

  • Adjustable threshold: 0–8 kW (default 3.8 kW)

  • Audible alarm when limit is exceeded

• Timing Control:

  • Delay for opening non-priority contacts: 10–120 s (default 45 s)

  • Reconnection delay: 10–255 s (default 90 s)

• Load & Energy Metrics: Active power, energy consumed/supplied

• Form Factor: 2 DIN-module width

• Operating Conditions: –5 °C to +45 °C; storage –25 °C to +70 °C

• Cable Capacity: Rigid: ≤ 6 mm²; Flexible: ≤ 4 mm²

• Acoustic Level: 85 dB at 10 cm

• Standards: EN 60669‑1, EN 60669‑2‑1 compliant
