H.G. – DV3.001.776B – Digital Panel Meter ±1999, 0/4–20 mA 0–10 V, 24V DC

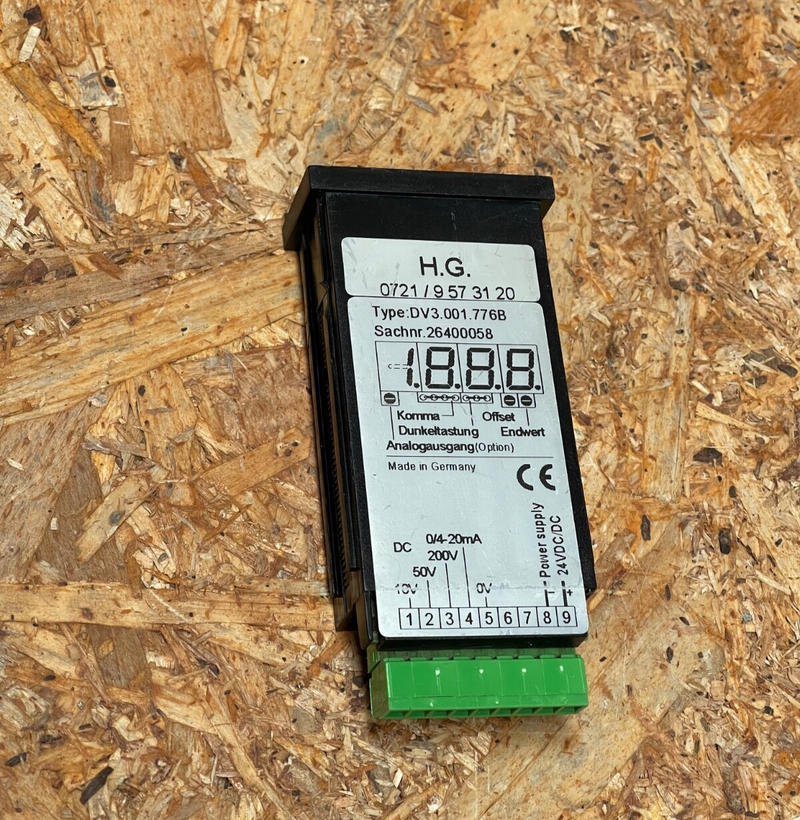

The H.G. DV3.001.776B (Sachnr. 26400058) is a German-made digital panel meter designed for accurate analog signal display in industrial monitoring applications. It features a ±1999-count red LED display and supports both current and voltage inputs. The unit also includes optional analog output and rear offset adjustment for precise control.

Key Features:

• Model: DV3.001.776B

• Part Number: 26400058

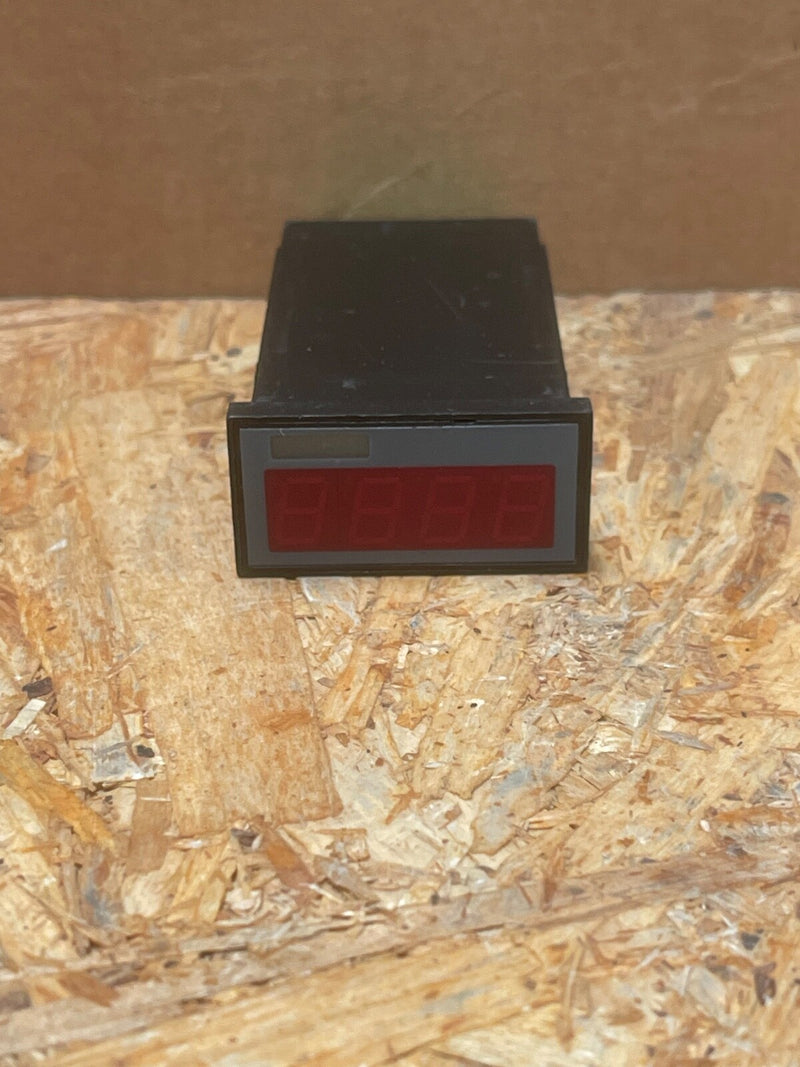

• Display: 4-digit LED, ±1999 range

• Input Signal: 0/4–20 mA, 0–10 V, 50 V, or 200 V DC

• Power Supply: 24V DC

• Optional Output: Analog signal (0–10 V / 4–20 mA)

• Adjustments: Offset, decimal point, and limit configuration

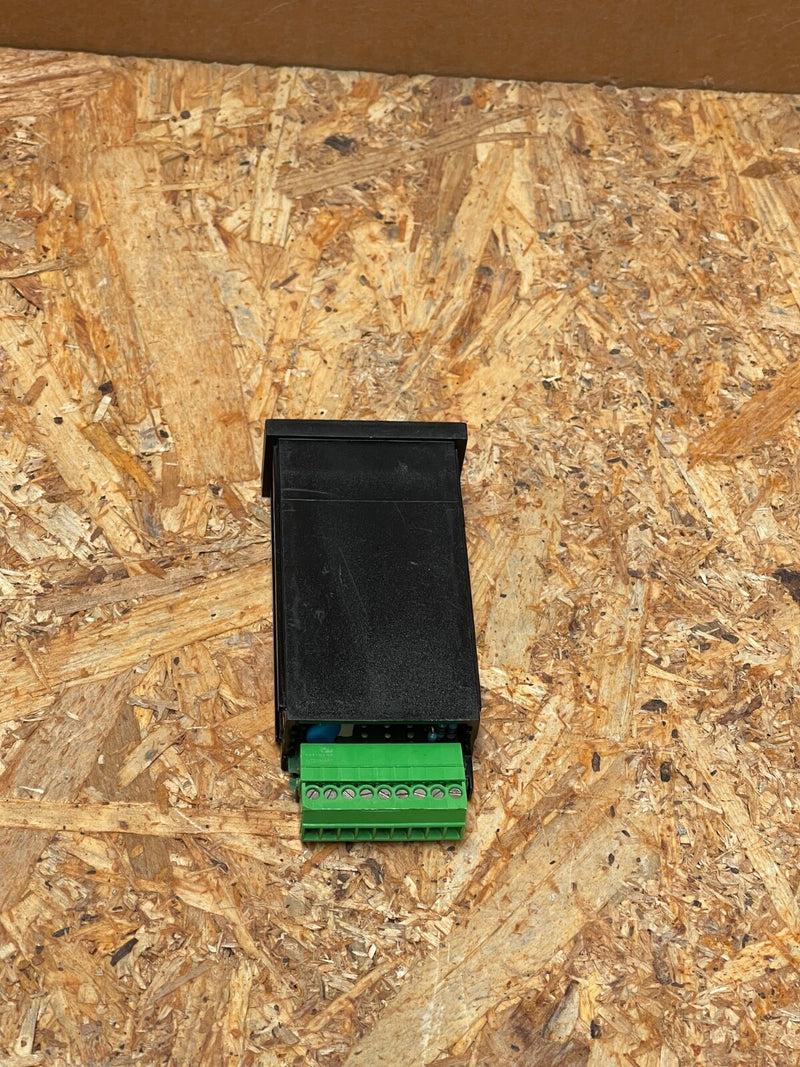

• Terminal Block: 9-pin screw terminal (green)

• Mounting: Panel-mount housing with clamps

• Country of Manufacture: Germany
