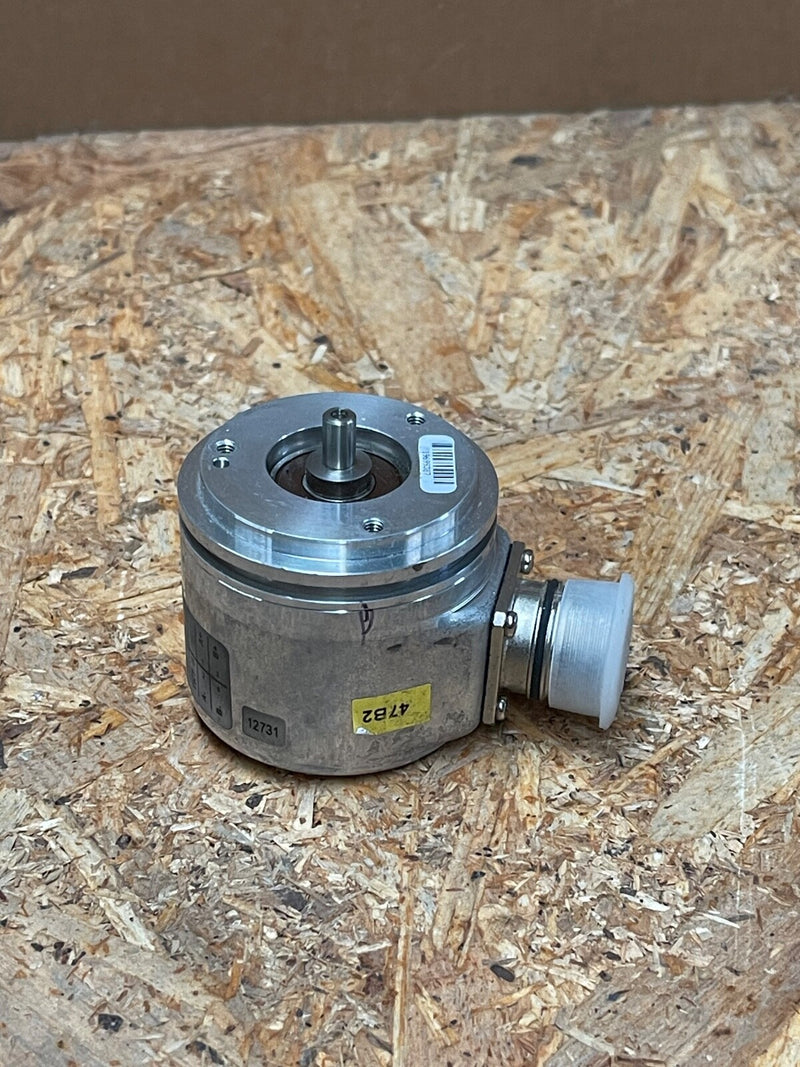

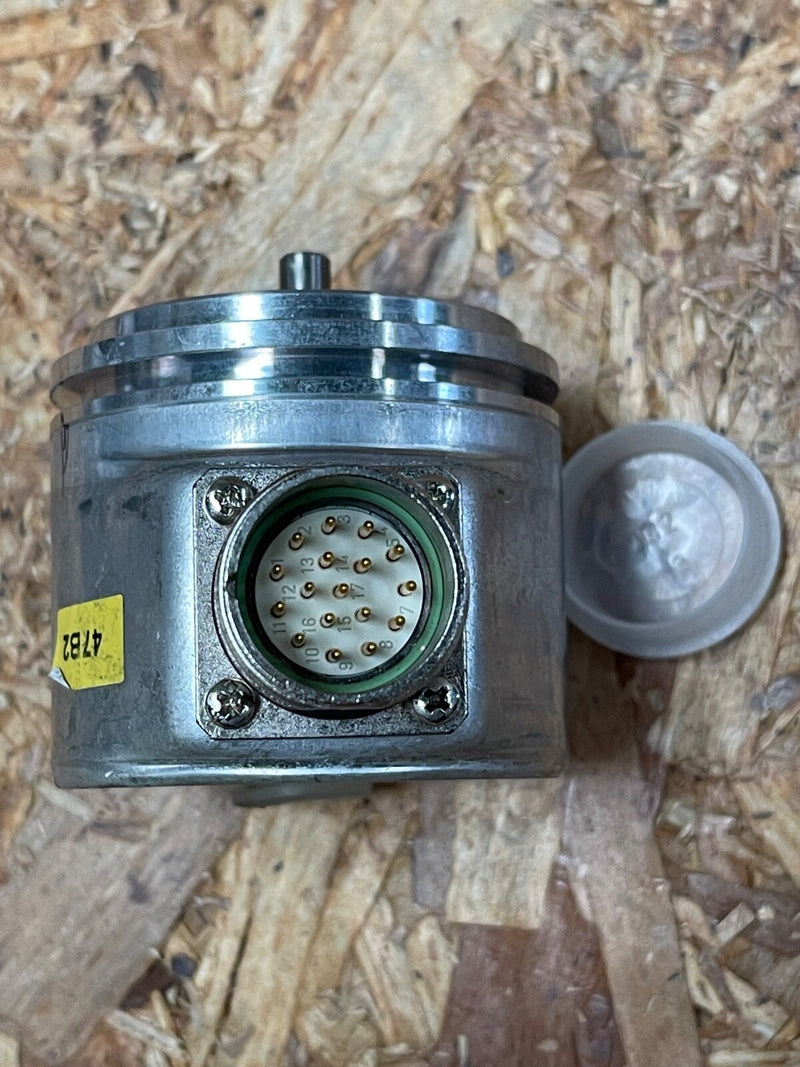

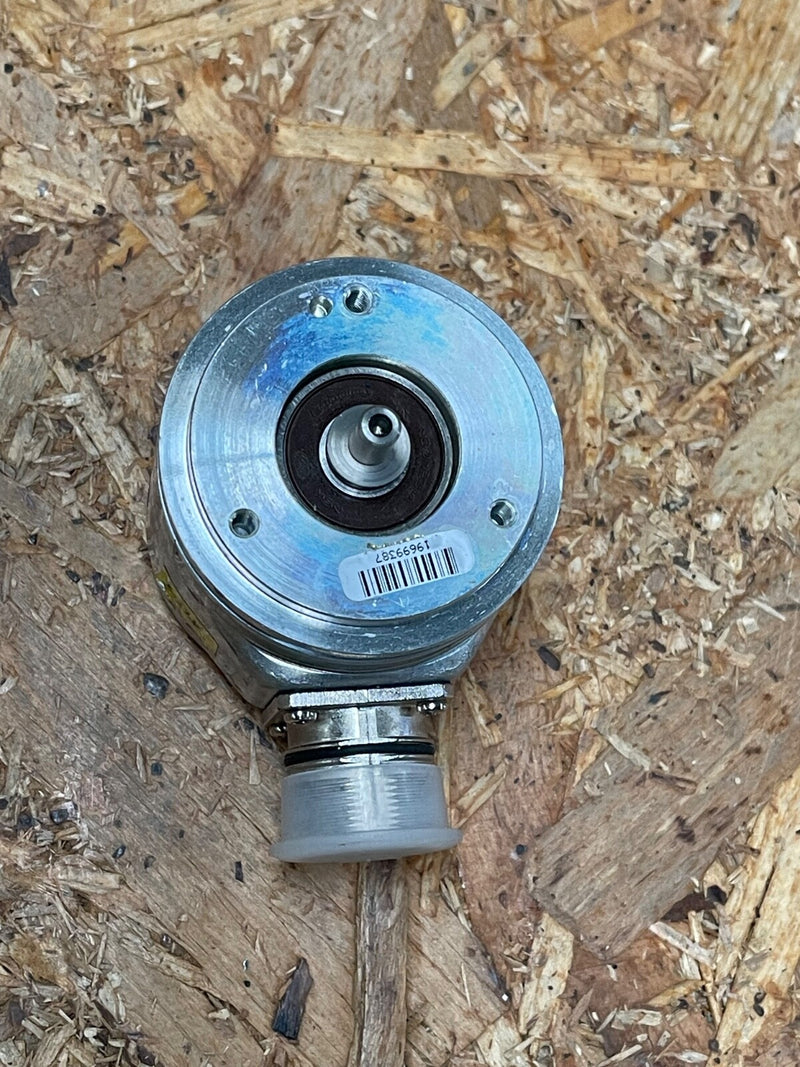

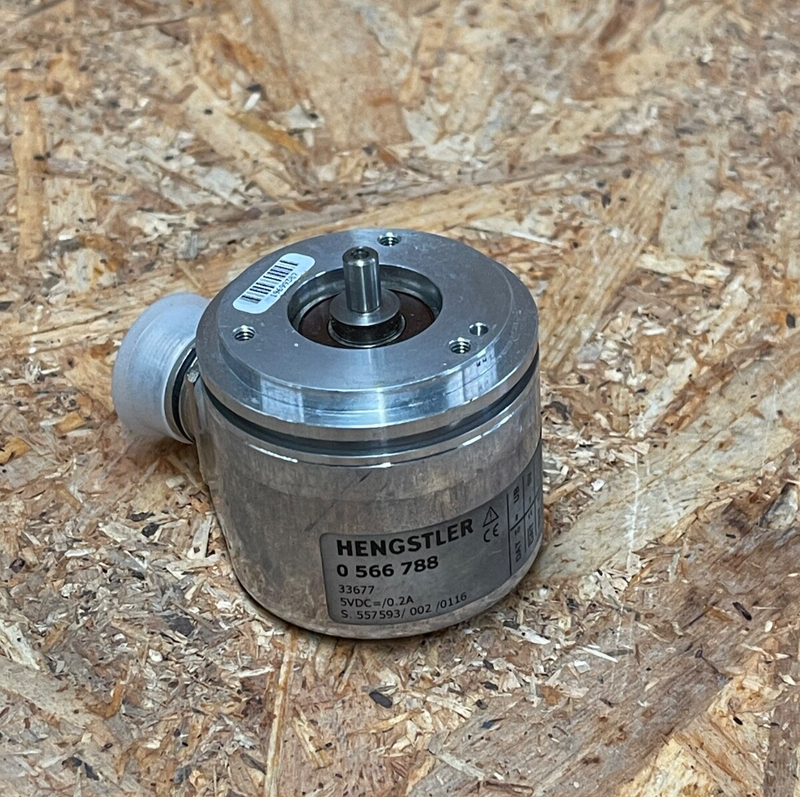

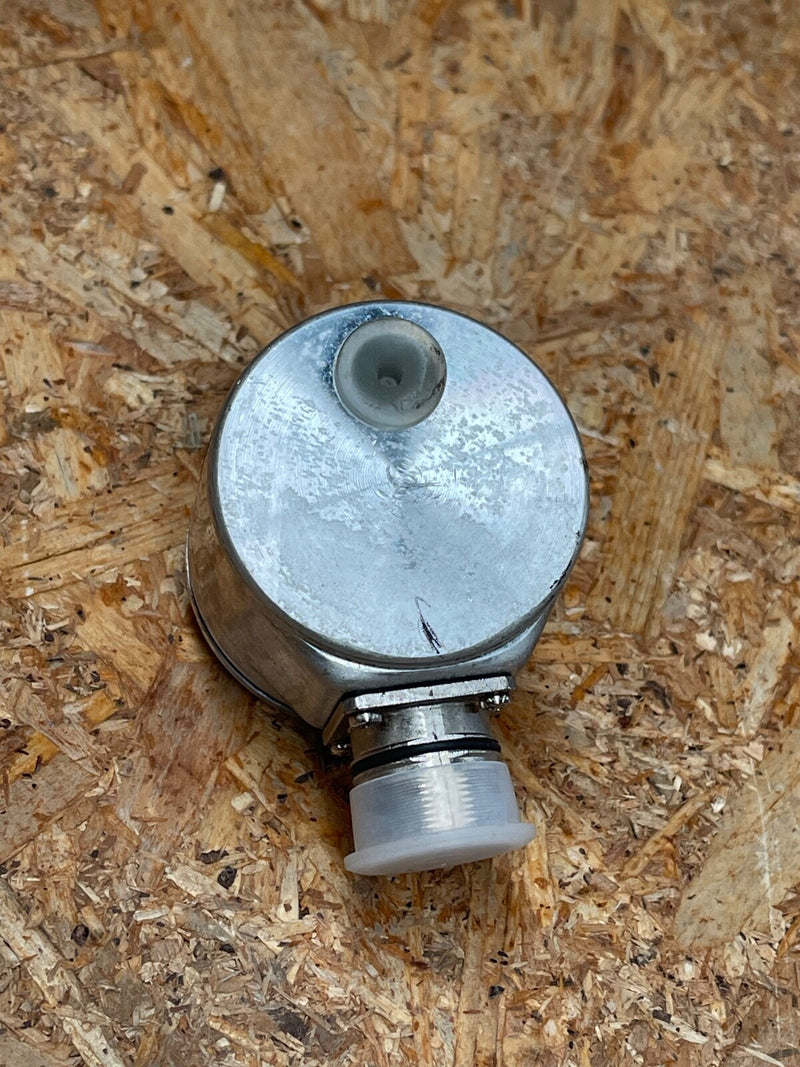

Hengstler – 0566788 – AC58 Incremental Rotary Encoder, Hollow Shaft, 5000 PPR

The Hengstler 0566788 is a high-performance incremental rotary encoder from the AC58 series. Designed with a robust stainless-steel construction, it provides precise position feedback in automation and motion control systems. This encoder features a hollow shaft configuration and delivers 5000 pulses per revolution (PPR), ideal for dynamic and demanding industrial applications.

Key Features:

• Model: 0566788 (AC58/1213AS.41SCX:6078)

• Brand: Hengstler

• Encoder Type: Incremental rotary encoder

• Output: 5000 pulses per revolution (PPR)

• Mounting: Hollow shaft with clamping ring

• Electrical Interface: Push-pull or line driver (depending on variant)

• Construction: Rugged stainless-steel housing for industrial environments

• Typical Applications: Servo motors, CNC machinery, robotics, and conveyor systems

• Operating Voltage: 5–30 V DC (model dependent)

• Environmental Protection: IP64 or higher (model dependent)

• Operating Temperature: –20 °C to +85 °C
