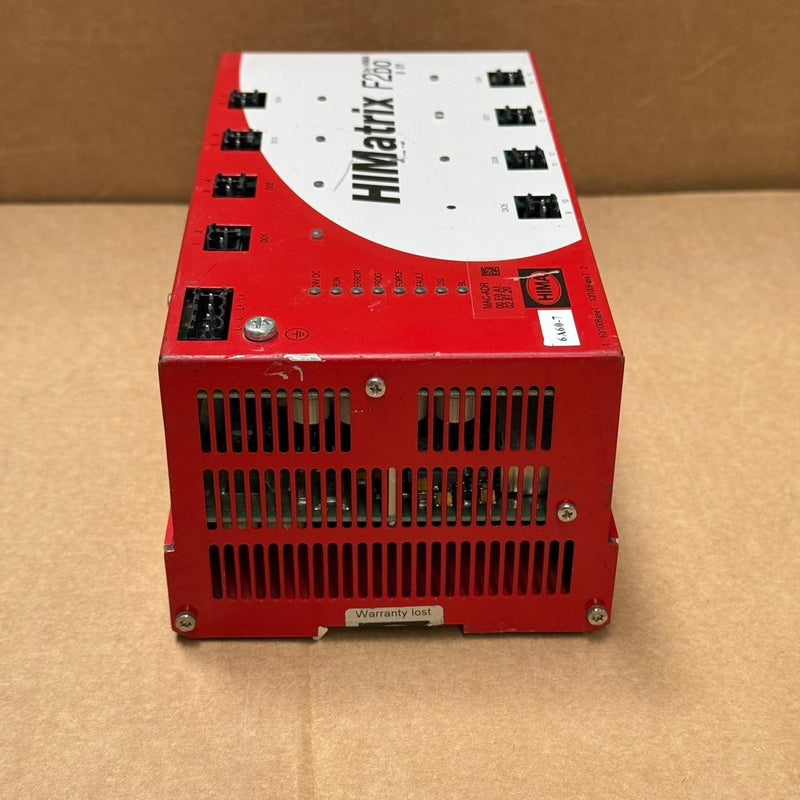

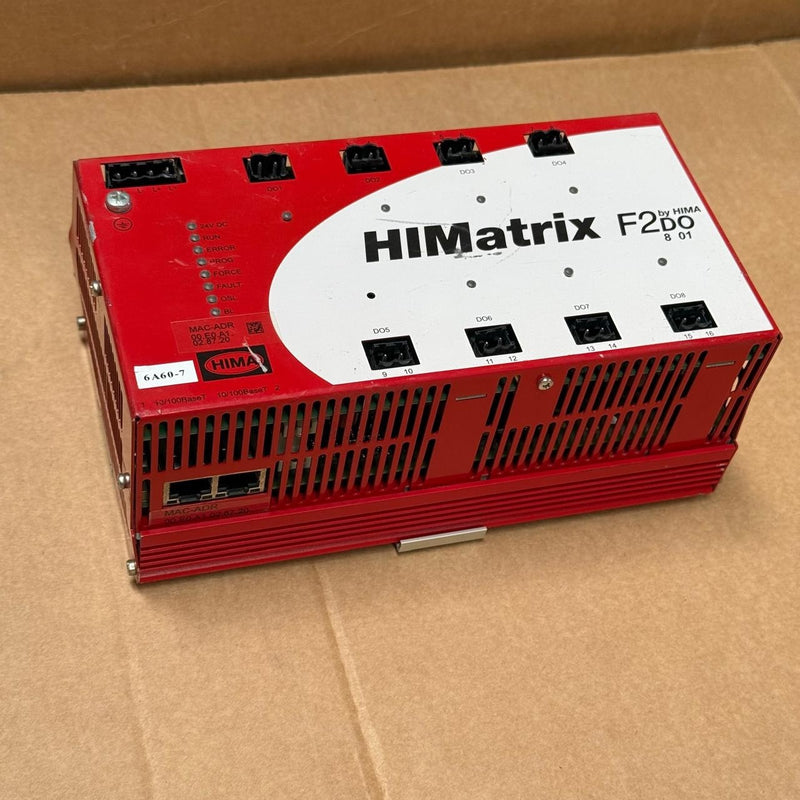

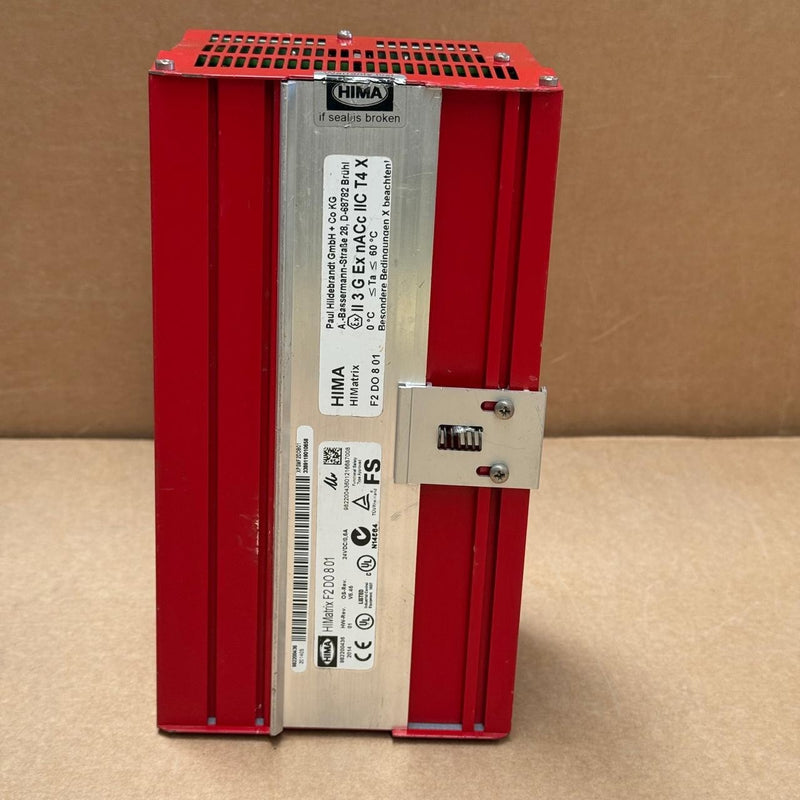

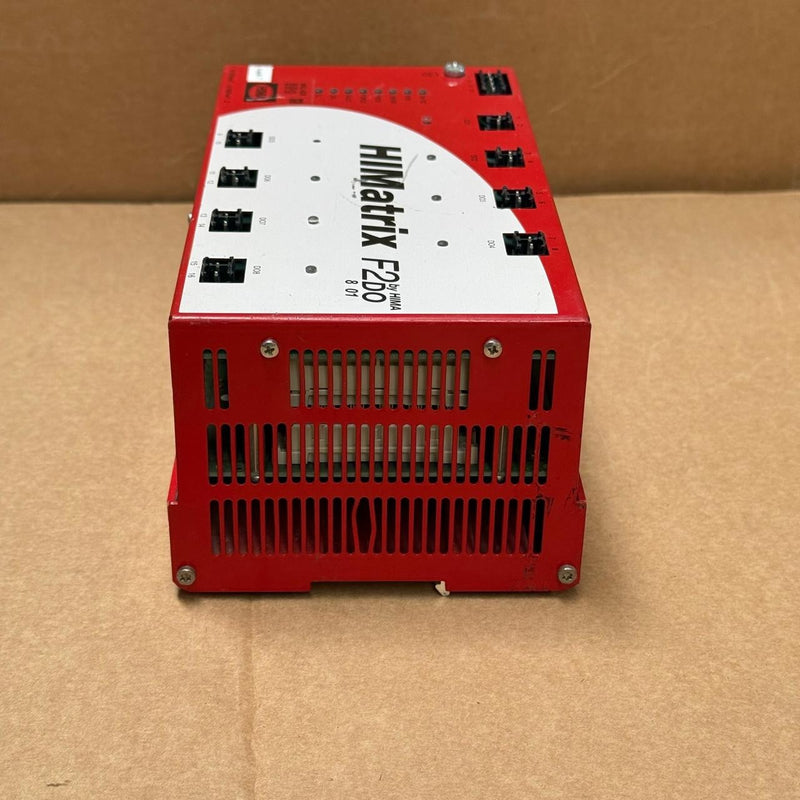

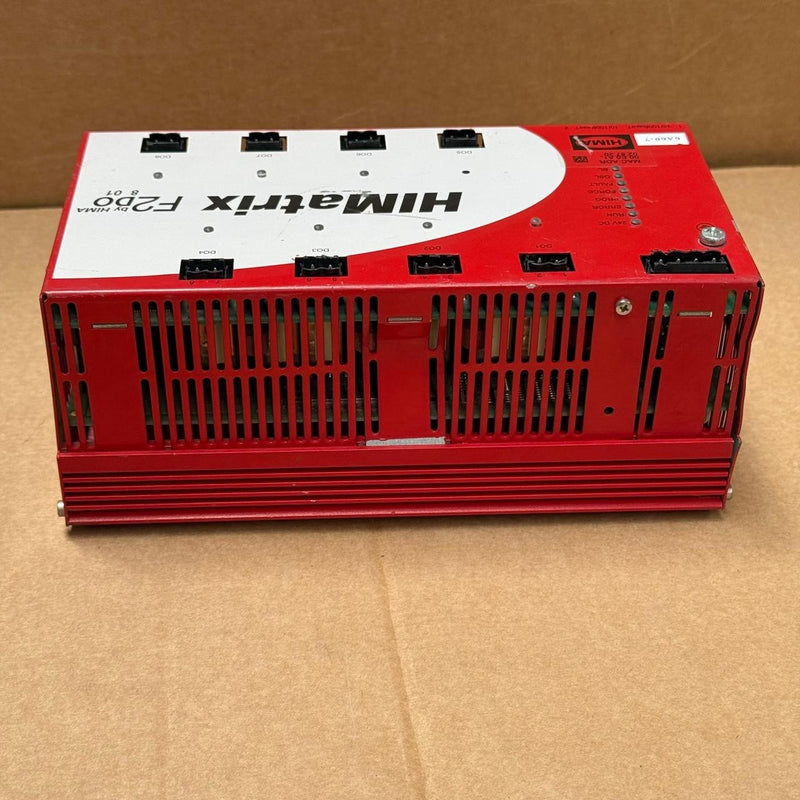

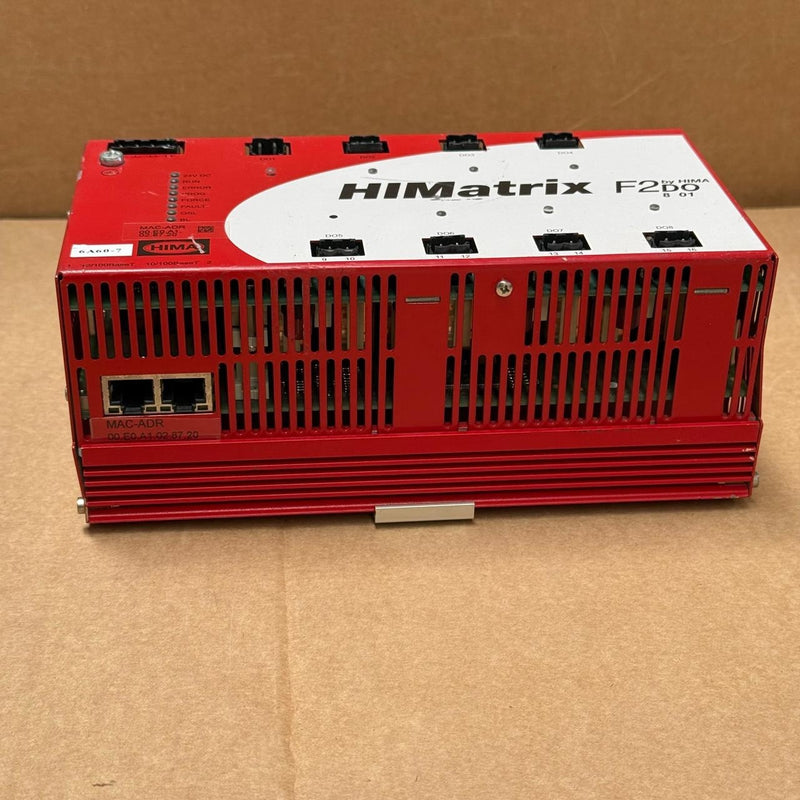

HIMA – F2DO801 HIMatrix – Safety Remote I/O Module, 8 Relay Outputs, 24 VDC

The F2DO801 from HIMA is a certified safety remote I/O module within the HIMatrix platform. Featuring eight relay outputs with forcibly guided contacts and a 24 V DC power supply, it is designed for distributed safety systems in harsh industrial environments. Compatible with SILworX and ELOP II engineering tools, it enables safe and reliable local control.

Key Features:

• Model / P/N: F2DO801 (F2 DO 8 01)

• Manufacturer: HIMA (Germany) ()

• Power Supply: 24 V DC ±15/ –20 %; max current 0.6 A

• Outputs: 8 forcibly-guided relay outputs (NO), up to 250 VAC/DC, ≤3 A relay switching current

• Protection & Connectors: Rugged IP20 metal housing; includes 2× RJ‑45 SafeEthernet ports

• Dimensions: 207 × 114 × 86 mm; weight ~1.3 kg

• Operating Range: 0 °C to +60 °C; storage −40 °C to +85 °C

• Approvals: Certified to SIL 3 / PL e; safe for use in HIMatrix distributed safety systems

• Integration: Connects to HIMax/HIMatrix controllers via SafeEthernet; programmed via SILworX or ELOP II software
