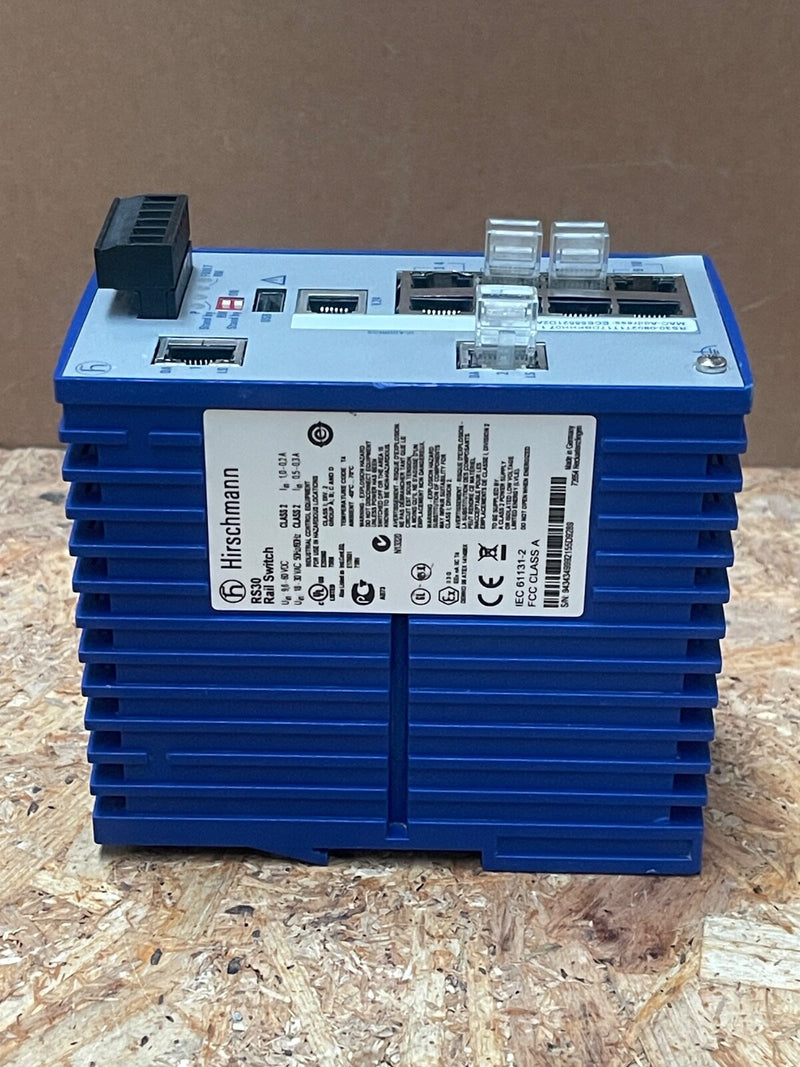

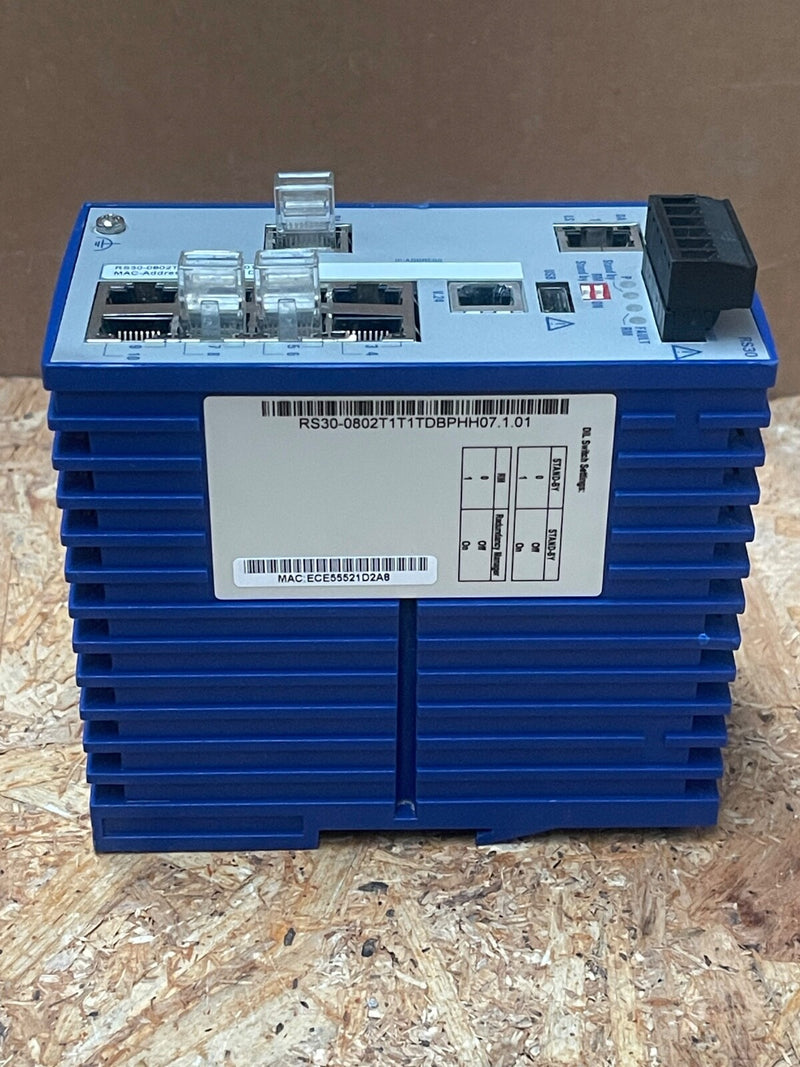

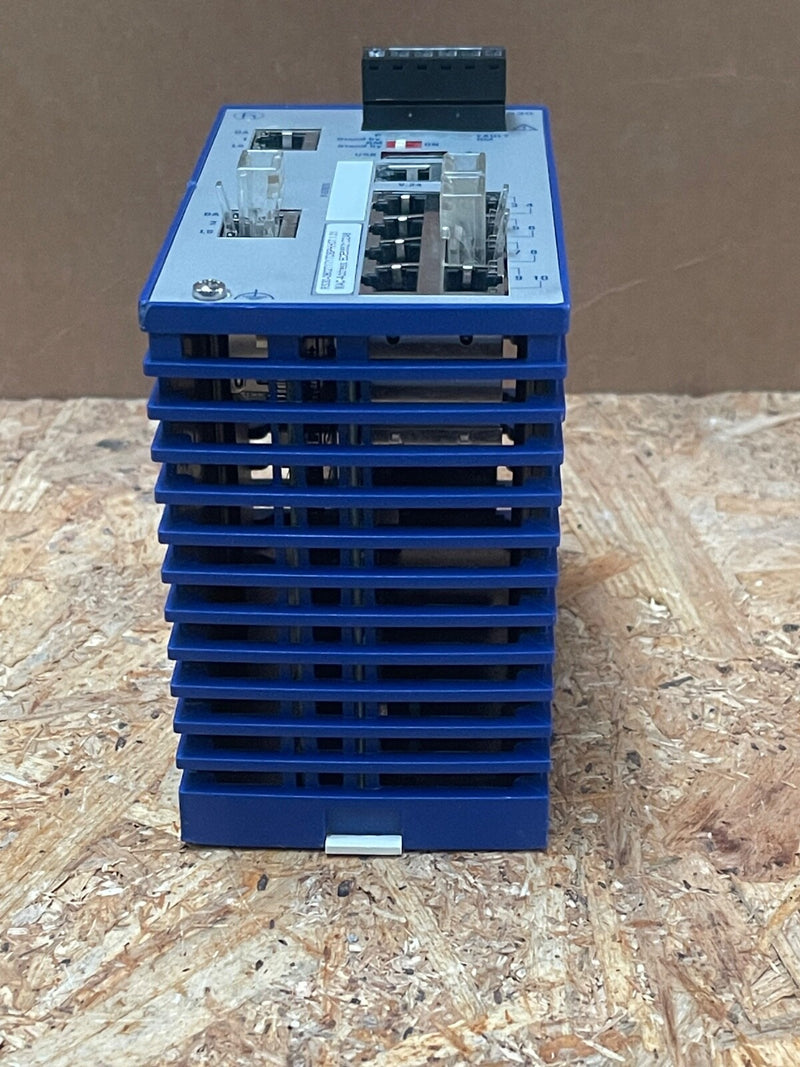

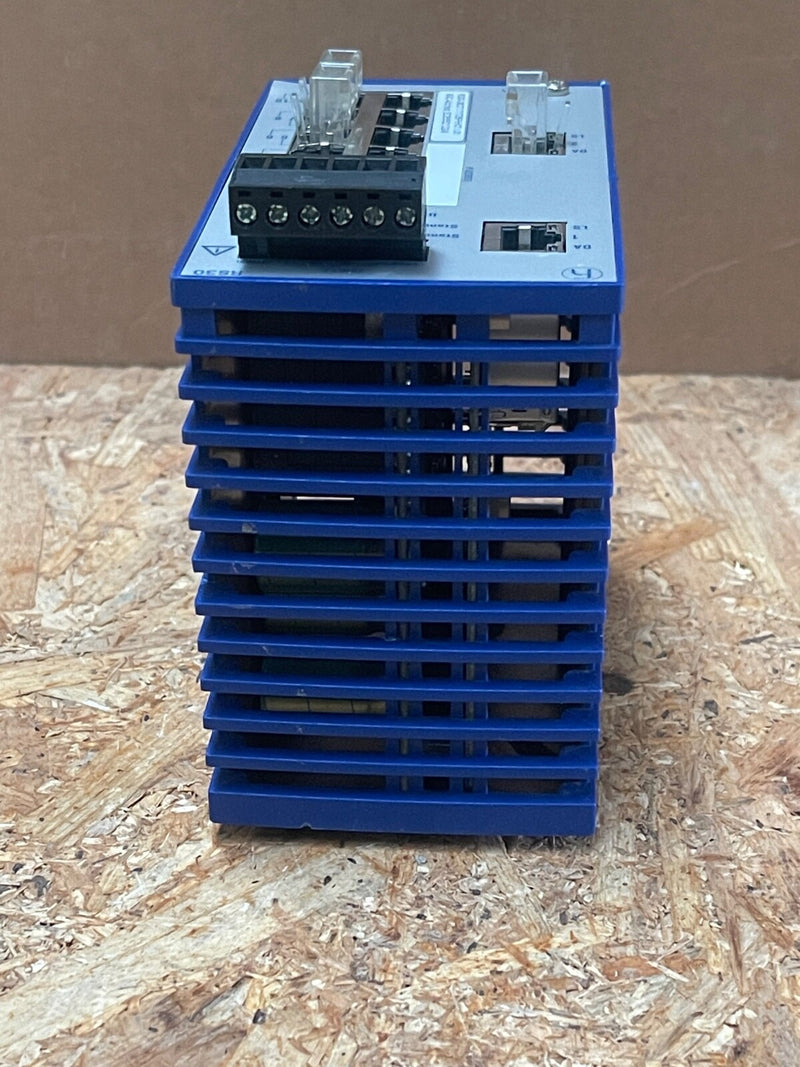

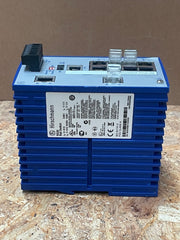

Hirschmann – RS30‑0802T1T1TDBPHH 07.1.01 – Managed OpenRail Ethernet Switch

Main Features

• Series: Hirschmann RS30 compact OpenRail managed switches with PROFINET compatibility

• Model/MPN: RS30‑0802T1T1TDBPHH07.1.01 — denotes specific firmware and port options

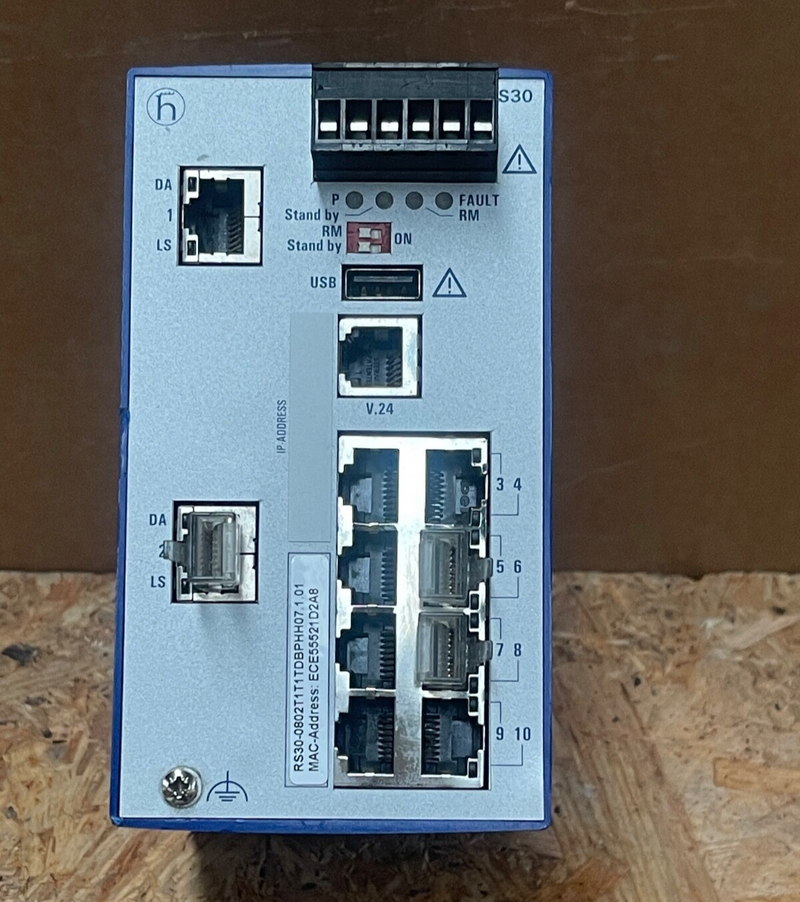

• Ethernet Ports:

  • 8 × 10/100 Mbps RJ‑45 copper ports

  • 2 × 1 Gbps SFP fiber-optic uplink slots

• Power-over-Ethernet (PoE): Integrated PoE support via terminal-block power input (likely 48 V DC)

• Management & Protocols:

  • Layer‑2 full management with VLAN, QoS, IGMP snooping, RMON, syslog, port mirroring

  • Redundancy: Turbo Ring/Turbo Chain with <20 ms recovery

  • PROFINET Device Conformance Class B certified

• Console: RS‑232 serial port for configuration

• Environmental & Mechanical:

  • DIN‑rail (EN 50022) mountable, rugged housing

  • Operating range –40 °C to +70 °C

• Certifications: CE, cULus, and possibly ATEX/IECEx variant based on “HH” code
