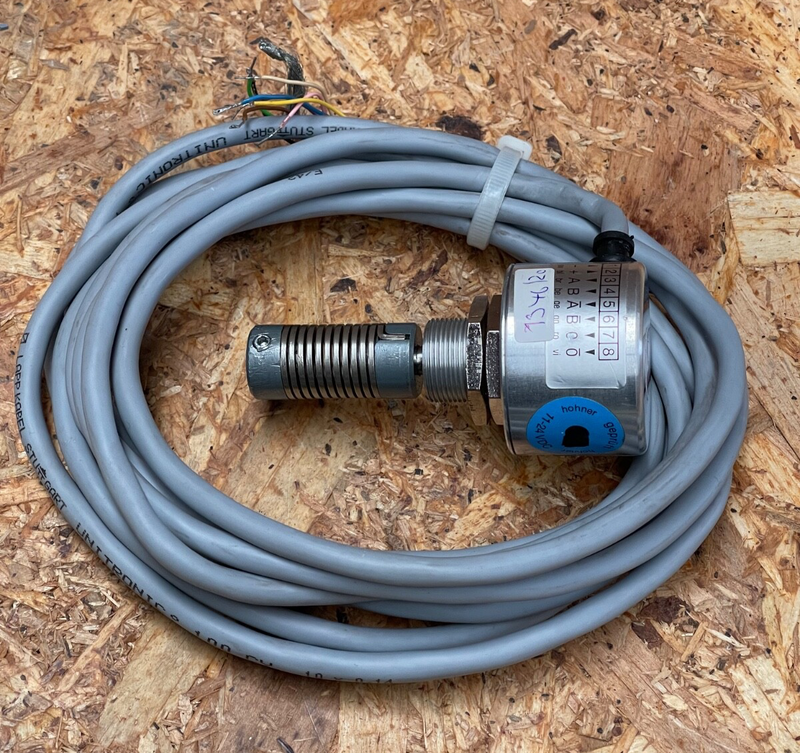

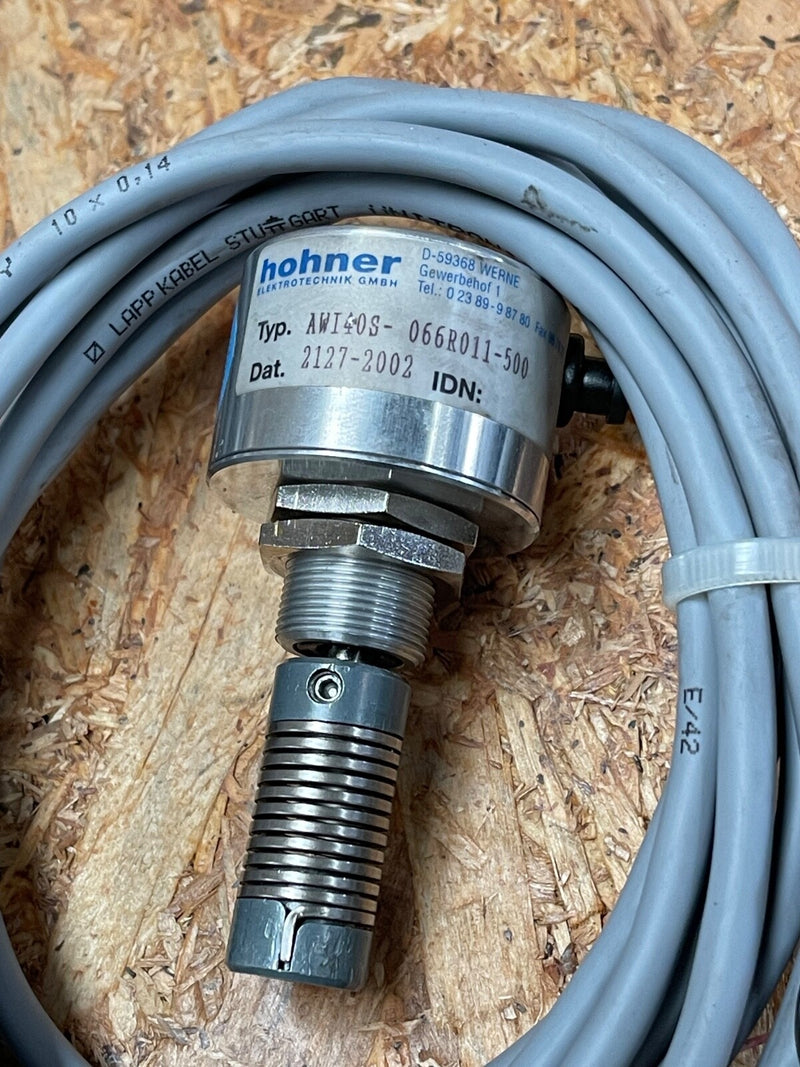

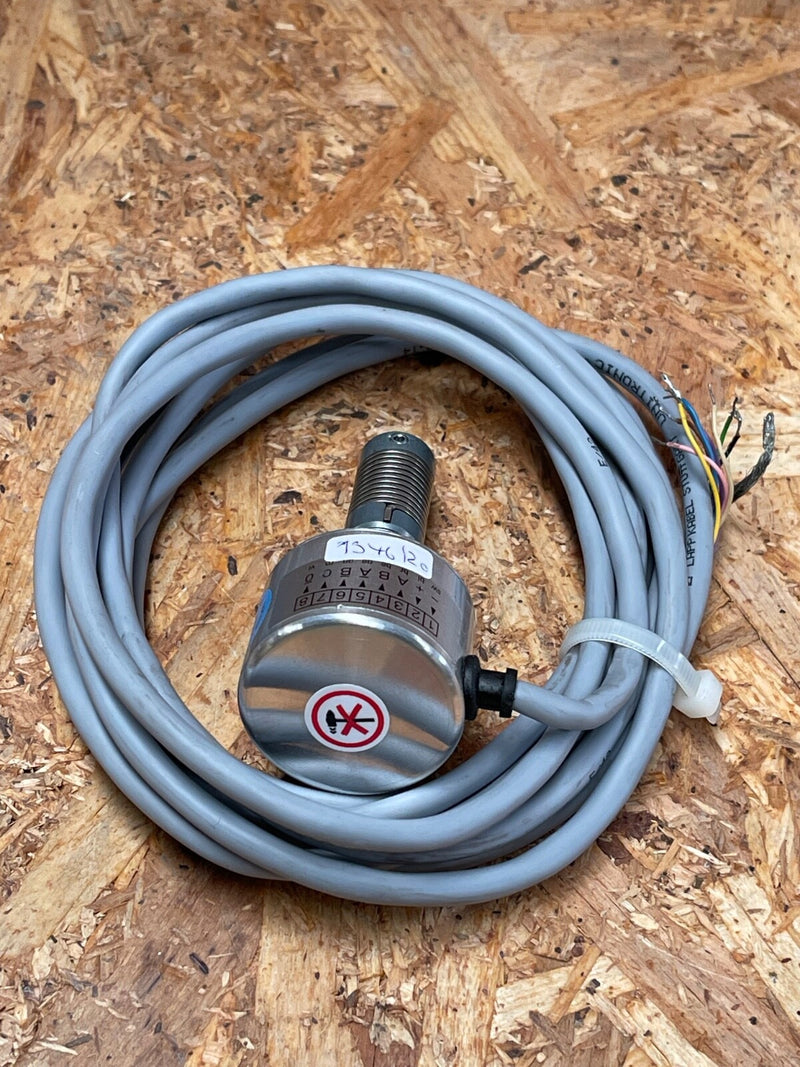

Hohner - AWI40S-066R011-500 - Incremental Encoder, Ø6 mm Shaft, 500 ppr

The Hohner AWI40S-066R011-500 is a compact incremental rotary encoder from the AWI 40 series, designed for precise angular position and speed measurement in industrial applications. Featuring a 6 mm solid stainless steel shaft and a 40 mm housing diameter, this encoder delivers 500 pulses per revolution (ppr) with a push-pull (HTL) output signal. Its robust construction and IP65 protection rating make it suitable for use in harsh environments.

Key Features:

• Model: AWI40S-066R011-500

• Brand: Hohner

• Function: Incremental rotary encoder for angular position and speed measurement

• Shaft Diameter: 6 mm solid stainless steel

• Housing Diameter: 40 mm

• Resolution: 500 pulses per revolution (ppr)

• Output Signal: Push-pull (HTL)

• Power Supply: 10–30 V DC

• Maximum Output Current: 30 mA per channel

• Maximum Rotational Speed: Up to 6,000 rpm

• Maximum Pulse Frequency: 100 kHz

• Protection Rating: IP65

• Operating Temperature Range: -30°C to +70°C

• Mounting: Flange mounting with radial cable outlet

• Applications: Ideal for use in automation systems, motor feedback, conveyor systems, and other industrial machinery requiring accurate position and speed feedback.
