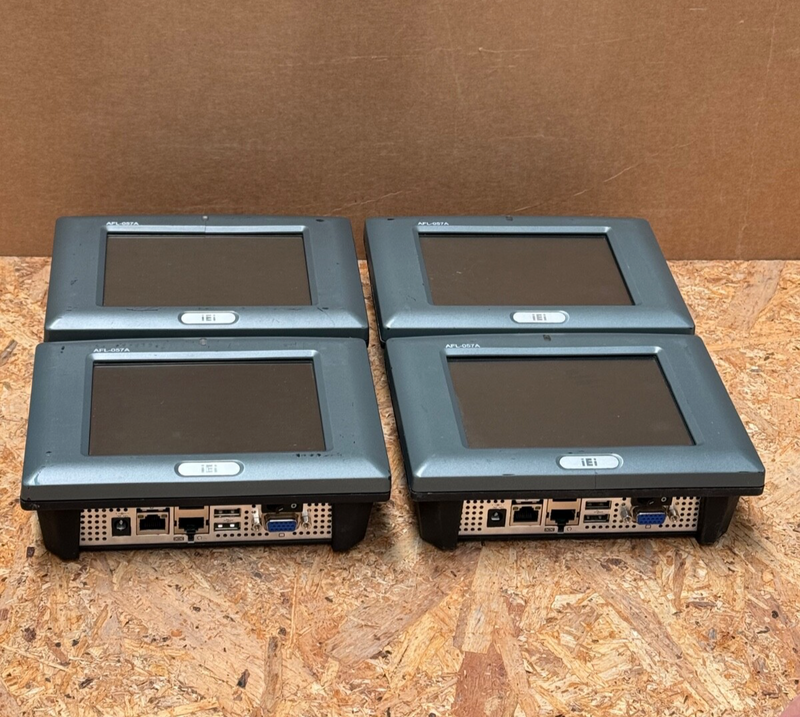

IEI (AFL) – AFL‑057A‑LX/WT‑R/256MB – 5.7″ Fanless Panel PC w/ AMD Geode LX‑800

The IEI AFL‑057A‑LX/WT‑R/256MB is a rugged, fanless panel PC featuring a 5.7″ VGA resistive touchscreen, powered by an energy‑efficient AMD Geode LX‑800 CPU. It includes built-in 802.11 b/g wireless LAN, Bluetooth v2.0, dual USB ports, dual serial ports, CF card slot, and audio—ideal for industrial HMI, automation, point-of-sale, or outdoor control systems.

Key Features:

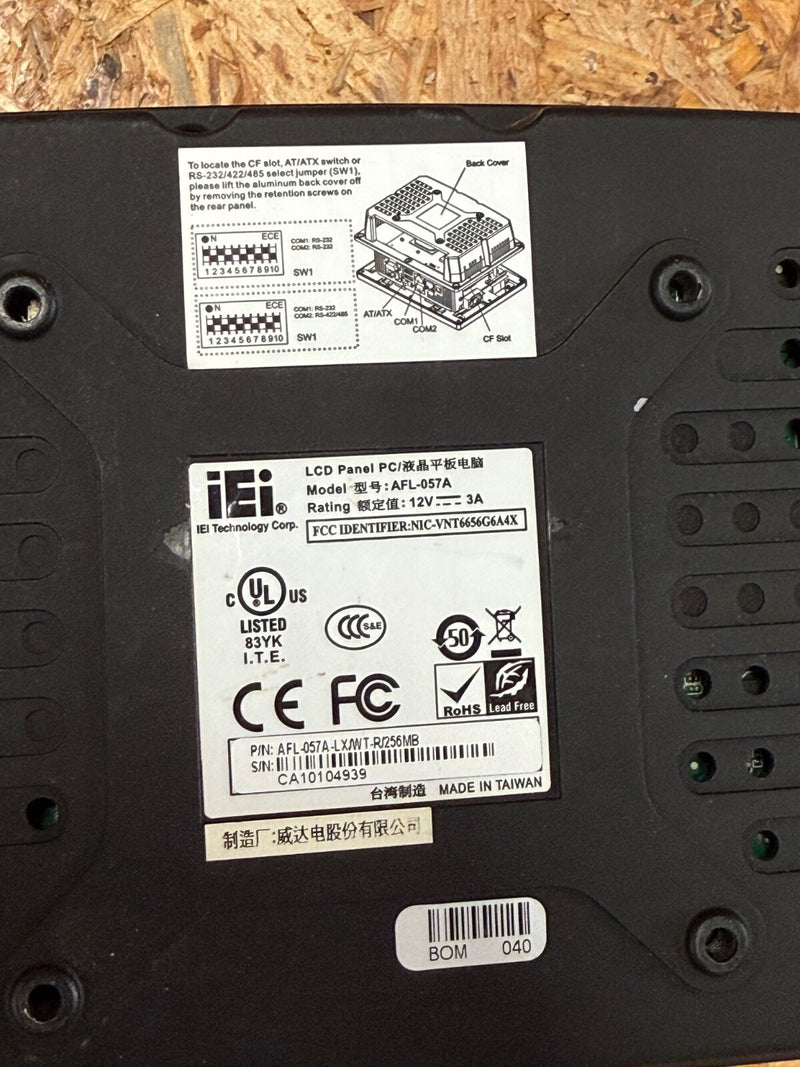

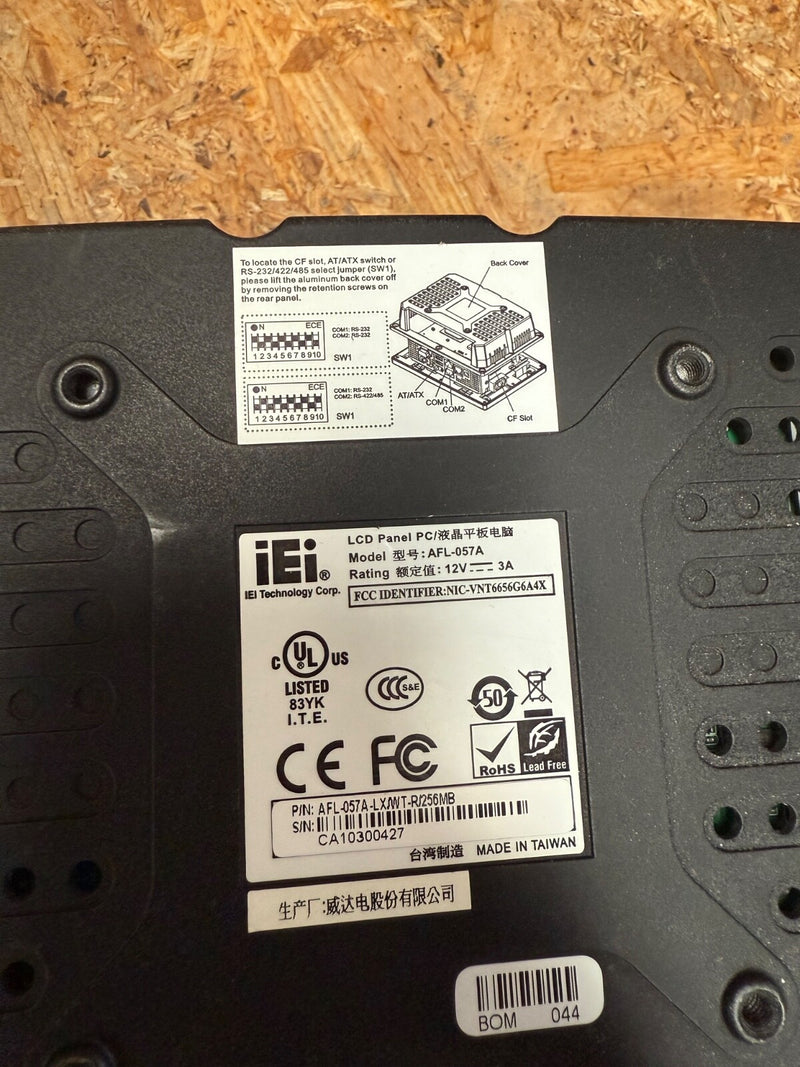

• Model: AFL‑057A‑LX/WT‑R/256MB

• Display: 5.7″ VGA TFT LCD, 640×480 resolution, 400 cd/m² brightness, 262K color, 50,000 h LED backlight

• Touchscreen: 4‑wire resistive panel

• Processor: AMD Geode LX‑800, 500 MHz

• Memory: 256 MB DDR RAM onboard; expandable to 1 GB via SO‑DIMM slot

• Storage: CompactFlash Type II slot; additional expansion via VGA/CF

• Connectivity:

    – 2× USB 2.0 ports

    – 1× VGA output

    – 1× 10/100 Mbps LAN

    – 1× RS‑232; 1× RS‑232/422/485 (RJ‑45)

    – Integrated WLAN 802.11 b/g and Bluetooth v2.0 w/ external antenna

• Audio: Dual internal 1.5 W speakers; front panel power LED

• Power Modes: Switchable AT/ATX mode; 12 V DC input; optional 9–30 V DC converter

• Ruggedness & Mounting: Fanless die-cast aluminum back, ABS front; IP64 front bezel; VESA 75×75 mm mounting

• Power Consumption: ~15 W typically; 12 V input via adapter supplied (90–264 VAC in)

• Dimensions & Temperature: 180 × 135 × 55 mm; 0.8 kg; rated 0–50 °C (storage –20 °C to 60 °C)

• Certifications: CE, FCC, CB, CCC; UL safety approved; RoHS compliant
