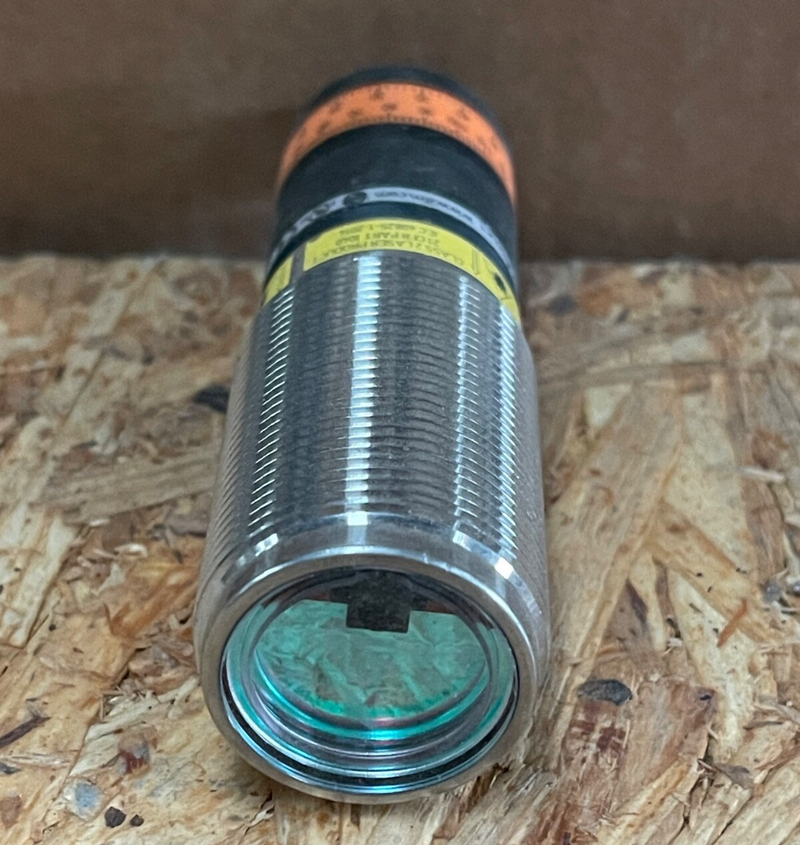

The ifm electronic OID200 is a high-performance laser distance sensor designed for precise object detection and distance measurement in industrial automation applications. Utilizing time-of-flight technology, it offers reliable performance with background suppression and color-independent detection, making it suitable for various challenging environments.

Key Features:

Model: OID200
Brand: ifm electronic
Sensor Type: Laser distance sensor with time-of-flight measurement
Measuring Range: 0.03 to 2.0 meters
Output Configuration: 2 PNP digital outputs (NO/NC, complementary)
Switching Frequency: 11 Hz
Sampling Rate: 33 Hz

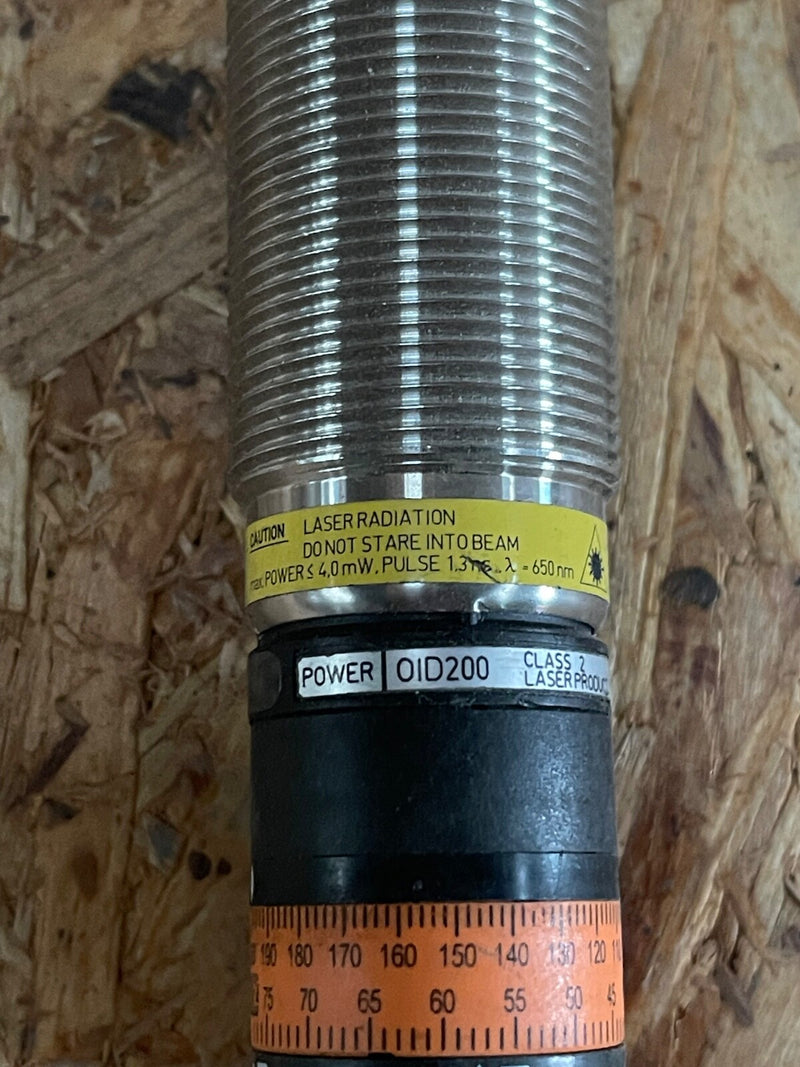

Light Source: Red laser, 650 nm wavelength, Class 2
Operating Voltage: 10–30 V DC
Current Consumption: <75 mA at 24 V
Interface: IO-Link (COM2, 38.4 kBaud, Revision 1.1)
Housing Material: Stainless steel (AISI 316L)
Protection Rating: IP65/IP67
Ambient Temperature Range: -25°C to +60°C

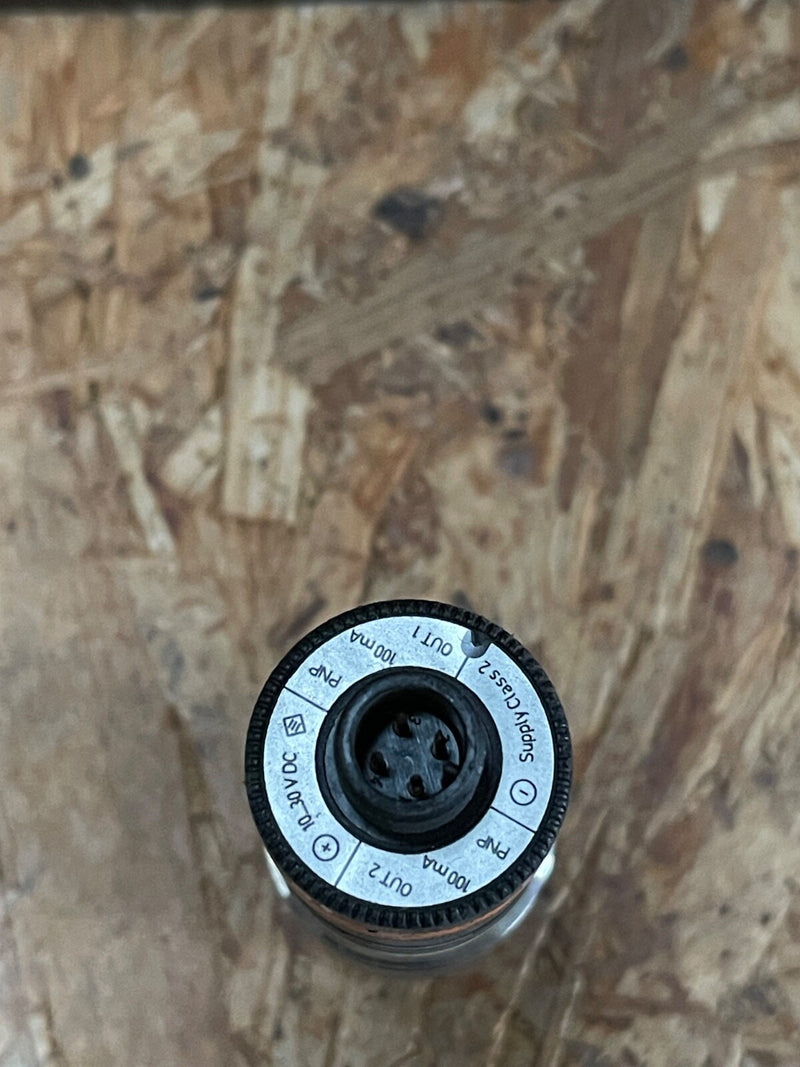

Connection: M12 connector, 4-pin
Dimensions: M30 x 1.5 thread, 100 mm length
Weight: Approximately 209 g
Display: LED indicators for power and switching status
Adjustment: Setting ring for easy parameter configuration
Applications: Ideal for object detection, positioning, and distance measurement in automation systems, including material handling, packaging, and assembly lines

ifm electronic - OID200 - Laser Distance Sensor, 0.03–2 m, IO-Link
