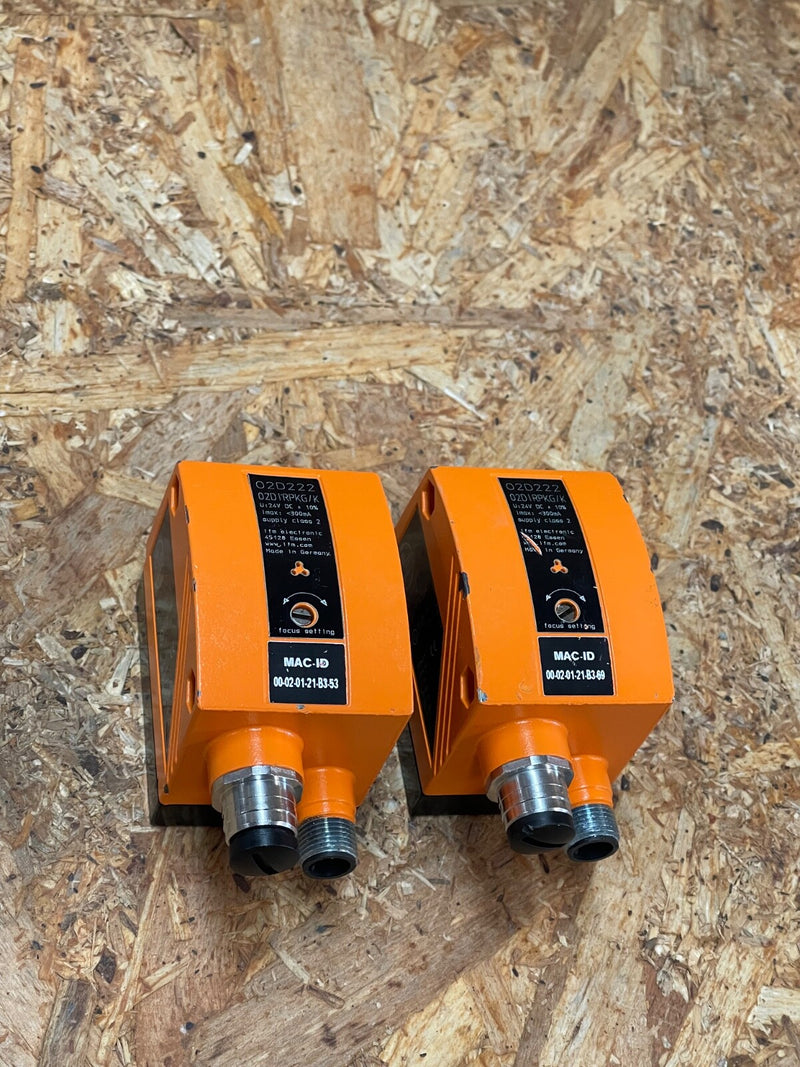

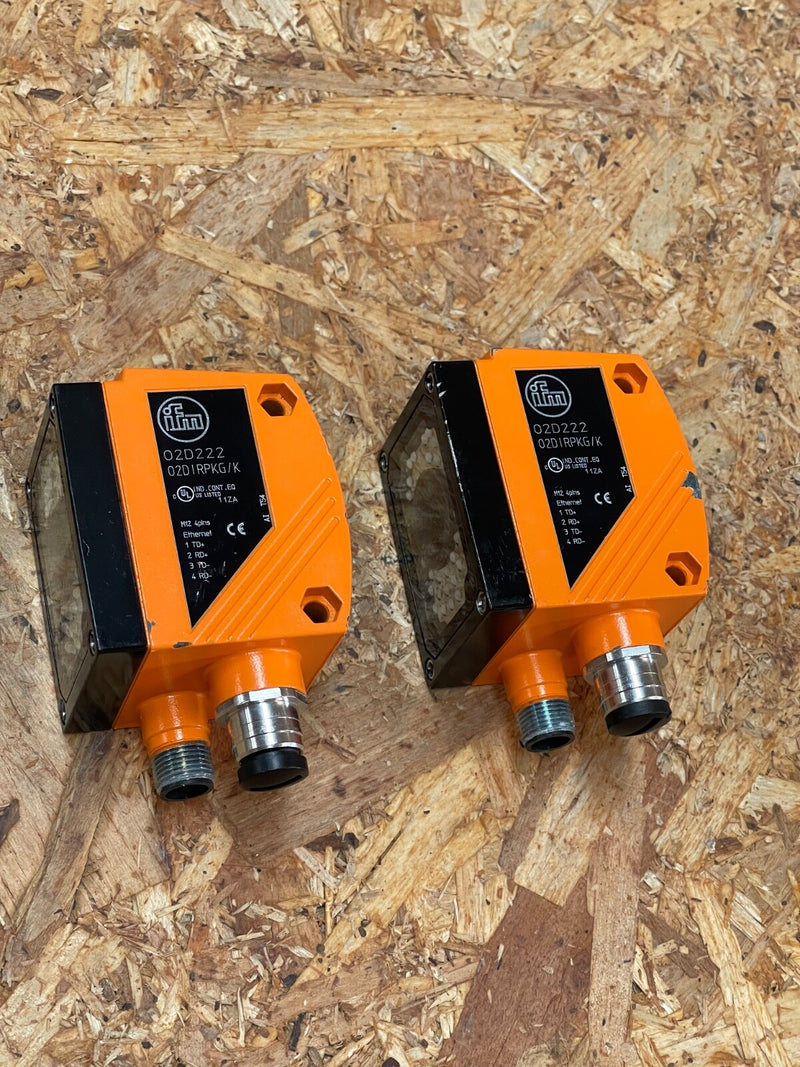

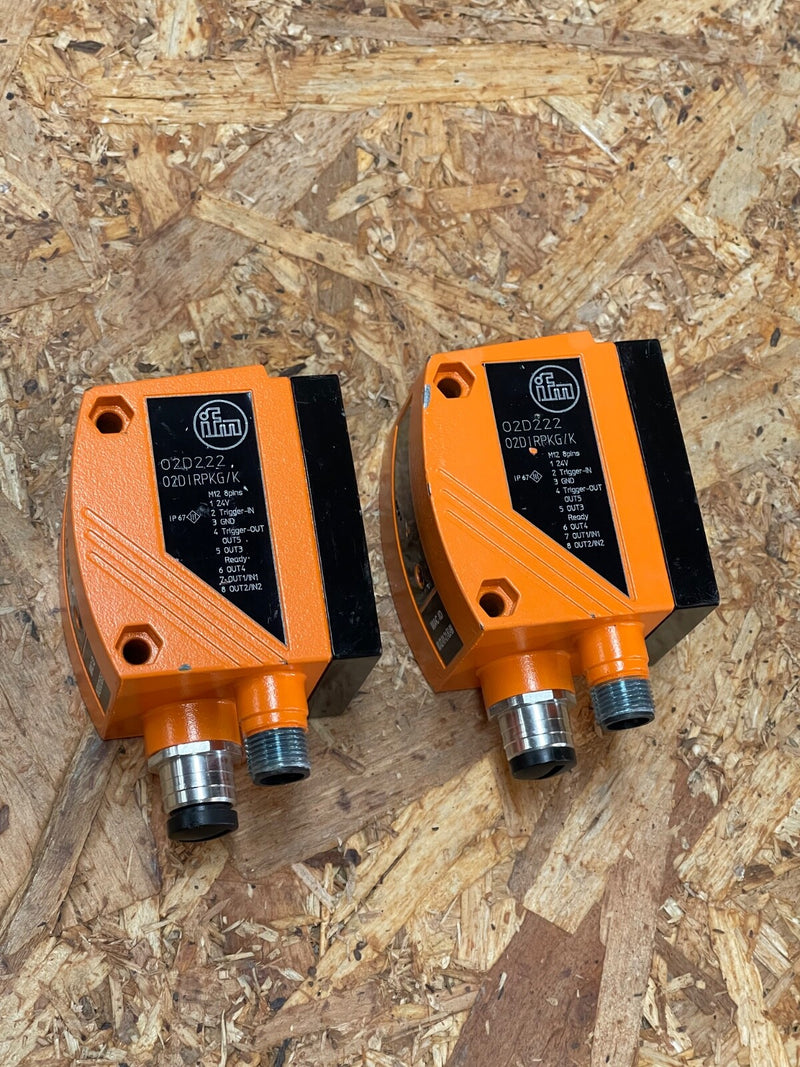

The IFM O2D222 (also known as O2DIRPKG/K) is a high-performance, fixed-mount object recognition sensor with onboard infrared illumination and Ethernet connectivity. Perfect for presence detection, contour verification, and quality control, it offers robust imaging capabilities and industrial-grade durability.

Key Features & Technical Specifications:

Model / MPN: O2D222 (O2DIRPKG/K)
Imaging: High-resolution 640×480 px CMOS sensor; max scan rate 20 Hz
Detection Range: Up to 2000 mm with field of view 1320×945 mm; resolution from 0.3 mm at 50 mm range to 8 mm at 2000 mm

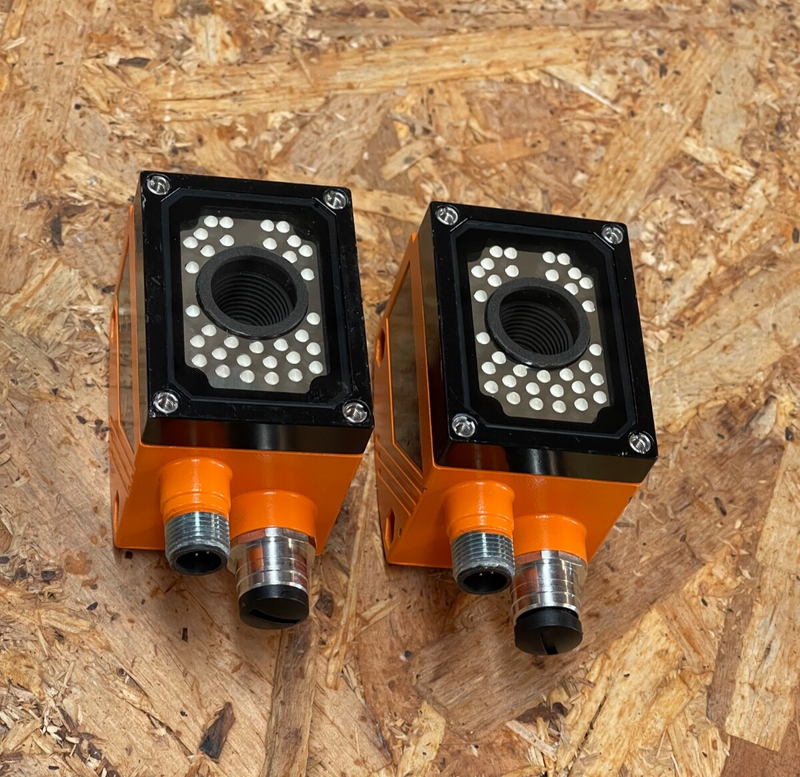

Illumination: Built-in infrared LED at 850 nm
Power & I/O: 24 V DC ±10%, 300 mA; includes 2 digital inputs & 5 configurable PNP outputs (≤100 mA each)
Communications: Ethernet (TCP/IP, EtherNet/IP, PROFINET); one D-coded M12 connector
Housing & Sensor Interface: Die-cast zinc body, IP67 protection, –10 °C to +60 °C operating range

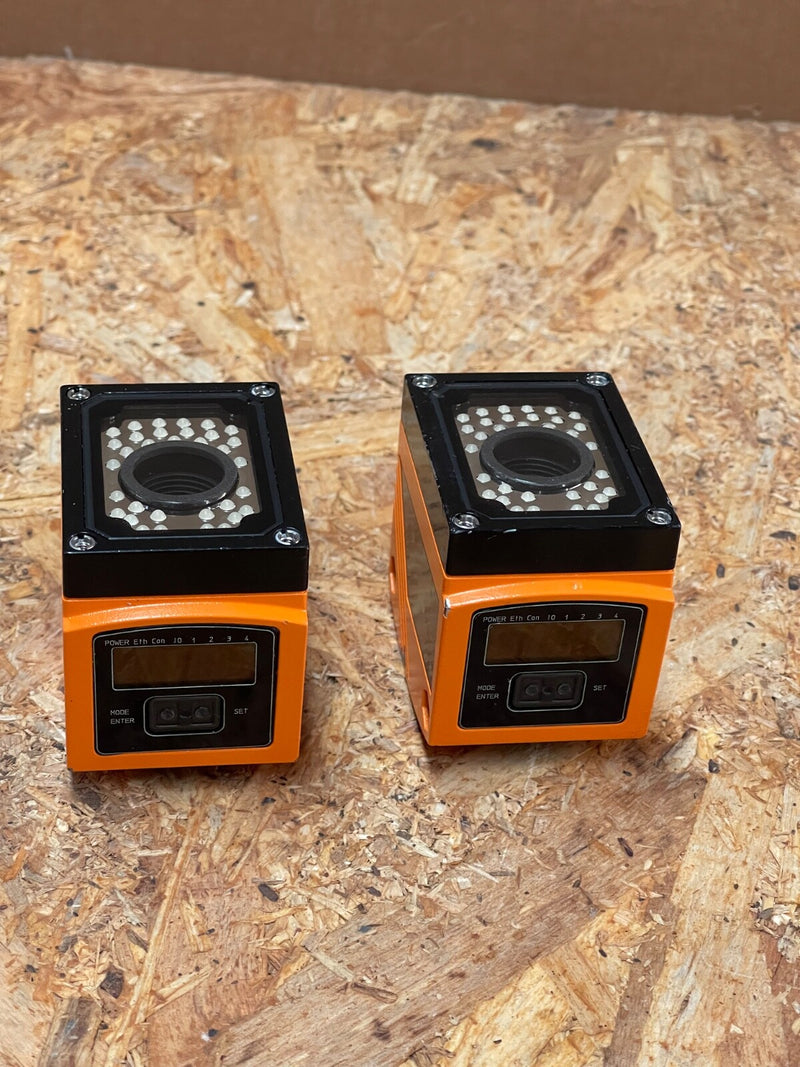

User Interface: 10‑segment display plus status/trig LEDs; parameterization via push-buttons or PC with E2D200 software
Certifications: EMC per EN 61326; shock/vibration per IEC standards; cULus (Class 2 supply note)
