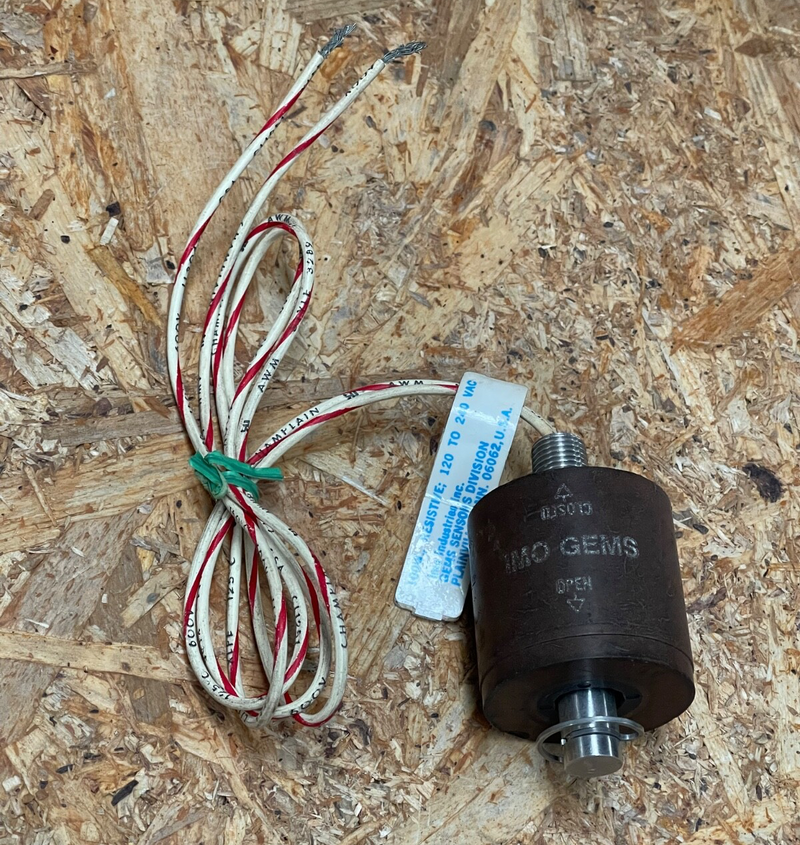

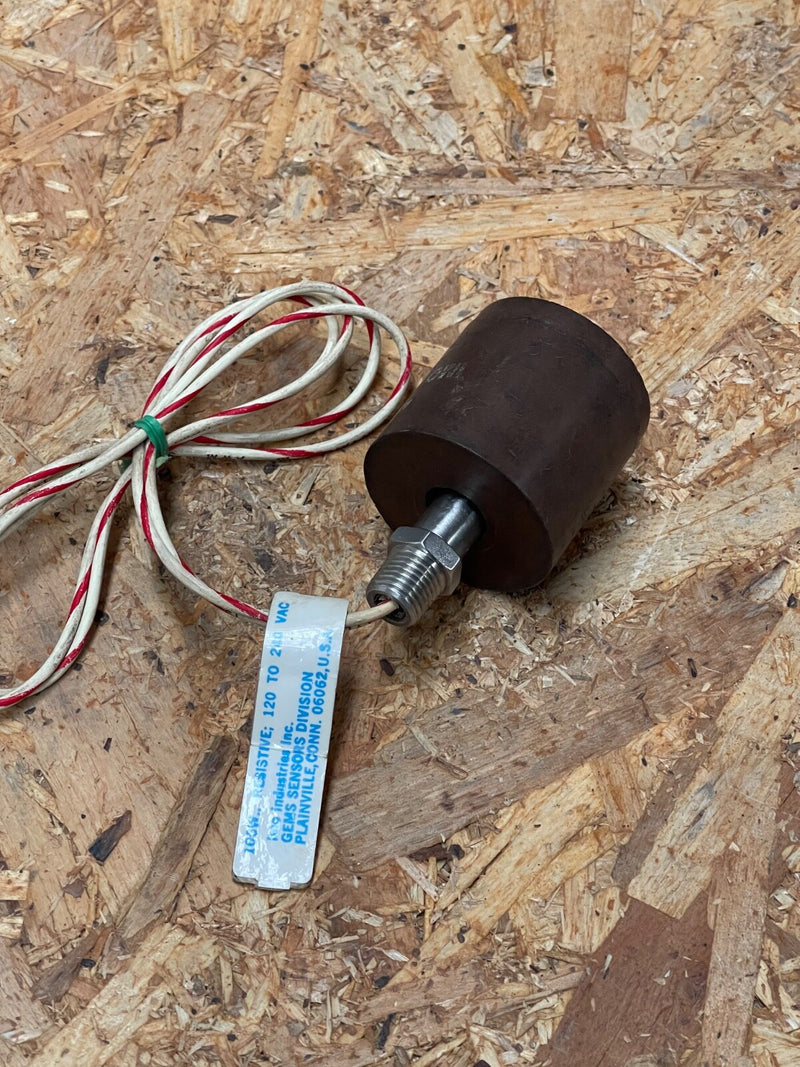

IMO GEMS – Float Level Switch – 120–240 VAC SPST‑NO, Cable Leads

The IMO GEMS float level switch is a reliable single-point liquid-level sensor designed for high- or low-level detection in tanks, sumps, or process vessels. It operates on 120–240 VAC with SPST normally open (NO) contacts, making it ideal for pump control, alarms, or shutoff circuits. This model includes integrated cable leads and threaded stainless mounting for secure installation in industrial environments.

Key Features:

• Manufacturer: IMO / GEMS Sensors

• Type: Single-point float level switch

• Contact Type: SPST-NO (Normally Open)

• Operating Voltage: 120 to 240 VAC (resistive load)

• Mounting: Threaded stainless steel fitting

• Electrical Connection: Pre-wired leads (4-conductor, approx. 24”)

• Housing Material: Encapsulated epoxy body

• Application: Tank level monitoring, sump control, overflow alarm
