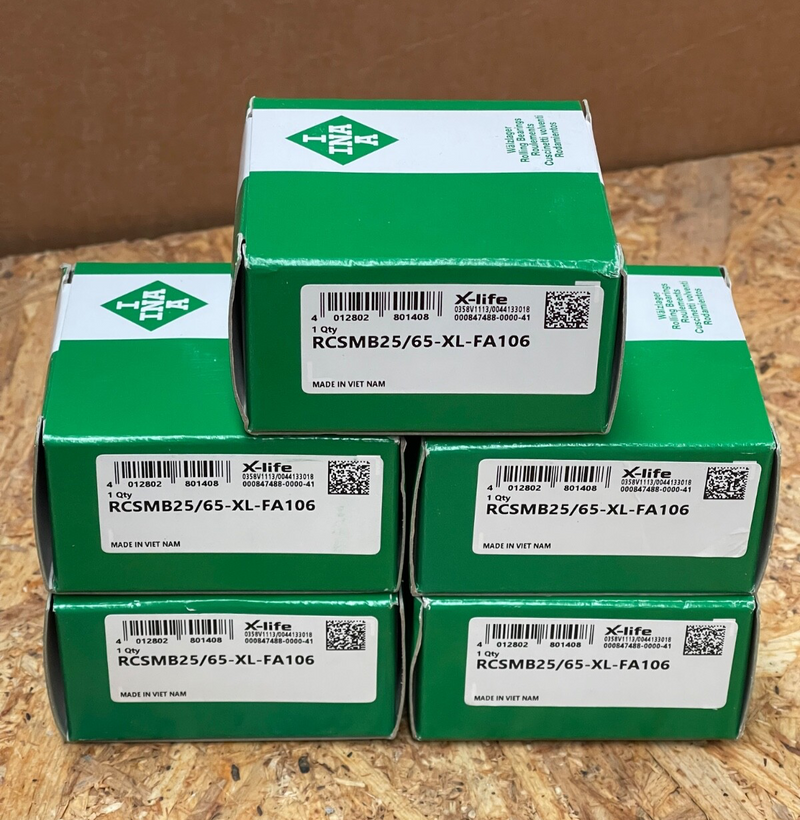

INA - RCSMB25/65-XL-FA106 - Radial Insert Ball Bearing, 25 mm ID, 65.1 mm OD

The INA RCSMB25/65-XL-FA106 is a high-performance radial insert ball bearing engineered for demanding industrial applications. Featuring a 25 mm inner diameter and a 65.1 mm outer diameter, this bearing incorporates a rubber interliner and an eccentric locking collar for secure shaft mounting. The double-sided P seals provide effective protection against contaminants, ensuring longevity and reliability. As part of INA’s X-Life series, it offers enhanced performance characteristics, including higher load ratings and extended service life.

Key Features:

• Model: RCSMB25/65-XL-FA106

• Brand: INA

• Inner Diameter (d): 25 mm

• Outer Diameter (D): 65.1 mm

• Width (B): 31 mm

• Locking Mechanism: Eccentric locking collar

• Sealing: Double-sided P seals

• Special Features: Rubber interliner for vibration damping

• Dynamic Load Rating (Cr): 14,900 N

• Static Load Rating (C₀r): 7,800 N

• Weight: Approximately 0.24 kg

• Series: X-Life (enhanced performance)

• Special Treatment: FA106 (noise-tested)

• Applications: Ideal for use in conveyor systems, agricultural machinery, and other industrial equipment requiring reliable bearing performance.
