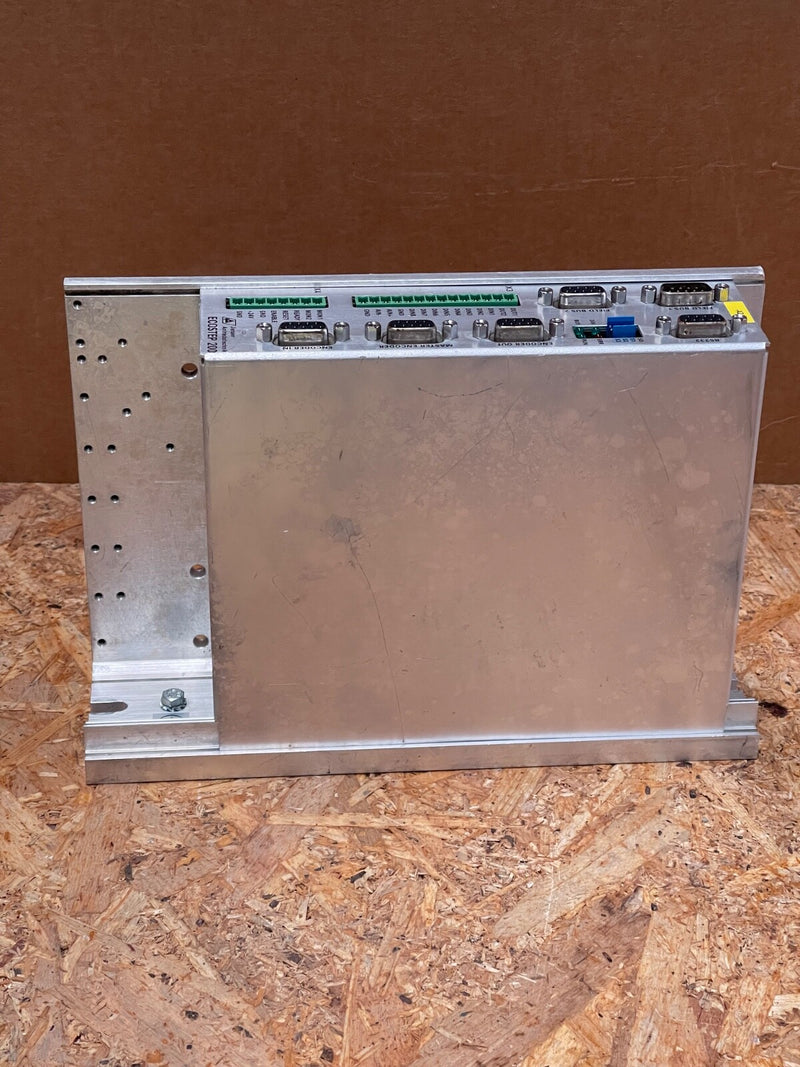

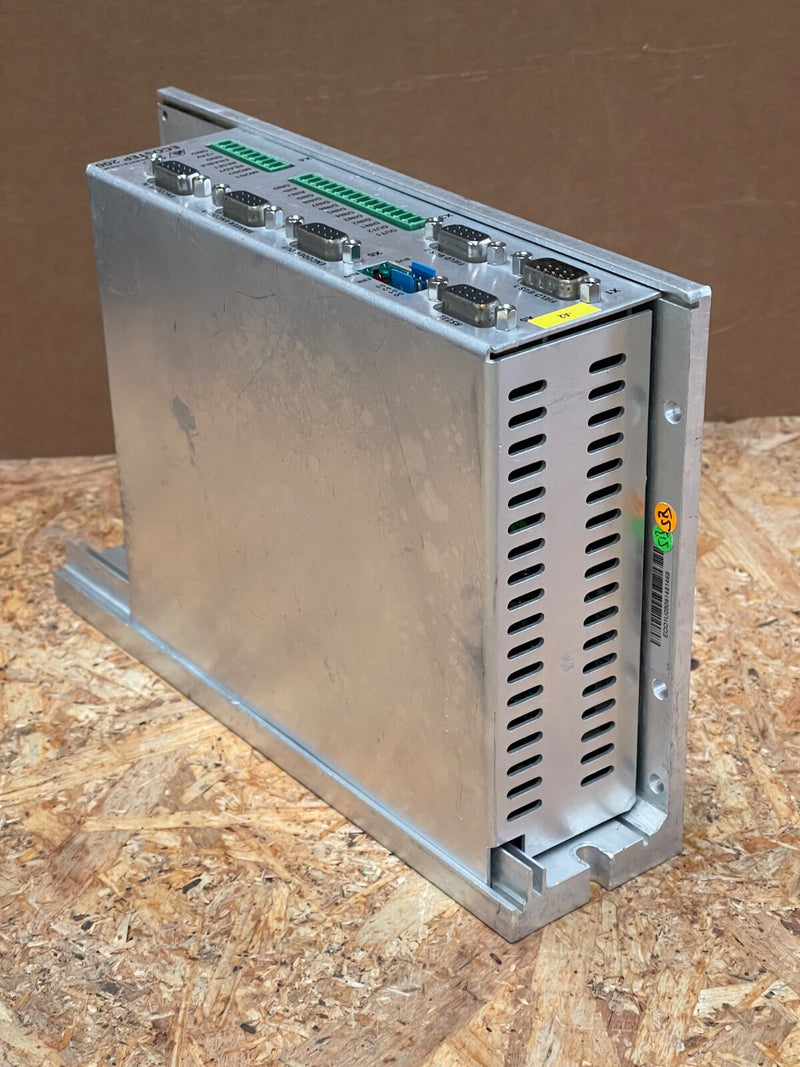

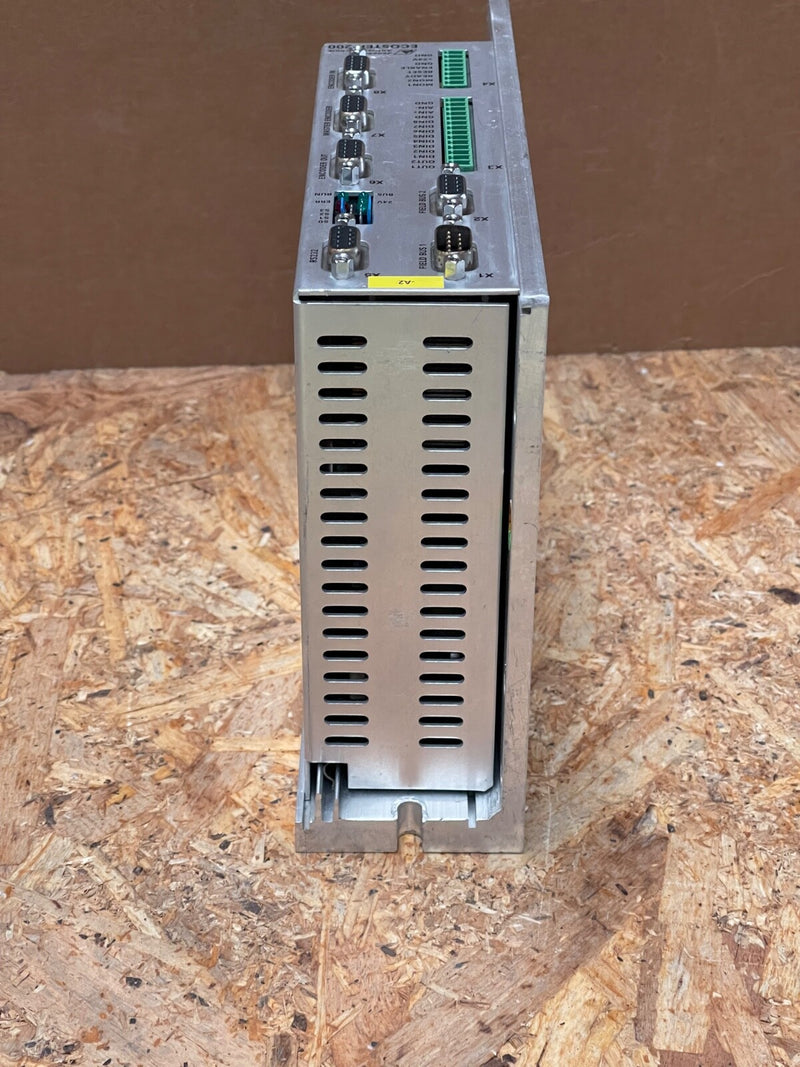

Jenaer Antriebstechnik – ECOSTEP 200‑UA‑000‑000 – Multifunctional Servo Drive
The ECOSTEP 200‑UA‑000‑000 by Jenaer Antriebstechnik is a compact, high-performance servo drive suitable for driving 2-phase brushless, DC brushed, or stepper motors. It features versatile fieldbus support (CANopen, Profibus DP, RS‑485/RS‑232), comprehensive I/O and encoder interfacing, and advanced motion control capabilities including torque, speed, and position regulation. Encased in a robust aluminum housing with IP20 protection, it’s ideal for use in CNC, robotics, and industrial automation systems.
Key features include scalable analog inputs, encoder I/O, brake control, and fault monitoring. It supports programmable motion profiles and networked master/slave configurations, making it a highly adaptable platform.
Key Features:

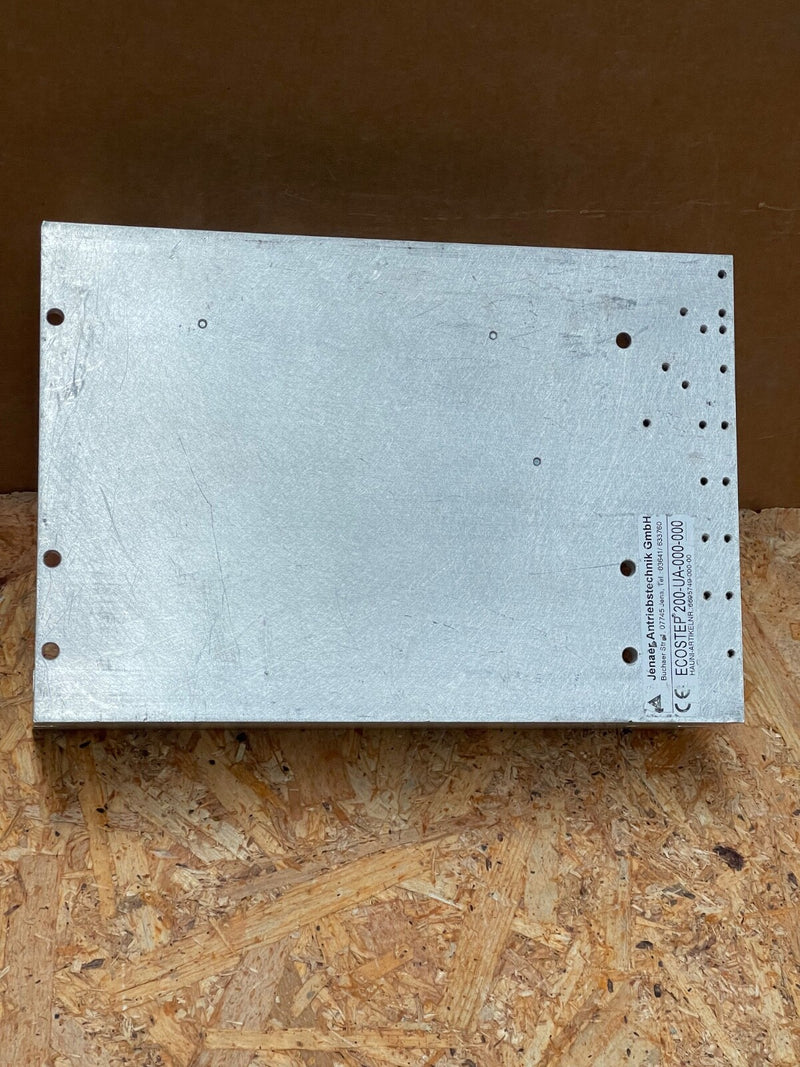

Model: ECOSTEP 200‑UA‑000‑000 (Servo Drive)
Brand: Jenaer Antriebstechnik (Germany)
Power: 24–170 V DC; logic 24 V DC; 7 A RMS continuous, 12 A peak current
Motor Compatibility: 2‑phase brushless, brushed DC, or stepper motors
Fieldbus & Communication: CANopen, Profibus DP, RS‑232/RS‑485 serial interfaces; clock‑direction and network control modes

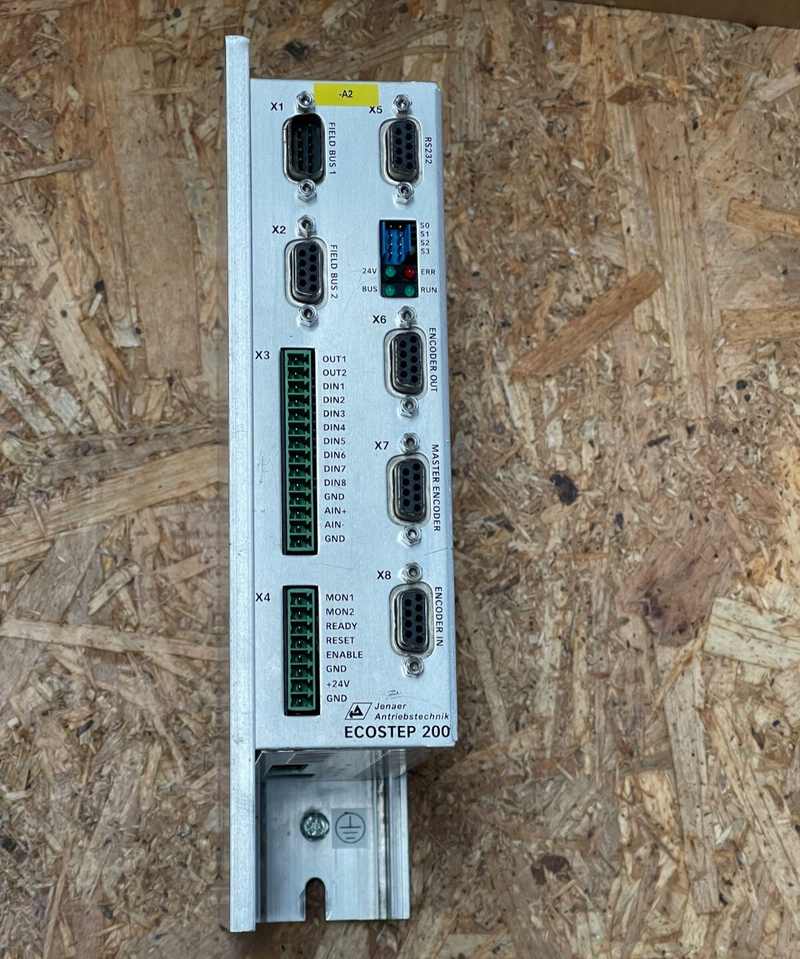

I/O: 8 programmable digital inputs, 2 digital outputs, +/-10 V analog input, 2 analog monitor outputs
Encoder I/O: Two encoder inputs and encoder output for closed-loop positioning

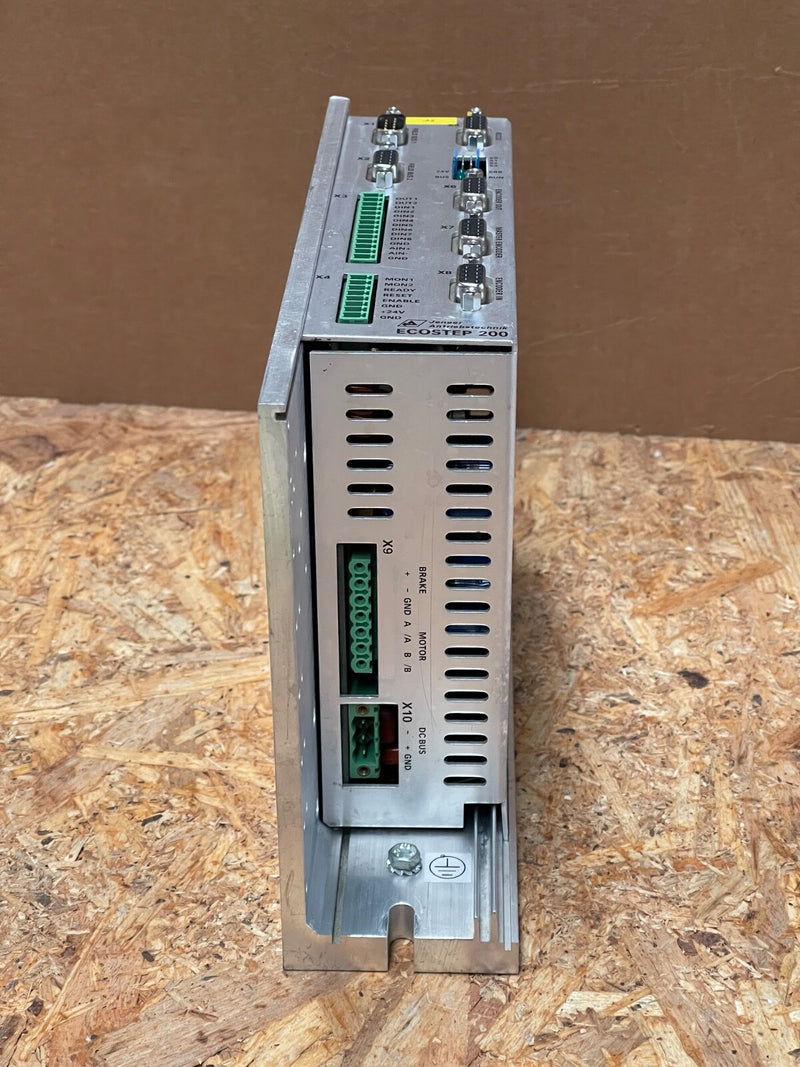

Brake Control: 24 V DC brake output with intelligent voltage reduction
Protection & Monitoring: Overcurrent, voltage, temperature, tracking, short-circuit, I²t; reset and enable via digital inputs
Programming & Config: Via Drive parameter software through RS‑232/485 or fieldbus interfaces
Diagnostics: 4 status LEDs: ERR, RUN, BUS RUN, 24 V ERR
Size & Protection: 62 × 240 × 170 mm, 1.8 kg; aluminum housing with integrated heatsink; IP20 rating, EN and UL standards
Environmental: 5–40 °C operation; storage –10–70 °C; purified air cooling; max altitude 1500 m; humidity <95% non-condensing
Standards: EN 61800‑3 EMC, EN 61800‑5‑1 safety, UL508C; RoHS
