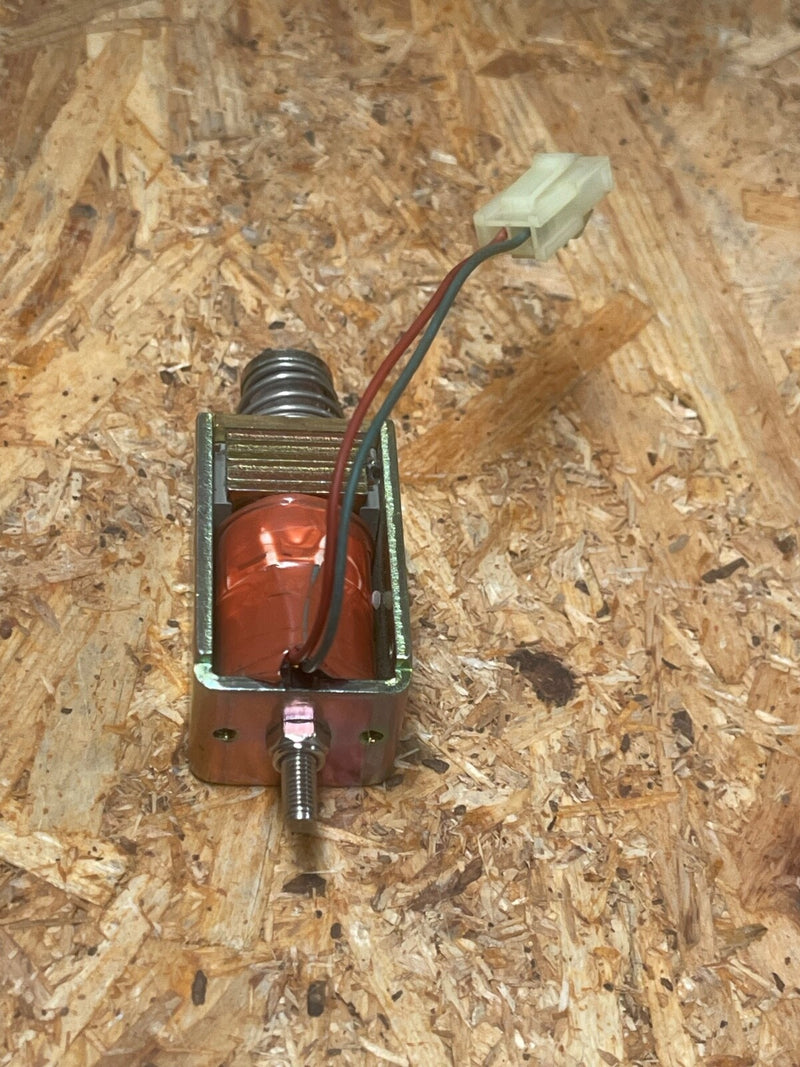

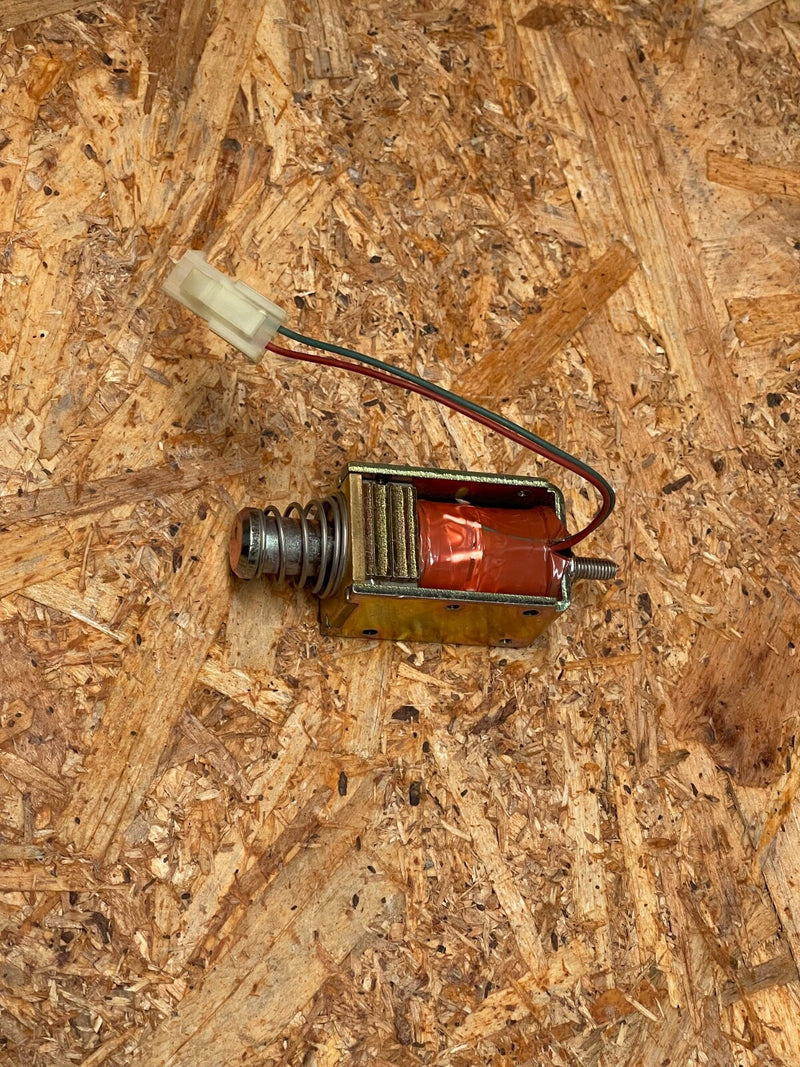

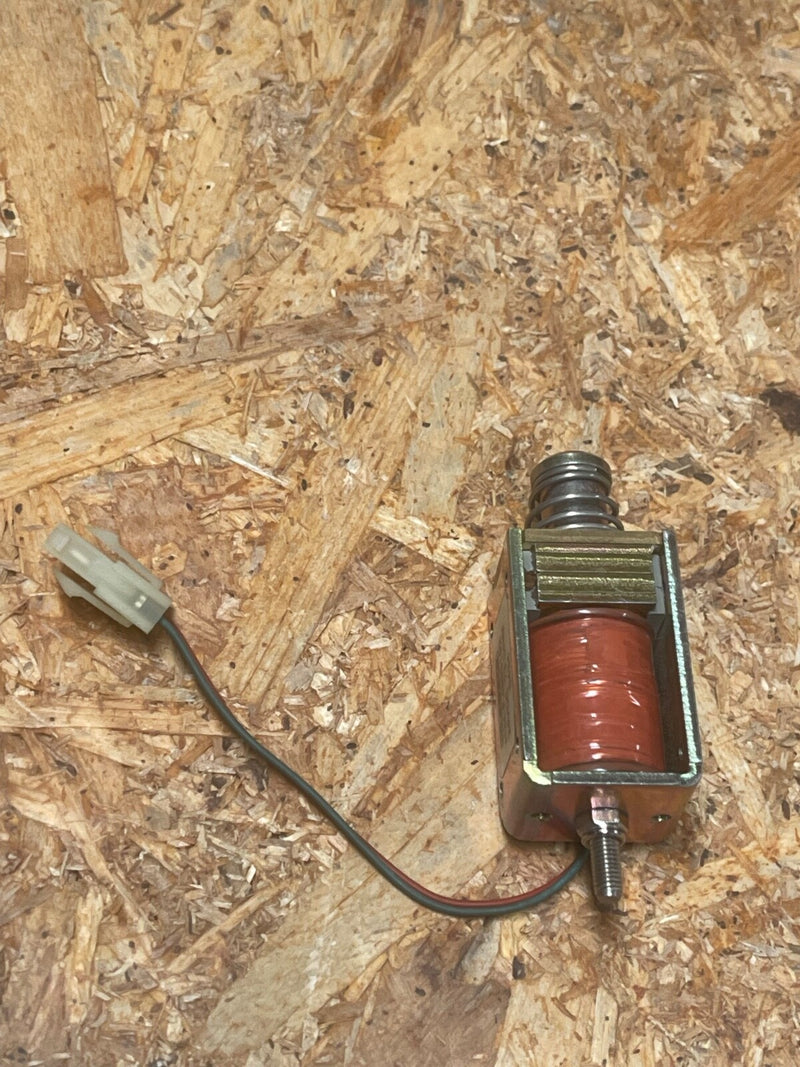

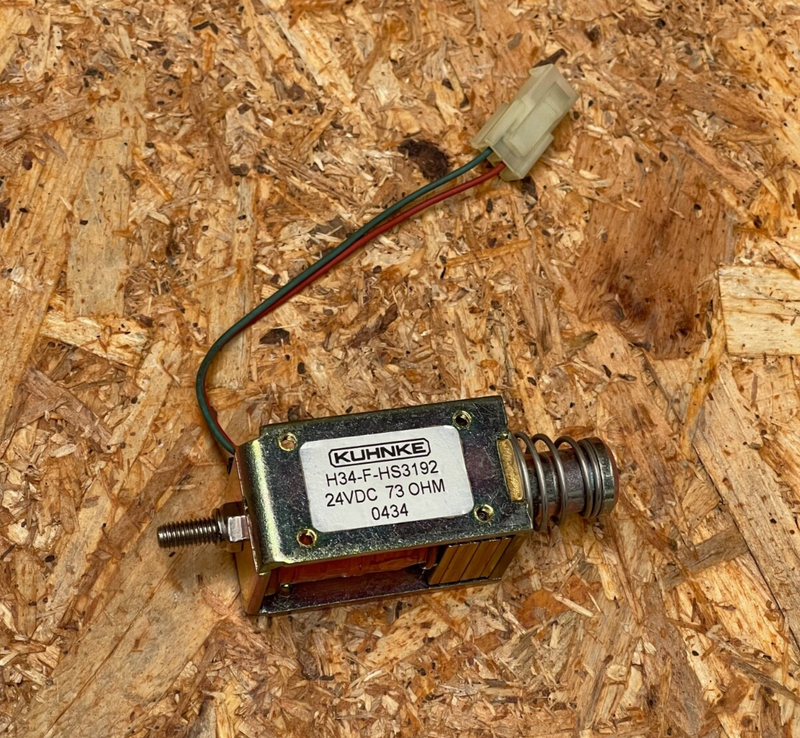

Kuhnke – H34‑F‑HS3192 – H34 Linear Solenoid Coil

The Kuhnke H34‑F‑HS3192 is a robust linear solenoid actuator in the H34 series, featuring a pull‑type coil design with standard 24 V DC operation. Ideal for industrial and automation applications, it provides reliable actuation performance with flying-lead wiring and a durable conical armature.

Key Features:

• Model: H34‑F‑HS3192 (H34 series)

• Coil Type: Pull (linear) solenoid

• Voltage: 24 V DC standard; higher voltages up to 230 V DC available on request

• Duty Cycle: 100 % ED (continuous operation) with air cooling; higher permissible duty on heat sink

• Armature: Conical face, compatible with flat or conical variations

• Leads: 10 cm flying leads (standard)

• Insulation Class: E (max 120 °C)

• Protection: IP00

• Coil Power & Stroke: Approx. 45 W nominal; stroke-specific force/stroke curves available

• Mounting: Linear configuration suitable for panel or device integration

• Operating Environment: –25 °C to +80 °C (estimated typical industrial range)
