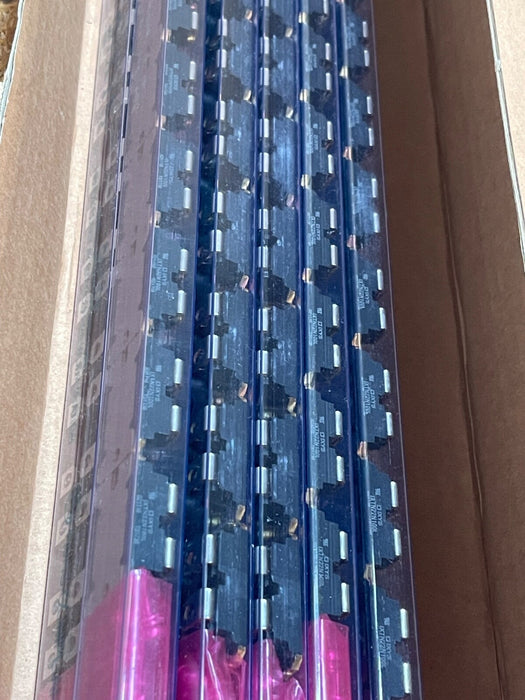

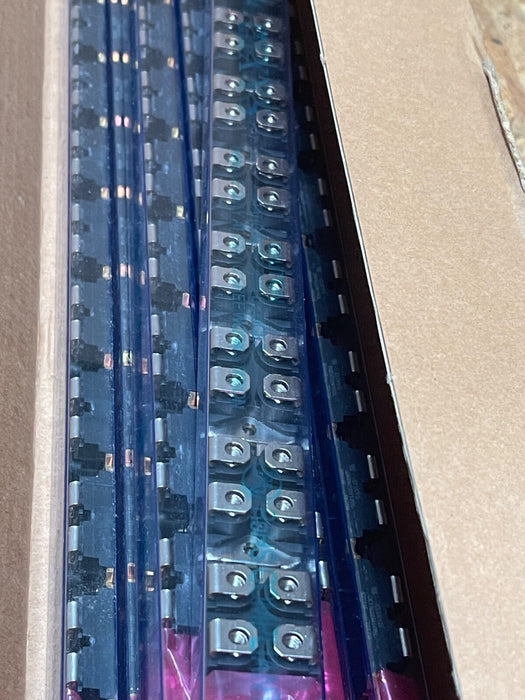

Littelfuse (IXYS) – IXTN22N100L – 1000 V / 22 A N‑Channel Power MOSFET, SOT‑227B

Main Features

• Manufacturer: Littelfuse (formerly IXYS Corporation)

• Model/MPN: IXTN22N100L

• Device Type: Single N‑channel enhancement-mode power MOSFET in a screw-mount SOT‑227B (miniBLOC) package

• Voltage & Current Ratings:

  • Drain-Source Voltage (VDSS): 1000 V

  • Continuous Drain Current at 25 °C (TC): 22 A

  • Pulsed Drain Current: Up to 50 A (TC-limited)

• Power Dissipation: 700 W (at case TC)

• RDS(on): Max 0.6 Ω @ VGS = 20 V, ID = 11 A

• Gate & Capacitances:

  • Gate Charge (Qg): ~270 nC @ VGS = 15 V

  • Input Capacitance (Ciss): ~7050 pF

• Operating Temperature Range: –55 °C to +150 °C junction

• Thermal Resistance: RthJC ≈ 0.18 °C/W

• Key Features:

  • Extended Forward-Bias Safe Operating Area (FBSOA) rated to 75 °C

  • Avalanche rated, UL 94 V‑0 compliant epoxy moulding

• Package & Mounting:

  • 4-pin SOT‑227B chassis mount w/ aluminium-nitride isolation

  • Screw terminal mounting—mounting torque per datasheet
