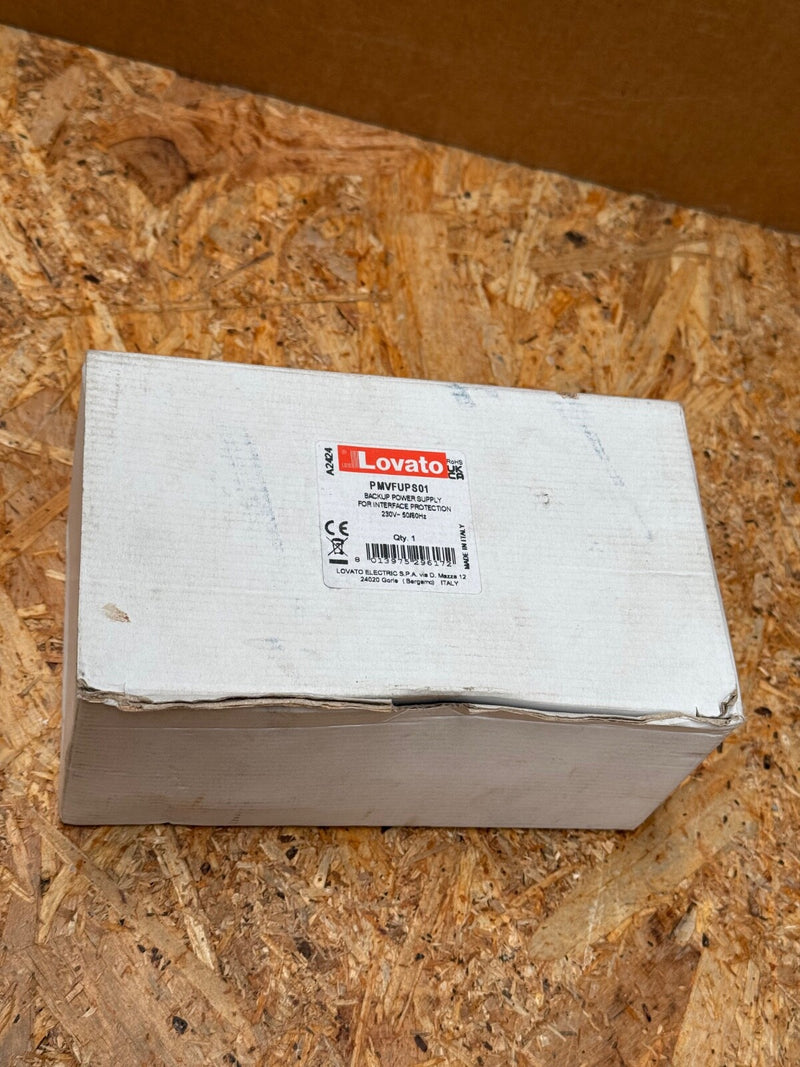

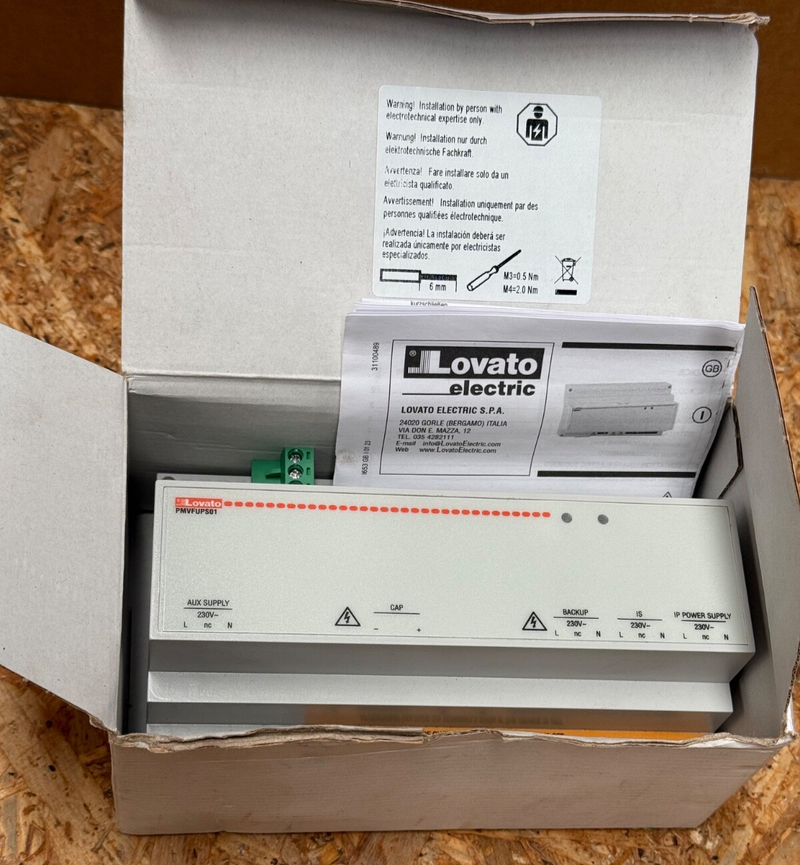

Lovato Electric – PMVFUPS01 – 230 VAC DIN‑Rail Backup Power Supply 200 Ws, 250VA

The PMVFUPS01 from Lovato Electric is a compact DIN-rail mounted backup power supply designed to maintain uninterrupted 230 VAC output during mains outages. Using supercapacitor-based energy storage, it delivers rapid hold-up for interface protection systems, ensuring reliability without the need for conventional batteries. Ideal for photovoltaic, grid-interfacing, or UPS applications where zero-switch interruptions are critical.

Key Features:

• Input: 230 VAC (196–264 VAC, 45–55 Hz)

• Output: 230 VAC, 250 VA for 1 s; 1 250 VA for 200 ms

• Energy Storage: ~200 Ws via supercapacitors; full recharge in 15 s

• Protection:

   • Input fuse 6.3 A (5 × 20 mm)

   • Output fuse 5 A + PTC

• Terminals: Fixed; 0.2–2.5 mm² conductors; 0.5 Nm torque max

• Dimensions: 157.5 × 90 × 70 mm (9 DIN modules); weight ~500 g

• Operating Conditions: –5 °C to +55 °C; IP20 enclosure, DIN rail EN 50022

• Certifications: IEC/EN/BS 61010-1 safety compliance
