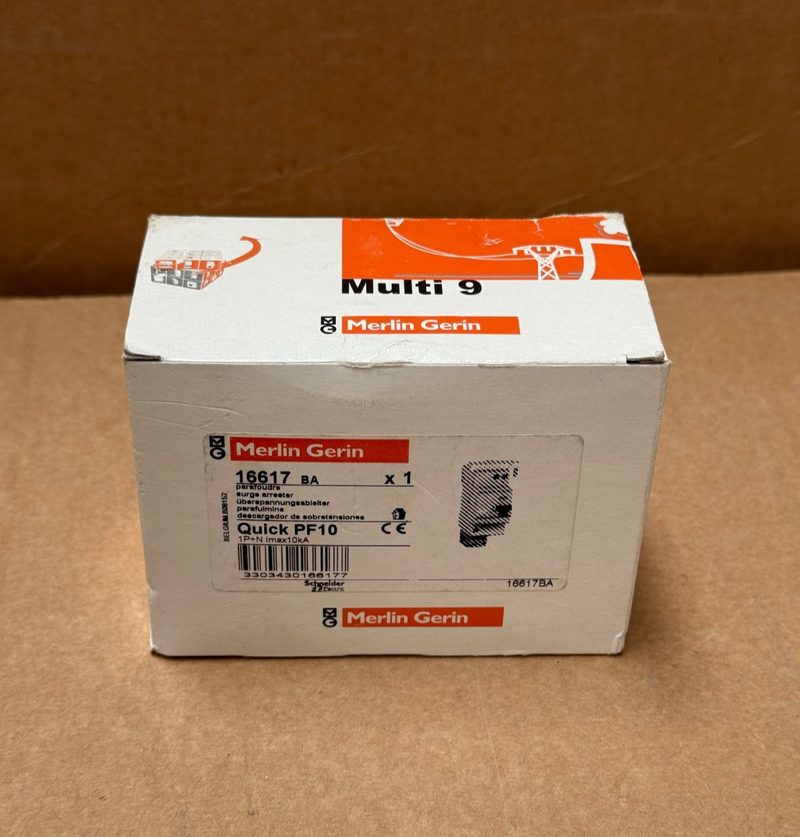

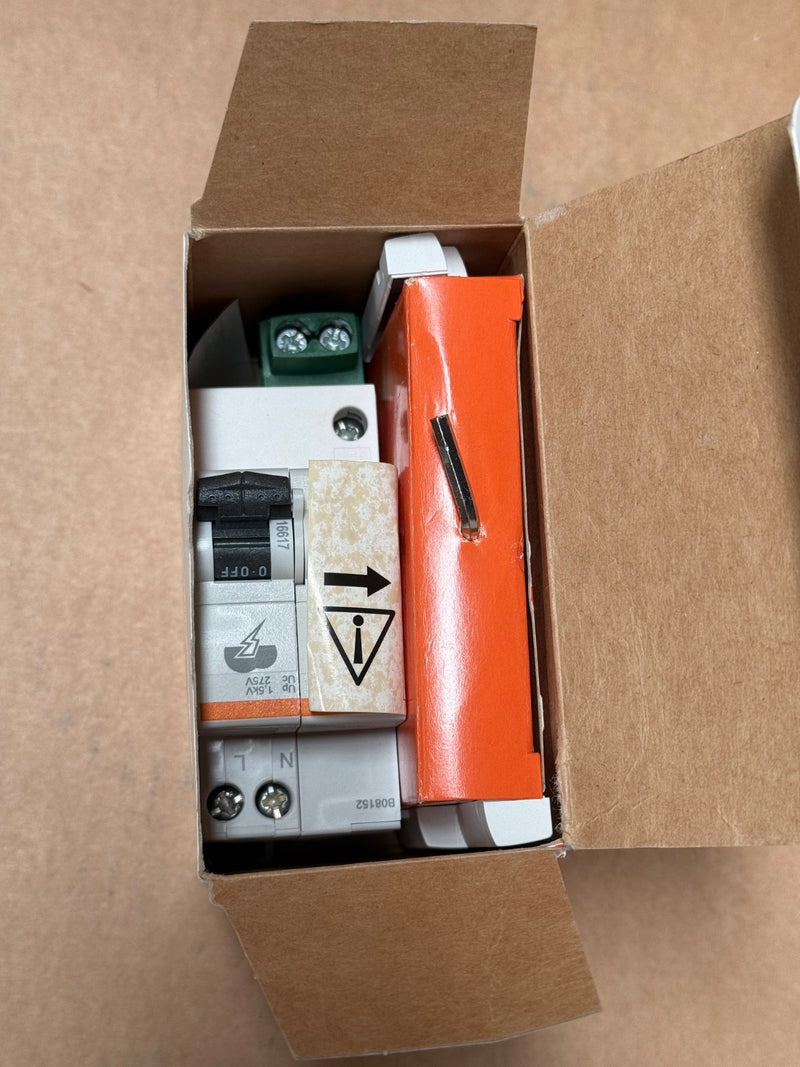

Merlin Gerin – 16617 – Quick PF10 Type 2 Surge Arrester 1P+N 275 V

The Merlin Gerin 16617 Quick PF10 is a modular Type 2 surge arrester designed to protect low-voltage electrical installations from transient overvoltages. It is suitable for single-phase systems (1P+N) with a 275 V nominal voltage and features integrated thermal disconnection.

Key Features:

• Model: Quick PF10

• Part Number: 16617

• System Type: 1P+N

• Nominal Voltage (Uc): 275 V AC

• Nominal Discharge Current (In): 5 kA

• Max Discharge Current (Imax): 10 kA

• Protection Level (Up): < 1.5 kV

• Frequency: 50 Hz

• Mounting: DIN Rail

• Housing: 2-module width

• Standards: EN 61643‑11 compliant
