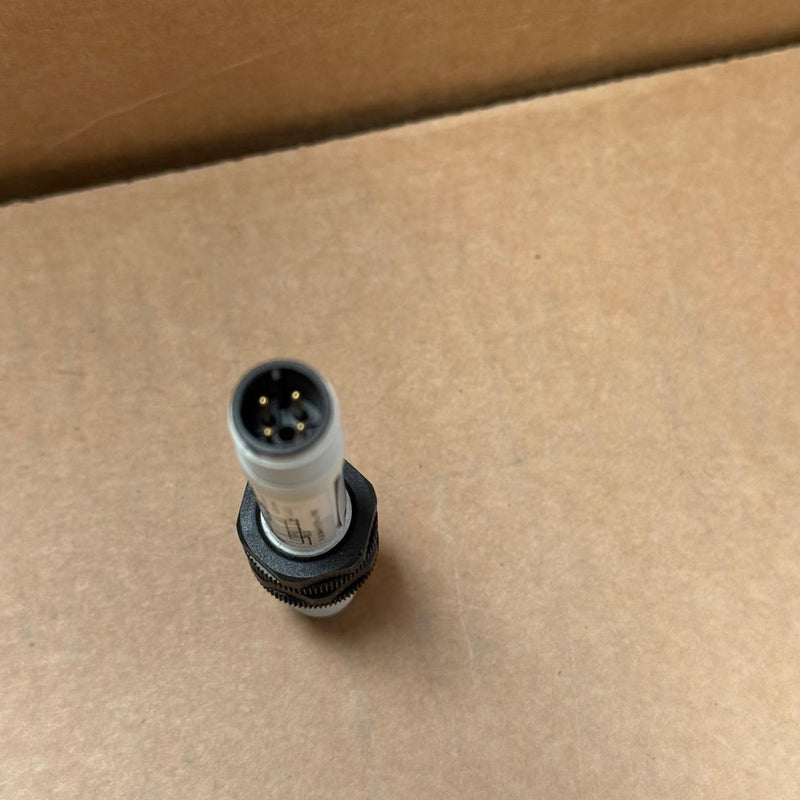

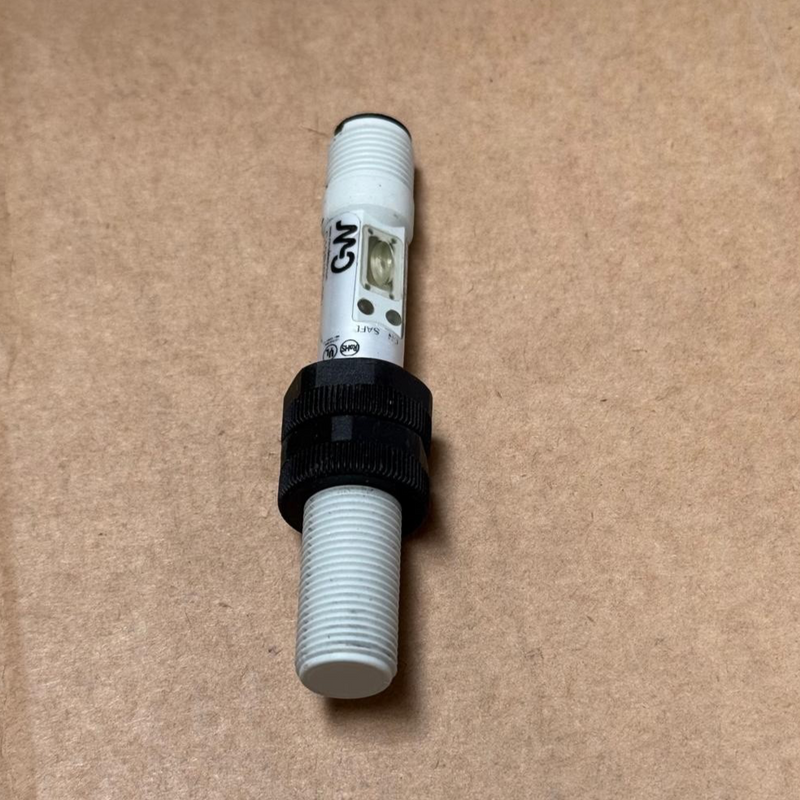

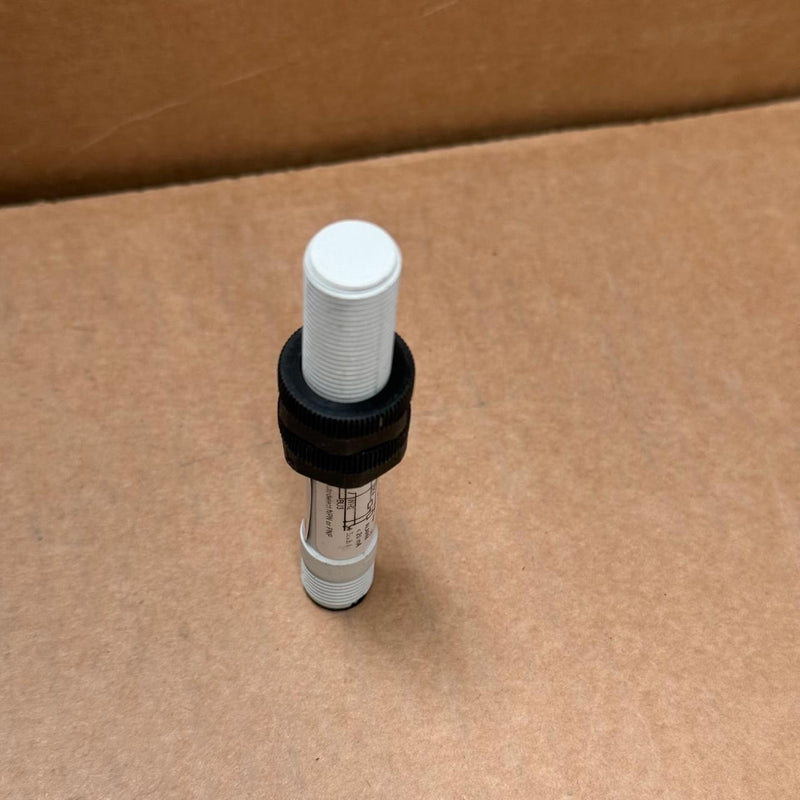

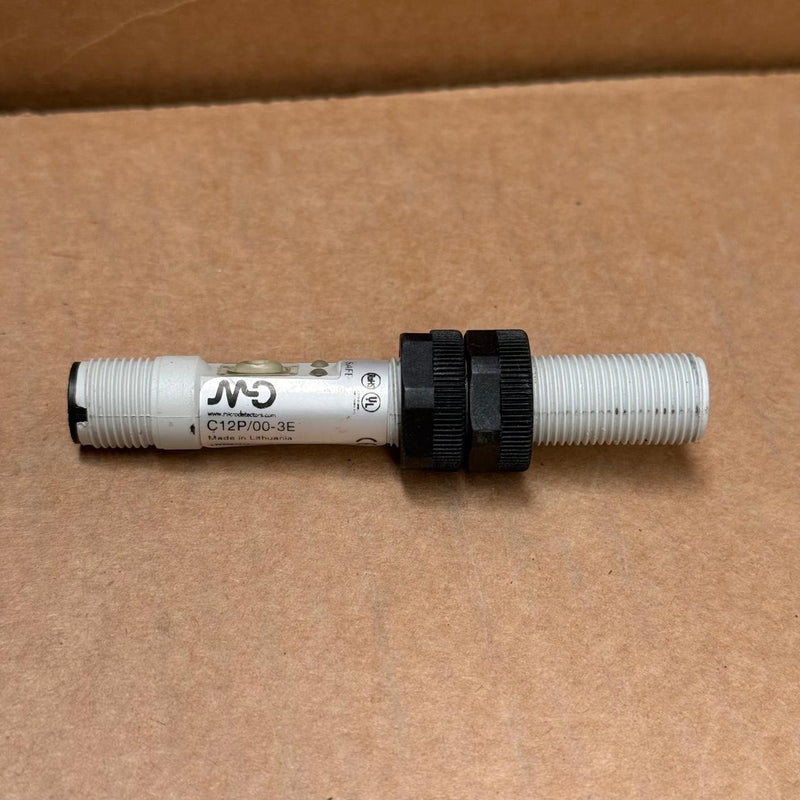

Micro Detectors – C12P/00‑3E – M12 Capacitive Sensor, 0.5–8 mm

The C12P/00‑3E is a shielded/flush-mount M12 capacitive proximity sensor from Datasensing (formerly Micro Detectors). It features an adjustable auto-teach function and dual NPN/PNP outputs configured for NO and NC operation, offering versatile detection in liquids, plastic, and metal applications.

Key Features:

• Model / P/N: C12P/00‑3E

• Housing: M12 thread, polyester; length 80 mm; weight ~30 g

• Sensing Range: 0.5–4 mm flush, up to 0.5–8 mm non-flush

• Outputs: NPN & PNP with NO/NC selection, ≤15 Hz switching

• Electrical: 10–40 V DC supply; ≤12 mA idle draw, ≤200 mA load current; ≤2.5 V drop at 200 mA

• Indicators: Green LED = power/stability; Yellow LED = output ON

• Protection & Durability:

  • IP67 sealed

  • Reverse polarity and surge protected

  • CE and cULus certified

  • IEC 60068 shock/vibration rated

• Auto-Teach Feature: Hold-to-teach for sensor output and background compensation

• Operating Conditions: –35 °C to +85 °C; storage –40 °C to +85 °C
