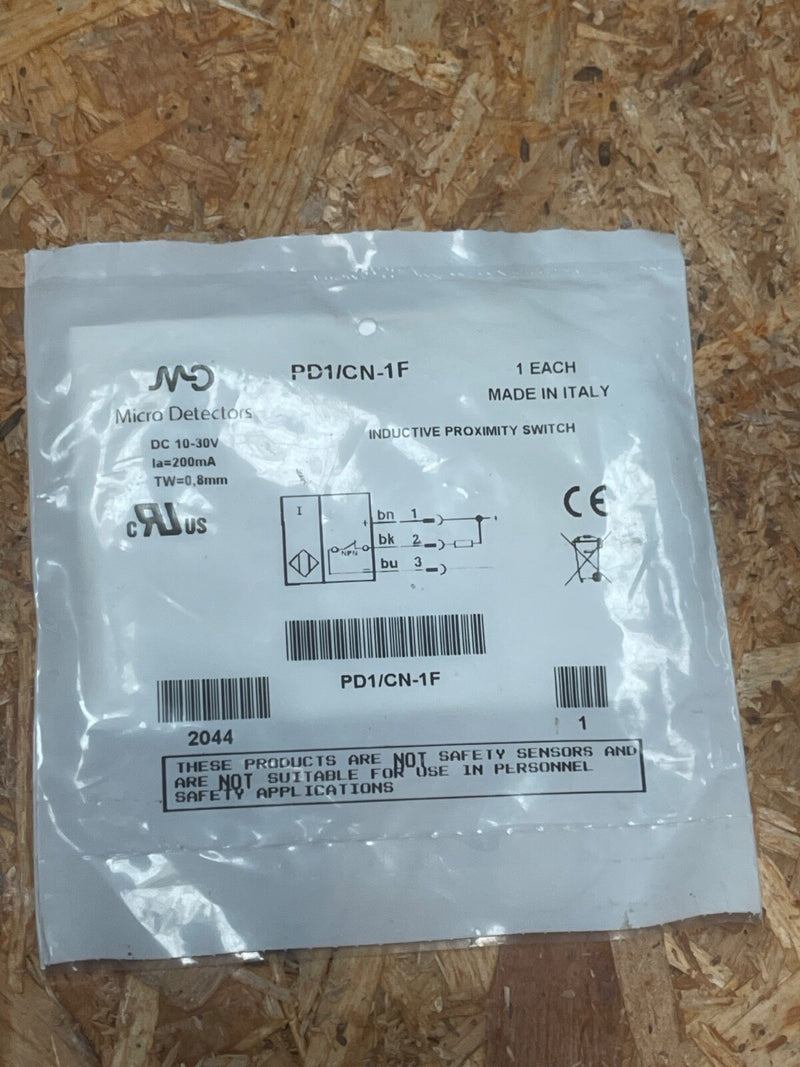

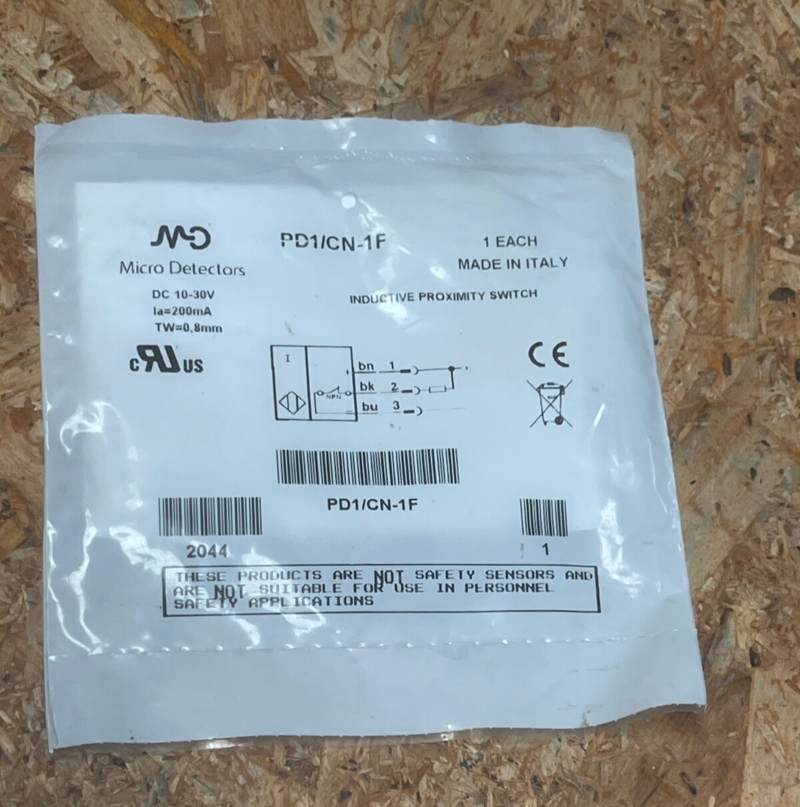

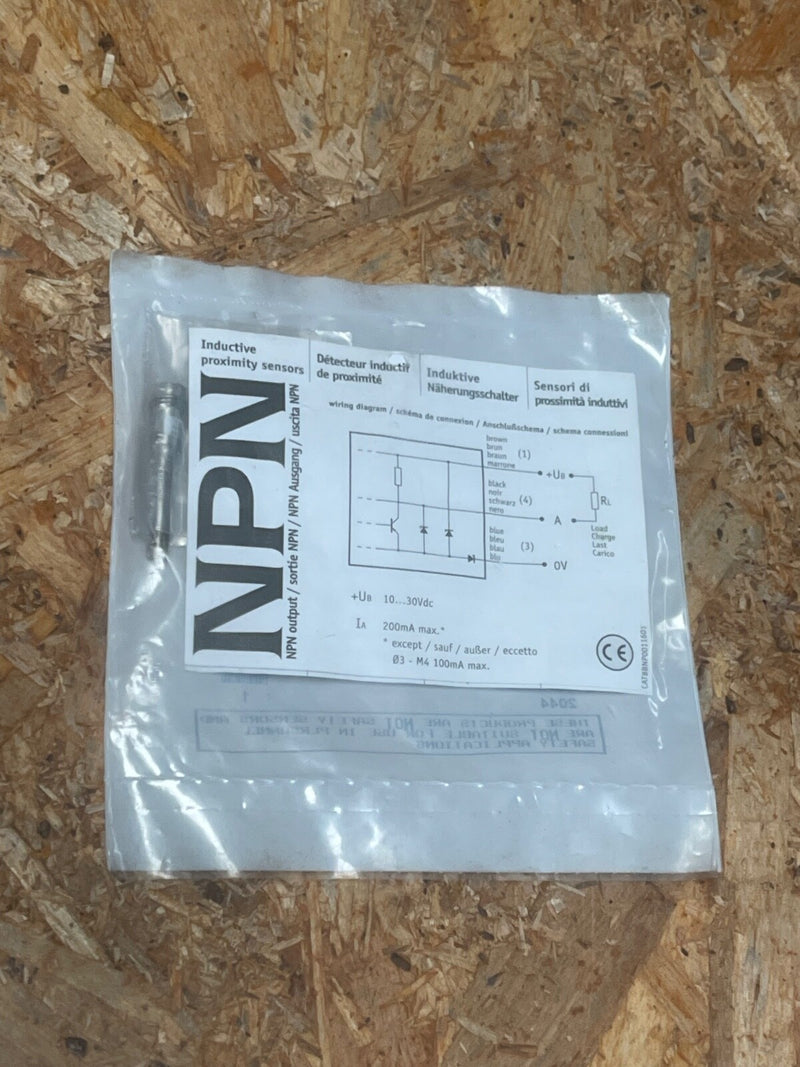

Micro Detectors – PD1/CN‑1F – M5 Miniature Inductive Proximity Sensor

The Micro Detectors PD1/CN‑1F is a compact M5 inductive proximity sensor featuring a normally‑closed NPN output in an M8 connector format. Designed for tight spaces and rugged industrial use, it reliably detects metal targets up to 0.8 mm away with fast switching and solid protection.

Key Features:

• Model: PD1/CN‑1F (M5 × 38 mm, with M8 plug)

• Sensing Distance: 0.8 mm (standard shielded)

• Output Configuration: NPN, normally‑closed (NC)

• Supply Voltage: 10–30 V DC; ≤ 10 mA no‑load current

• Load Capacity: ≤ 200 mA; output voltage drop ≤ 2 V @ 200 mA

• Switching Frequency: Up to 5 kHz

• Response Time: ~10 ms power‑on delay

• Protection Features: IP67 sealed housing, reverse‑polarity and short‑circuit protected, stainless steel body, 1 kV surge and compliance to IEC 60947‑5‑2

• Operating Temperature: –25 °C to +70 °C
