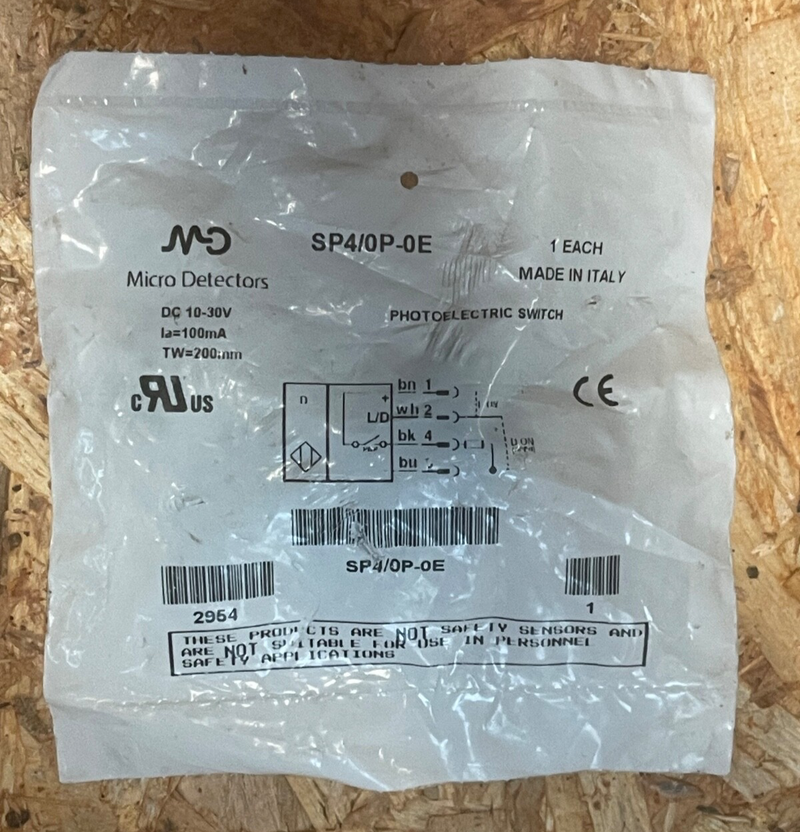

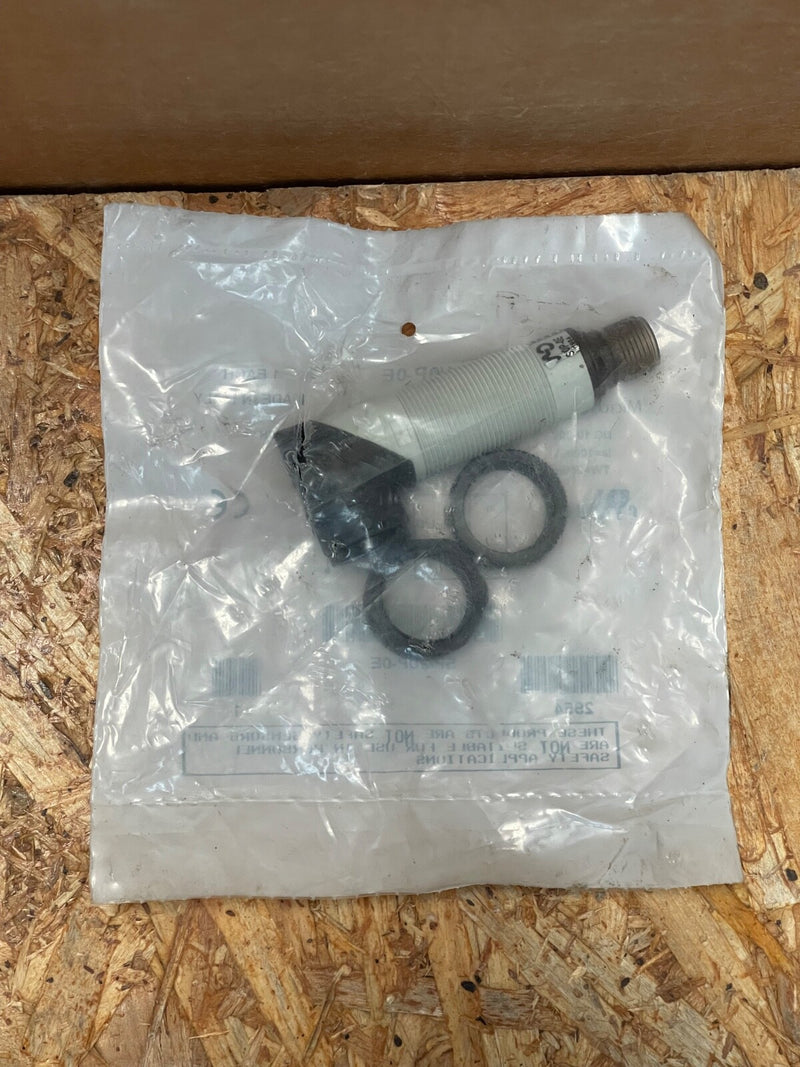

Micro Detectors – SP4/0P‑0E – M18 Tubular Diffuse Photoelectric Sensor (PNP)

The Micro Detectors SP4/0P‑0E is a robust M18 tubular diffuse photoelectric sensor featuring a PNP output. Designed for industrial automation and control systems, it offers dependable detection of objects using diffuse reflective sensing and selectable light‑ON/dark‑ON operation, suitable for versatile applications.

Key Features:

• Model: SP4/0P‑0E

• Sensor Type: Diffuse (reflective) photoelectric sensor; axial optic configuration

• Housing: M18 tubular, plastic body, IP67 rated

• Output: 3‑wire PNP transistor, selectable light‑ON/dark‑ON function (“0P” designation)

• Power Specification: 10–30 V DC supply voltage; ≤ 30 mA current consumption

• Load Capacity: ≤ 100 mA (PNP output)

• Switching Frequency: Up to ~1 kHz

• Switching Distance: Approx. 150–200 mm (typical for SP4 diffuse lineup)

• Output Voltage Drop: ≤ 2 V at 100 mA load

• Indicators: Multi‑colour LED for power and output status

• Protection: Reverse polarity and short‑circuit protected, EMC‑compliant (EN 60947‑5‑2)

• Mechanical: Plastic housing with M12 connector or cable exit; resistant to environmental influences

• Environmental Ratings: IP67, –25 °C to +70 °C operation
