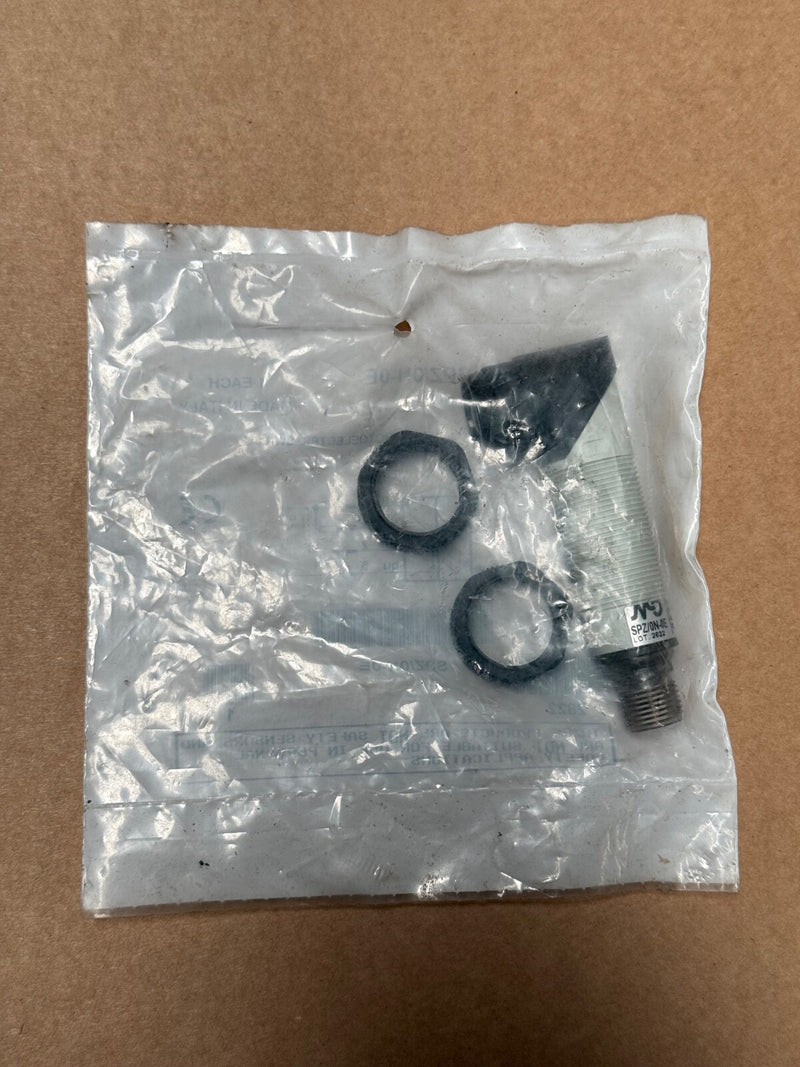

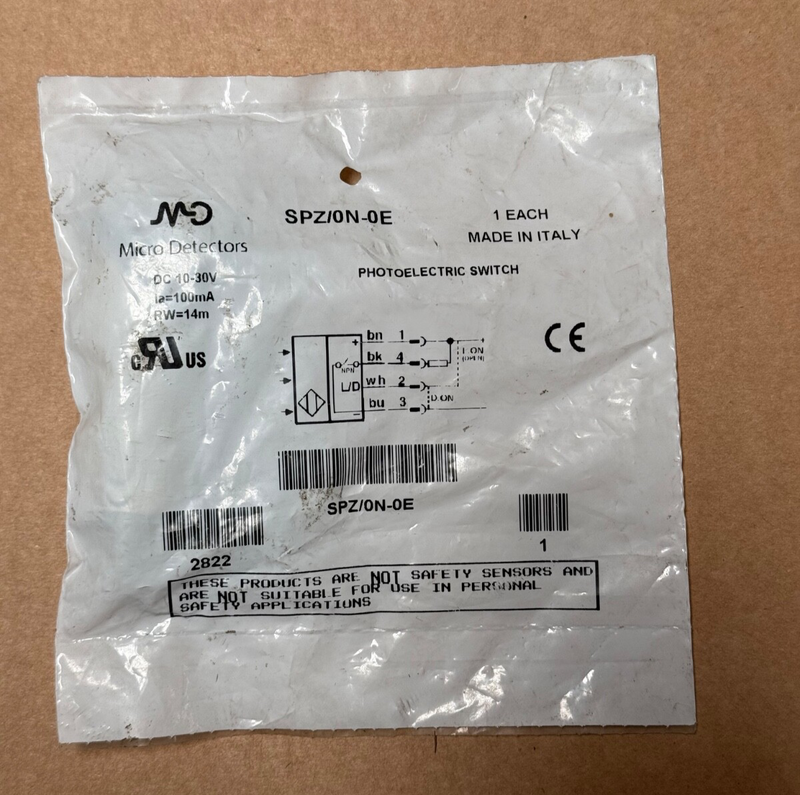

Micro Detectors – SPZ/0N‑0E – M18 Retro‑Reflective Photoelectric Sensor Receiver

The Micro Detectors SPZ/0N‑0E is an M18 right-angle receiver sensor designed for polarized retro‑reflective detection with a 14 m sensing range. It features selectable light/dark switching, a robust plastic housing, and an M12 plug output, making it ideal for long-distance object detection in automated systems.

 Key Features

• Model: SPZ/0N‑0E (Receiver only)

• Detection Type: Polarized retro‑reflective (with reflector), 14 m nominal range

• Output Type: NPN, light-on/dark-on selectable via sensitivity switch

• Switching Frequency: 250 Hz; Power‑up delay ≤ 200 ms

• Electrical:

  • Supply 10–30 V DC

  • No-load current ≤ 30 mA; load current ≤ 100 mA; leakage ≤ 10 μA

  • Output voltage drop ≤ 2.5 V at 100 mA; ripple ≤ 10%

• Optical & Indicators: Infrared LED emitter; yellow LED for output state

• Environmental Protection:

  • IP67 rugged enclosure

  • Ambient range –25 °C to +70 °C; resistant to 5,000 lux incandescent and 10,000 lux sunlight

• Mechanical Data:

  • Dimensions: M18×75.7 mm; Weight: ~30 g

  • Housing: Plastic with PMMA head; M12 4-pin plug; tightening torque 1 Nm

• Certifications: CE, cULus; complies with EN 60947‑5‑2 EMC; IEC 60068 shock/vibration test standards
