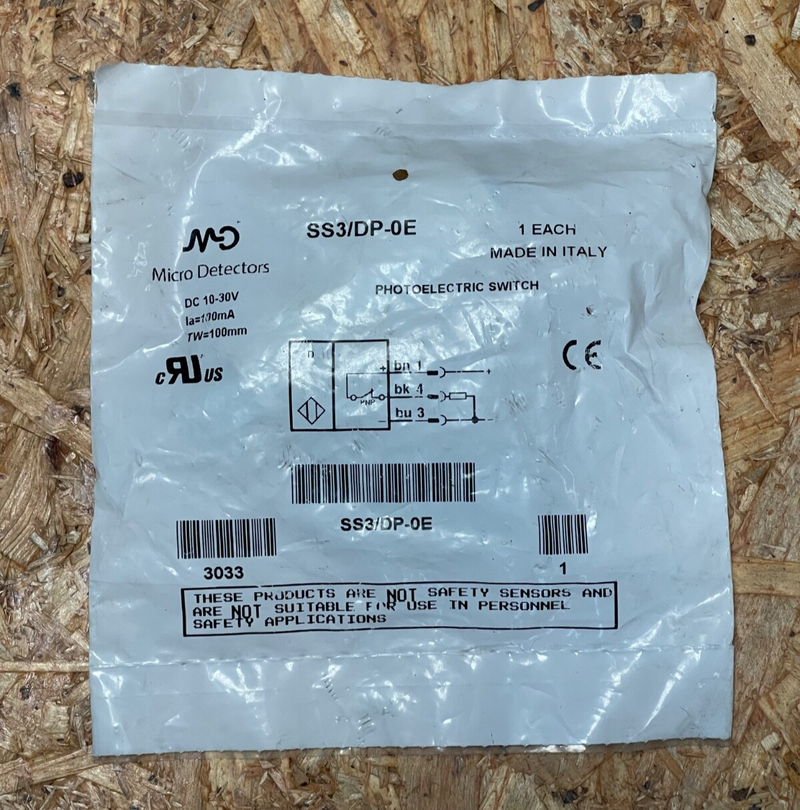

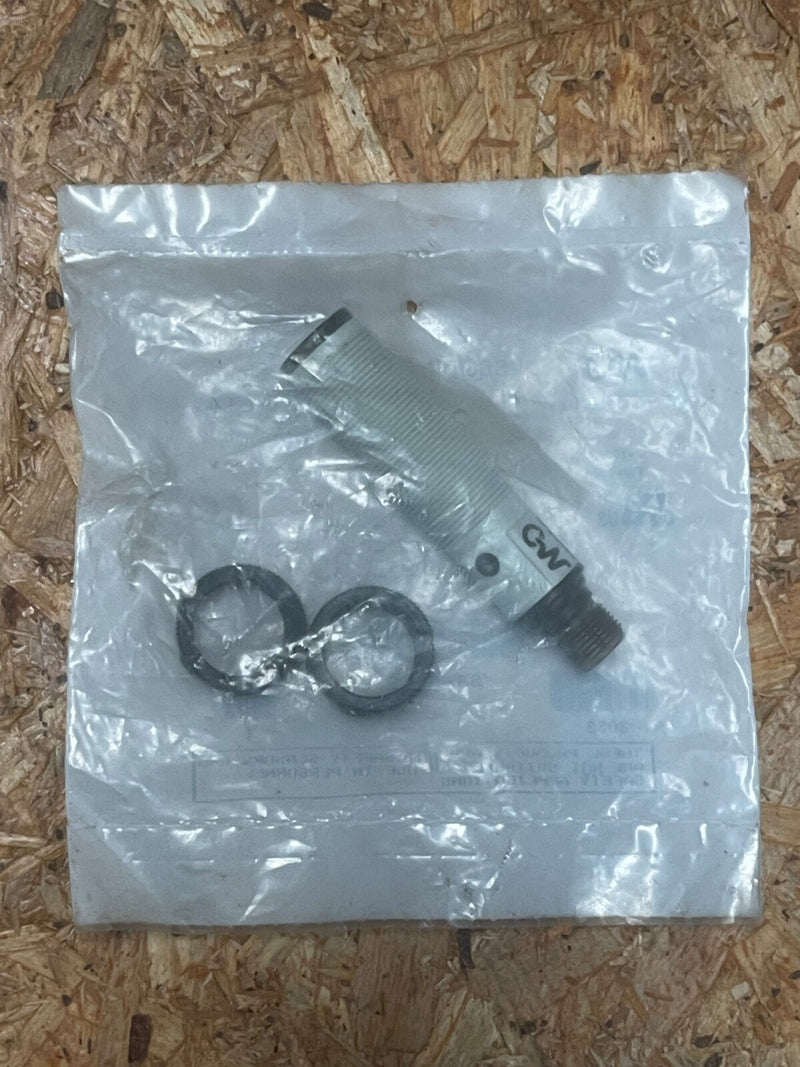

Micro Detectors – SS3/DP‑0E – M18 Tubular Diffuse Photoelectric Sensor

The Micro Detectors SS3/DP‑0E is an M18 tubular diffuse photoelectric sensor with selectable PNP dark‑ON output, featuring side-adjustable sensitivity and an LED status indicator. Designed for industrial environments (IP67), it detects objects up to approximately 100 mm and is supplied with an M12 connector—ideal for machine automation and material handling systems.

Key Features:

• Model: SS3/DP‑0E

• Detection Principle: Diffuse reflection, nominal sensing distance ~100 mm (white target)

• Optic Configuration: Axial housing with side adjustment potentiometer

• Output: 3-wire PNP, dark‑ON selectable via “DP” code

• Switching Frequency: Up to 250 Hz; response time ~2 ms

• Supply Voltage: 10–30 V DC; current consumption ≤ 30 mA

• Load Handling: ≤ 100 mA; leakage ≤ 10 μA; voltage drop ≤ 1.2 V @ 100 mA

• Indicators: Yellow LED showing output status; red/green for supply/power

• Protection: Short‑circuit, reverse‑polarity, impulse‑overvoltage, EMC EN 60947‑5‑2; IP67 rated

• Mechanical: M18×1 housing; length ~75.7 mm; PBT/PC body; M12 plug; weight ~30 g

• Environmental: Operating temperature –25 °C to +70 °C; resistant to 3,000 lux incandescent / 10,000 lux sunlight

• Standards & Approvals: CE, cULus listed; meets shock & vibration tests (IEC 60068-2); full electrical protection
