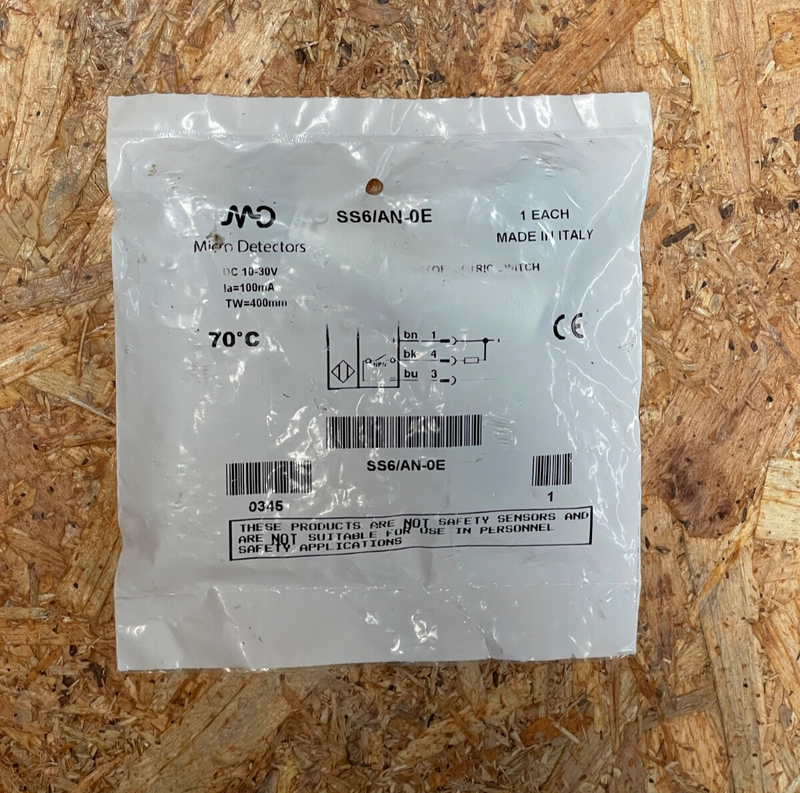

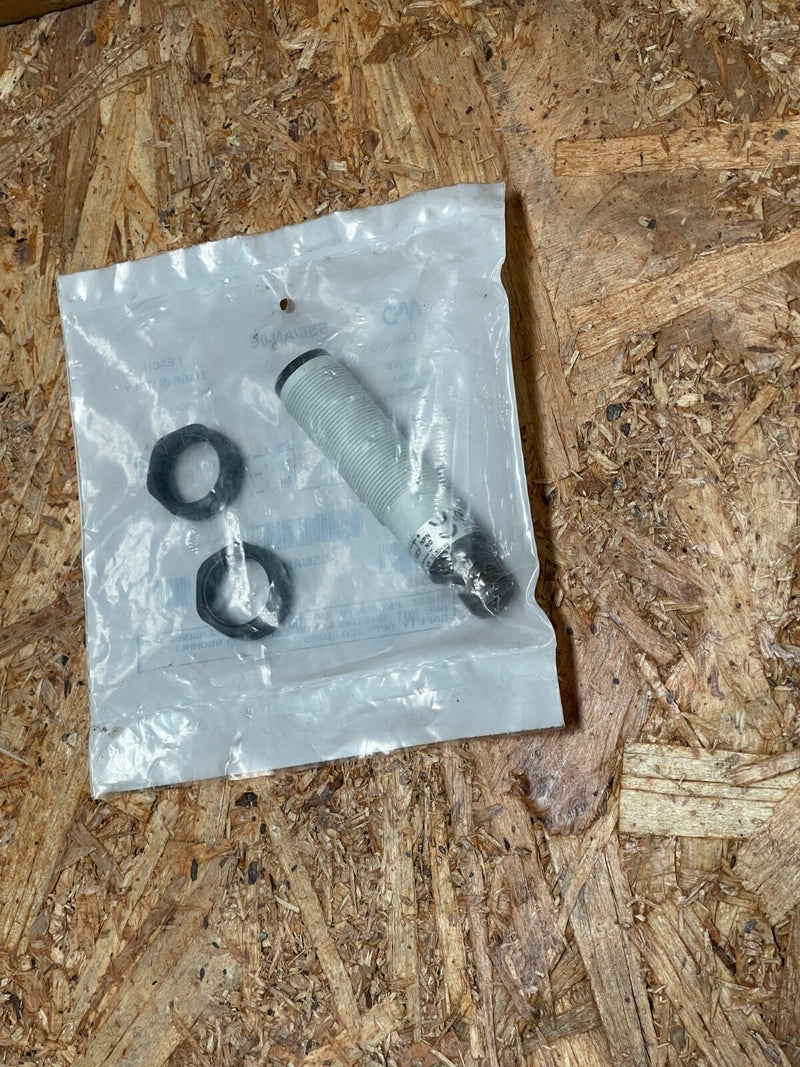

Micro Detectors – SS6/AN‑0E – M18 Tubular Diffuse Photoelectric Sensor

The Micro Detectors SS6/AN‑0E is a rugged M18 tubular photoelectric sensor designed for diffuse sensing of objects up to approximately 400 mm. The “AN‑0E” variant features 3-wire NPN (light-on) output with selectable light/dark switching—all in a compact IP67 stainless‑steel housing—ideal for industrial automation tasks.

Key Features:

• Model: SS6/AN‑0E

• Sensor Type: Diffuse (reflective) infrared photoelectric sensing

• Housing: M18 tubular, stainless‑steel, IP67 rated

• Sensing Distance: Up to ~400 mm (typical for SS6 diffuse models)

• Output: 3‑wire NPN, Light‑ON (AN designation)

• Switching Frequency: Approx. 250 Hz

• Cable Exit: M12 4‑pin quick‑disconnect or axial cable

• Power Supply: 10–30 V DC (common for SS6 series)

• Current Consumption: ≤ 30 mA

• Load Current: ≤ 100 mA

• Output Voltage Drop: ≤ 2 V @ IL=100 mA

• Indicators: LED status for operation

• Protection & Durability: IP67, robust SS housing
