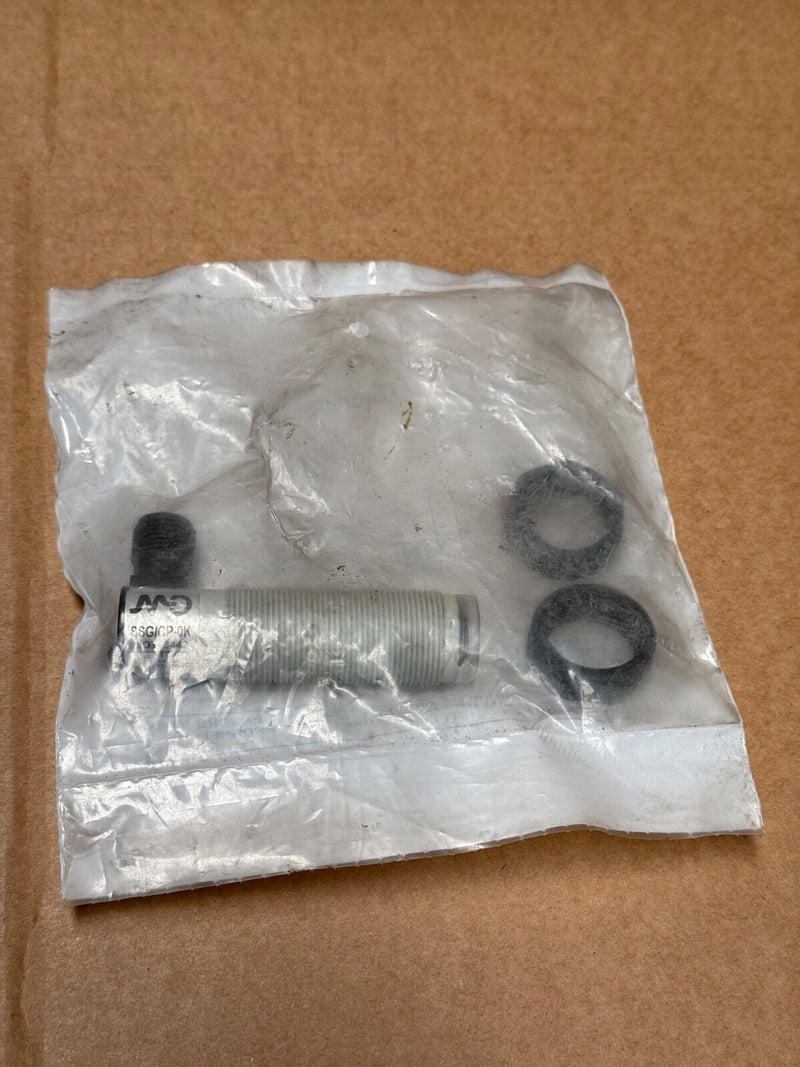

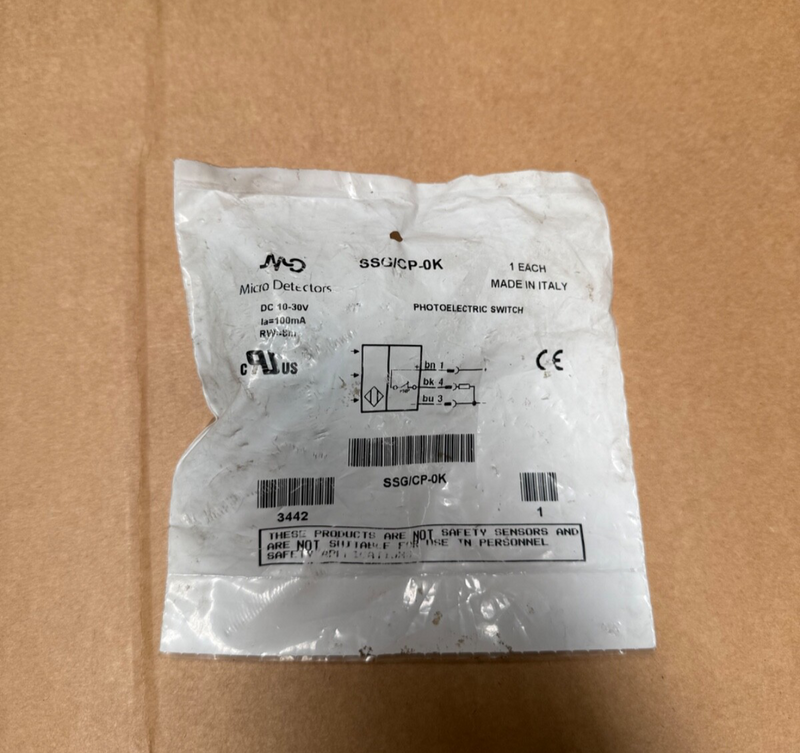

Micro Detectors – SSG/CP‑0K – M18 Retro‑Reflective Photoelectric Sensor Receiver

The SSG/CP‑0K is a retro‑reflective photoelectric sensor receiver from Micro Detectors’ SS series, designed with M18 housings and intended to work with separate emitters (axial or right-angle). It offers high-speed sensing with adjustable light/dark switching and robust industrial protection—perfect for detecting objects over moderate to long distances using a reflector.

Key Features (Inferred from SS Series)

• Type: M18 cylindrical retro‑reflective sensor receiver, works with external emitter

• Switching Options: Likely selectable light‑on/dark‑on via trimmer or DIP-switch

• Electrical:

    • Supply voltage: 10–30 V DC

    • Output: NPN or PNP (model-specific), ≤100 mA load; ≤2 V voltage drop

    • Load and reverse-polarity protected

• Performance:

    • Typical sensing distance: 2–14 m (model dependent)

    • Switching frequency: ~250 Hz

    • Response delay: ≤200 ms

• Indicators: LED(s) for output and power status

• Housing & Ratings:

    • Brass or plastic M18 × ~75 mm; IP67 sealed

    • Temperature range: –25 °C to +70 °C

• Connections: M12 4-pin connector or cable entry

• Certifications: CE, UL, IEC standards (EMC, vibration, shock)
