Micro Innovation – XN‑4DI‑24VDC‑P (8550225165) – 4‑Channel PNP Digital Input

Main Features

• Manufacturer: Eaton (Micro Innovation / Klockner Moeller XI/ON series)

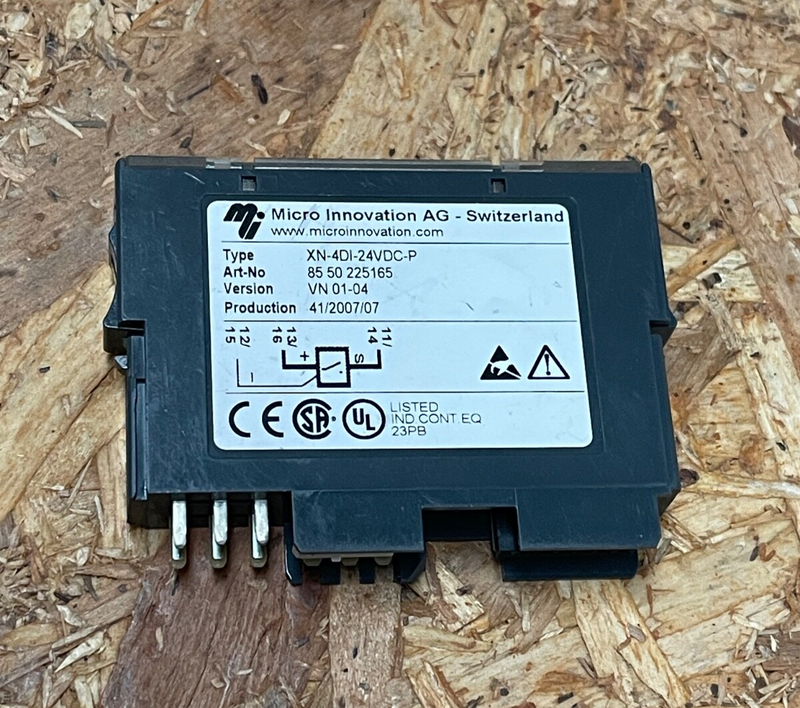

• Model/MPN: XN‑4DI‑24VDC‑P; Catalog No. 140052; Art‑No. 8550225165; Alt. PN 225165

• Device Type: Plug-in digital input module—4 channels, PNP sourcing type—designed for XI/ON programmable I/O system

• Supply & Input Voltage:

  • Module: 18–30 V DC (24 V supply)

  • Inputs: 24 V DC PNP signals (~2 mA nominal input current)

• Form Factor:

  • Slim 12.6 mm wide slide-in module

  • Hot-swappable on XI/ON bus coupler

  • DIN-rail compatible

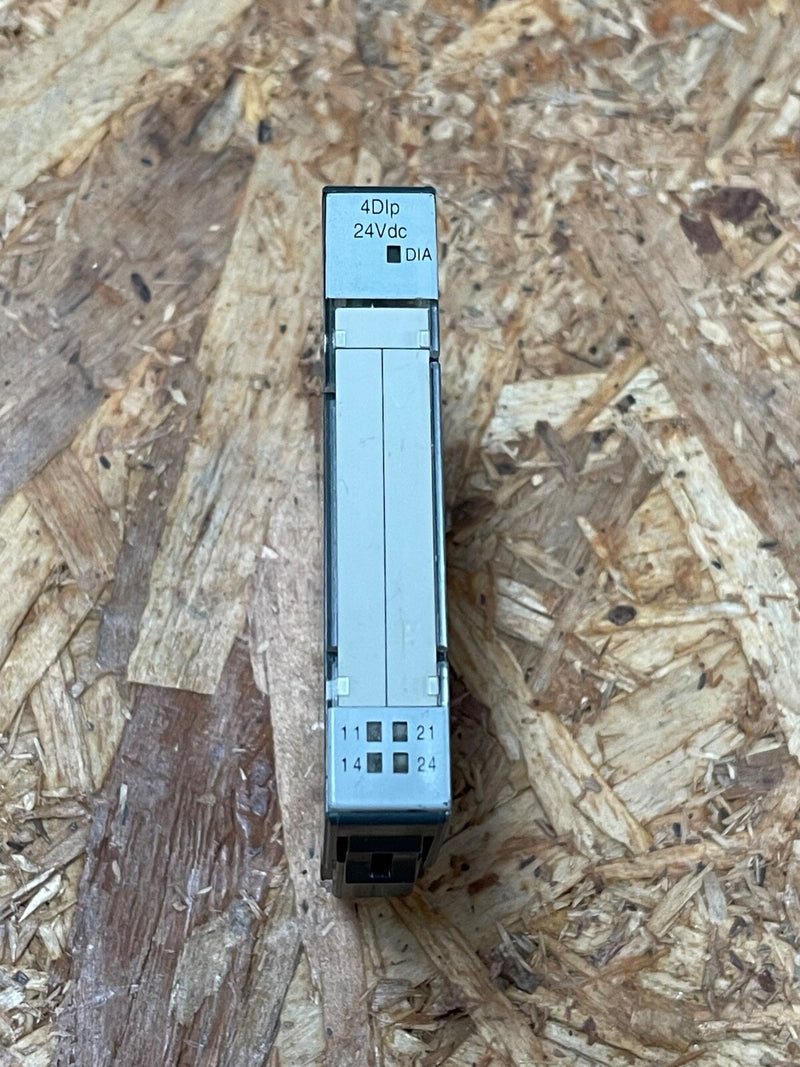

• Status Indication: Individual channel LEDs, plus power/status indicator

• Environmental & Protection:

  • IP20 panel grade

  • Operating range 0–55 °C

  • Front-mountable and suitable for industrial enclosures

• Compatibility: Works with XI/ON base units supporting PNP digital inputs, alongside other modules (2DI, 16DI, 32DI, etc.)
