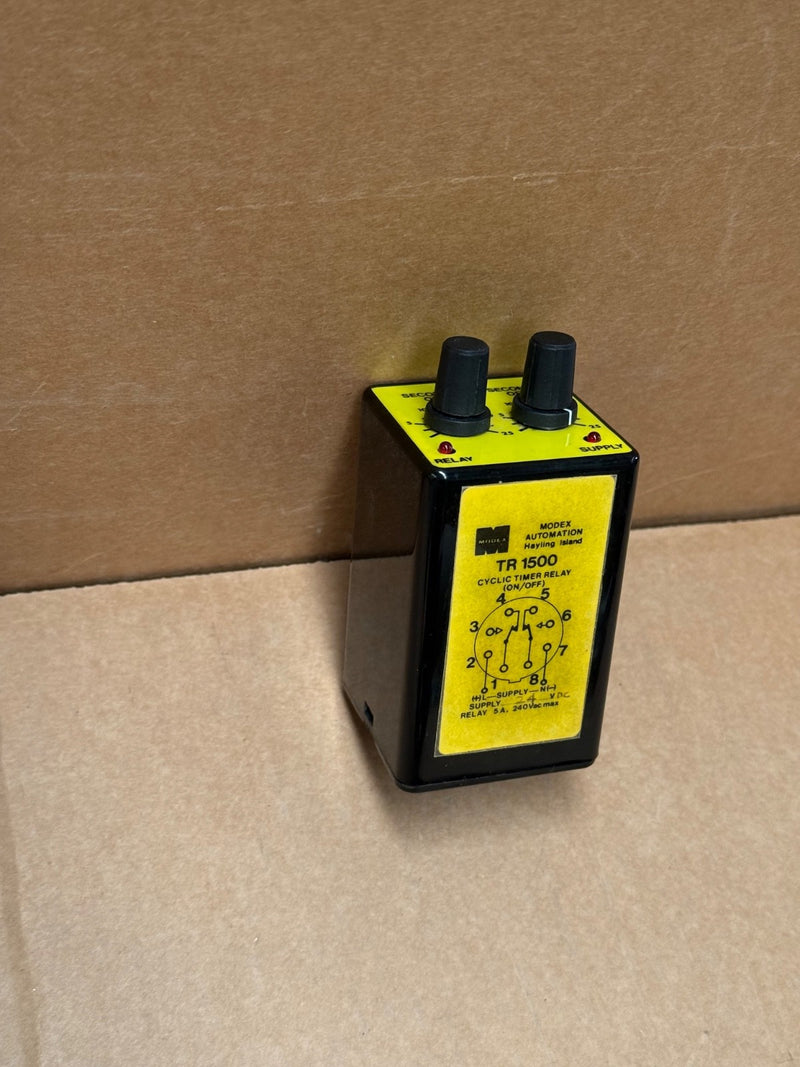

Modex – TR1500 – Asymmetric Recycling Timer, 8‑Pin Plug‑In, 220 VAC/DC

The Modex TR1500 is an 8‑pin plug‑in asymmetric recycling timer, designed for timed control in industrial genset, packaging, or process systems. It features adjustable interval and dwell timing, performing cyclic on/off sequences if the input stays energized—ideal for pump priming, motor cycling, or control logic routines.

Key Features:

• Model: TR1500 (ex‑Modex Automation, later Murphy heritage)

• Timer Type: Asymmetric recycling (on/off cyclic timer)

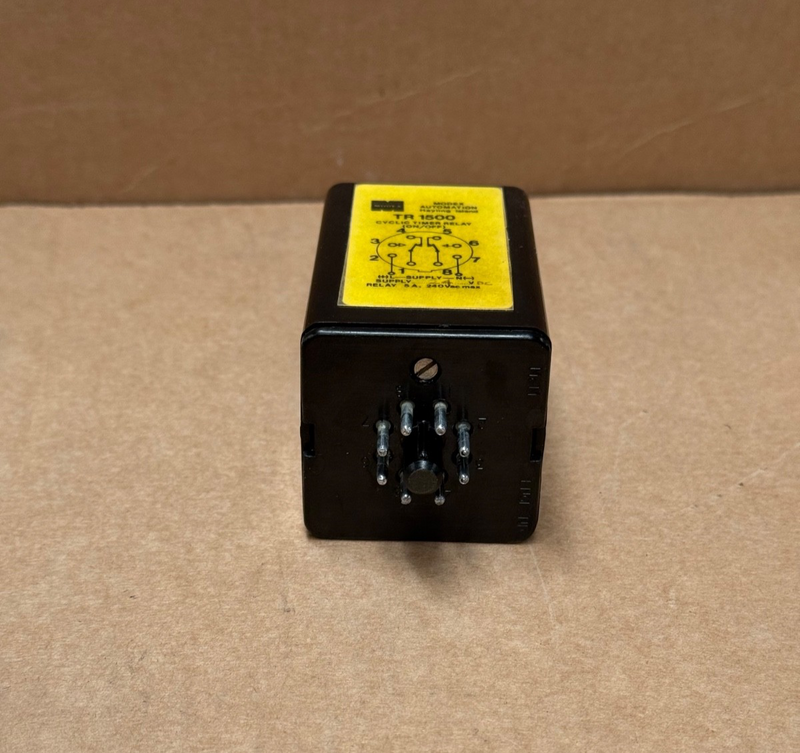

• Package: 8‑pin plug‑in module; fits standard octal relay bases

• Supply Voltage: AC or DC (model‑specific—likely 24‑240 V; check unit label)

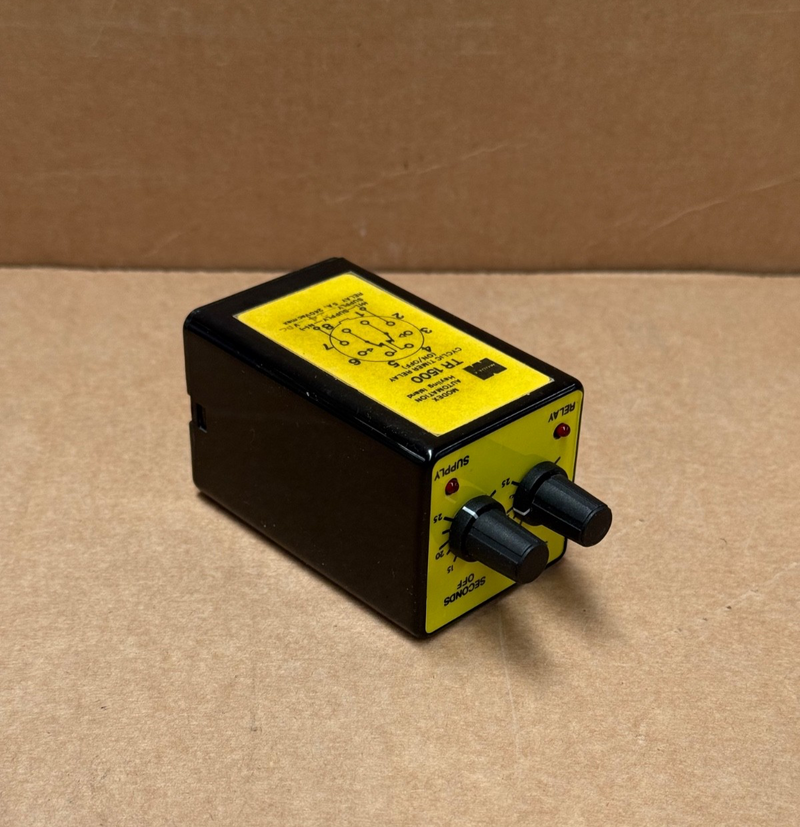

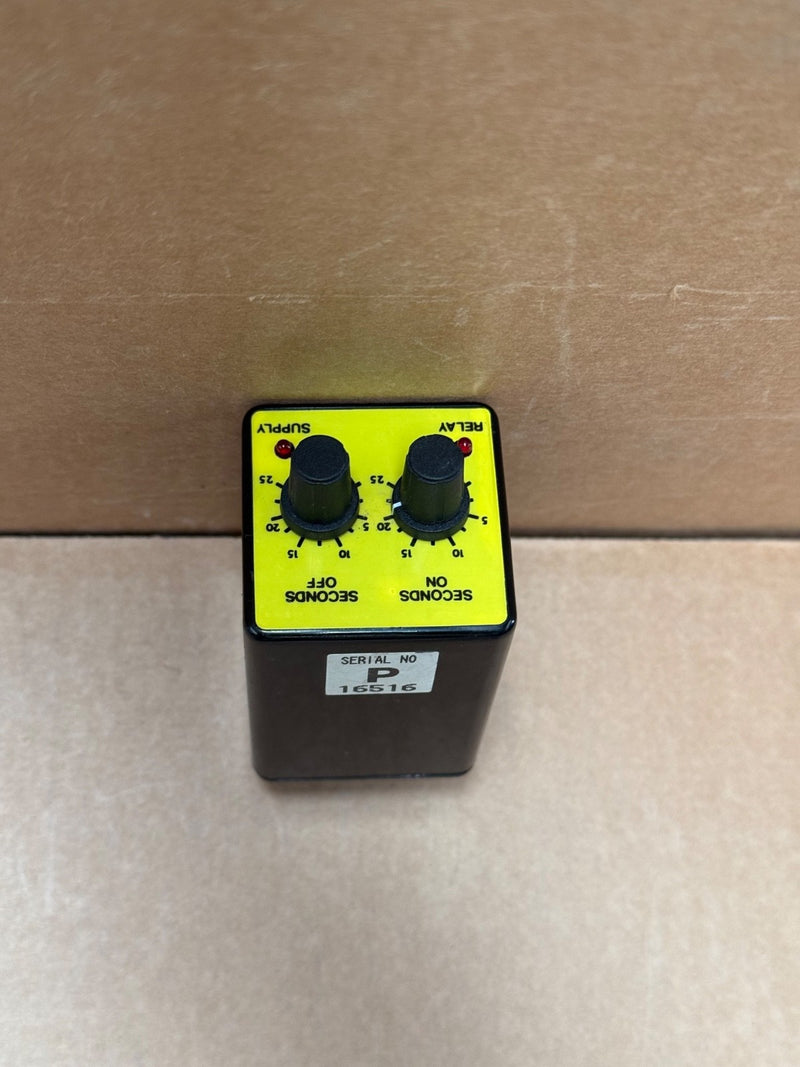

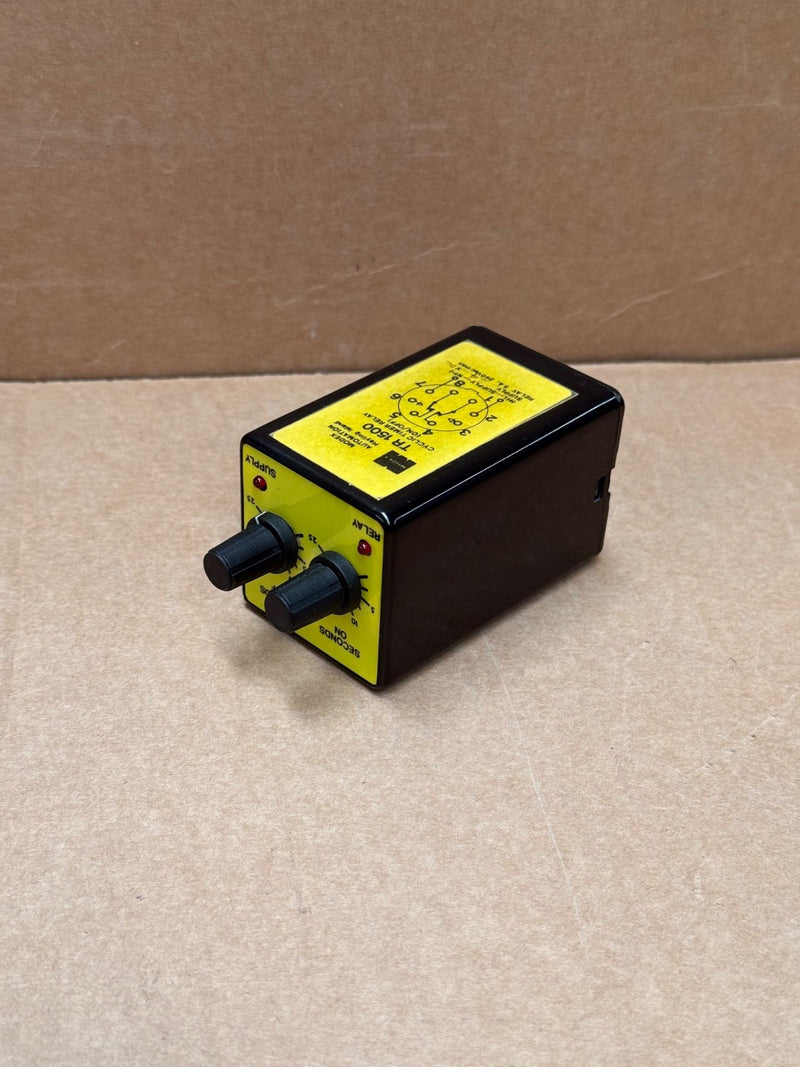

• Timing Function: Adjustable on/off periods (internally preset or potentiometer – refer manual)

• Mounting: Standard 8‑pin socket (not included)
