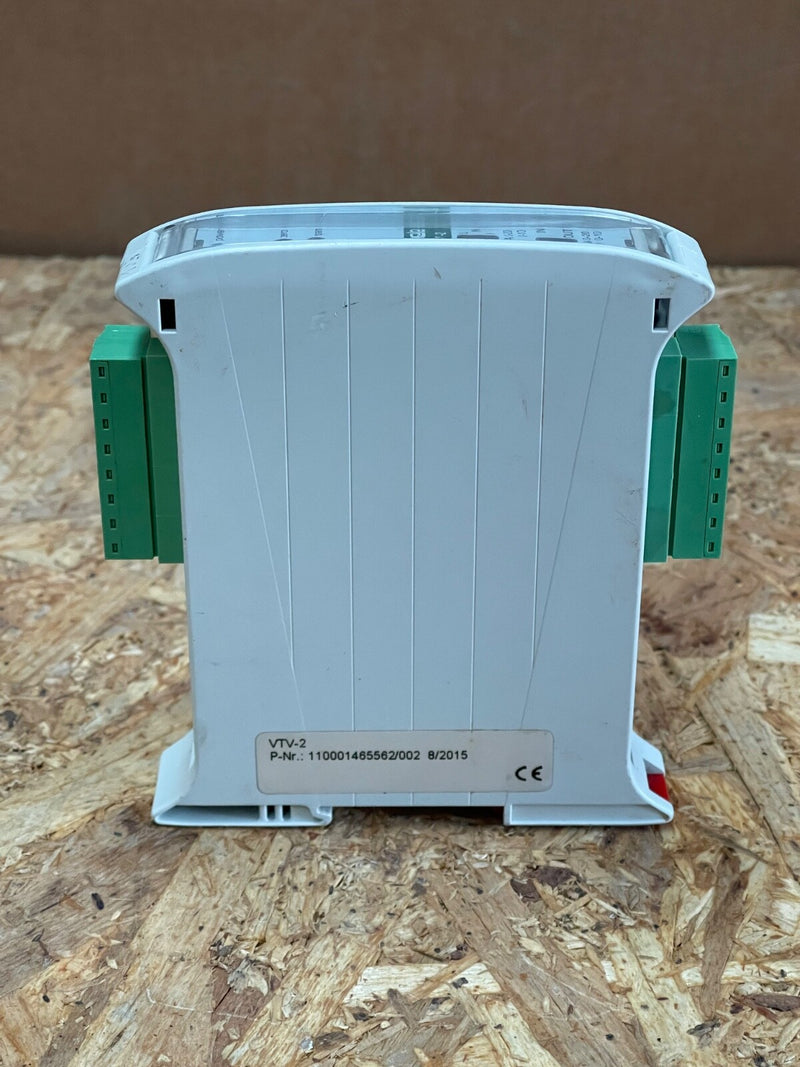

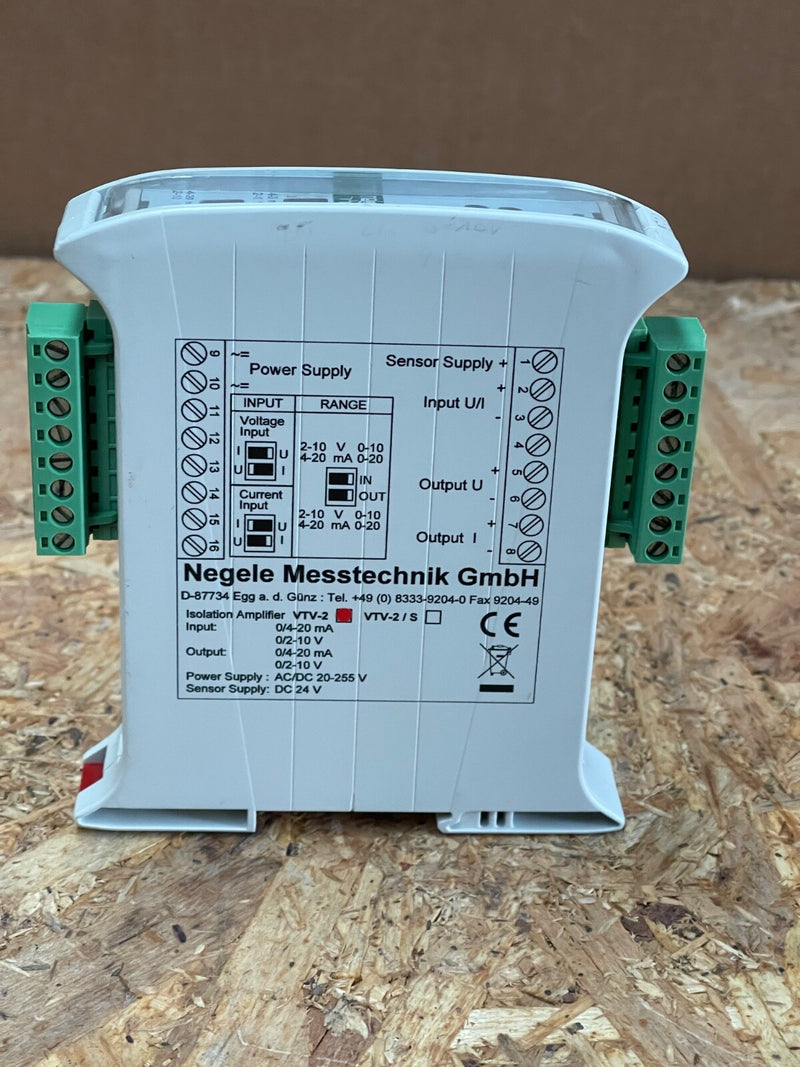

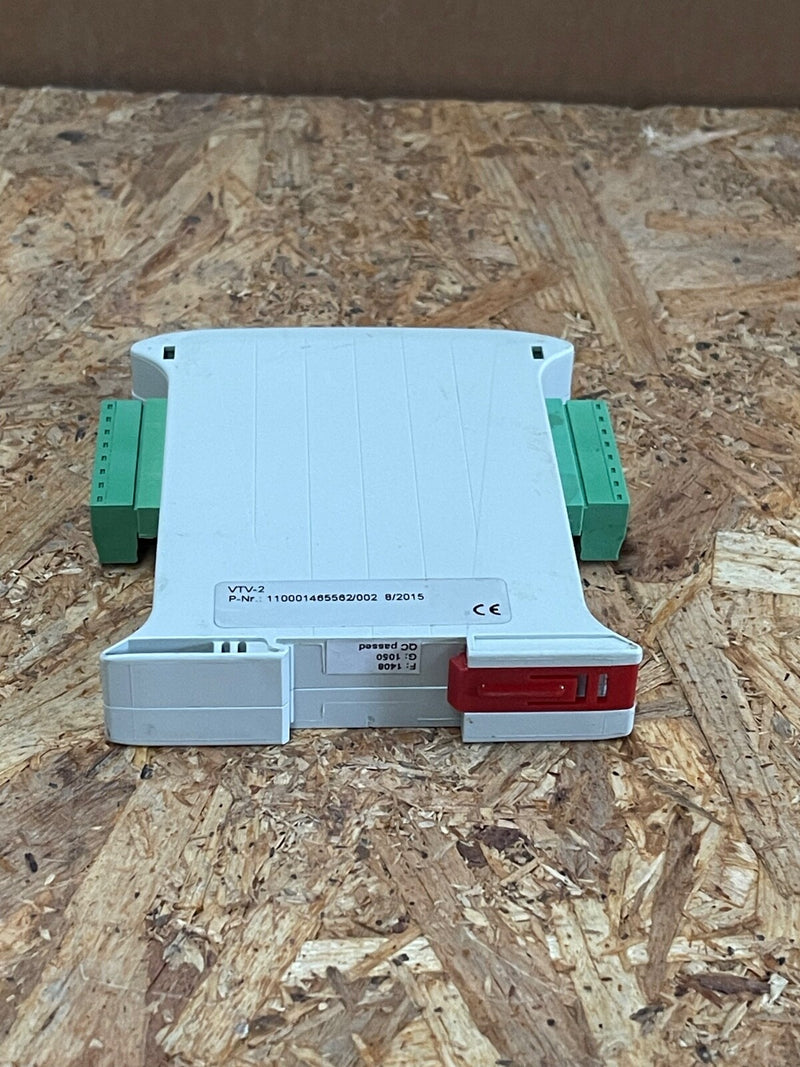

Negele - VTV-2 - Universal Isolation Amplifier, 0–10 V / 0/4–20 mA

The Anderson-Negele VTV-2 is a versatile isolation amplifier designed for galvanic separation and signal conditioning of standard analog signals. It supports both voltage (0–10 V) and current (0/4–20 mA) inputs and outputs, making it suitable for various industrial applications, including food, beverage, and pharmaceutical processes.

Key Features:

• Model: VTV-2

• Brand: Anderson-Negele

• Function: Isolation amplifier for standard signals

• Input Signal: Selectable between 0–10 V and 0/4–20 mA

• Output Signal: Selectable between 0–10 V and 0/4–20 mA

• Isolation Voltage: 1 kV between input, output, and power supply

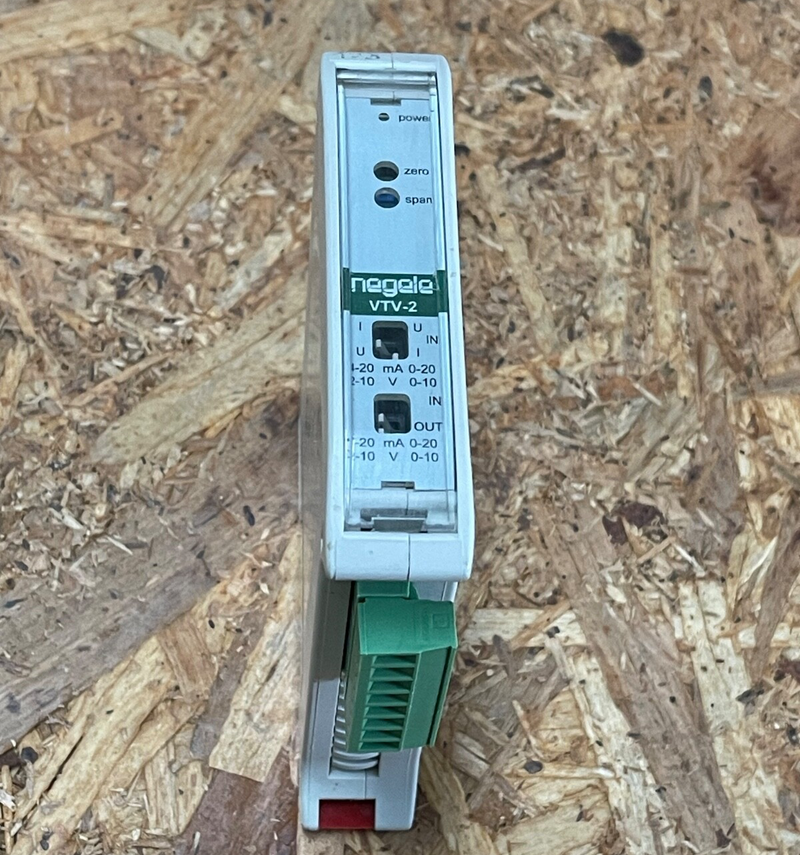

• Adjustments: Zero offset (±5%) and gain (±10%) adjustable via front-panel potentiometers

• Power Supply: Wide-range 20–255 V AC/DC

• Mounting: DIN rail mountable (EN 50022)

• Housing Material: ABS plastic

• Protection Class: IP20

• Dimensions (W x H x D): 22.5 mm x 111 mm x 120 mm

• Operating Temperature Range: 0°C to +55°C

• Applications: Ideal for signal isolation and conditioning in industrial automation, process control, and instrumentation systems
