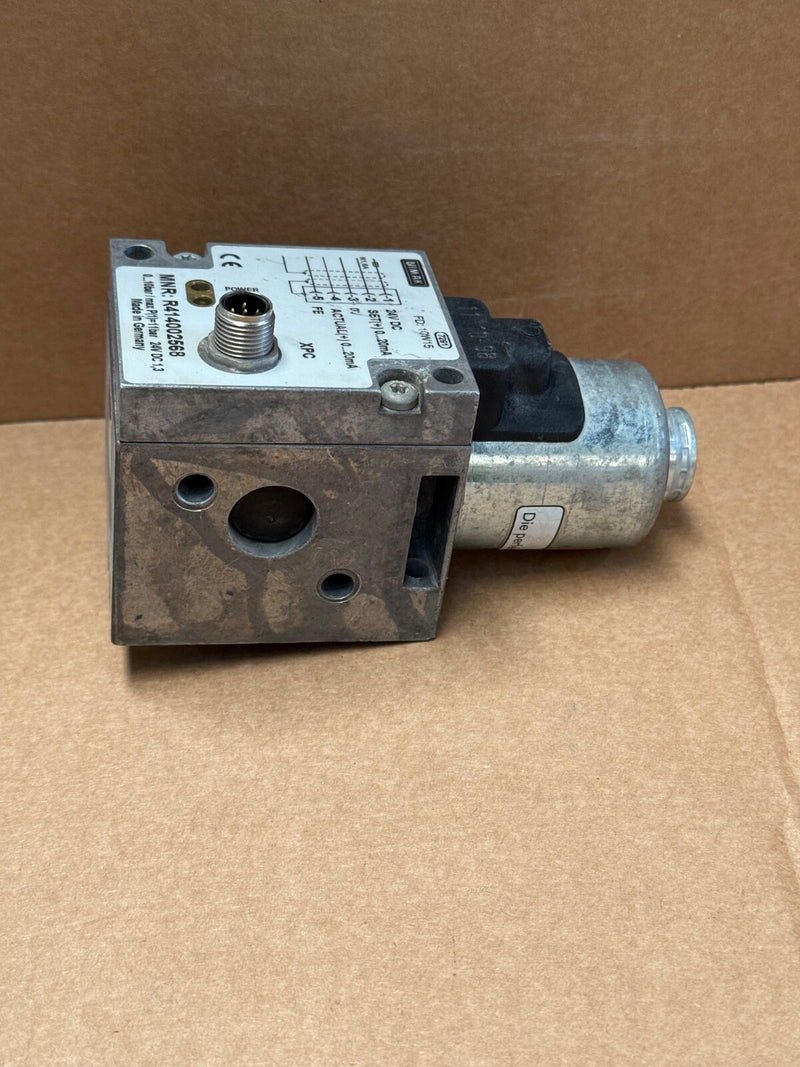

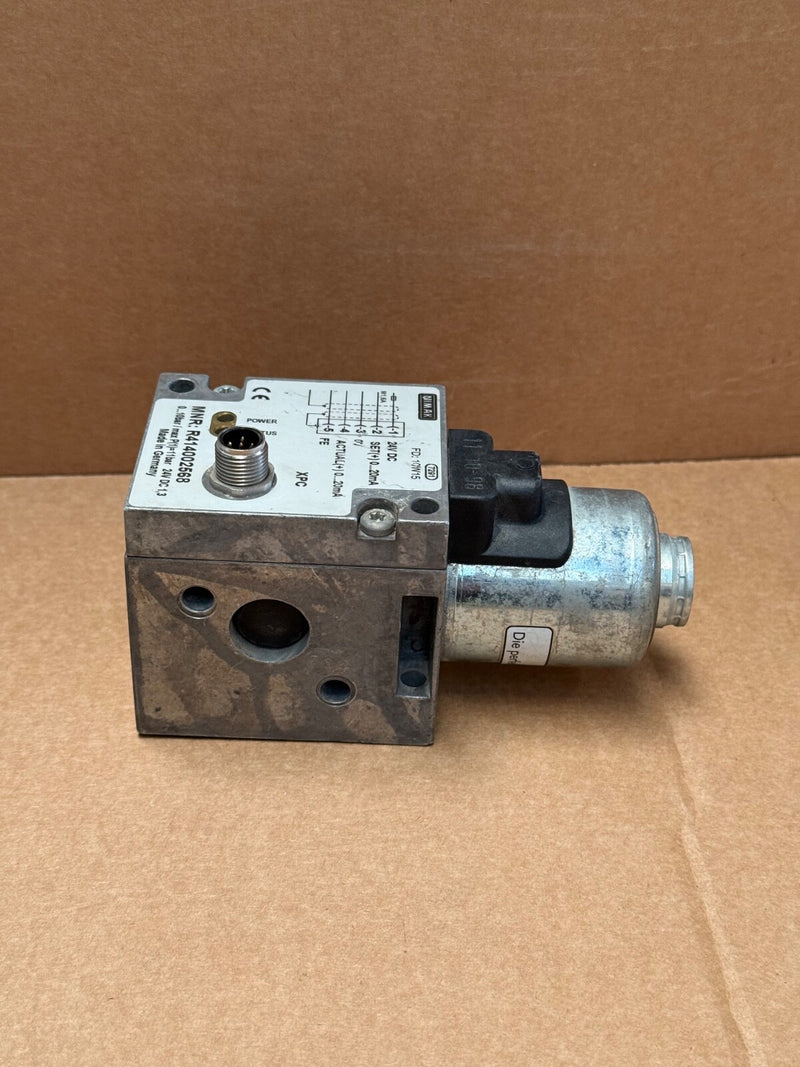

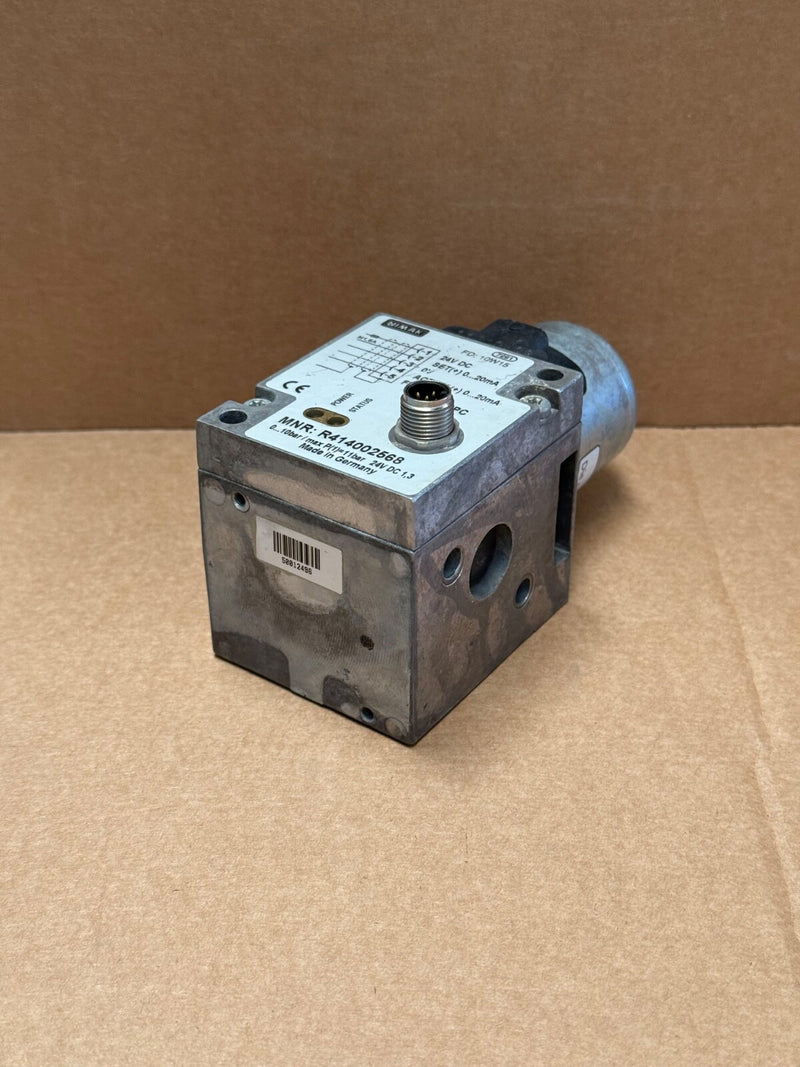

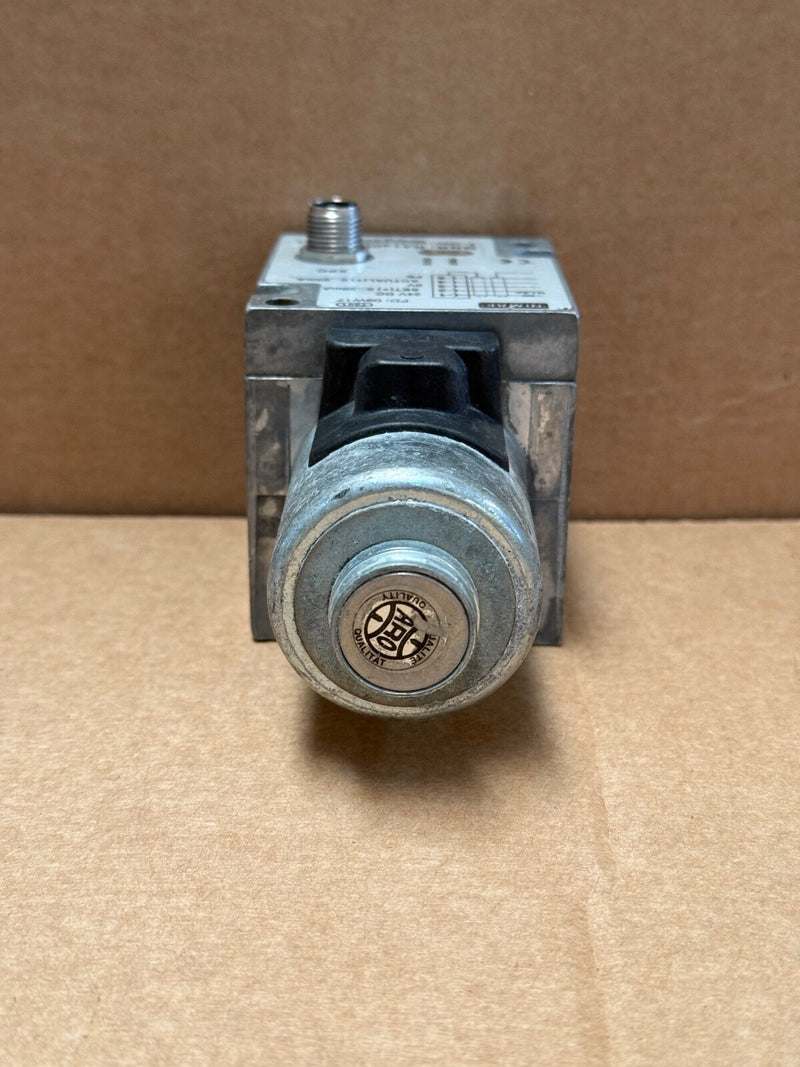

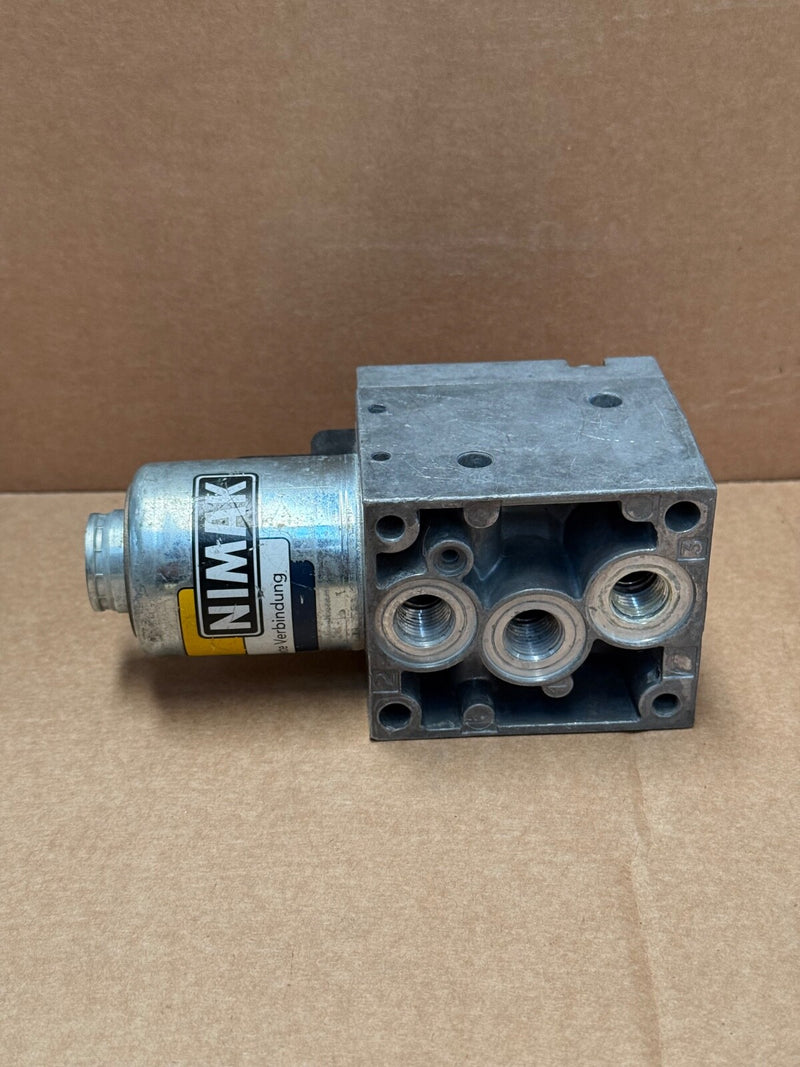

NIMAK – R414002568 – Proportional Pressure Control Valve, 0–10 bar, 24 VDC, 4–20

The NIMAK R414002568 is a German-made proportional pressure control valve designed for precise pneumatic pressure regulation using a 4–20 mA analog control signal. Operating on 24 V DC and rated for pressures up to 11 bar, this compact valve is ideal for high-accuracy control in welding, forming, or automation systems.

Key Features & Specifications:

• Model / MPN: R414002568

• Pressure Range: 0–10 bar

• Max Inlet Pressure (P1): 11 bar

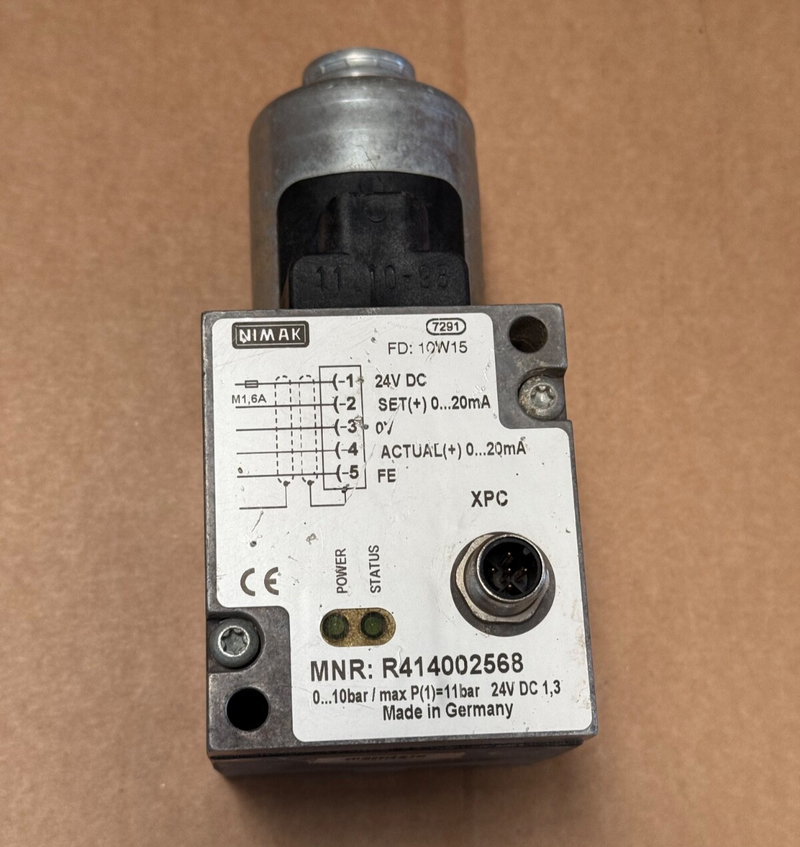

• Control Input: 4–20 mA (“SET” input)

• Feedback Output: 4–20 mA (“ACTUAL” output)

• Operating Voltage: 24 V DC (1.3 W max)

• Electrical Connection: 5‑pin M12 male connector

• Housing: Metal body, DIN-mounted, Made in Germany

• Protection: CE marked, IP-rated enclosure

• Indicators: Power and Status LEDs

• Typical Use: Closed-loop pneumatic regulation in industrial machines (e.g., resistance welding guns)
