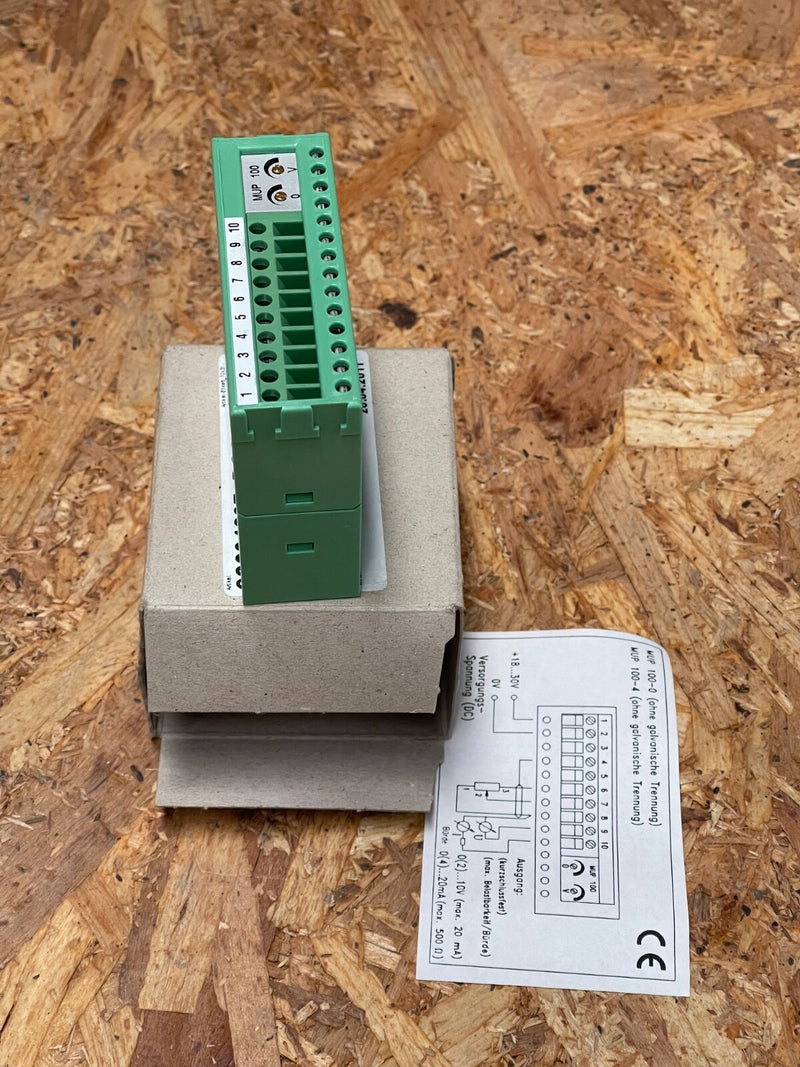

Novotechnik - 054003 (MUP100-4) - Signal Conditioner, 4–20 mA Output

The Novotechnik MUP100-4 (Part No. 054003) is a signal conditioner designed for precise position measurement applications. It converts the signal from potentiometric position sensors into a standardized 4–20 mA current output, ensuring reliable and interference-free signal transmission over long distances. This unit is ideal for industrial environments where accurate position feedback is critical.

Key Features:

• Model: MUP100-4

• Part Number: 054003

• Brand: Novotechnik

• Function: Signal conditioner for potentiometric position sensors

• Output Signal: 4–20 mA (burden impedance max. 500 Ω)

• Operating Voltage: 18–30 V DC

• Input Resistance: >10 MΩ

• Internal Reference Voltage: 10 V DC, highly stable and short-circuit proof

• Adjustment Range:

  • Zero Point: -30% to +20%

  • Gain: 0.65 to 2

• Linearity: Typical 0.01%

• Temperature Coefficient: 20 ppm/K (typical)

• Operating Temperature Range: -25°C to +70°C

• Mounting: DIN EN 50022 rail (35 mm)

• Housing Width: 22.5 mm

• Protection Class: IP50 (housing), IP00 (terminals)

• Weight: Approximately 110 g

• Applications: Suitable for converting potentiometric sensor signals into standardized current outputs in industrial automation systems, ensuring accurate position feedback and control.
