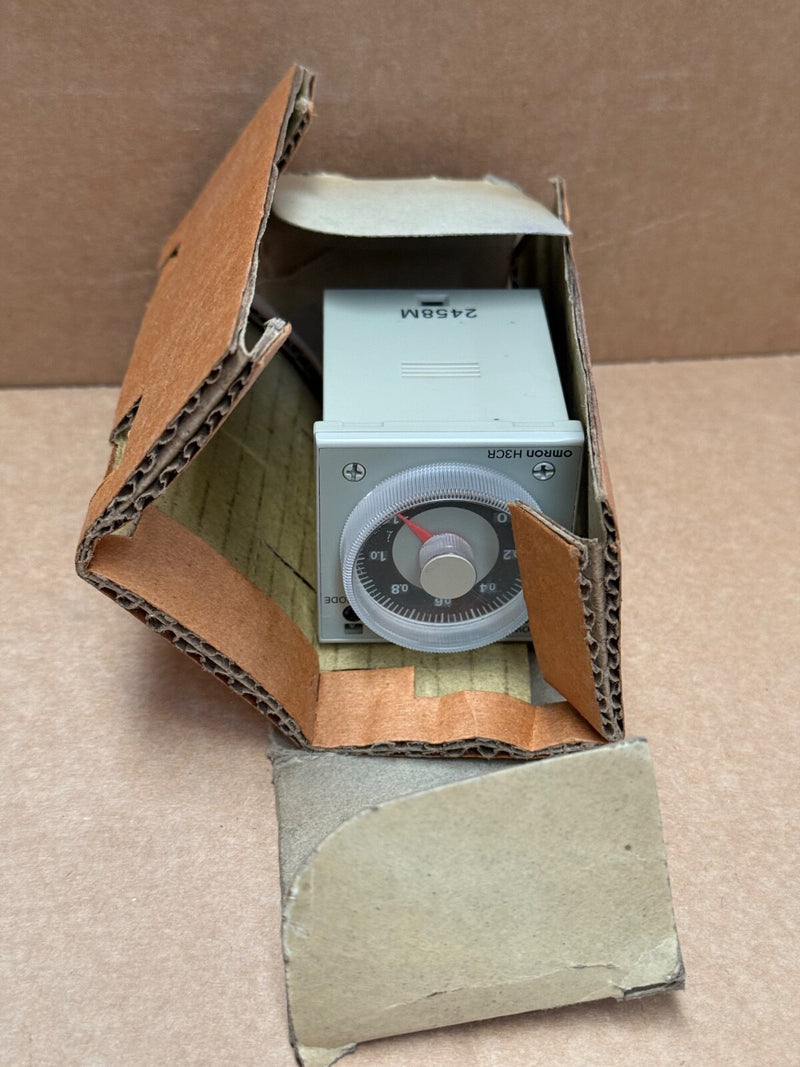

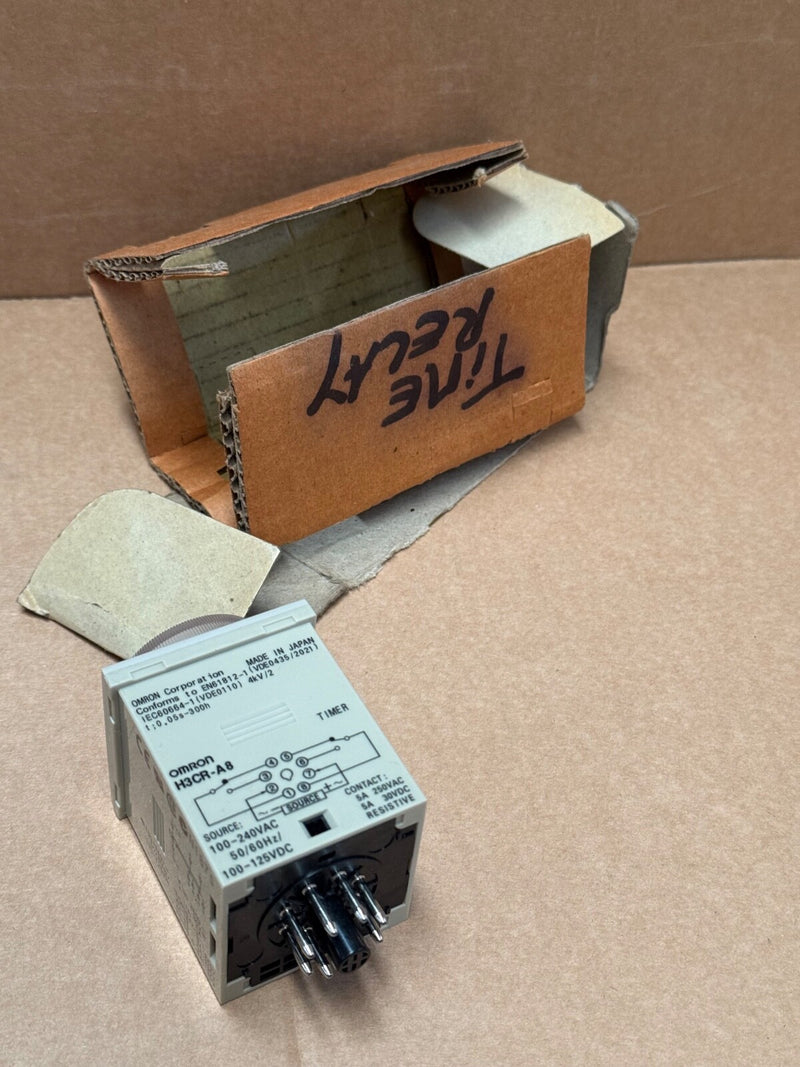

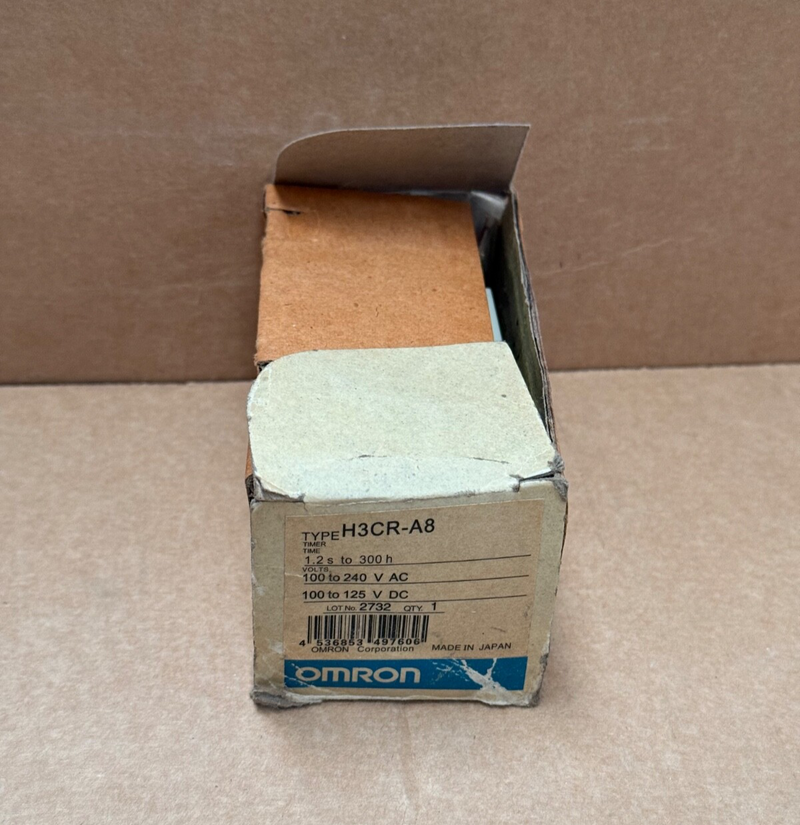

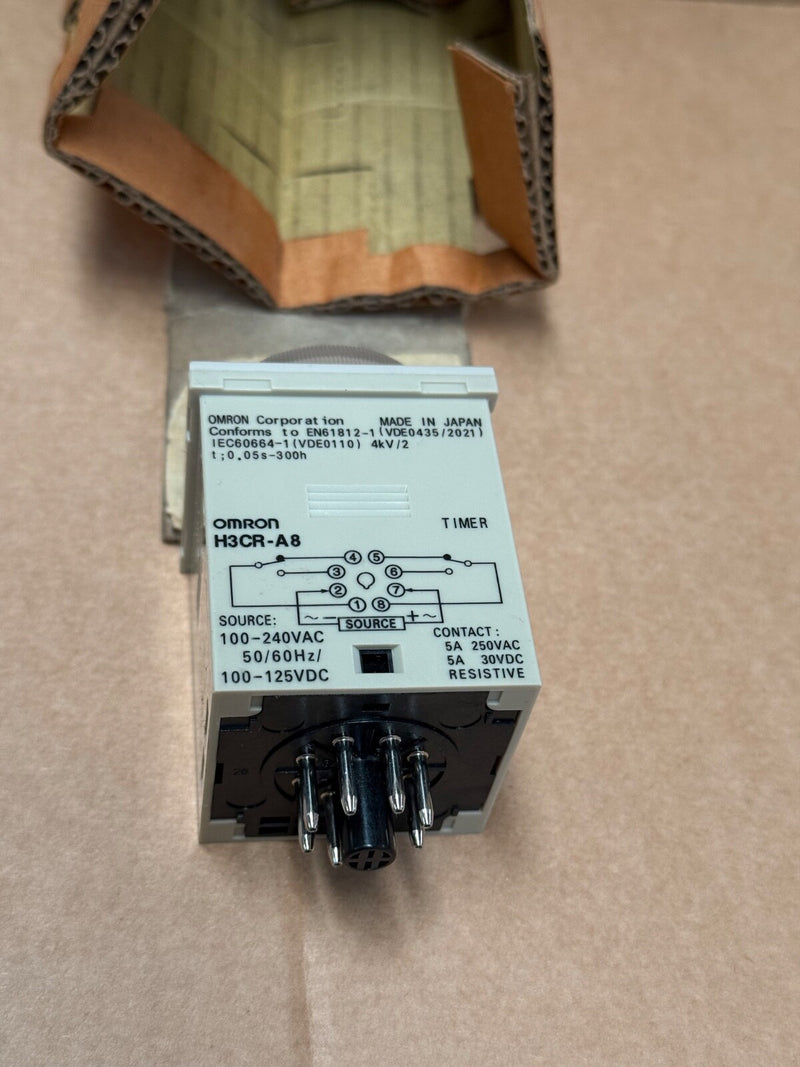

Omron – H3CR‑A8 (AC100‑240/DC100‑125) – Multifunction Solid‑State Timer

The Omron H3CR‑A8 is a versatile multifunction solid-state timer (8-pin), perfect for industrial control panels. With adjustable timing from 0.05 seconds to 300 hours, selectable through rotary and DIP controls, it offers DPDT relay outputs capable of 5 A @ 250 VAC. Its universal AC/DC power compatibility makes it ideal for diverse applications requiring precise delay functions.

 Key Features

• Model: H3CR‑A8

• Power Supply: 100–240 VAC or 100–125 VDC

• Time Range: 0.05 s to 300 h, four selectable scales via front dial

• Modes: ON-delay, Flicker OFF/ON start, Interval, One-shot

• Output: DPDT relay (2 × changeover) rated 5 A @ 250 VAC, 0.15 A @ 125 VDC

• Mounting: 48 × 48 mm panel cutout; 8-pin socket (P2CF‑08-E) or DIN‑rail adapter

• Dimensions: 48 × 48 × 66 mm; weight ~90 g

• Dielectric & Impulse: 2000 VAC withstand; 5 kV impulse rated

• Certifications: UL508, CSA, CCC, NK, Lloyd’s, CE per EN61812-1
