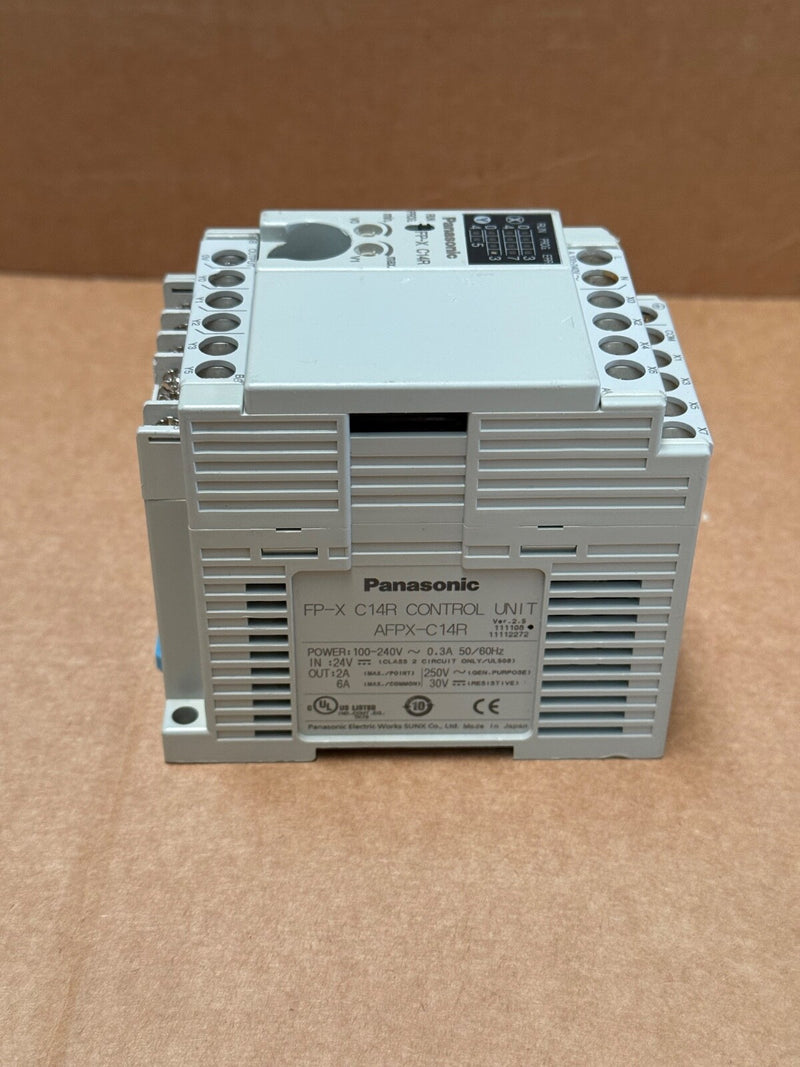

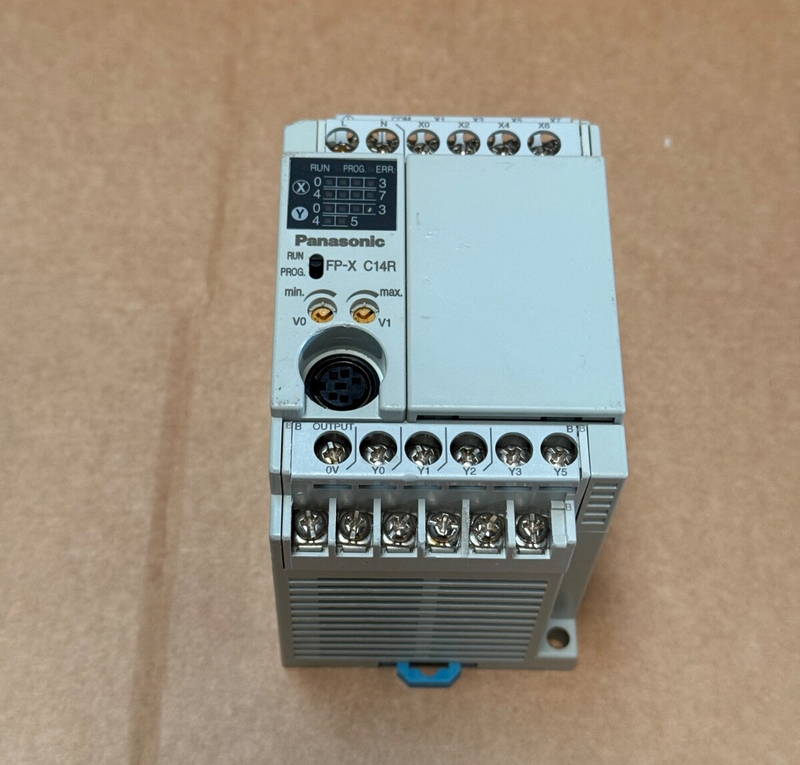

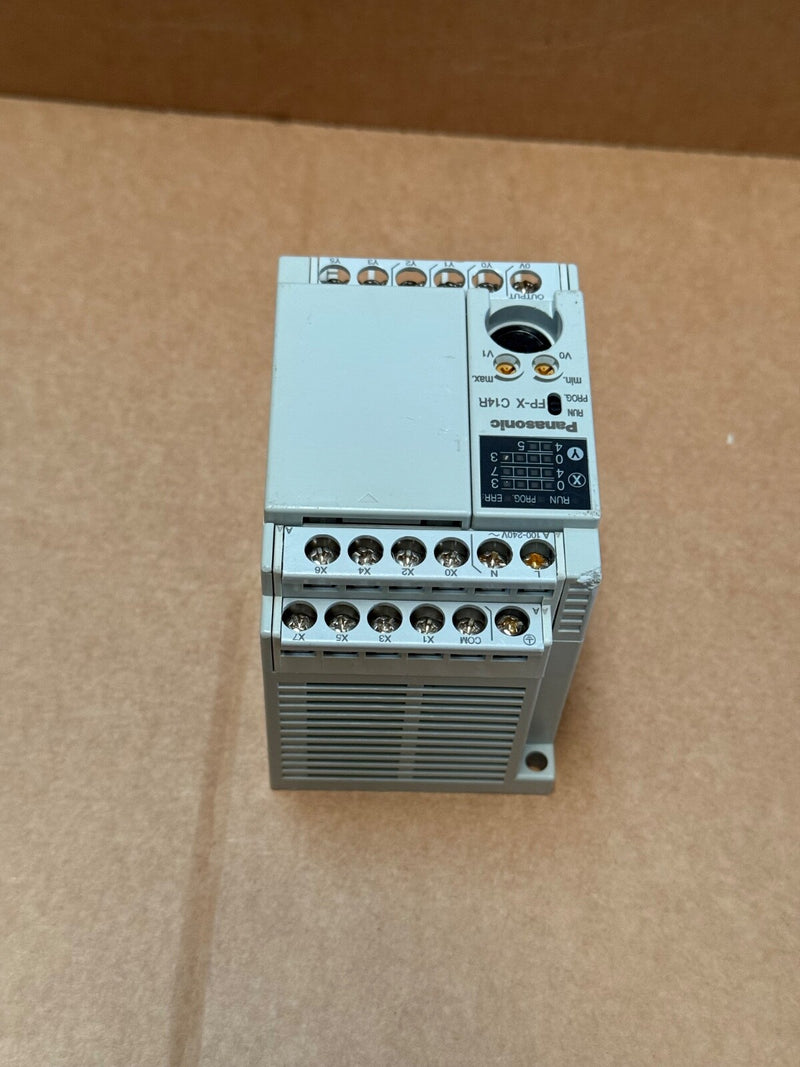

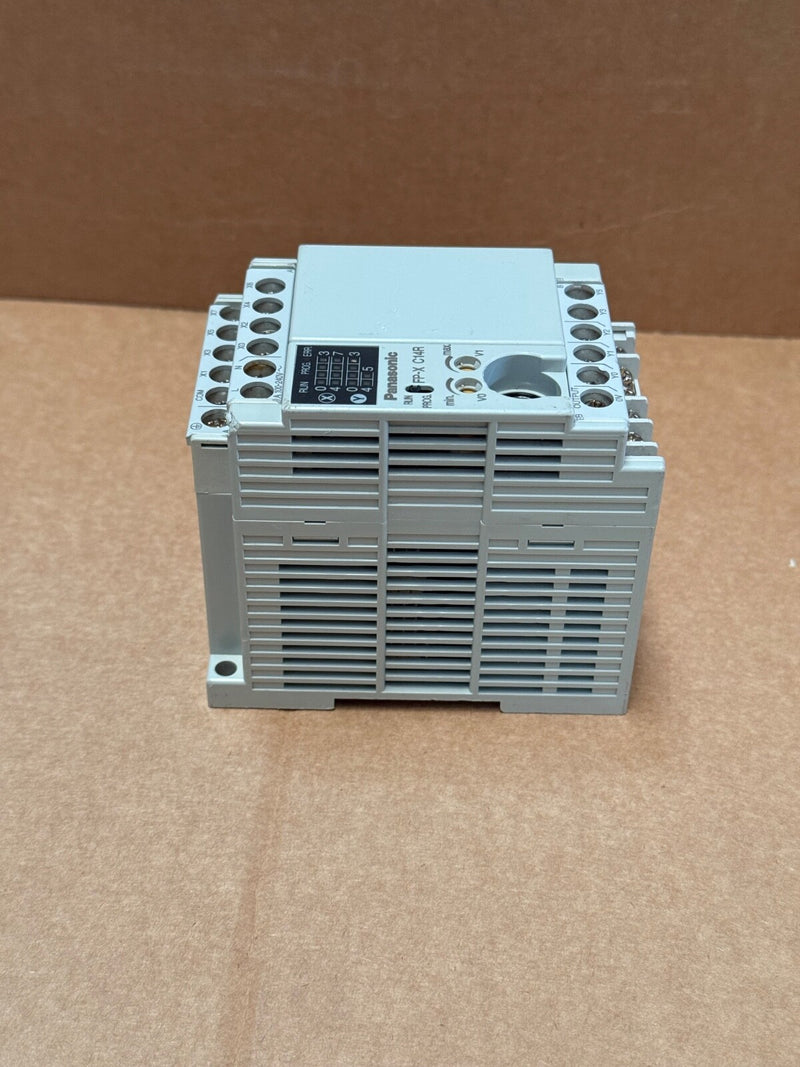

Panasonic – AFPX‑C14R – FP‑X Series Compact PLC, 8 DI / 6 Relay DO, 100–240 VAC

The Panasonic AFPX‑C14R (part of the FP‑X series) is a compact programmable logic controller featuring integrated relay outputs and dual communication ports. Designed for DIN‑rail installation, it supports 8 digital inputs, 6 relay outputs, and advanced functionality via plug‑on cassettes—ideal for space‑conscious automation projects.

Key Features

• Model: AFPX‑C14R (Panasonic FP‑X C‑series)

• Power Supply: 100–240 V AC ±10%, 50/60 Hz

• Digital Inputs: 8 × 24 V DC (sink/source configuration with common)

• Digital Outputs: 6 × relay (SPST), 250 V AC / 2 A

• Program Memory: 16 k‑step internal flash (≈12 k words)

• Communication Ports: RS‑232C tool port + RS‑485 (via cassette)

• Expansion: Supports USB comms, motion, pulse, analog, Ethernet via AFPX add‑on cassettes

• Embedded Functions: Trace logging, motion interpolation (2 axes), multi‑point PID, data exchange over fieldbus options

• Indicators & Controls: RUN/PROG mode switch; status & input/output LEDs

• Mounting: DIN‑rail or panel mount; compact 60 × 90 × 79 mm form factor

• Certifications: CE, RoHS compliant; UL-style relay outputs
