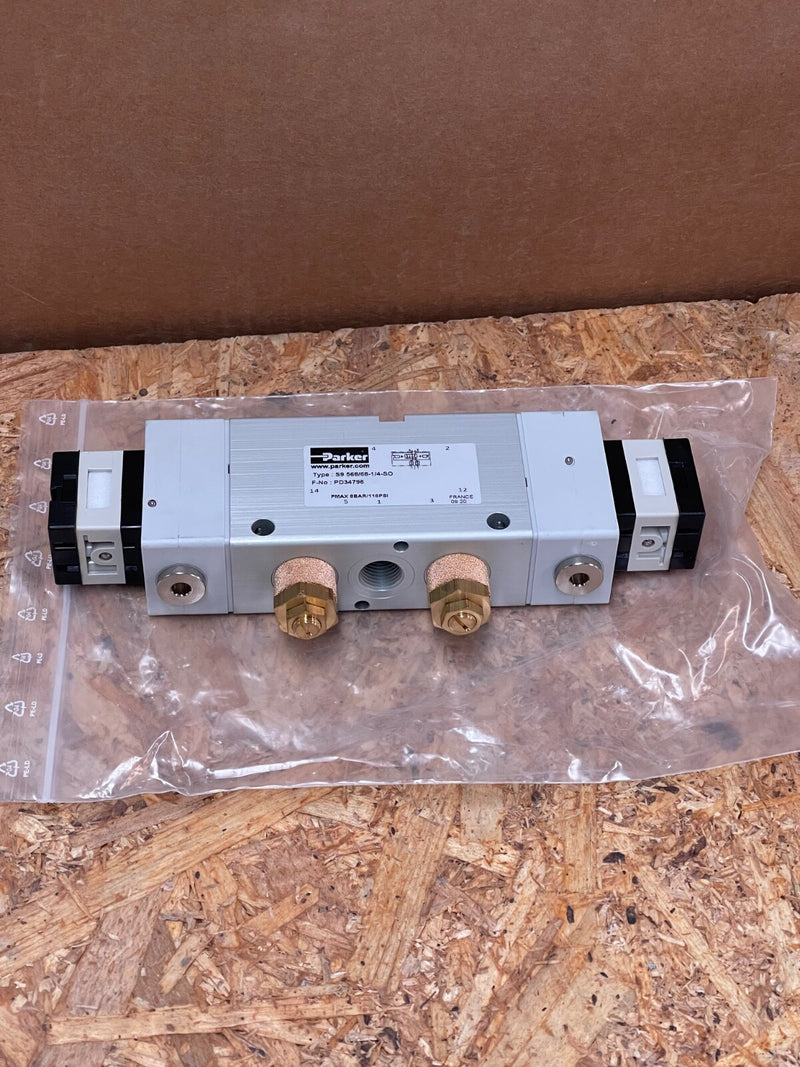

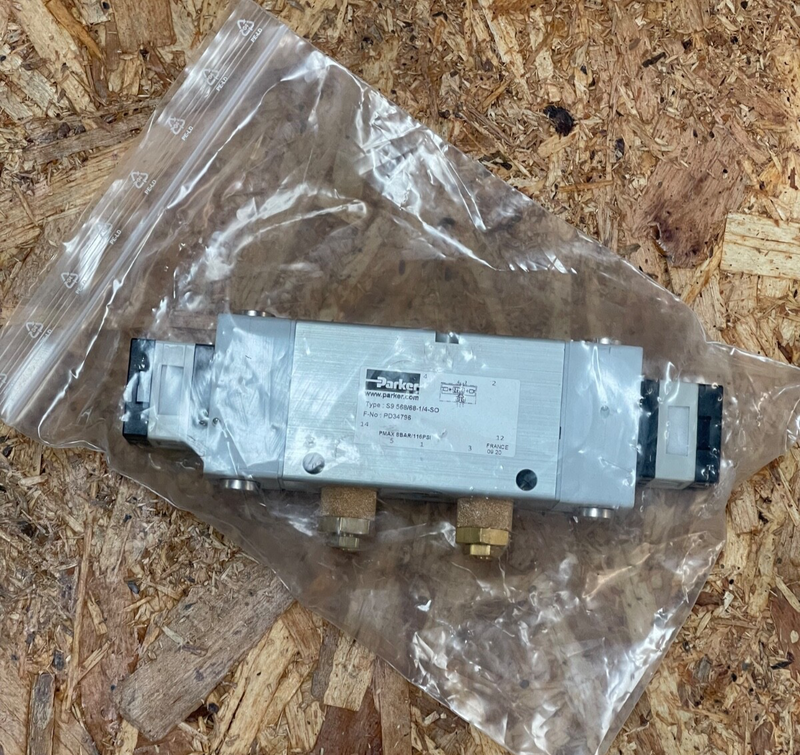

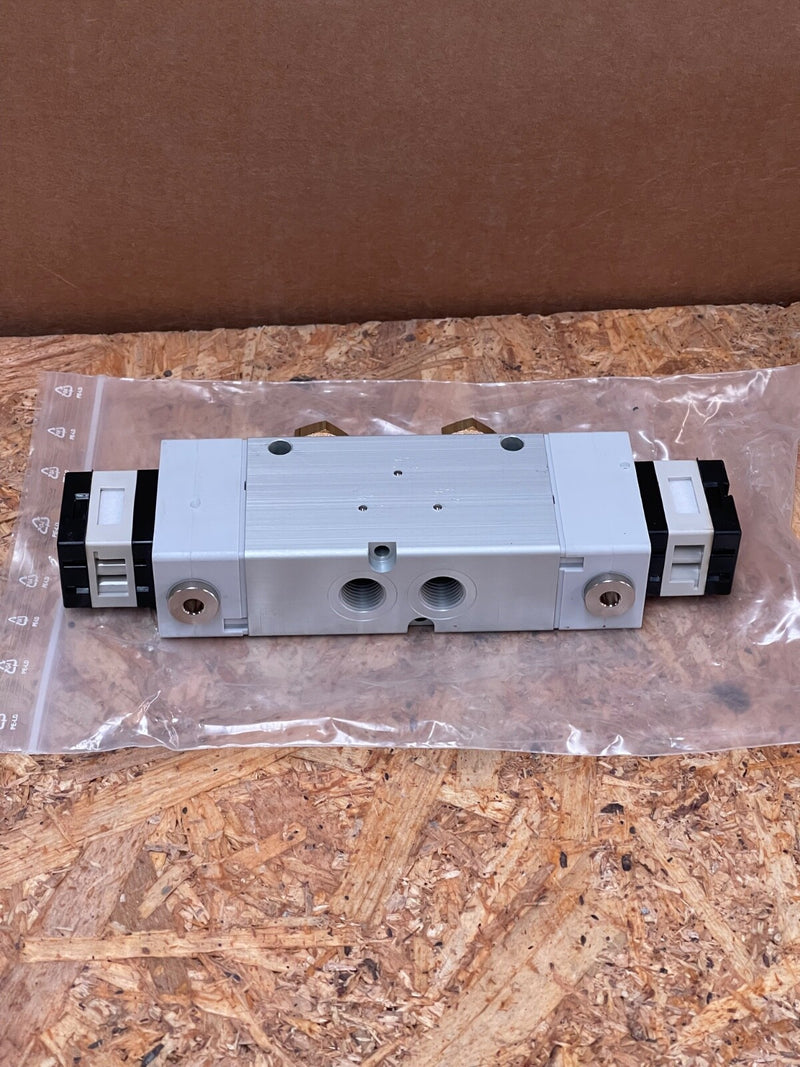

Parker - PD34796 - S9 568/68-1/4-SO 5/2 Oscillating Pneumatic Valve, G1/4”

The Parker PD34796 is a 5/2-way oscillating pneumatic valve designed to generate automatic reciprocating movements in pneumatic systems. Ideal for applications such as shaking, hammering, plunging, and feeding, this valve alternately supplies compressed air to output ports, enabling continuous back-and-forth motion without external control signals. Equipped with integrated exhaust air throttles, it allows precise adjustment of stroke frequency and speed.

Key Features:

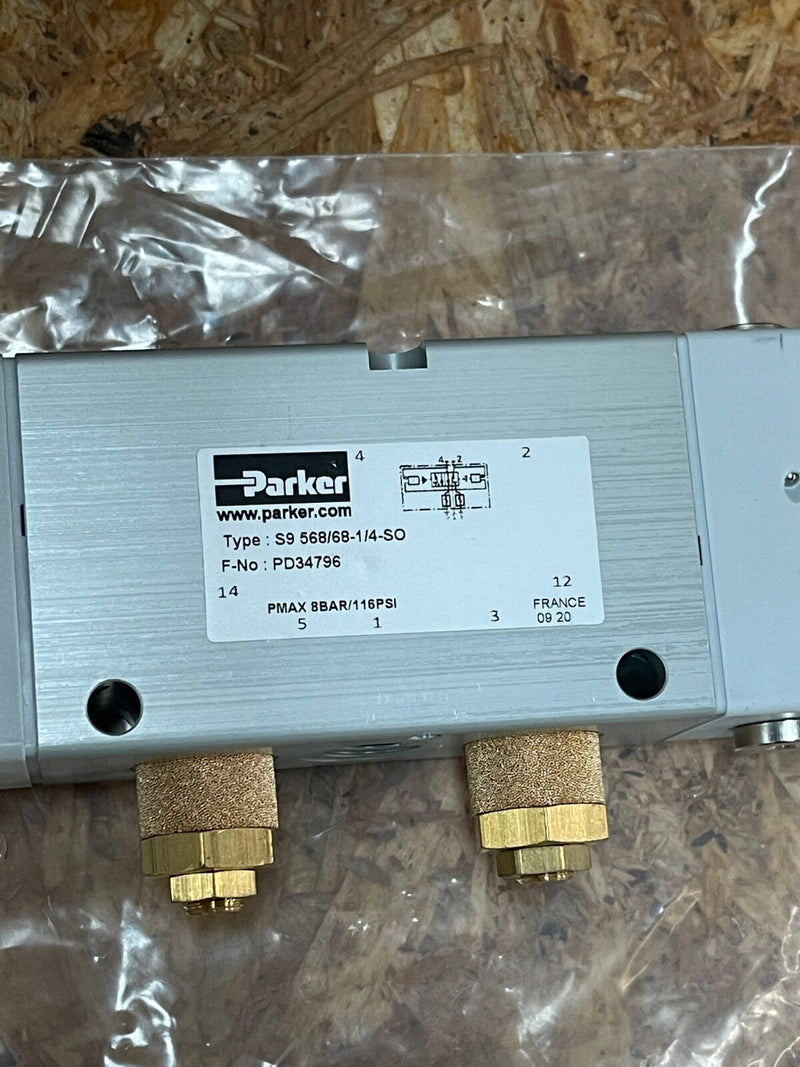

• Model: S9 568/68-1/4-SO

• Brand: Parker

• Part Number: PD34796

• Valve Type: 5/2-way oscillating spool valve

• Port Size: G1/4” threaded connections

• Mounting: 2 screws M6 (M4)

• Installation Position: Any orientation

• Operating Pressure Range: 3 to 8 bar

• Nominal Pressure: 6 bar

• Nominal Flow Rate: 1300 L/min

• Actuation: Pneumatic direct

• Actuation Pressure Range: 3 to 8 bar

• Medium: Filtered and oiled or filtered, unoiled compressed air

• Medium Temperature Range: –10 °C to +60 °C

• Ambient Temperature Range: –10 °C to +60 °C

• Weight: 0.65 kg

• Applications: Suitable for industrial processes requiring automatic reciprocating movements, such as shaking, hammering, plunging, feeding, scraping, wiping, winding, tensioning, raking, deflecting, spraying, cleaning, and soaking
